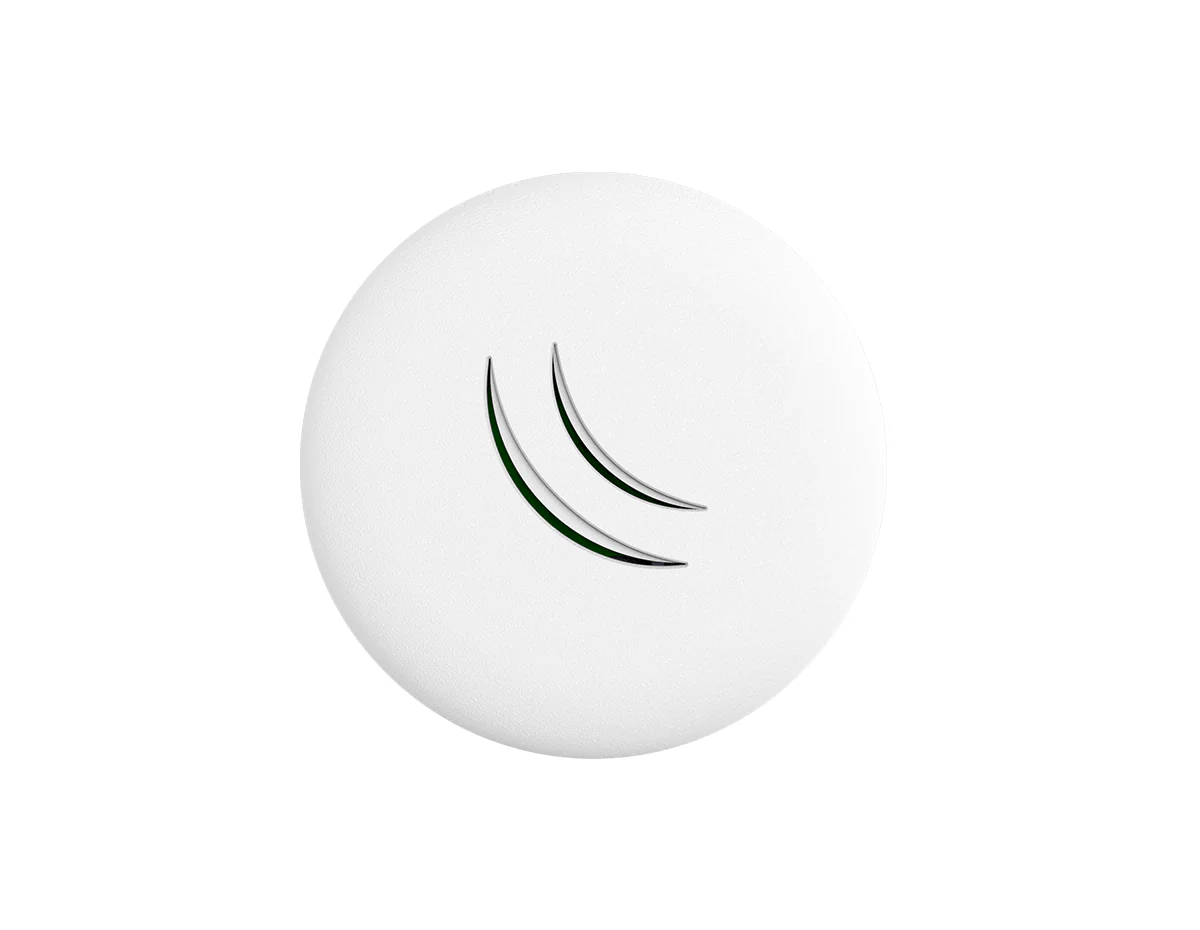

Mikrotik RBcAPL-2nD Access Point
- Low-cost dual-chain 2.4GHz AP with wall and ceiling enclosure
[properties]
| Properties | Mikrotik RBcAPL-2nD Access Point |
| Description | The MikroTik RBcAPL-2nD is a compact and affordable wireless access point, perfect for extending Wi-Fi coverage in small to medium-sized areas. With easy setup and 2.4GHz support, it's an ideal choice for homes, offices, or small businesses. |
| Product Family | MikroTik cAP Access Point Series |
| Product Type | Access Point |
[/properties] [specifications]
| Specifications | Mikrotik RBcAPL-2nD Access Point |
| Architecture | MIPSBE |
| CPU | QCA9533 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| Dimensions | Wall case: 88 x 52 x 20 mm Ceiling case: ⌀88 mm x 20 mm |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | (-40°C to 70°C) |
| Wireless capabilities | |
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 45413 |
| Wireless 2.4 GHz chip model | QCA9533 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
| Ethernet | |
| 10/100 Ethernet ports | 1 |
| Peripherals | |
| Number of USB ports | 1 |
| USB slot type | microUSB type AB |
| Max USB current (A) | 1 |
| Powering | |
| MicroUSB input Voltage | 5 V |
| Number of DC inputs | 2 (PoE-IN, MicroUSB) |
| Max power consumption | 4 W |
| Cooling type | Passive |
| PoE in | 802.3af/at |
| PoE in input Voltage | 10-60 V |
| Certification & Approvals | |
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP20 |
| Wireless specifications (2.4 Gz) | |
| 1MBit/s | Transmit (dBm) : 22 Receive Sensitivity : -96 |
| 11MBit/s | Transmit (dBm) : 22 Receive Sensitivity : -89 |
| 6MBit/s | Transmit (dBm) : 20 Receive Sensitivity : -93 |
| 54MBit/s | Transmit (dBm) : 18 Receive Sensitivity : -74 |
| MCS0 | Transmit (dBm) : 20 Receive Sensitivity : -93 |
| MCS7 | Transmit (dBm) : 16 Receive Sensitivity : -71 |
[/specifications] [accesories] [/accesories]
MikroTik RBcAPL-2ND Access Point
The RBcAPL-2nD is a compact access point device designed for deployment in public areas and commercial establishments such as hotels, airports, and shopping centers. This device is compatible with 802.11b/g/n standards and can be powered using power over Ethernet. It is particularly well-suited for integration with the MikroTik CAPsMAN, a system manager for controlled access points, enabling centralized management of multiple access point devices. Additionally, the RBcAPL-2nD can function independently as a standalone access point, leveraging the complete capabilities of RouterOS.
Quick Specs:
- 1x 10/100 Ethernet Port
- PoE-in: 802.3af/at
- QCA9533,1 core, 650 MHz CPU
- 64 MB RAM
Please see the related tabs for the RBcAPL-2nD datasheet and compatible accessories.
