Mikrotik RBcAP2nD Access Point - cAP
- Ceiling AP, Dual-Chain 2.4GHz, 650MHz CPU, RouterOS L4, 802.3at/af support
[properties]
| Properties | MikroTik cAP RBCAP2ND |
| Description | Ceiling AP, Dual-Chain 2.4GHz, 650MHz CPU, RouterOS L4, 802.3at/af support |
| Product Family | cAP Series |
| Product Type | Access Point |
| 10/100 Ethernet ports | 1 |
| Extras | Mode button |
| Dimensions | 185mm diameter, 31mm height |
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 4 W |
| Cooling type | Passive |
| PoE in | 802.3af/at |
| PoE in input Voltage | 11-57 V |
[/properties][specifications]
| Specifications | RBCAP2ND |
| Memory | 64 MB |
| Flash Storage size | 16 MB |
| CPU | QCA9533 650 MHz |
| CPU core count | 4 |
| OS | RouterOS level 4 license |
| Wireless capabilities | |
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 2 |
| Wireless 2.4 GHz chip model | QCA9533 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
| Wireless specifications | |
| 2.4 GHz | |
| 1MBit/s | Transmit (dBm): 22 Receive Sensitivity: -96 |
| 11MBit/s | Transmit (dBm): 22 Receive Sensitivity: -89 |
| 6MBit/s | Transmit (dBm): 20 Receive Sensitivity: -93 |
| 54MBit/s | Transmit (dBm): 18 Receive Sensitivity: -74 |
| MCS0 | Transmit (dBm): 20 Receive Sensitivity: -93 |
| MCS7 | Transmit (dBm): 16 Receive Sensitivity: -71 |
| MTBF | Approximately 100.000 hours at 25C |
| Temperature | -40°C to 70°C tested |
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP20 |
[/specifications][accesories]
| 24V 0.2A power adapter |
| Ceiling mount |
| PoE injector |
| K-46 screw kit |
[/accesories]

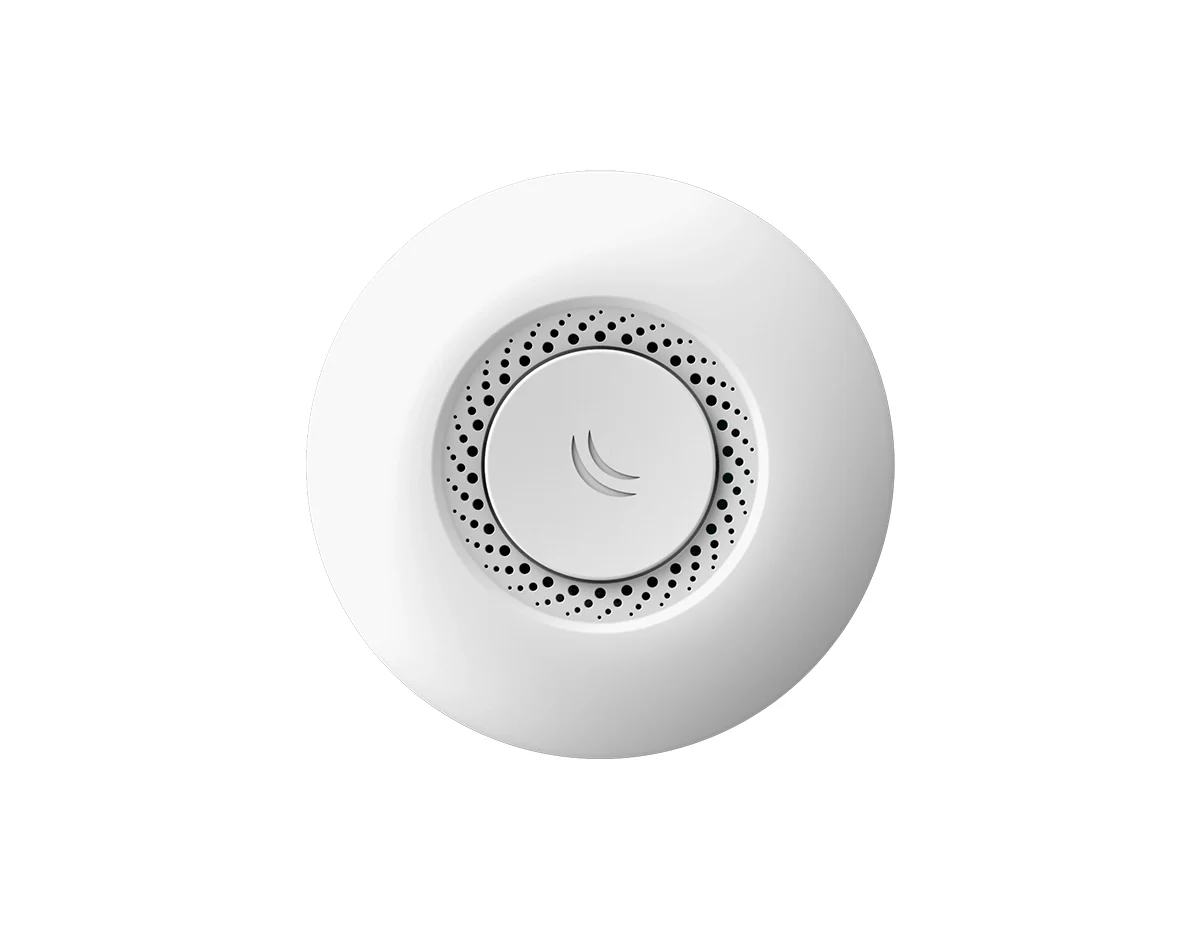

MikroTik RBCAP2ND Access Point
The RBCAP2ND is a 2.4GHz Dual-Chain ceiling access point (AP) with a discreet design that seamlessly integrates into its surroundings, making it well-suited for deployment in hospitality settings such as hotels, airports, and shopping malls. This AP model is compatible with 802.11b/g/n standards and can be powered using Power over Ethernet (PoE). It is an ideal complement to the MikroTik CAPsMAN, a system manager for controlled APs, enabling centralized management of multiple AP devices.
Quick Specs:
- 1x 10/100 Ethernet Port
- QCA9533, 1 core, 650 MHz CPU
- PoE-in: 802.3af/at
- 64 MB RAM
Please see the related tabs for the RBCAP2ND datasheet and compatible accessories.
