Mikrotik RB952Ui-5ac2nD-TC-US Access Point

[shortdesc]

Dual-Concurrent 2.4/5GHz AP, 802.11ac, Five Ethernet ports, PoE-out on port 5, USB for 3G/4G support, universal tower case

[/shortdesc]

[properties]

Properties	MikroTik hAP ac Lite RB952UI-5AC2ND-TC-US
Description	Dual-Concurrent 2.4/5GHz AP, 802.11ac, Five Ethernet ports, PoE-out on port 5, USB for 3G/4G support, universal tower case
Product Family	hAP Series
Product Type	Access Point
Features	• Dual chain wireless 2.4 GHz • Single chain wireless 5 GHz • 650 MHz CPU • 64 MB of RAM • Five x 10/100 Mbps Ethernet ports • Passive PoE output on port 5 • USB port for 3G/4G modem
10/100 Ethernet ports	5
Number of USB ports	1 USB type A
Extras	Beeper
Dimensions	34 x 119 x 98mm
Number of DC inputs	2 (DC jack, PoE-IN)
DC jack input Voltage	10-28 V
Max power consumption	20 W
Max power consumption without attachments	8 W
Cooling type	Passive
PoE in	Passive PoE
PoE in input Voltage	10-28 V
PoE-out ports	Ether5
PoE out	Passive PoE
Max out per port output (input 18-30 V)	500 mA
Max total out (A)	500 mA

[/properties][specifications]

Specifications	RB952UI-5AC2ND-TC-US
Memory	64 MB
Flash Storage size	16 MB
CPU	QCA9531 650 MHz
CPU core count	1
Switch chip model	QCA9531
OS	RouterOS level 4 license
Wireless capabilities
Wireless 2.4 GHz Max data rate	300 Mbit/s
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n
Antenna gain dBi for 2.4 GHz	1.5
Wireless 2.4 GHz chip model	QCA9531
Wireless 2.4 GHz generation	Wi-Fi 4
Wireless 5 GHz Max data rate	433 Mbit/s
Wireless 5 GHz number of chains	1
Wireless 5 GHz standards	802.11a/n/ac
Antenna gain dBi for 5 GHz	2
Wireless 5 GHz chip model	QCA9887
Wireless 5 GHz generation	Wi-Fi 5
WiFi speed	AC750
Wireless specifications
2.4 GHz
1MBit/s	Transmit (dBm): 22 Receive Sensitivity: -96
11MBit/s	Transmit (dBm): 22 Receive Sensitivity: -89
6MBit/s	Transmit (dBm): 20 Receive Sensitivity: -93
54MBit/s	Transmit (dBm): 18 Receive Sensitivity: -74
MCS0	Transmit (dBm): 20 Receive Sensitivity: -93
MCS7	Transmit (dBm): 16 Receive Sensitivity: -71
5 GHz
6MBit/s	Transmit (dBm): 23 Receive Sensitivity: -93
54MBit/s	Transmit (dBm): 20 Receive Sensitivity: -75
MCS0	Transmit (dBm): 23 Receive Sensitivity: -93
MCS7	Transmit (dBm): 19 Receive Sensitivity: -71
MCS9	Transmit (dBm): 16 Receive Sensitivity: -63
MTBF	Approximately 100.000 hours at 25C
Temperature	-30°C to 70°C tested
Certification	CE, FCC, IC, EAC, ROHS
IP	IP20

[/specifications][accesories]

24V 1.2A power adapter

K-47 wall mount set

[/accesories]

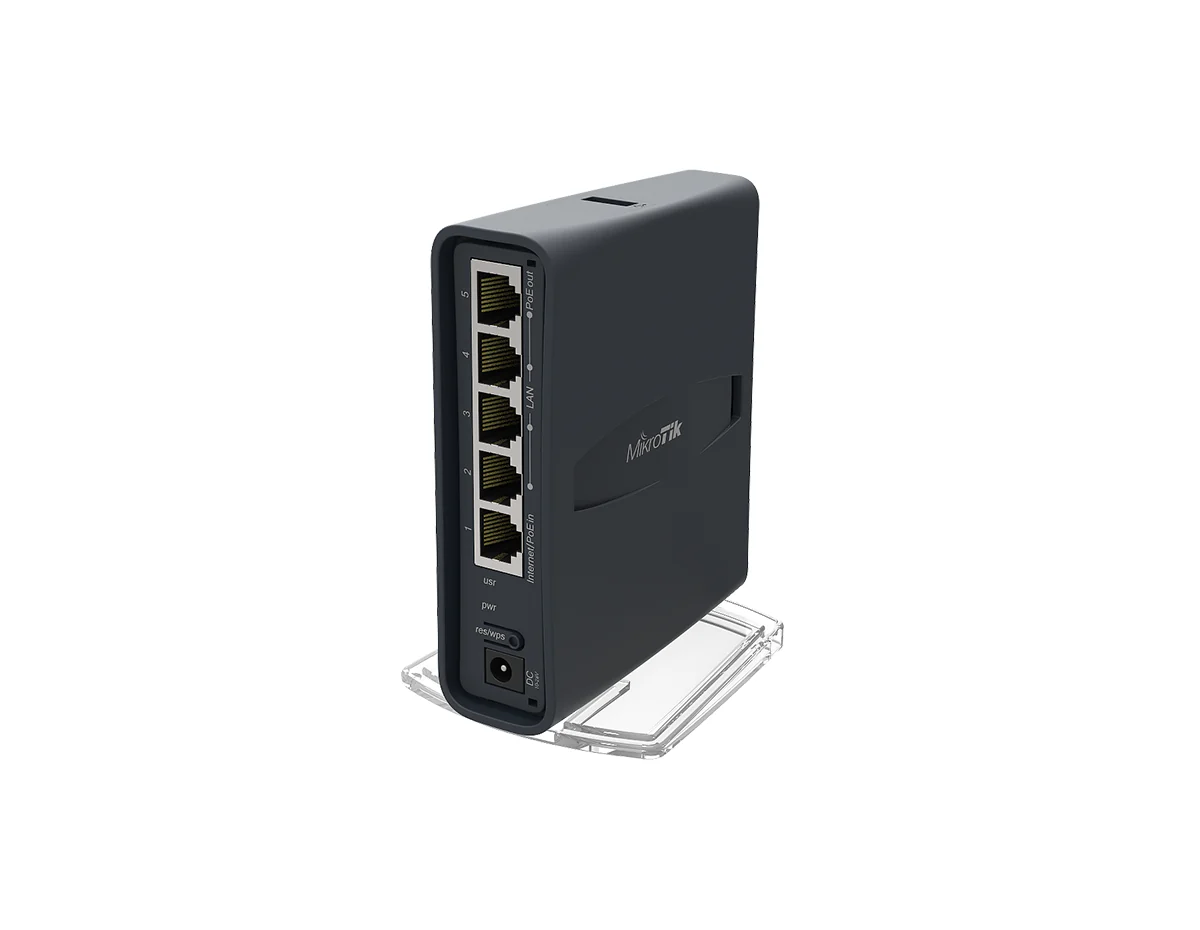

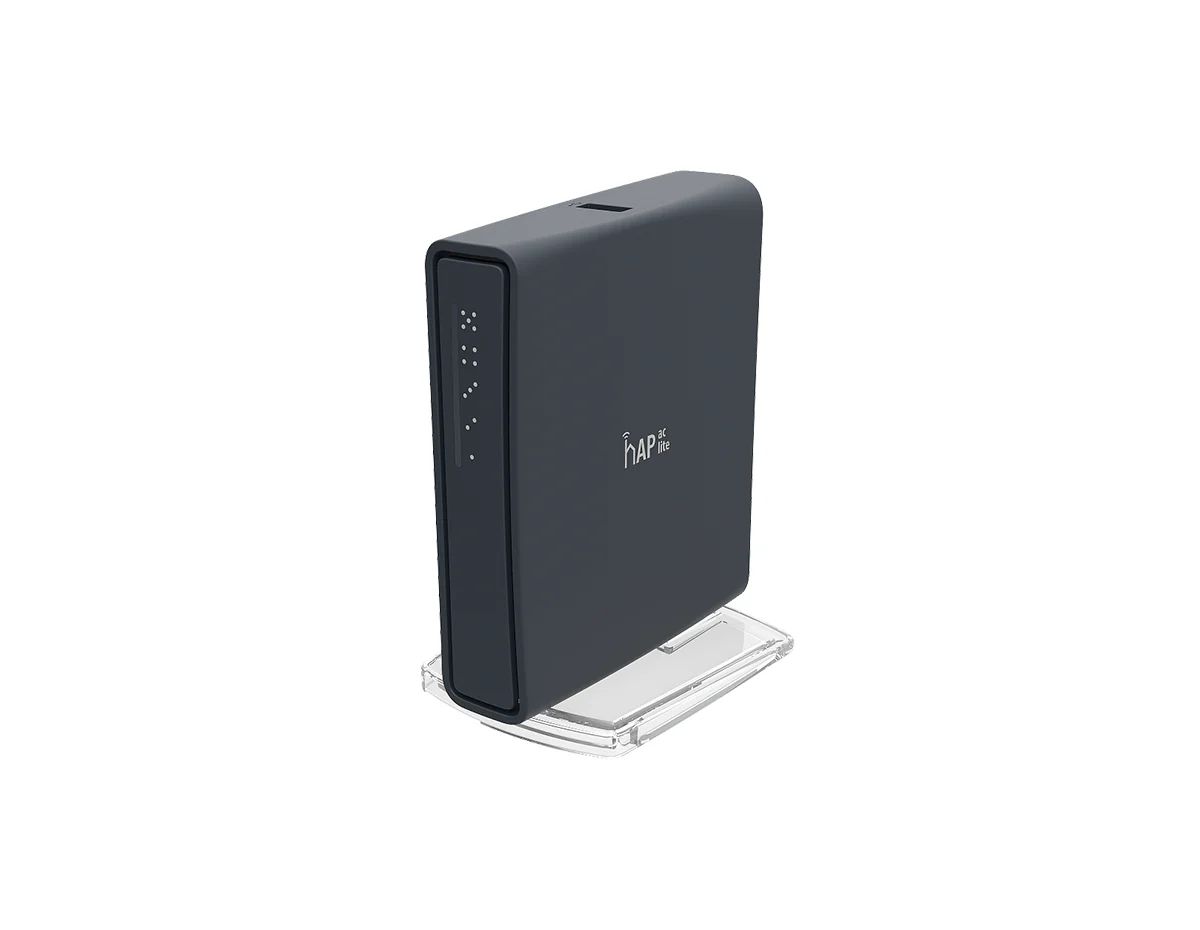

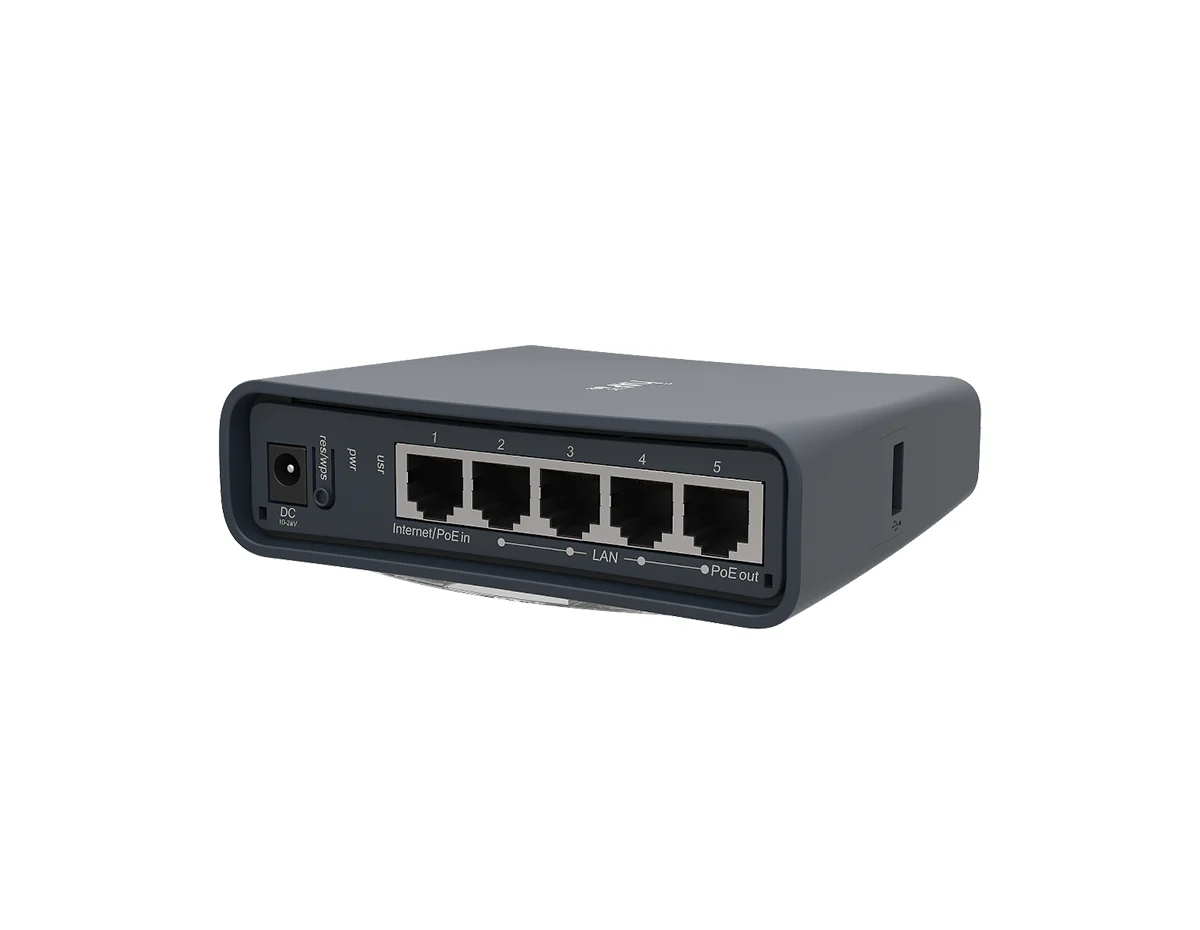

MikroTik RB952UI-5AC2ND-TC-US Access Point

The RB952UI-5AC2ND-TC-US is a Dual-concurrent Access Point that offers simultaneous Wifi coverage for both 2.4 GHz and 5 GHz frequencies. It is equipped with five 10/100Mbps Ethernet ports, each supporting data transfer rates of 10 or 100 Mbps. This device serves as a versatile connector for various devices within your local network, ensuring smooth and uninterrupted connectivity. The RB952Ui-5ac2nD-TC-US (USA)is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed due to country regulations.

Quick Specs:

5x 10/100 Ethernet Ports
Passive PoE output on port5
Dual chain wireless 2.4 GHz
Single chain wireless 5 GHz

Please see the related tabs for the RB952UI-5AC2ND-TC-US datasheet and compatible accessories.
