Mikrotik RB912UAG-2HPnD-OUT Access Point
- 2.4Ghz integrated AP/Backbone/CPE, 2xRPSMA connectors, miniPCI-e slot, Gigabit Ethernet
[properties]
| Properties | MikroTik BaseBox 2 RB912UAG-2HPND-OUT |
| Description | 2.4Ghz integrated AP/Backbone/CPE, 2xRPSMA connectors, miniPCI-e slot, Gigabit Ethernet |
| Product Family | BaseBox Series |
| Product Type | Access Point |
| 10/100/1000 Ethernet ports | 1 |
| Number of SIM slots | 1 (Mini SIM) |
| Number of USB ports | 1 |
| Connector type | RP-SMA Female (outside thread) |
| Extras | PCB temperature monitor Voltage Monitor Beeper |
| Dimensions | 246x135x50mm |
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 10 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 8-30 V |
[/properties][specifications]
| Specifications | RB912UAG-2HPND-OUT |
| Memory | 64 MB |
| NAND Storage size | 64 MB |
| CPU | AR9342 600 MHz |
| CPU core count | 1 |
| OS | RouterOS level 4 license |
| Frequency range | 2400MHz-2500MHz |
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Wireless 2.4 GHz chip model | AR9342 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
| Wireless specifications | |
| 2.4 GHz | |
| 1MBit/s | Transmit (dBm): 30 Receive Sensitivity: -100 |
| 11MBit/s | Transmit (dBm): 30 Receive Sensitivity: -94 |
| 6MBit/s | Transmit (dBm): 30 Receive Sensitivity: -96 |
| 54MBit/s | Transmit (dBm): 27 Receive Sensitivity: -78 |
| MCS0 | Transmit (dBm): 30 Receive Sensitivity: -96 |
| MCS7 | Transmit (dBm): 24 Receive Sensitivity: -73 |
| MTBF | Approximately 100.000 hours at 25C |
| Temperature | -40°C to 70°C tested |
| Certification | FCC, IC |
| IP | IP54 |
[/specifications][accesories]
| 24V 0.8A power adapter |
| Gigabit PoE injector |
| DIN mount (K-27) |
| Metal ring (one) |
|
Fastening set K-25 for 1/2 Mini PCI express card
|
[/accesories]

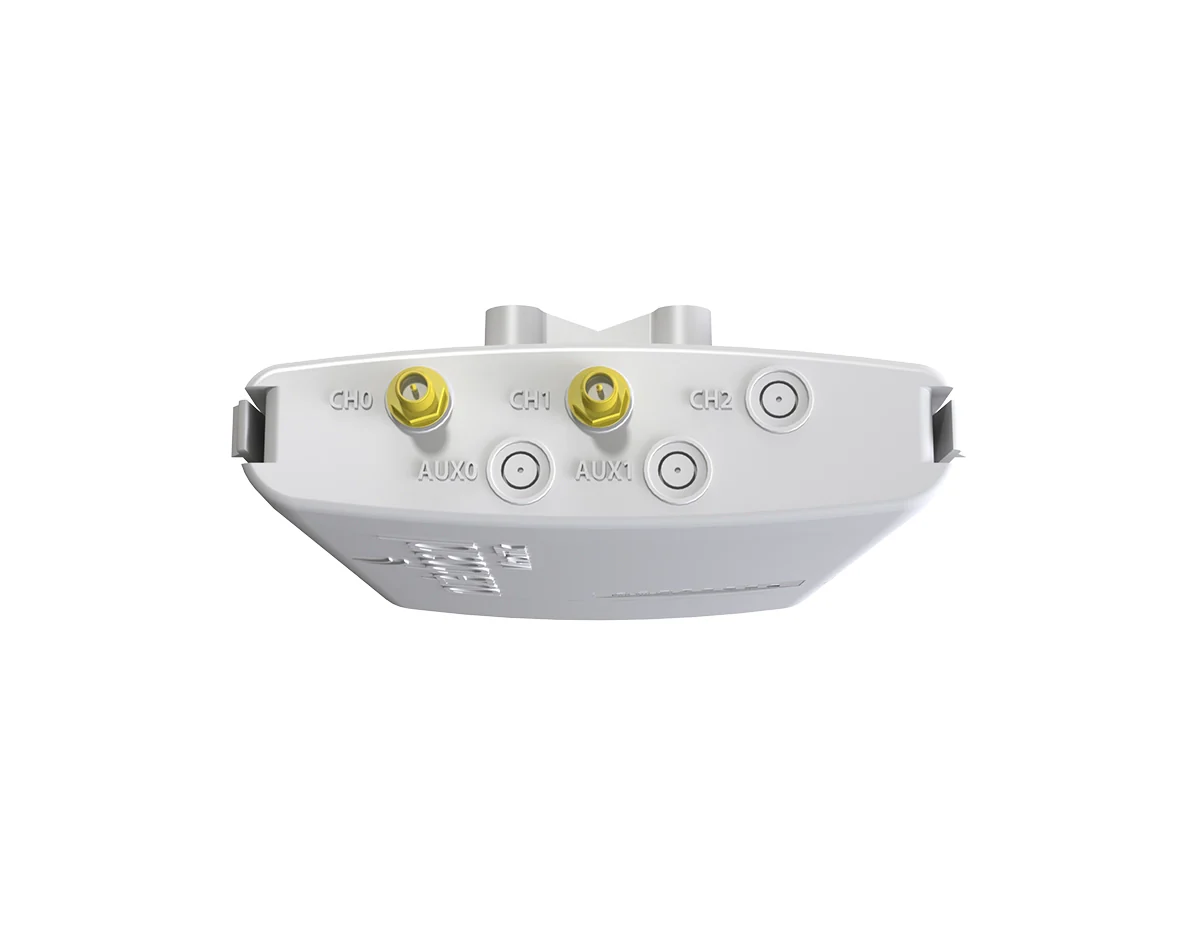

The BaseBox2 is an outdoor 2.4Ghz wireless device, based on our popular RB912 model, fitted with two SMA connectors for antennas, and a cable hood for protection against moisture. Also available are three additional places for antenna connectors, in case you wish to use the BaseBox miniPCIe slot for one more wireless interface to make a dual band device, or a 3G/4G modem. The case can be opened with one hand, and is protected against the elements. USB, Ethernet and a Grounding wire exits are provided on the bottom, behind a protective door. Comes with a mounting loop for tower/pole mounting, and a separate DIN rail mount is also provided. Package also includes a PoE injector and power supply unit.
