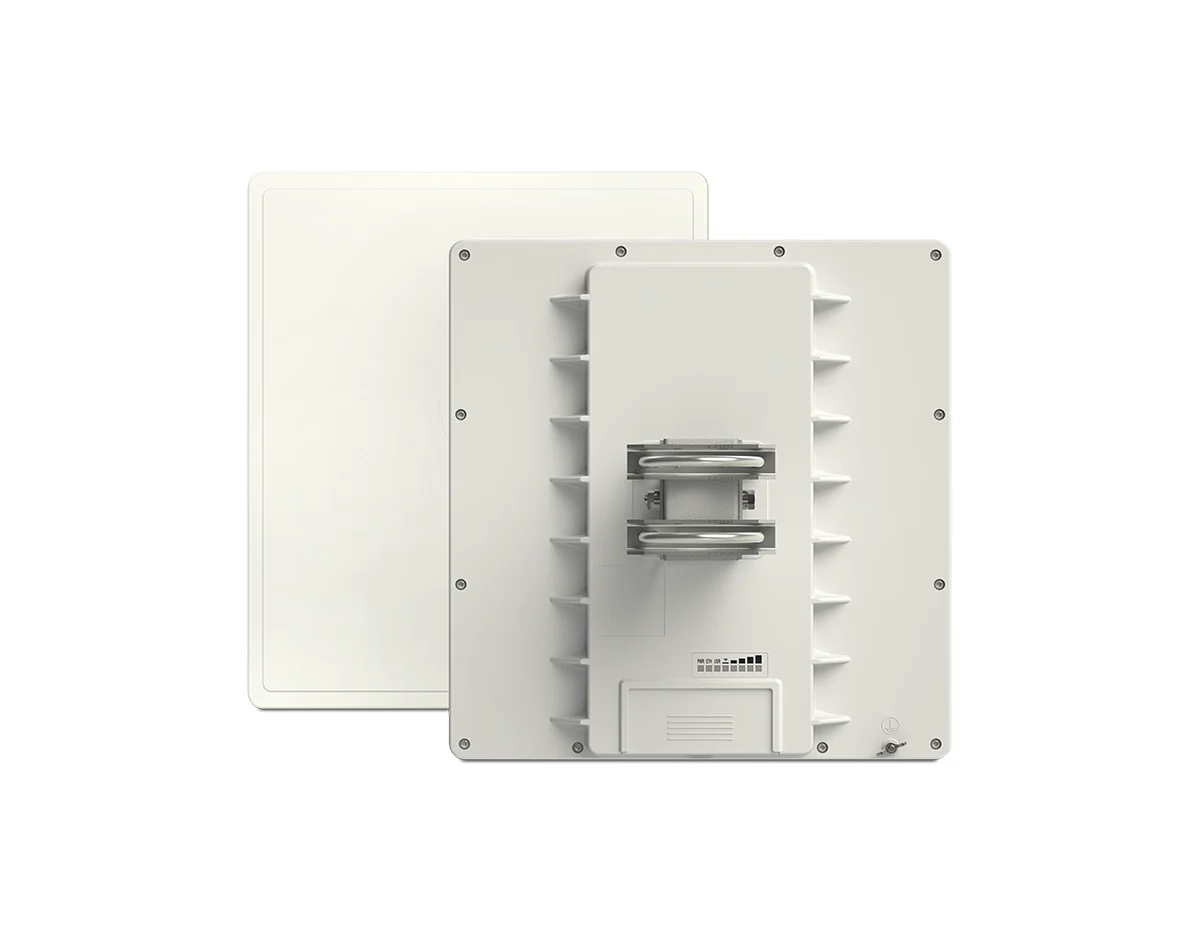

MikroTik RB911G-5HPacD-QRT-US QRT 5 ac 24dBi Dual-Pol Integrated Antenna MMCX US Version
[properties]
| Properties | Mikrotik QRT 5 ac / RB911G-5HPacD-QRT |
| Description | The QRT 5 ac is a robust outdoor antenna with a built-in RouterBOARD, supporting both 802.11ac and 802.11a/n. It's designed for easy setup and long point-to-point connections at higher speeds. |
| Product Family | Mikrotik 911 Series |
| Product Type | Outdoor Antenna |
| 10/100 Ethernet ports | 1 |
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 10.5 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 8-30 V |
| Dimensions | 309x320x50mm |
| Features | PCB temperature monitor Voltage Monitor Beeper |
[/properties][specifications]
| Specifications | RB911G-5HPacD-QRT-US |
| Architecture | MIPSBE |
| CPU | QCA9557 |
| CPU core count | 1 |
| CPU nominal frequency | 720 MHz |
| Operating System | RouterOS License 4 |
| Size of RAM | 128 MB |
| Storage | 128 MB NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Wireless 5 GHz Max data rate | 867 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 24 |
| Wireless 5 GHz chip model | QCA9892 |
| Wireless 5 GHz generation | Wi-Fi 5 |
| Certification | CE, FCC, IC, EAC, ROHS |
[/specifications][accesories]
| Included in package | 24V 0.8A power adapter K-QRT screw kit Gigabit PoE injector U bolts U mast clamp QRT antenna mount |
[/accesories]
MikroTik RB911G-5HPacD-QRT-US Antenna
The RB911G-5HPacD-QRT-US is equipped with a 24 dBi antenna and a high-power 5 GHz wireless transmitter that is compatible with 802.11ac and backward compatible with 802.11a/n. The device houses the high-power RB911G-5HPacD dual-chain wireless component with a high-performance, high-output power wireless transmitter. Additionally, it features a Gigabit Ethernet port to maximize the advantages of 802.11ac high-speed wireless technology. Its user-friendly interface facilitates easy deployment. The RB911G-5HPACD-QRT-US (USA) is factory-locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed due to country regulations.
Quick Specs:
- 1x 10/100/1000 Ethernet Port
- QCA9557, 1 core, 720 MHz CPU
- PoE-in: Passive PoE
- 128 MB RAM
Please see the related tabs for the RB911G-5HPacD-QRT-US datasheet and compatible accessories.
