[shortdesc] 8-port Gigabit Ethernet switch with Class 4 PoE support (64W budget). Plug-and-play unmanaged Layer 2 switching in a fanless, silent desktop form factor. [/shortdesc]

[properties]

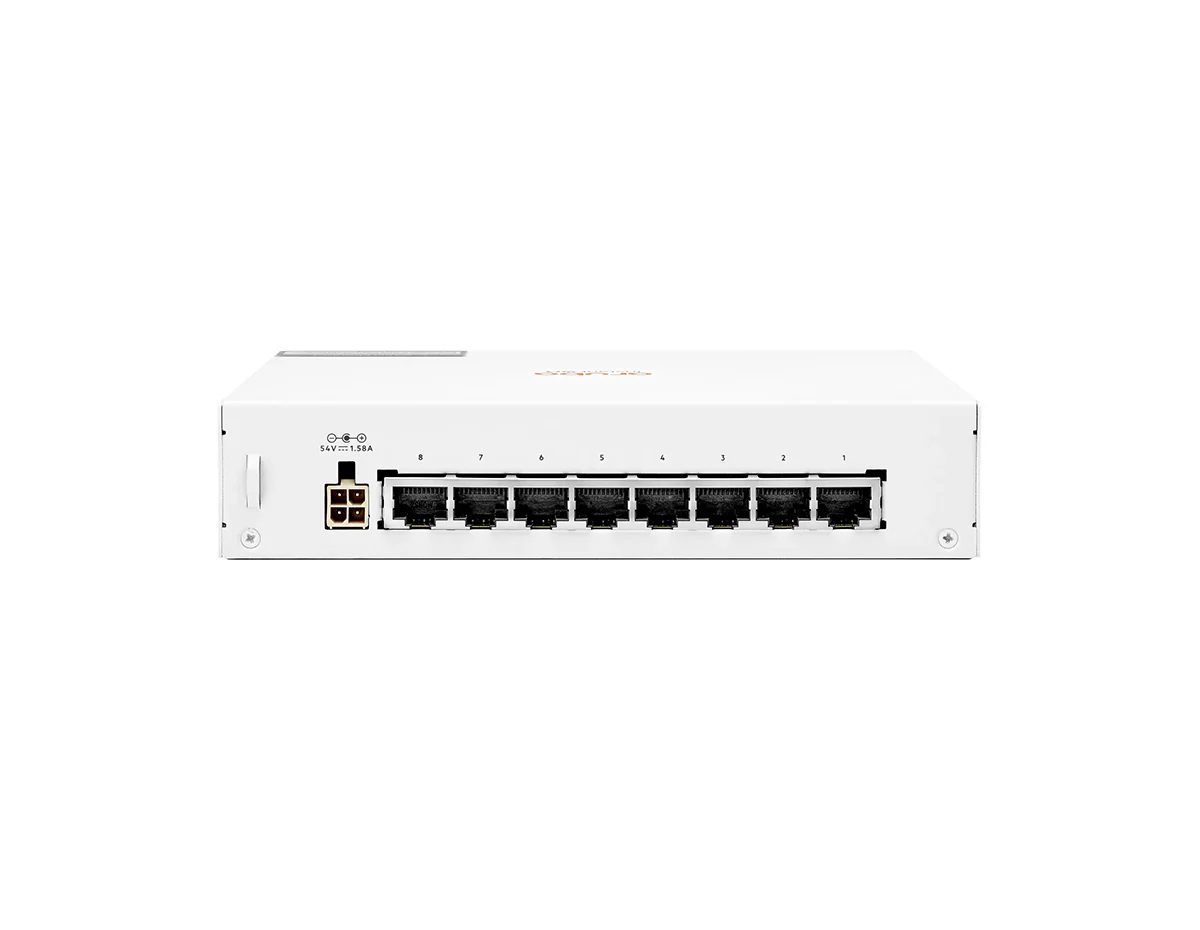

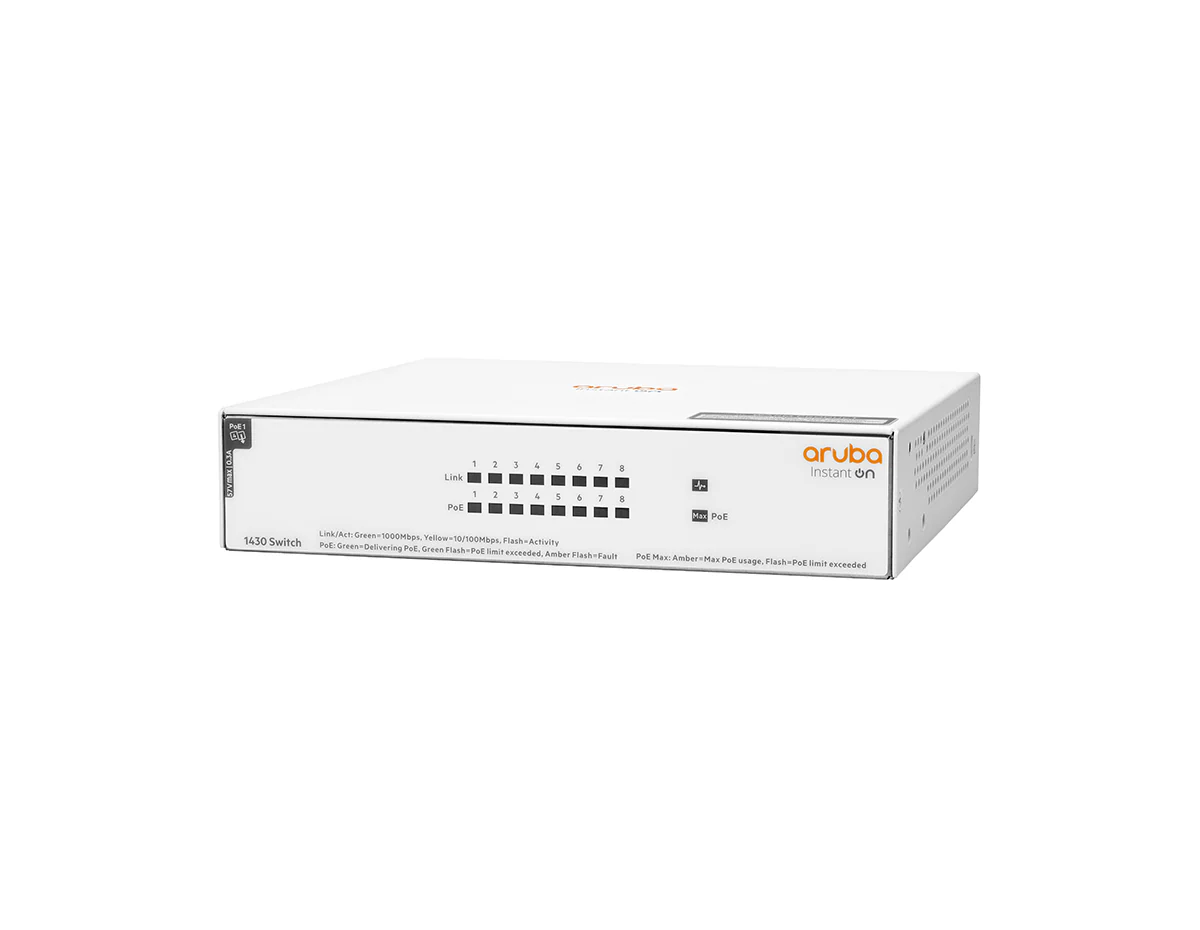

Model	HPE Networking Instant On Switch 1430
SKU	R8R46A
Product Type	Unmanaged Gigabit Ethernet Switch
Management Type	Unmanaged
Ports	8 x RJ-45 autosensing 10/100/1000 Class 4 PoE ports
PoE Standard	IEEE 802.3af / IEEE 802.3at (Class 4)
Total PoE Budget	64 W
Switching Capacity	16 Gbps
Forwarding Rate	11.90 Mpps
MAC Address Table	8192 entries
Jumbo Frames	Up to 9216 bytes
Cooling	Fanless (Passive)
Mounting Options	Table-top, wall-mount, under-table mount
Dimensions (D x W x H)	150 x 177 x 37 mm
Weight	0.77 kg
Power Supply	External Power Adapter

[/properties]

[specifications]

Port Speed	10BASE-T, 100BASE-TX, 1000BASE-T
Duplex Mode	Half/Full duplex (10/100), Full duplex (1000)
Latency	100 Mb: less than 2.7 microseconds; 1000 Mb: less than 1.80 microseconds
Packet Buffer	2.0 Mb
PoE Output per Port	Up to 30 W
Maximum Power Consumption	90 W
Idle Power Consumption	4.1 W
Operating Temperature	0 C to 40 C
Storage Temperature	-40 C to 70 C
Operating Humidity	15% to 95% non-condensing
MTBF	131.1 years
Standards Supported	IEEE 802.3i, 802.3u, 802.3ab, 802.3af, 802.3at, 802.3x, 802.3az
QoS	DSCP and IEEE 802.1p prioritization
Energy Efficiency	IEEE 802.3az Energy Efficient Ethernet (EEE)

[/specifications]

[accesories]

Included in the Box

HPE Instant On Switch 1430 unit; External power adapter; Mounting accessories; Documentation

[/accesories]

Simple PoE Networking for Small Business Environments

The HPE Networking Instant On 1430 8-Port Gigabit PoE Switch (R8R46A) is designed for small businesses and workspaces that need reliable wired connectivity with Power over Ethernet, without the complexity of network management. This unmanaged Layer 2 switch delivers plug-and-play Gigabit performance while supplying power and data over a single cable to supported devices.

With a total PoE power budget of 64W and Class 4 PoE support, the switch can directly power access points, IP phones, and security cameras. Its fanless design ensures silent operation, making it ideal for offices, retail spaces, classrooms, and acoustically sensitive environments.

Key Benefits & Features

• 8 Gigabit Ethernet Ports: Delivers reliable 10/100/1000 Mbps connectivity for desktops, printers, access points, and IoT devices.
• Class 4 PoE with 64W Budget: Supports IEEE 802.3af and 802.3at devices, providing up to 30W per port within a 64W total power budget.
• Unmanaged Plug-and-Play Design: No configuration or ongoing management required, enabling rapid deployment in small networks.
• Fanless Silent Operation: Energy Efficient Ethernet and passive cooling ensure quiet and power-efficient performance.
• QoS and Traffic Optimization: Built-in Quality of Service prioritizes voice and video traffic for stable real-time communication.

Ideal Use Cases

• Small offices and home offices
• Retail stores and hospitality environments
• IP phone and VoIP deployments
• Wireless access point connectivity
• Surveillance camera installations

Technical Specifications

• Ports: 8x RJ-45 10/100/1000 Mbps Ethernet
• PoE Support: Class 4 PoE (IEEE 802.3af/at)
• Total PoE Budget: 64W
• Switching Capacity: 16 Gbps
• Forwarding Rate: 11.9 Mpps
• MAC Address Table: 8,192 entries
• Latency: less than 1.8 microseconds at 1000 Mbps
• Cooling: Fanless
• Management: Unmanaged Layer 2
• Form Factor: Desktop or wall-mountable

Power Your Network with Confidence

Deploy fast, silent, and reliable PoE networking with HPE quality. Order today.
