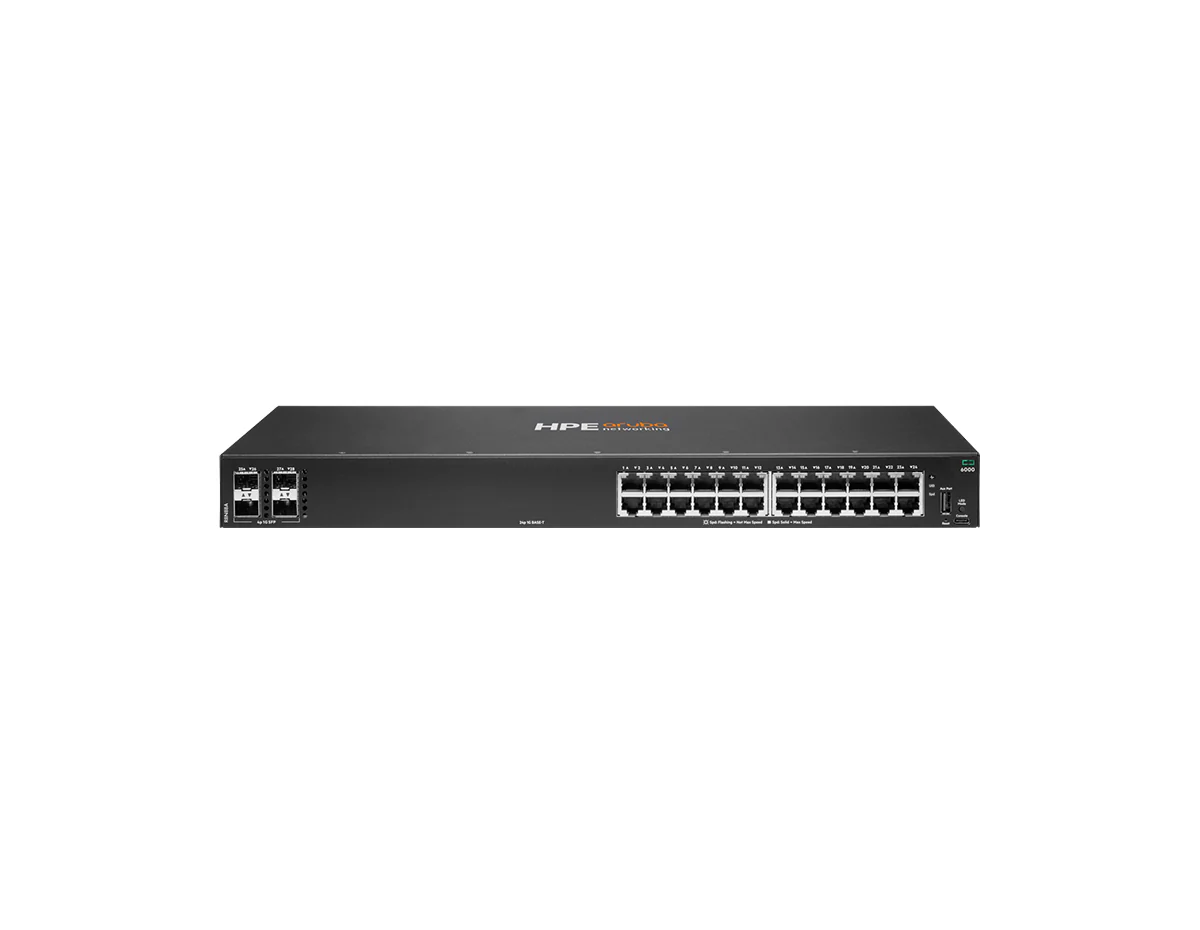

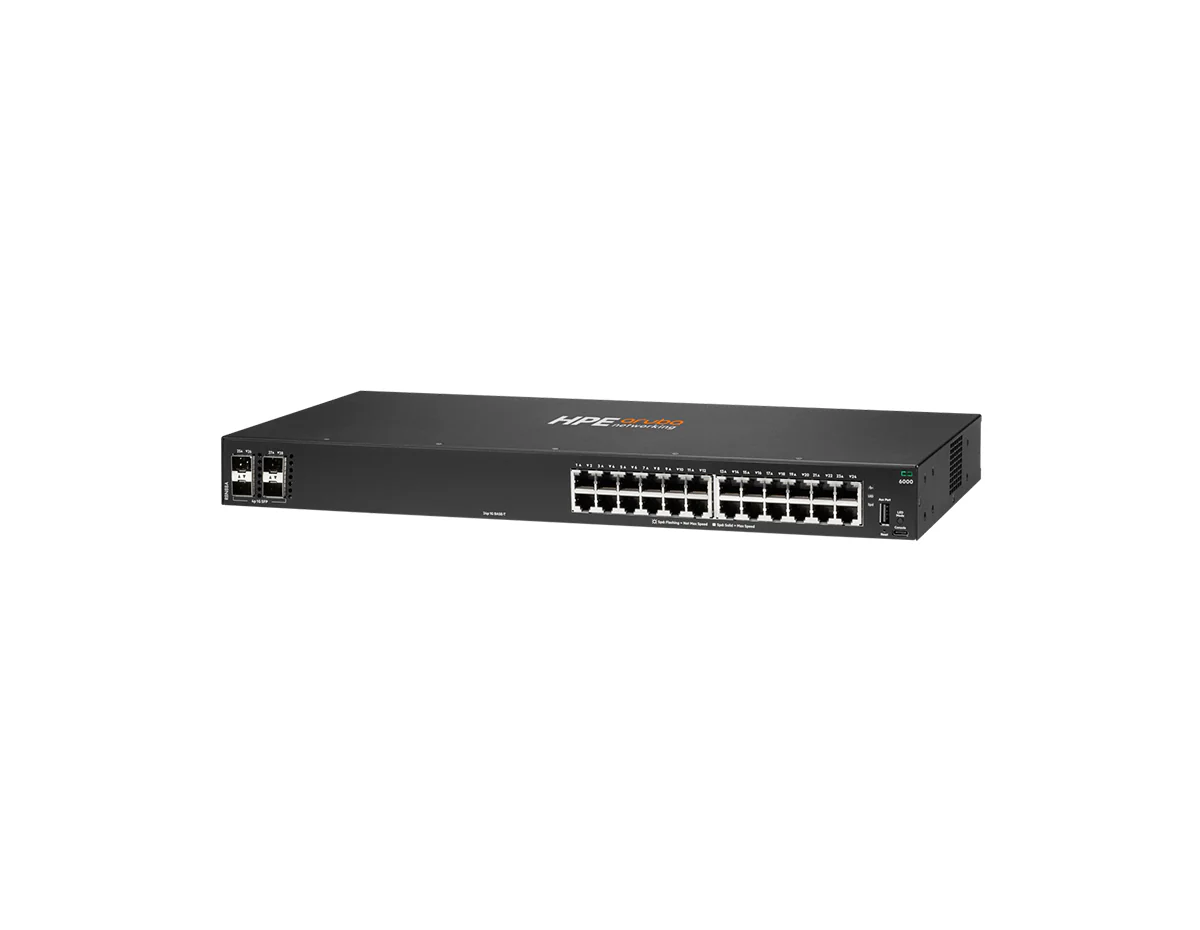

HPE Aruba Networking R8N88A 6000 24G 4SFP Switch
[shortdesc]
- Managed, Rack-mountable, 24 x 1G ports, 4 x 1G SFP Uplinks, No PoE (Data Only), Layer 2
[properties]
| Properties | HPE Aruba R8N88A |
| Description | Aruba CX 6000 24G 4SFP Switch |
| Product Family | CX6000 Series |
| Product Type | Ethernet Switch |
| I/O ports and slots | 24x 10/100/1000BASE-T Ports |
| 4x 1G SFP ports | |
| 1x USB-C Console Port 1x USB Type-A Host port |
|
| Electrical characteristics | |
| Frequency | 50/60 Hz |
| Voltage | 100 - 127 / 200 - 240 VAC |
| Current | 0.6 A / 0.4 A |
| Power Consumption (230 VAC) | Idle: 15.4W Max Power (w/o PoE): 33W |
| Power supply | Fixed power supply |
| Dimensions (H x W x D) | 4.4 x 44.2 x 20.1 cm (1.73 x 17.4 x 7.92 in) |
| Weight | 2.6 kg (5.78 lbs) |
| Mounting | Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit included); horizontal surface mounting. |
[/properties]
[specifications]
| Specifications | R8N88A |
| CPU | Dual Core ARM Cortex A9 @ 1016 Mhz |
| Memory and Flash | 8 GB DDR3 16 GB eMMC |
| Packet Buffer | 1 MB |
| Performance | |
| Model Switching Capacity | 56 Gbps |
| Model Throughput Capacity | 41.6 Mpps |
| Average Latency (LIFO-64-bytes packets) | 1 Gbps: 1.5 μSec |
| Switched Virtual Interfaces (dual stack) | 16 |
| IPv4 Host Table (ARP) | 1,024 |
| IPv6 Host Table (ND) | 512 |
| IPv4 Unicast Routes | 512 |
| IPv6 Unicast Routes | 512 |
| MAC Table Capacity | 8,192 |
| IGMP Groups | 512 |
| MLD Groups | 512 |
| IPv4/IPv6/MAC ACL Entries (ingress) | 256 / 128 / 256 |
| Operating temperature | 32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate by 1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km) |
| Operating relative humidity | 15% to 95% at 104°F (40°C) noncondensing |
| Nonoperating/Storage temperature | -40°F to 158°F (-40°C to 70°C) up to 15000 ft (4.6 km) |
| Nonoperating/Storage relative humidity | 15% to 90% @ 149°F (65°C) noncondensing |
| Altitude | Sound Power, LWAd = 3.9 Bel Sound Pressure, LpAm (Bystander) = 20.9 dB |
| Acoustic | LWAd = 3.7 Bel LpAm (Bystander) = 23 Db |
| Safety | IEC / EN 62368-1: 2014 IEC / EN 62368-1: 2018 UL 62368-1: 2014, 2nd Ed., CSA C22.2 No. 62368-1:14, 2nd Ed. |
| Emissions | VCCI-CISPR 32, Class A CNS 15936, Class A FCC CFR 47 Part 15, Class A; EN 55032:2015 / A11:2020 / CISPR-32, Class A ICES-003 Issue 7: 2020, Class A AS/NZS CISPR 32: 2015, Class A |
| Lasers | IEC / EN 60825-1:2014, Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only) |
| Immunity | CISPR 35: 2016 EN 55035:2017 / A11:2020 IEC 61000-4-2 IEC 61000-4-3 IEC 61000-4-4 IEC 61000-4-5 IEC 61000-4-6 IEC 61000-4-8 IEC 61000-4-11 EN 61000-3-2, IEC 61000-3-2 EN 61000-3-3, IEC 61000-3-3 |
[/specifications]
[accesories]
| Transceivers | |
| J4858D | Aruba 1G SFP LC SX 500m MMF Transceiver |
| J4859D | Aruba 1G SFP LC LX 10km SMF Transceiver |
| J8177D | Aruba 1G SFP RJ45 T 100m Cat5e Transceiver |
| Accessories | |
| JL742A | Aruba X511 12-port Cable Guard |
| J9583B | Aruba X414 1U Universal 4-post Rack Mount Kit |
| R9G48A | Aruba USB-A to RJ45 PC-to-Switch Cable |
| R8Z87A | Aruba USB-A to RJ45 PIN3TX-6RX Cable |
| R9J32A | Aruba USB-A to USB-C PC-to-Switch Cable |
| R9J33A | Aruba USB-C to USB-C PC-to-Switch Cable |
[/accesories]
HPE Aruba Networking CX 6000 24G 4SFP Switch (R8N88A)
The HPE Aruba CX 6000 24G 4SFP Switch (R8N88A) is an entry-level Layer 2 Gigabit Ethernet switch designed for branch offices, midsize businesses, and small enterprises. With 24 autosensing Gigabit ports and 4 dedicated 1G SFP uplinks, it delivers reliable wired connectivity and simple scalability for modern networks.
Built on the Aruba AOS-CX operating system, the CX 6000 provides enterprise-grade performance, static routing, and enhanced security, all managed easily through Aruba Central, Web GUI, CLI, or SNMP. Compact and energy-efficient, it’s the ideal solution for cost-conscious organizations that need secure, dependable switching without unnecessary complexity.
Key Features:
- 24 x Gigabit Ethernet Ports: Provides reliable and fast connectivity for wired devices.
- 4 x SFP Uplink Ports: High-speed uplinks for scalable fiber connectivity.
- Layer 2 Switching: Offers VLAN support, QoS, and traffic prioritization for improved performance.
- Energy-Efficient Operation: Complies with energy-saving standards to reduce power consumption during low activity.
- Advanced Security Features: Built-in ACLs and 802.1X authentication for secure network access.
Technical Overview:
- Recommended for: Small to mid-sized businesses, branch offices, and educational institutions.
- Ports: 24 x 10/100/1000 Mbps Gigabit Ethernet ports, 4 x SFP uplink ports.
- Switching Capacity: 56 Gbps.
- Forwarding Rate: 41.6 Mpps.
- Management: Managed via Aruba Central, Web GUI, CLI, SNMP.
- Energy Efficiency: Compliant with industry energy-saving standards.
You can check the related tab for the HPE Aruba 6000 24G 4SFP Switch (R8N88A) datasheet.
