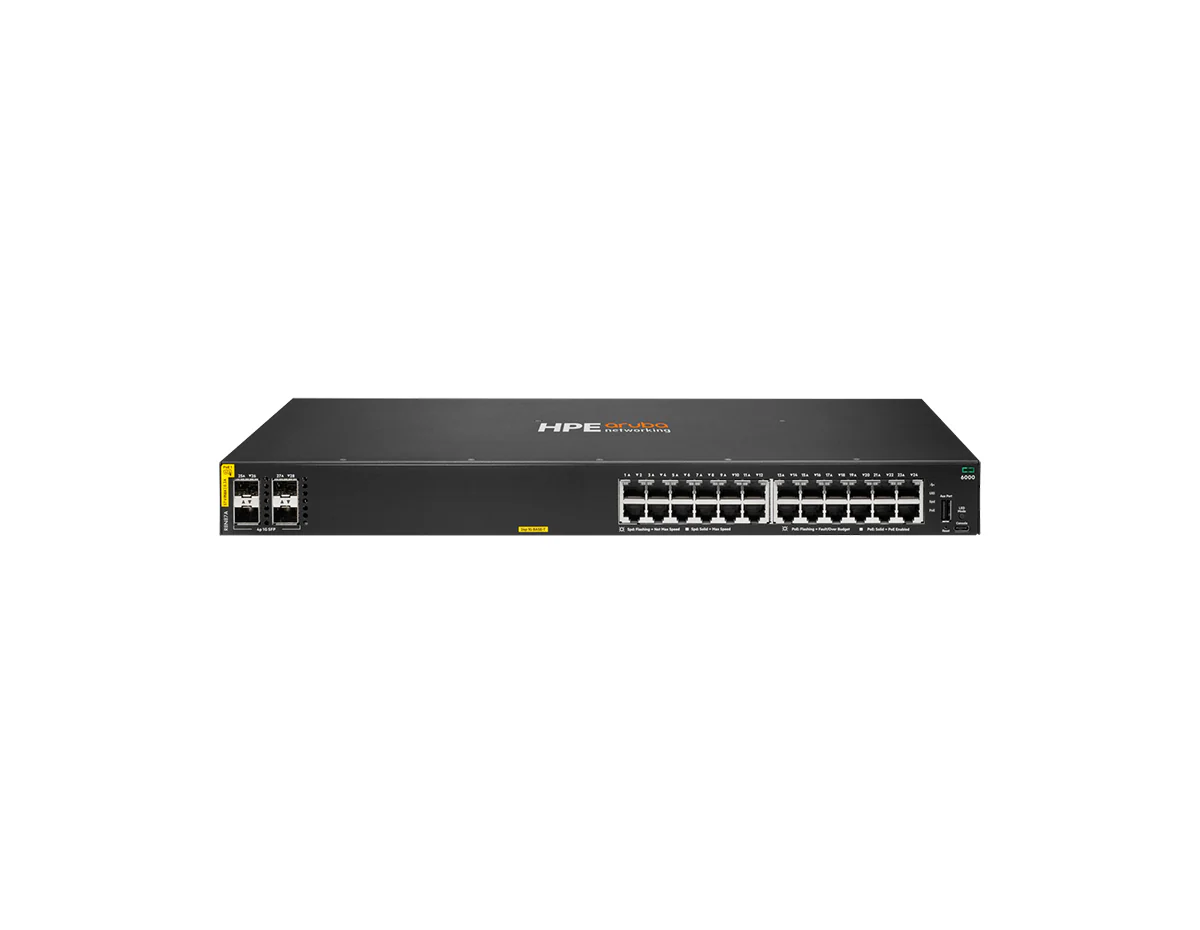

HPE Aruba Networking R8N87A 6000 24G PoE Switch
[shortdesc]
- Managed, Rack-mountable, 24 x 1G PoE+ ports, 4 x 1G SFP Uplinks, PoE+ (370W), Layer 2
[properties]
| Properties | HPE Aruba CX6000 R8N87A |
| Description | Switch, 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP, Rack-mountable, Managed, side to side airflow, PoE (370W Class 4 PoE/PoE+) |
| Product Family | CX6000 Series |
| Product Type | Ethernet Switch |
| I/O ports and slots | 24x 10/100/1000BASE-T Ports |
| 4x 1G SFP ports | |
| Supports PoE Standards IEEE 802.3af, 802.3at |
|
| Additional ports and slots | 1x USB-C Console Port 1x USB Type-A Host port |
| Power supplies | Fixed power supply Up to 370W of Class 4 PoE Power |
| Electrical characteristics | |
| Frequency | 50/60 Hz |
| Voltage | 100-127 VAC / 200-240 VAC |
| Current | 4.6 A / 2.3 A |
| Power Consumption (230 VAC) | Idle: 22.9W Max Power (w/o PoE): 32.7W Max Power (w/ PoE): 455W |
| Fans | Fixed fans |
| Dimensions | 4.4 x 44.2 x 26.8 cm (1.73 x 17.4 x 10.56 in) |
| Weight | 4.2 kg (9.24 lbs) |
| Mounting and enclosure | Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit included); horizontal surface mounting. |
[/properties][specifications]
| Specifications | CX6000-R8N87A |
| CPU | Dual Core ARM Cortex A9 @1.016 GHz |
| Memory and Flash | 8 GB DDR3 16 GB eMMC |
| Packet Buffer | 1 MB |
| Model Switching Capacity | 56 Gbps |
| Model Throughput Capacity | 41.6 Mpps |
| Latency (LIFO-64-bytes packets) | 1 Gbps: 1.5 μSec |
| Switched Virtual Interfaces (dual stack) | 16 |
| IPv4 Host Table (ARP) | 1,024 |
| IPv6 Host Table (ND) | 512 |
| IPv4 Unicast Routes | 512 |
| IPv6 Unicast Routes | 512 |
| MAC Table Capacity | 8,192 |
| IGMP Groups | 512 |
| MLD Groups | 512 |
| IPv4/IPv6/MAC ACL Entries (ingress) | 256 / 128 / 256 |
| Operating Temperature | 32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate by 1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km) |
| Operating Relative Humidity | 15% to 95% at 104°F (40°C) noncondensing |
| Non-Operating | -40°F to 158°F (-40°C to 70°C) up to 15000 ft (4.6 km) |
| Non-Operating Storage Relative Humidity | 15% to 90% @ 149°F (65°C) noncondensing |
| Max Operating Altitude | 10000 feet (3 km) Max |
| Max Non-Operating Altitude | 15000 feet (4.6 km) Max |
| Acoustic | Sound Power, LWAd = 3.6 Bel Sound Pressure, LpAm (Bystander) = 24.6 dB |
| Primary Airflow | Side-to-side |
| Safety | IEC / EN 62368-1: 2014 IEC / EN 62368-1: 2018 UL 62368-1: 2014, 2nd Ed., CSA C22.2 No. 62368-1:14, 2nd Ed. |
| Emissions | VCCI-CISPR 32, Class A CNS 15936, Class A FCC CFR 47 Part 15, Class A; EN 55032:2015 / A11:2020 / CISPR-32, Class A ICES-003 Issue 7: 2020, Class A AS/NZS CISPR 32: 2015, Class A |
| Lasers | IEC / EN 60825-1:2014, Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only) |
| Immunity | CISPR 35: 2016 EN 55035:2017 / A11:2020 IEC 61000-4-2 IEC 61000-4-3 IEC 61000-4-4 IEC 61000-4-5 IEC 61000-4-6 IEC 61000-4-8 IEC 61000-4-11 EN 61000-3-2, IEC 61000-3-2 EN 61000-3-3, IEC 61000-3-3 |
[/specifications][accesories]
| Accessories | |
| JL742A | Aruba X511 12-port Cable Guard |
| J9583B | Aruba X414 1U Universal 4-post Rack Mount Kit |
| R9G48A | Aruba USB-A to RJ45 PC-to-Switch Cable |
| R8Z87A | Aruba USB-A to RJ45 PIN3TX-6RX Cable |
| R9J32A | Aruba USB-A to USB-C PC-to-Switch Cable |
| R9J33A | Aruba USB-C to USB-C PC-to-Switch Cable |
| Transceivers | |
| J4858D | Aruba 1G SFP LC SX 500m MMF Transceiver |
| J4859D | Aruba 1G SFP LC LX 10km SMF Transceiver |
| J8177D | Aruba 1G SFP RJ45 T 100m Cat5e Transceiver |
[/accesories]
HPE Aruba CX 6000 24-Port PoE+ 4 SFP Switch (R8N87A)
The HPE Aruba CX 6000 24G Class4 PoE 4SFP 370W Switch (R8N87A) delivers reliable, high-performance connectivity for small and midsize businesses, branch offices, and retail networks. With 24 Gigabit Ethernet PoE+ ports and a 370W PoE budget, it powers access points, IP phones, and security cameras while providing 4 built-in 1G SFP uplinks for flexible fiber connectivity.
Powered by the Aruba AOS-CX operating system and enterprise-class security, this entry-level switch offers VLANs, ACLs, and QoS for traffic optimization, along with static routing for simplified Layer 2 deployments. Designed for energy efficiency and long-term scalability, the R8N87A ensures seamless support for IoT, mobile, and cloud applications.
Key Features:
- 24 x Gigabit Ethernet Ports with PoE: Provides up to 30W per port, ideal for powering PoE-enabled devices.
- 4 x SFP Uplink Ports: Enables flexible fiber uplink options for scalable network growth.
- Layer 2 Switching: Offers VLAN, QoS, and traffic management for enhanced network performance.
- Energy-Efficient Operation: Complies with energy-saving standards, reducing power consumption.
- Advanced Security: Includes ACLs and 802.1X for secure network access.
Technical Overview:
- Recommended for: Small to mid-sized businesses, branch offices, and educational institutions.
- Ports: 24 x 10/100/1000 Mbps Gigabit Ethernet PoE ports, 4 x 1G SFP uplink ports.
- PoE Power Budget: 370W.
- Switching Capacity: 56 Gbps.
- Forwarding Rate: 41.6 Mpps.
- Management: Managed via Aruba Central, Web GUI, CLI, SNMP.
- Energy Efficiency: Complies with energy-saving standards.
You can check the related tab for the HPE Aruba 6000 24G PoE Switch (R8N87A) datasheet.
