Product Name	Cisco QSFP-100G-SR4-S 100GBASE QSFP-100G Module
Product Description	The Cisco QSFP-100G-SR4-S is a 100GBASE-SR4 MMF transceiver module based on the QSFP form factor, providing high-speed data transfer over multimode fiber. It is designed for high-performance networking in data centers and enterprise applications.
Interface	100GBASE-SR4
Form Factor	QSFP (Quad Small Form-factor Pluggable)
Fiber Type	12-fiber parallel fiber (MMF)
Maximum Data Rate	100 Gbps
Distance Support	Up to 100 meters over OM4 MMF
Compatibility	Designed for Cisco networking equipment supporting 100G QSFP modules
Applications	Ideal for high-speed data transfer in data centers and enterprise environments

[/properties]

 [specifications]

Interface Standard	100GBASE-SR4
Form Factor	QSFP
Fiber Type	Multimode fiber (MMF)
Fiber Connection	12-fiber parallel fiber
Maximum Data Rate	100 Gbps
Maximum Distance	Up to 100 meters (OM4 MMF)
Compatibility	Cisco equipment with QSFP-100G module support
Power Consumption	Optimized for low power in high-performance networking
Operating Temperature	0°C to 70°C (32°F to 158°F)
Usage	Suited for data center and enterprise network applications
Reliability Feature	Enhanced performance for high-speed data transfer applications

[/specifications]

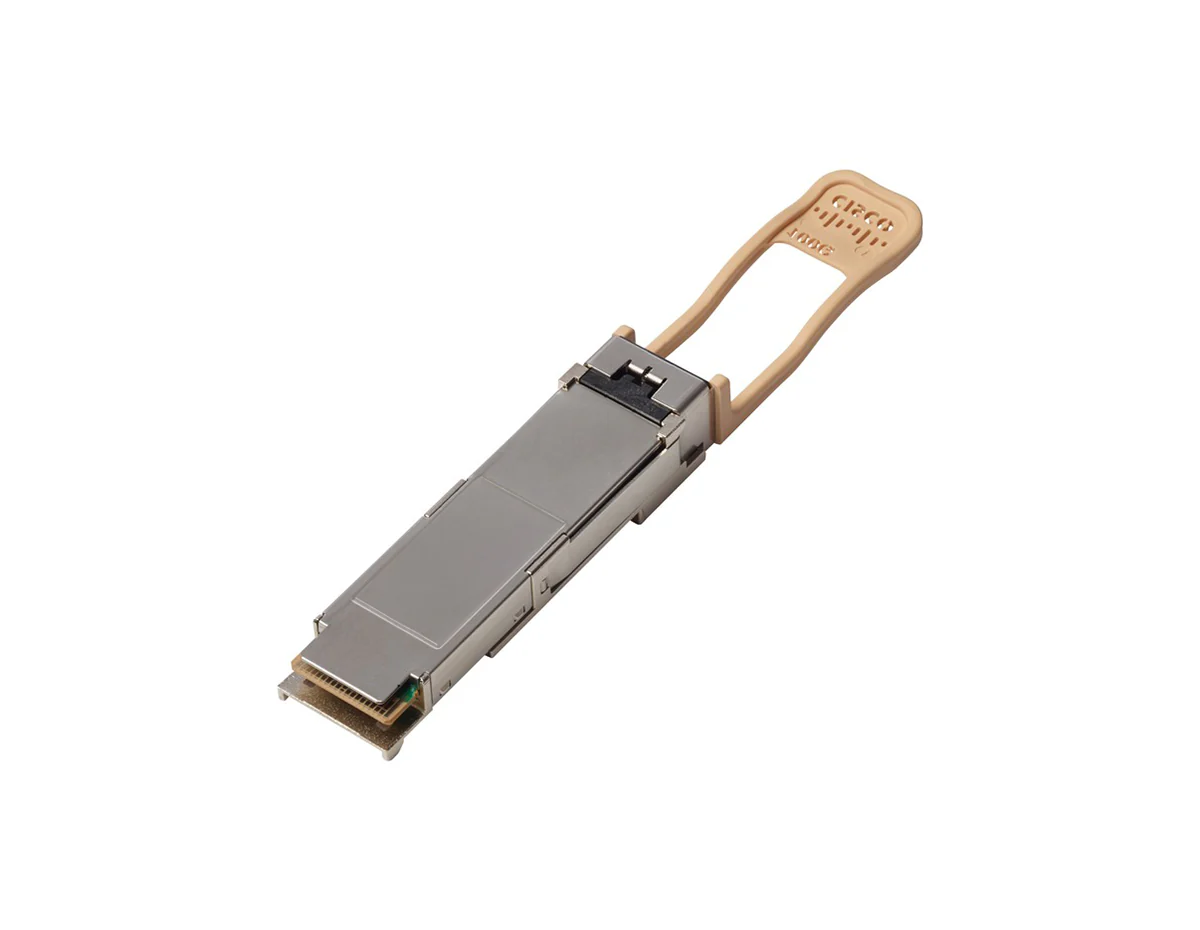

Cisco QSFP-100G-SR4-S Module

The Cisco 100GBASE QSFP-100G modules are our latest generation of 100G transceiver modules solution based on a QSFP form factor. The QSFP-100G-SR4-S is a Cisco 100GBASE-SR4 MMF transceiver.

Key Features:

• 12-fiber parallel fiber
• 100GBase

For detailed specifications, refer to the QSFP-100G-SR4-S datasheet in the tabs.
