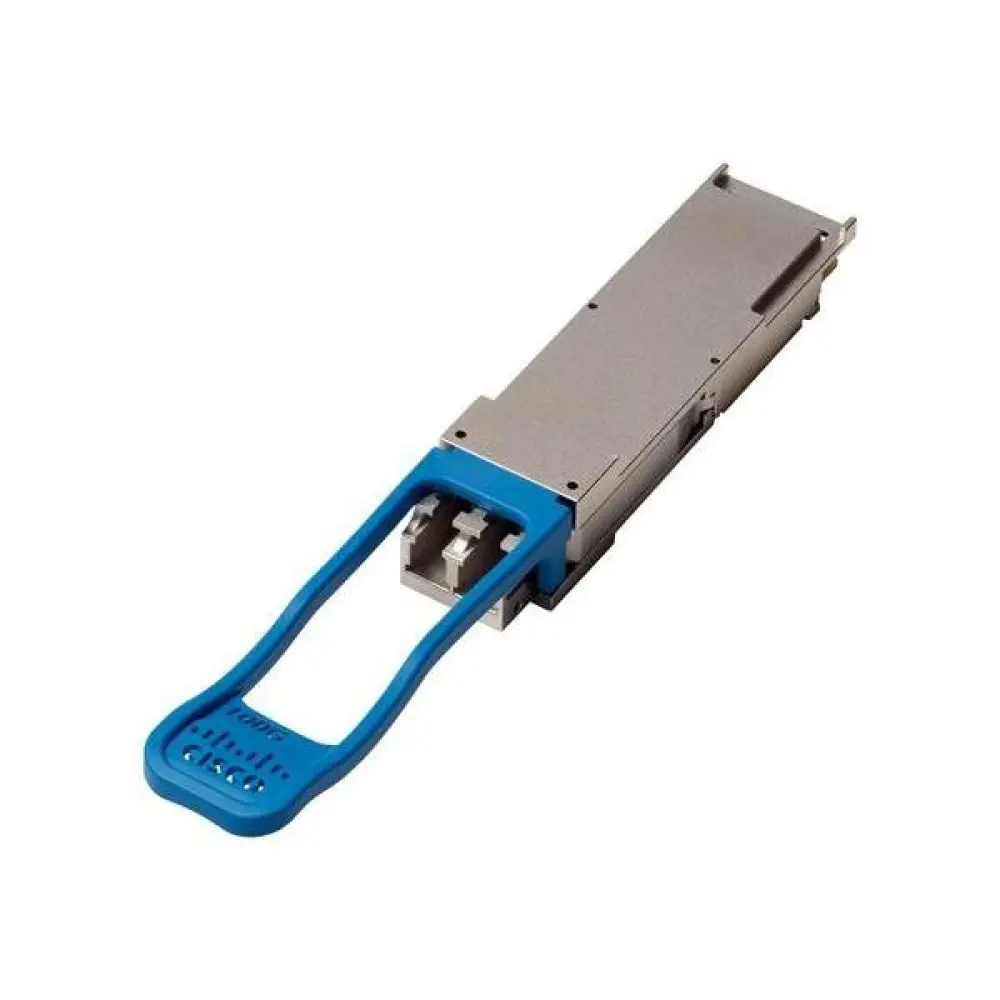

Cisco 100GBASE LR4 QSFP28 10km Optical Transceiver Module (QSFP-100G-LR4-S)
[shortdesc]
- The Cisco QSFP-100G-LR4-S is a high-performance 100G optical transceiver module designed for long-range data transmission up to 10km over single-mode fiber. It ensures reliable and efficient 100GBASE-LR4 Ethernet connectivity in data centers and enterprise networks
[/shortdesc]
[specifications] [/specifications]
Cisco 100GBASE LR4 QSFP28 10km Optical Transceiver Module (QSFP-100G-LR4-S)
The Cisco QSFP-100G-LR4-S is a 100GBASE-LR4 compliant optical transceiver module engineered for high-speed data transmission over single-mode fiber (SMF). This hot-pluggable QSFP28 module supports up to 10km link distances and operates within a wavelength range of 1295.56 nm to 1309.14 nm. Equipped with a cooled LAN WDM EA-DFB transmitter and a high-sensitivity PIN receiver, it ensures low-latency, high-reliability performance for data centers, enterprise networks, and telecom applications.
Key Features:
- High-Speed Connectivity: Supports 100GBASE-LR4 Ethernet for up to 10km transmission over SMF.
- Hot-Pluggable Design: Enables easy deployment with QSFP28 MSA form factor.
- Reliable Performance: Utilizes LAN WDM EA-DFB transmitters and PIN receivers for superior optical signal quality.
- Efficient Power Consumption: Operates with a maximum power consumption of 4W.
- Wide Compatibility: Fully compliant with IEEE 802.3ba standards and MSA specifications.
- Secure and Durable: Designed to withstand harsh environmental conditions with an operating temperature range of 0°C to 70°C.
Technical Specifications:
- Form Factor: QSFP28
- Data Rate: 100Gbps
- Wavelengths: 1295.56 nm, 1300.05 nm, 1304.58 nm, 1309.14 nm
- Transmission Distance: Up to 10km
- Connector Type: Duplex LC
- Power Consumption: 4W
- Operating Temperature: 0°C to 70°C
- Fiber Type: Single-Mode Fiber (G.652)
- Standards Compliance: IEEE 802.3ba 100GBASE-LR4
