[shortdesc]Qlogic Qle2692 Fibre Channel Host Bus Adapter - 16 Gbit/s - 2 X Total Fibre Channel Port(s) - Plug-in Card. [/shortdesc]

[properties]

Properties	QLE2692-SR-CK
Description	The Qlogic QLE2692 is a high-performance 16GFC HBA by Marvell, delivering up to 1.3 million IOPS. It utilizes Marvell StorFusion™ technology for enhanced reliability and supports simultaneous access to NVMe and SCSI-based storage through NVMe over Fibre Channel.
Product Family	Qlogic Fibre Channel Host Bus Adapter
Product Type	Adapter
Ports	Dual-port, 16GFC
Form Factor	Low-profile PCIe card (6.6 inches × 2.731 inches) (Custom form factors are also available)
Maximum Cable Distances	OM2:35 OM3: 100 OM4:125

[/properties][specifications]

Specifications	QLE2692-SR-CK
Bus Interface	QLE2690/2692 PCI Express® (PCIe®) 3.0 x8
Host Interrupts	INTx and MSI-X
Throughput	3,200MBps full duplex line rate per port
Logins	Support for 2,048 concurrent logins and 2,048 active exchanges per port
Port Virtualization	NPIV
Management Tools and Device Utilities	• QConvergeConsole CLI: a unified management tool that supports multiple generations of Marvell FC adapters • MCTP/PLDM • ESXCLI Plug-in for vSphere • MRVLFC PowerKit (cmdlets for Windows PowerShell) • QCC Plug-ins for vSphere • Marvell QLogic FC QCC Extension for Windows Admin Center
Boot Support	• BIOS • Unified Extensible Firmware Interface (UEFI) • Forth code (FCode)
APIs	• SNIA HBA API V2 • SMI-S
Operating Temperature	0°C to 55°C (32°F to 131°F)
Host Bus Compliances	•    PCI Express Base Specification, Rev. 3.1 •    PCI Express Card Electromechanical Specification, Rev. 3.0 •    PCI Bus Power Management Interface Specification, Rev. 1.2 •    PCI Hot Plug Specification, Rev 1.1
Fibre Channel Compliances	•    Fibre Channel Physical Interface 5 (FC-PI5) •    Fibre Channel Tape (FC-TAPE) Profile •    SCSI Fibre Channel Protocol-4 (FCP-4) •    SCSI-3 Fibre Channel Protocol (SCSI-FCP) •    Second Generation Fibre Channel Generic Services (FC-GS-2) •    Third Generation Fibre Channel Generic Services (FC-GS-3) •    Fibre Channel-NVMe-2 (FC-NVMe-2)
Safety Approvals	• UL 60950-1 • CSA C22.2
EMI and EMC (Class A) Approvals	• FCC Rules, CFR Title 47, Part 15, Subpart Class A • Industry Canada, ICES-003: Class A

[/specifications]

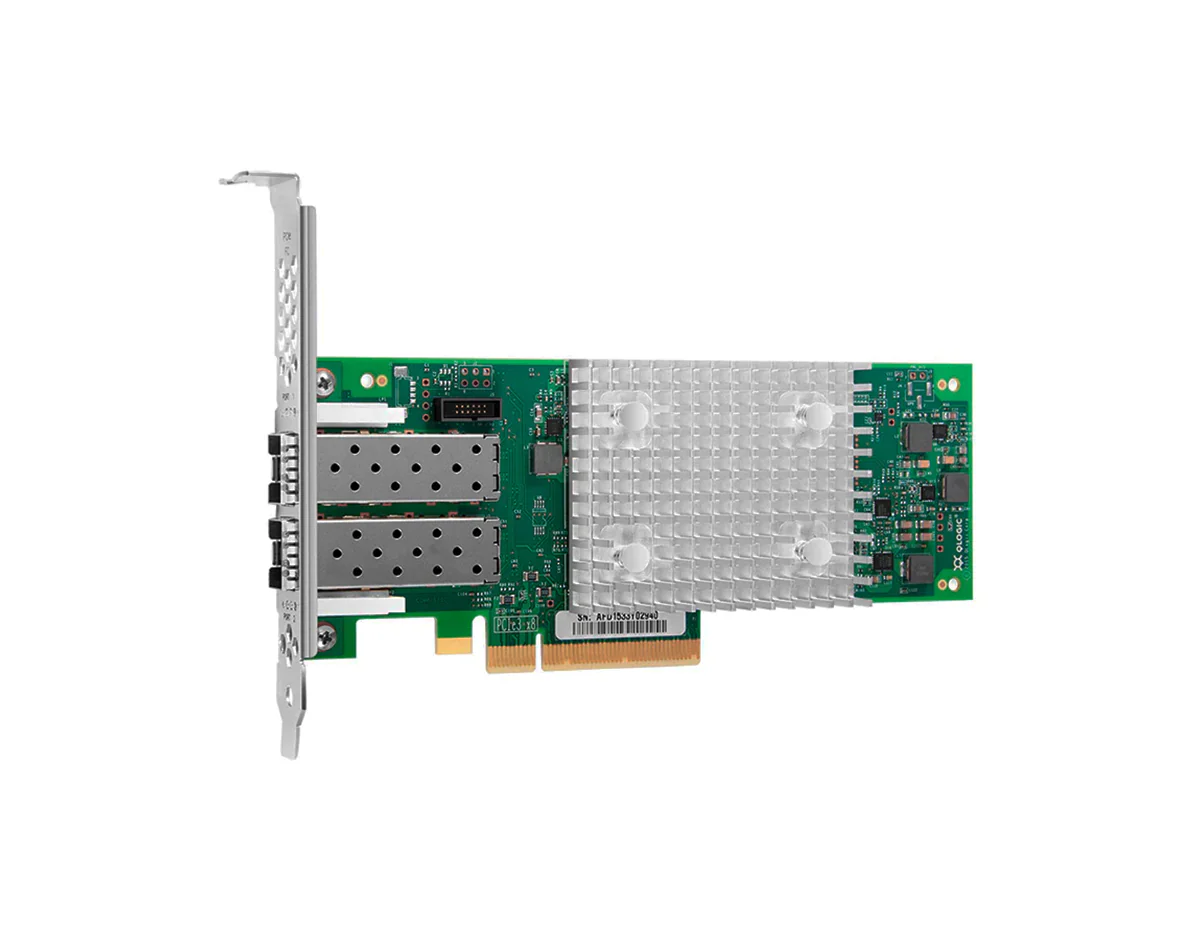

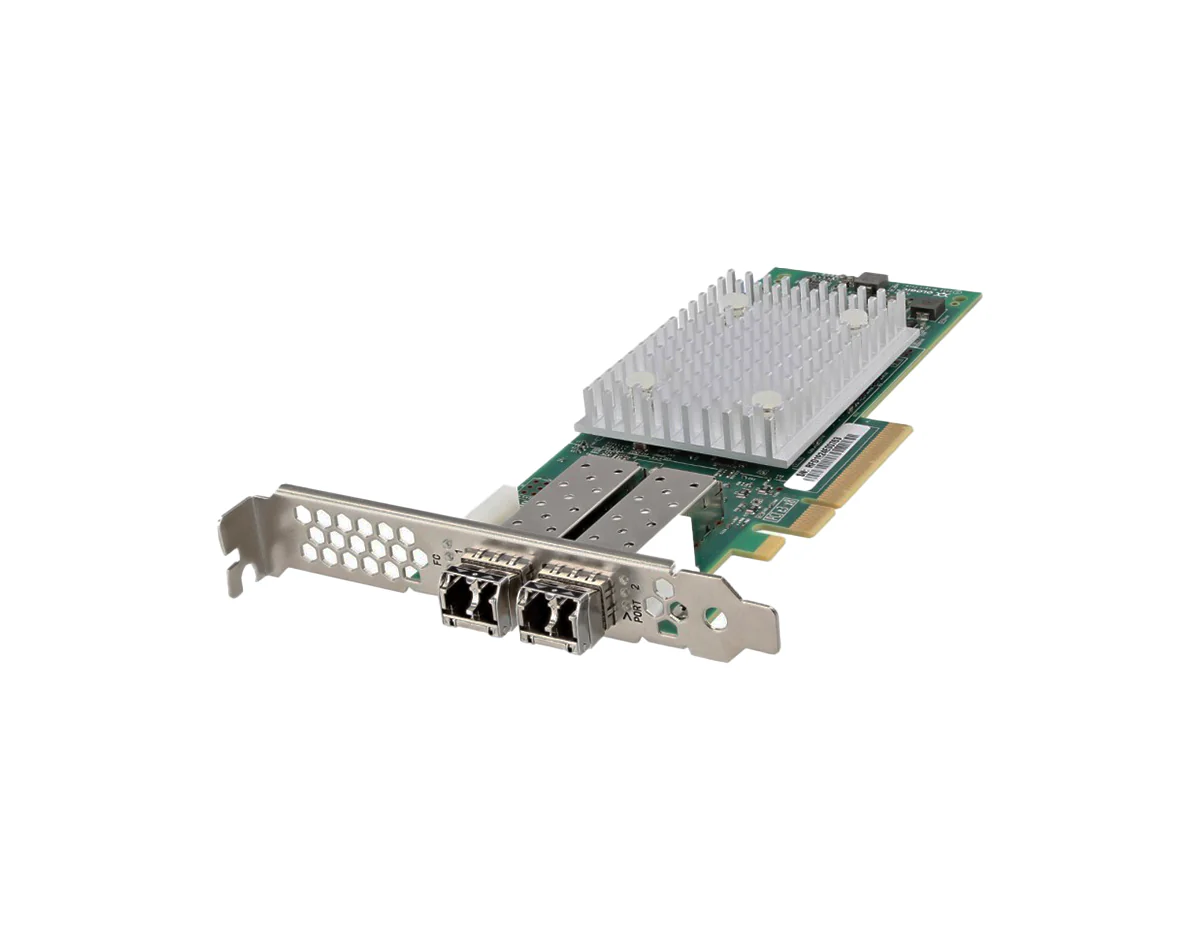

QLogic QLE2692-SR-CK Fibre Channel Host Bus Adapter

The QLogic QLE2692-SR-CK is precisely engineered to offer superior dependability for Fibre Channel connections. Its dual-port configuration provides a backup in case of port failure, guaranteeing uninterrupted data accessibility. This product features an impressive data transfer speed of 16Gbps. Its PCIe 3.0 x8 interface ensures compatibility with contemporary server architectures and enables scalability to accommodate network expansion.

Quick Specs:

• 8x PCIe 3.0
• 2x 16GB Fibre Channel
• Data Transfer Rate: 16Gbps
• Qaulity of Service (QoS), UEFI Support, BIOS Support

Please see the related tabs for the QLE2692-SR-CK datasheet and compatible accessories.
