[shortdesc]

• Single-port 16Gb FC HBA
• PCIe 3.0 x8
• Supports up to 16Gb/s of throughput per port
• FC-NVMe compliant
• Supports Qlogic Storfusion suite of software tools
• Wide operating temperature range (-40°C to 85°C)
• Low power consumption

[/shortdesc]

[properties]

Product Name	QLogic QLE2690-SR-CK Host Bus Adapter
Product Description	Single-port Enhanced 16Gb Fibre Channel (FC) Host Bus Adapter (HBA) with PCIe 3.0 x8 interface, designed for high-performance virtualized environments
Product Family	QLogic 2690 Series
Product Type	Fibre Channel Host Bus Adapter	SATA 6 Gbps
Port Configuration	Single 16Gb FC port
Interface	PCIe 3.0 x8
Data Transfer Rate	16 Gbps per port
Maximum Transfer Distance	Up to 1312 feet (400 meters) over OM4 multimode fiber
Form Factor	Low-profile PCIe card
Connector Type	LC-style
Supported Fibre Channel Protocols	SCSI-FCP, FC-TAPE, FCP-2
Virtualization Support	NPIV (N_Port ID Virtualization)
Power Consumption	Typical: 8.6W; Maximum: 10.7W
Operating Temperature	0°C to 55°C
Dimensions	Full-height: 6.6 x 2.7 inches; Low-profile: 6.6 x 2.2 inches
Weight	0.3 lbs (136 g)

[/properties]

[specifications]

Key Features	Enhanced 16Gb FC performance, QLogic StorFusion™ technology for streamlined provisioning and improved resiliency, support for over 1.3 million IOPS
Compliance Standards	PCI Express Base Specification 3.1, SCSI-3 Fibre Channel Protocol, Fibre Channel Tape Profile
Management Tools	QLogic QConvergeConsole® (QCC) for unified management
Supported Operating Systems	Windows Server, Linux, VMware ESXi
Advanced Diagnostics	Support for ClearLink® diagnostic port (D_Port), Link Cable Beacon (LCB), and Read Diagnostic Parameters (RDP)
Security Features	Support for T10 Protection Information (T10 PI) for end-to-end data integrity
MTBF	2 million hours
RoHS Compliance	Yes
Additional Information	Backward compatible with 4Gb and 8Gb FC infrastructure, optimized for all-flash arrays (AFAs) and high-density virtualized environments

[/specifications]

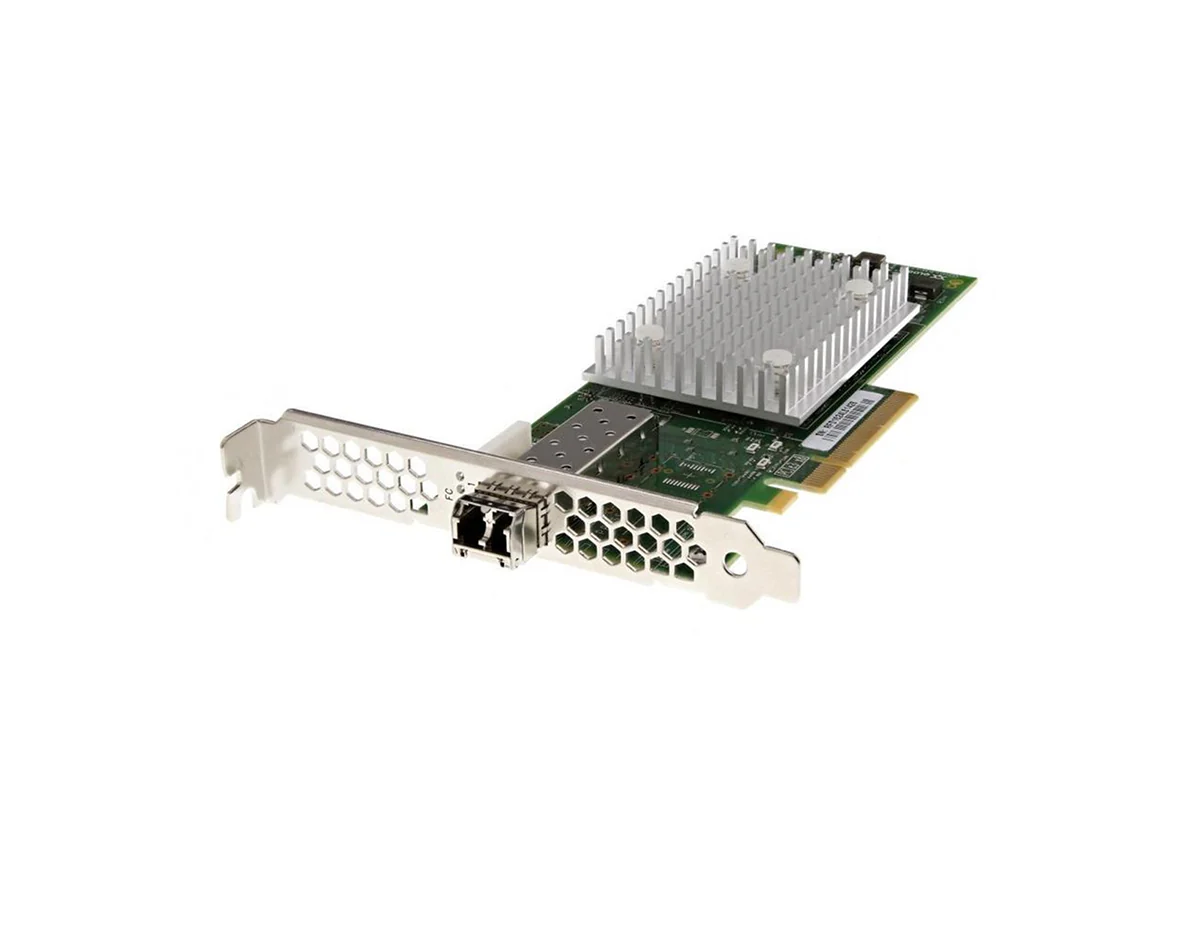

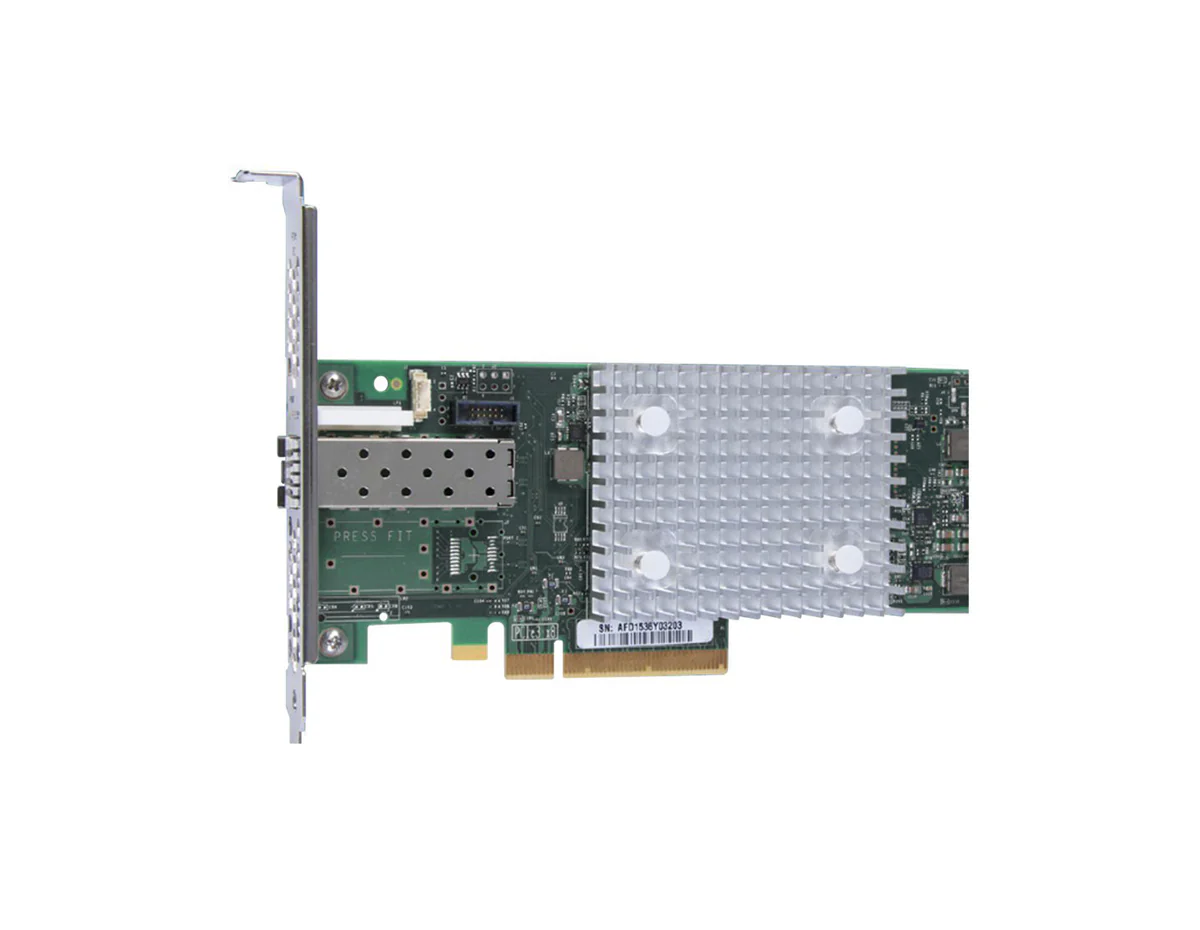

QLogic QLE2690-SR-CK Host Bus Adapter

The QLogic QLE2690-SR-CK is a member of the QLogic 2960 series. The QLogic 2690 family of Fiber Channel adapters support robust virtualization features, making them ideal for virtualized applications requiring high I/O performance to service virtual machines. This product offers 16 gigabits per second (Gb/s) Fibre Channel connectivity, facilitating rapid data transfer among servers, storage devices, and networks. The adapter utilizes the PCIe 3.0 x8 interface, delivering substantial bandwidth and minimal latency to optimize optical performance. It is easy to deploy and manage.

Quick Specs:

• 8x PCIe 3.0
• 1x 16GB Fibre Channel
• Data Transfer Rate: 16Gbps
• Max Transfer Distance: 1312ft

Please see the related tabs for the QLE2690-SR-CK datasheet and compatible accessories.
