[shortdesc] 400W output, AC/DC 100–250V input, hot-plug module, redundant PSU, PoE+ & 4PPoE (UPOE+) support [/shortdesc]

[properties]

Model	PWR-RGD-AC-DC-400
Product Type	Hot-Plug / Redundant Power Supply
Power Capacity	400 Watt
Input Voltage	AC 100–240 V, 50/60 Hz; DC 100–250 V
Form Factor	Plug-in Module
PoE Support	UPOE+ (IEEE 802.3bt Type 4, Class 7 & 8), PoE+
Compatibility	Cisco Catalyst IE9300 Rugged Series Switches
Weight	3.55 lb (1.61 kg)
Dimensions (H × W × D)	1.58 × 7 × 6.58 in. (4 × 17.8 × 16.7 cm)

[/properties]

[specifications]

Power Provided	400 W output
Max Input Current	3.3 A (at 100 VAC)
Frequency	50–60 Hz
Standards Compliance	HAZLOC (ATEX, IECEx, UL/CSA Class I Div 2)
Energy Star Certified	No
EPEAT / TCO	No
Operating Temperature	–40 °C to +75 °C (blower cabinet), –40 °C to +70 °C (vented), –40 °C to +60 °C (sealed)
Storage Temperature	–40 °C to +85 °C
Relative Humidity	5% to 95% non-condensing
Operating Altitude	Up to 15,000 ft (4572 m) without derating; up to 40,000 ft (12,192 m) with derating
Shock Resistance	50G at 11 ms half sine, 200G at 2.11 ms half sine
Non-Operational Shock	65–80G at 9 ms trapezoidal
Thermal Spacing Requirement	1.75 in. (4.4 cm) clearance on all sides

[/specifications]

Ensure Reliable Power for Cisco IE9300 Rugged Switches

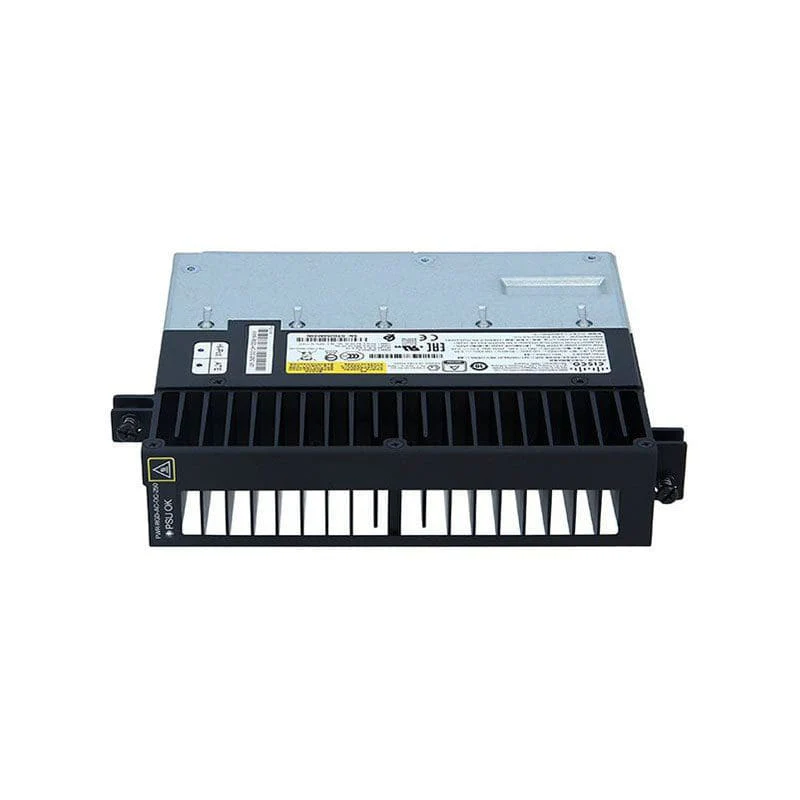

The Cisco PWR-RGD-AC-DC-400 delivers robust, high-capacity power for Cisco Catalyst IE9300 Rugged Series switches. Designed as a hot-plug, redundant module, this 400W supply ensures continuous uptime in demanding industrial and enterprise deployments. With full AC and DC input compatibility, it provides flexibility for diverse networking environments while enabling advanced PoE+ and UPOE+ (4PPoE) support.

Key Benefits & Features

• 400W High Output: Powers demanding PoE+ and UPOE+ (4PPoE) devices, including IoT endpoints and cameras.
• Hot-Plug Redundancy: Swap modules without downtime, ensuring continuous power availability for mission-critical networks.
• Wide Input Range: Accepts AC 100–240V and DC 100–250V, offering flexible deployment in industrial or enterprise environments.
• Compact Design: 1.58 x 7 x 6.58 in. (4 x 17.8 x 16.7 cm) form factor fits seamlessly into IE9300 switch chassis.
• Rugged Reliability: Built to Cisco’s industrial standards with operating ranges suitable for extended deployments.

Ideal Use Cases

• Industrial networks requiring redundant power for Cisco IE9300 switches
• Enterprises powering high-density PoE+ and UPOE+ devices
• Smart city and transportation infrastructure deployments
• Mission-critical control systems where uptime is essential

Technical Specifications

• Part Number: PWR-RGD-AC-DC-400
• Power Output: 400W
• Input Voltage: AC 100–240V, DC 100–250V
• Frequency: 50–60 Hz
• Max Input Current: 3.3A (at 100 VAC)
• Form Factor: Plug-in module
• Dimensions: 1.58 x 7 x 6.58 in. (4 x 17.8 x 16.7 cm)
• Weight: 3.55 lb (1.61 kg)
• PoE Support: PoE+ and UPOE+ (IEEE 802.3bt Type 4, Class 7/8)

Power your Cisco IE9300 with confidence. Order now.
