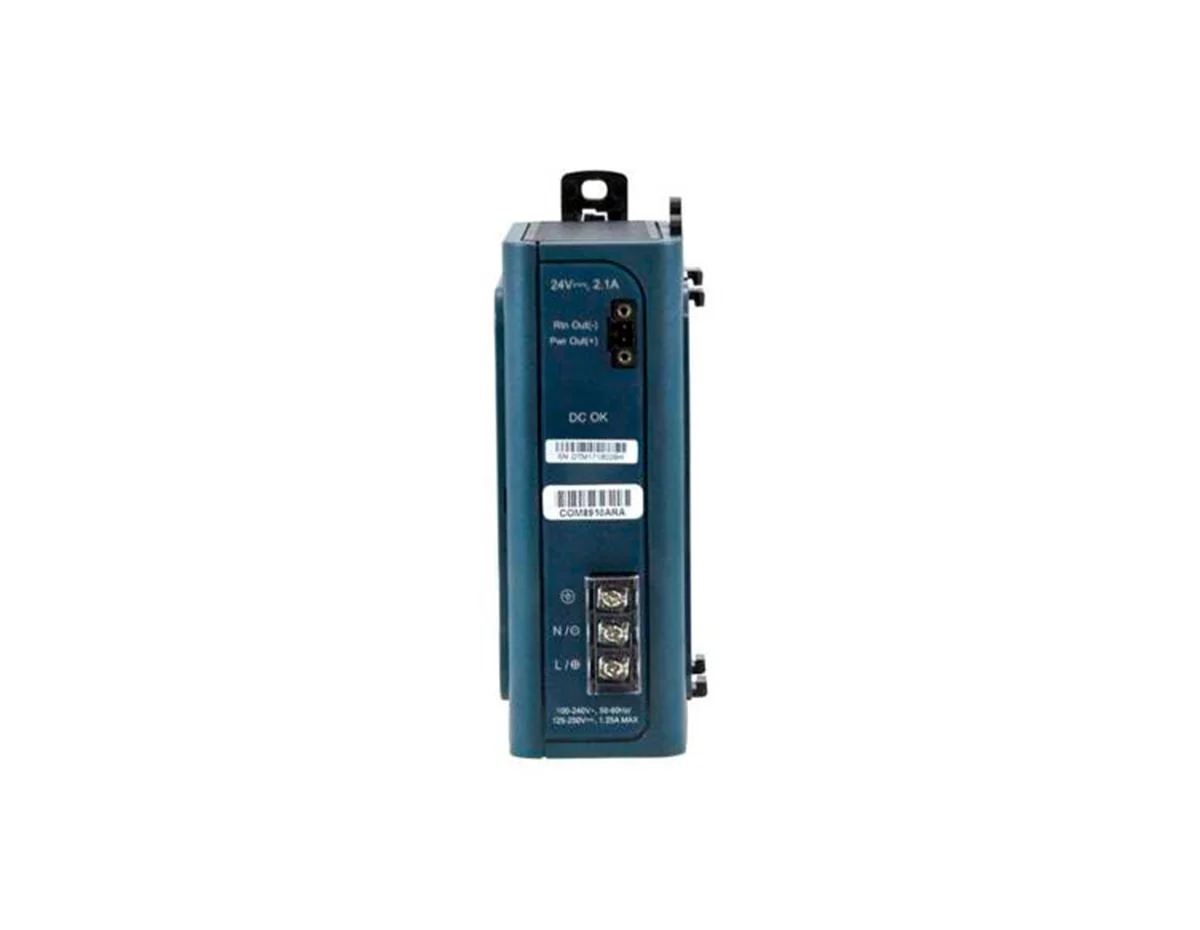

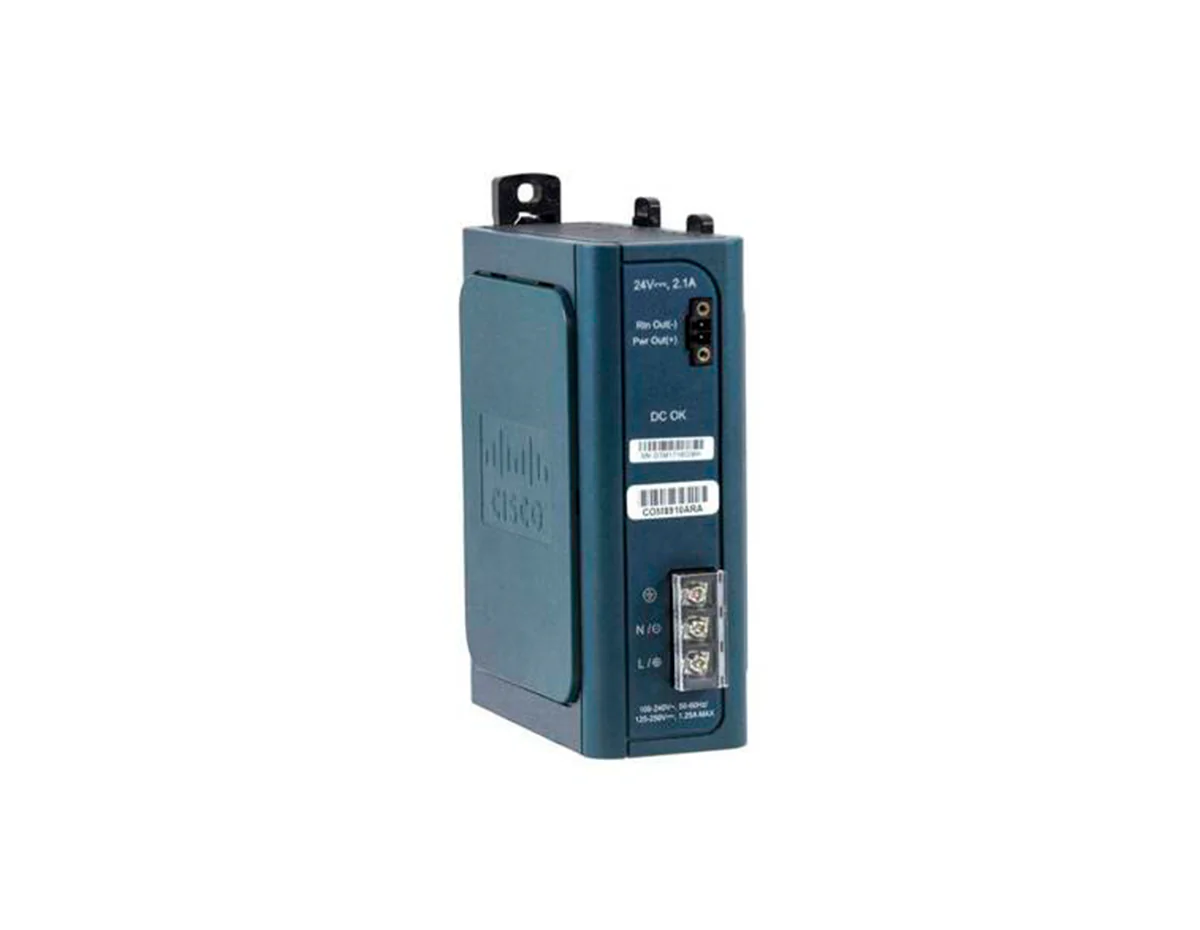

Cisco PWR-IE3000-AC Expansion Module
[shortdesc]
Rugged DIN-rail AC/DC module for Cisco IE3000; accepts 85–265 VAC or 88–300 VDC and outputs regulated 54 VDC (~65 W) for PoE.
[/shortdesc]
[properties]
| Property | Details |
|---|---|
| Product | Cisco IE3000 Extended Power Module (PWR-IE3000-AC) |
| Product Family | Industrial Ethernet 3000 |
| Product Type | Power Supply (DIN-rail mount) |
| Configurations | AC or DC input; use supplied cable to connect module to IE3000 power input |
| Dimensions (H × W × D) | 5.8 × 3.8 × 4.4 in (147 × 97 × 112 mm) |
| Weight | ~2.0 lb (≈0.9 kg) |
| Input Voltage & Current | 85–265 VAC / 88–300 VDC, 50–60 Hz (typ. 1.3–0.8 A on AC) |
| Output | 54 VDC (supports ~65 W PoE budget on IE3000) |
[/properties]
[specifications]
| Specifications | PWR-IE3000-AC |
|---|---|
| Operating Temperature | −40 °C to +70 °C |
| Storage Temperature | −25 °C to +70 °C |
| Operating Altitude | Up to 10,000 ft (≈3049 m) |
| Storage Altitude | Up to 15,000 ft (≈4573 m) |
| MTBF | ~350,000 hours (IE3000 power module) |
| Safety (IT/Industrial) | UL 60950 / EN 60950 (CB), UL 508, CSA 22.2/142, EN 61131-2, EN 60204-1, EN 61010-1 |
| EMC Emissions | FCC Part 15 Class A, EN 55022/CISPR 22, VCCI Class A, AS/NZS 3548 Class A, CE, CNS 13438 Class A |
| EMC Immunity | EN 55024/CISPR 24; IEC/EN 61000-4-2/-3/-4/-5/-6 and related industrial EMC |
| Industrial Specs | IEC 61850-3, IEEE 1613, NEMA TS-2, EN 61326-1, EN 61131-2 |
| Hazardous Locations | UL 1602 / CSA 22.2/213 Class I, Div 2; IEC 60079-15; EN 50021 (Class I, Zone 2) |
| Mechanical | Shock 15 g (operational), 30 g (non-operational) |
[/specifications]
Cisco IE3000 Extended Power Module (PWR-IE3000-AC)
The Cisco IE3000 Extended Power Module adds wide-range AC or high-voltage DC input support to IE3000 switches and provides a regulated 54 VDC output to enable PoE/PoE+ deployments in industrial environments. Designed for DIN-rail mounting with a compact PLC-style form factor, it operates across extended temperatures and meets stringent industrial EMC, safety, and environmental standards, making it suitable for factory automation, substations, and ITS applications.
Key Features
- Wide input: 85–265 VAC or 88–300 VDC; simple cable connection to IE3000
- 54 VDC output for PoE/PoE+ on IE3000 access ports
- Ruggedized, fanless, DIN-rail mount design
- Extended environmental ratings and industrial compliance
- Compact: 5.8 × 3.8 × 4.4 in; ~2.0 lb
