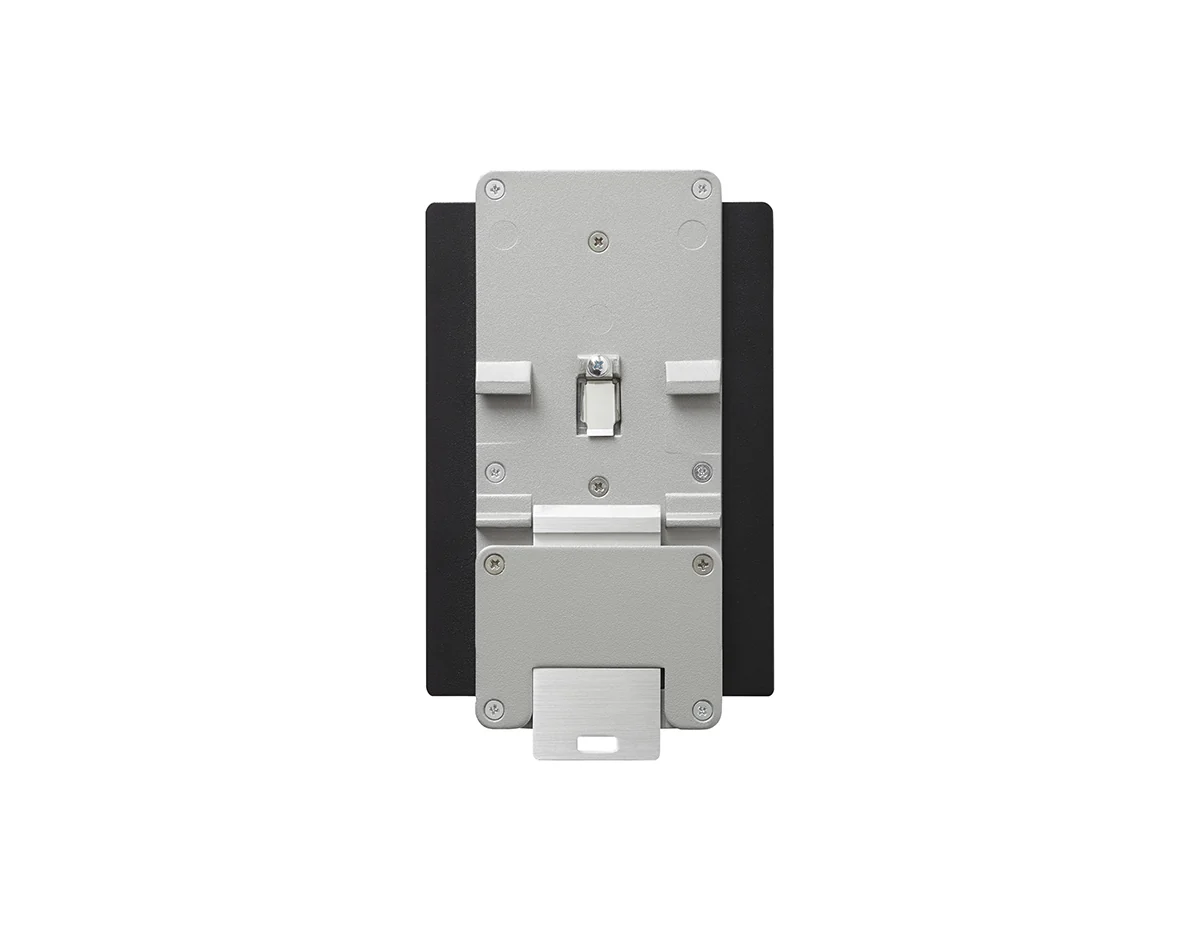

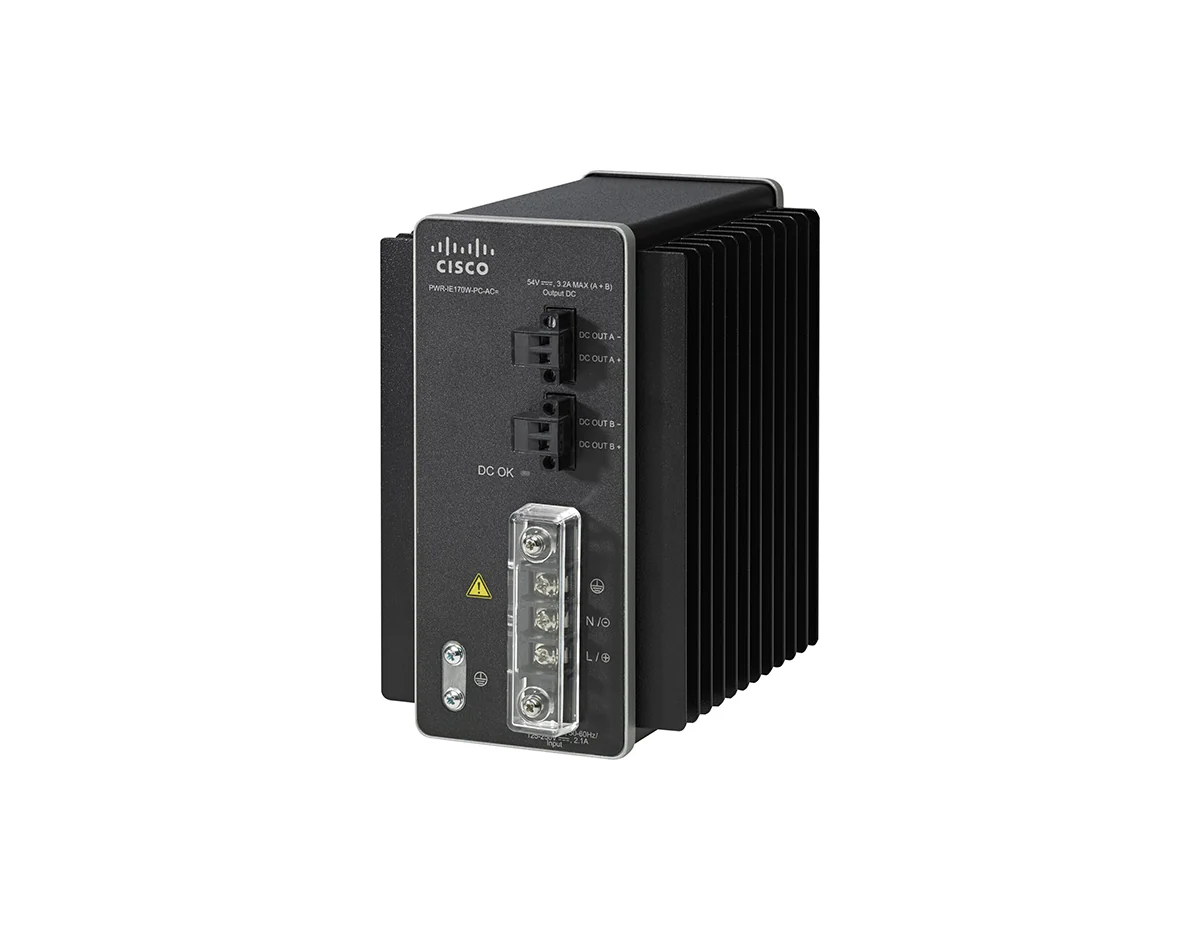

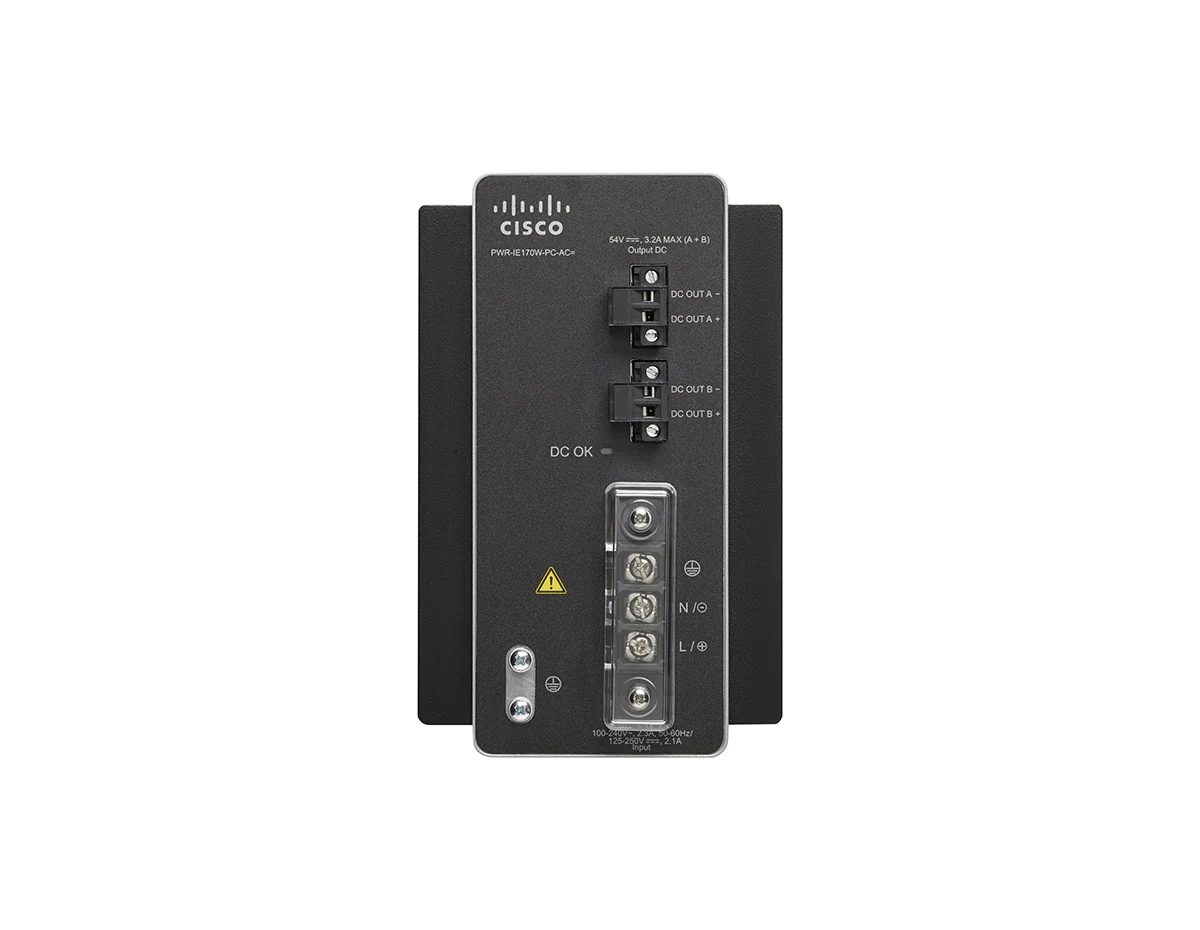

Cisco PWR-IE170W-PC-DC Power Supply
- DC Power Module for POE solution
- Power converter (DIN rail mountable)
- 10.8
- 60 V
- 170 Watt
[properties]
| Properties | Cisco PWR-IE170W-PC-DC |
| Description | 170W DC to DC power supply |
| Product Family | Industrial Ethernet 4000 |
| Product Type | Power Supply |
| Rated nominal input operating range | DC 12-54V/2.3A |
| Supported input voltage operating range | DC 10.8-60V |
| Typical efficiency | 88% |
| Inrush current at 25C ambient | 17.3A @ 12VDC |
| Remarks | Approved for Class 1, Div 2/Zone 2 installations |
| PoE / PoE+ support | Yes |
| Nominal output voltage / adjustment range | 54VDC, 3.2A |
| Max output power | 170W |
| Holdup time at 100% load | 9ms (@10.8VDC) to 25.9ms (@ 60VDC) |
| Dimensions (W x H x D) | 114 mm x 150 mm x 146 mm 4.48 in x 5.90 in x 5.74 in |
| Weight | 3.68 lb (1.67 kg) |
| MTBF | 2,164,641 hours |
[/properties]
[specifications]
| Specifications | PWR-IE170W-PC-DC |
| Protections | Over voltage protection Over current protection Over temperature protection Short circuit protection |
| IP rating | IP20 |
| Operating temperature | -40°C to +75°C |
| Storage temperature | -40°C to +85°C |
| Power de-rating | No derating |
| Operating humidity | <95% RH (non-condensing) |
| Electric safety | EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 UL 508 Class 1, Div 2/Zone 2 Hazardous location CE |
| EMC/ Industry standards | EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, EN 55032:2015, EN 55024: 2010+A1:2015 EN55032:2015, EN 55024: 2010 FCC part 15B IEC 61850-3, IEEE1613 EN 61000-6-4, EN 61000-6-2 |
[/specifications]
Cisco PWR-IE170W-PC-DC Power Supply
Cisco's industrial din-rail power supply portfolio provides versatile options for powering industrial networking equipment. They support high-capacity Power over Ethernet (PoE) and are available with conformal coating options. The PWR-IE170W-PC-DC is low DC to DC power supply specific to Cisco Industrial Ethernet (IE)4000 series switches which has 170 watts of power and is DIN rail-mountable.
Key Features:
- 170W
- High-capacity PoE
- For Cisco IE4000 series
For detailed specifications, refer to the Cisco PWR-IE170W-PC-DC datasheet in the tabs.
