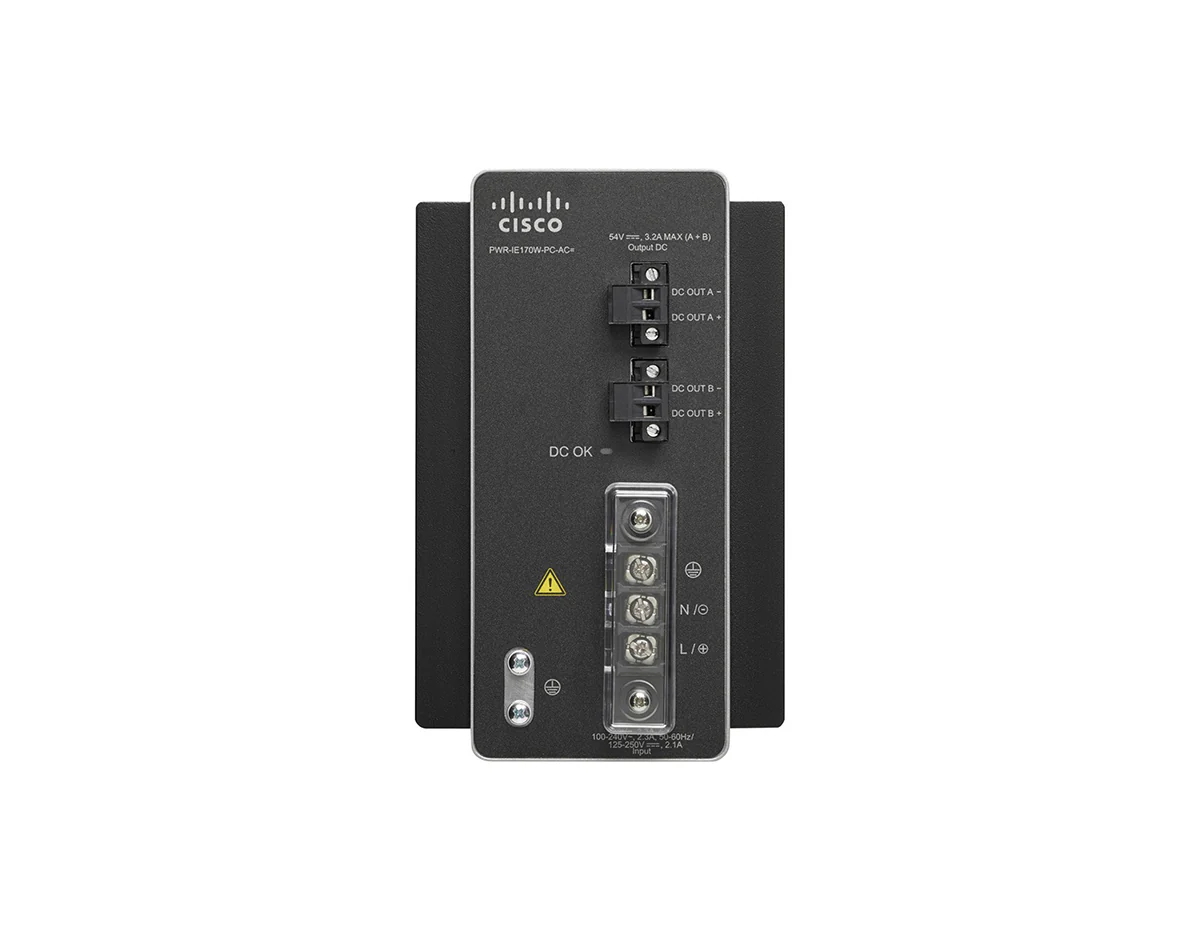

Cisco PWR-IE170W-PC-AC Power Supply
- Power adapter (DIN Rail Mountable)
- AC 90-264/ DC 106-300 V
- 170 Watt
- for Industrial Ethernet 1000 and 4000 Series
[properties]
| Properties | Cisco PWR-IE170W-PC-AC |
| Description | 170W AC to DC power supply |
| Product Family | Industrial Ethernet 4000 |
| Product Type | Power Supply |
| Rated nominal input operating range | AC 100-240V/2.3A, 50-60Hz or DC 125-250V/2.1A |
| Supported input voltage operating range | AC 90-264V or DC 106-300V |
| Typical efficiency | 88% |
| Inrush current at 25C ambient | < 35A @ 115VAC and 70A @ 230VAC |
| Remarks | Approved for Class 1, Div 2/Zone 2 installations CSA certified |
| PoE / PoE+ support | Yes |
| Nominal output voltage / adjustment range | 54VDC, 1.3A |
| Max output power | 170W |
| Holdup time at 100% load | 20ms |
| Dimensions (W x H x D) | 96 mm x 150 mm x 146 mm 3.77 in x 5.90 in x 5.74 in |
| Weight | 3.88 lb (1.76 kg) |
| MTBF | 2,384,975 hours |
[/properties]
[specifications]
| Specifications | PWR-IE170W-PC-AC |
| Protections | Over voltage protection Over current protection Over temperature protection Short circuit protection |
| IP rating | IP20 |
| Operating temperature | -40°C to +75°C |
| Storage temperature | -40°C to +85°C |
| Power de-rating | No derating |
| Operating humidity | <95% RH (non-condensing) |
| Electric safety | IEC60950-1: 2005+A1: 2009+A2: 2013 EN60950-1: 2006+A1: 2010+A11: 2009 +A12: 2011+A2: 2013, KCC mark, BSMI mark, CCC, CB Scheme, Class 1, Div2/ Zone 2 Hazardous Location CE UL60950-1and CSA60950-1 certified |
| EMC/ Industry standards | EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, IEC61000-3-3, EN/IEC61000-4-11, IEC61000-4-12 EN 55032: 2012/AC: 2013, EN 55024: 2010 FCC part 15B EN61131-2: 2007 IEC 61850-3, IEEE 1613 |
[/specifications]
Cisco PWR-IE170W-PC-AC Power Supply
Cisco offers high capacity industrial din rail power supplies for networking equipment. They come in AC/DC and are rugged, reliable, and compact. The PWR-IE170W-PC-AC is AC to DC or High DC to DC power supply for Cisco IE4000 series switches, suitable for POE, delivering 170 watts, DIN rail-mountable, and compatible with the Cisco IE4000 series.
Key Features:
- 170W
- High-capacity PoE
- For Cisco IE4000 series
For detailed specifications, refer to the Cisco PWR-IE170W-PC-AC datasheet in the tabs.
