• 160W of continuous output power
• Wide input voltage range of 18-60V DC
• DIN rail-mountable
• IP67 rated for dust and water ingress protection
• PoE compliant
• Reliable and efficient
• Cost-effective

[/shortdesc]

[properties]

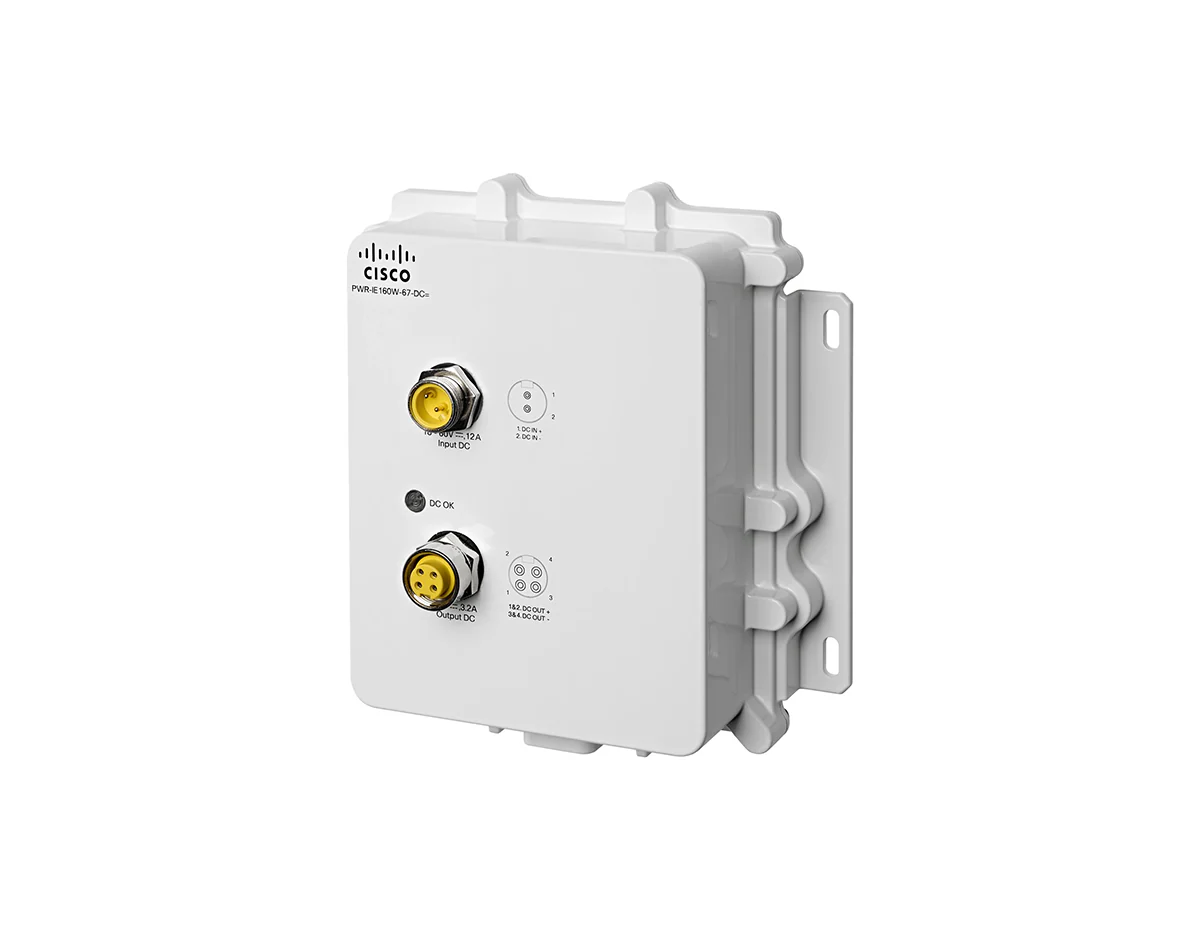

Product Name	Cisco PWR-IE160W-67-DC Power Supply
Product Description	160W DC input power module designed for IP67-rated Cisco IE2000 series switches, suitable for harsh industrial environments
Product Type	Power Supply Module
Output Power	160 W
Output Voltage	54 V DC
Input Voltage Range	18–60 V DC
Input Current	12 A at 18 V DC; 3.6 A at 54 V DC
Mounting Type	DIN rail
Ingress Protection Rating	IP67 (dust and water ingress protection)
PoE Compliance	Yes
Dimensions (H x W x D)	2.17 x 4.29 x 6.69 inches (55 x 109 x 170 mm)
Weight	2.2 lbs (1 kg)
Operating Temperature Range	-40°F to 167°F (-40°C to 75°C)
Operating Humidity	5% to 95% (non-condensing)

[/properties]

[specifications]

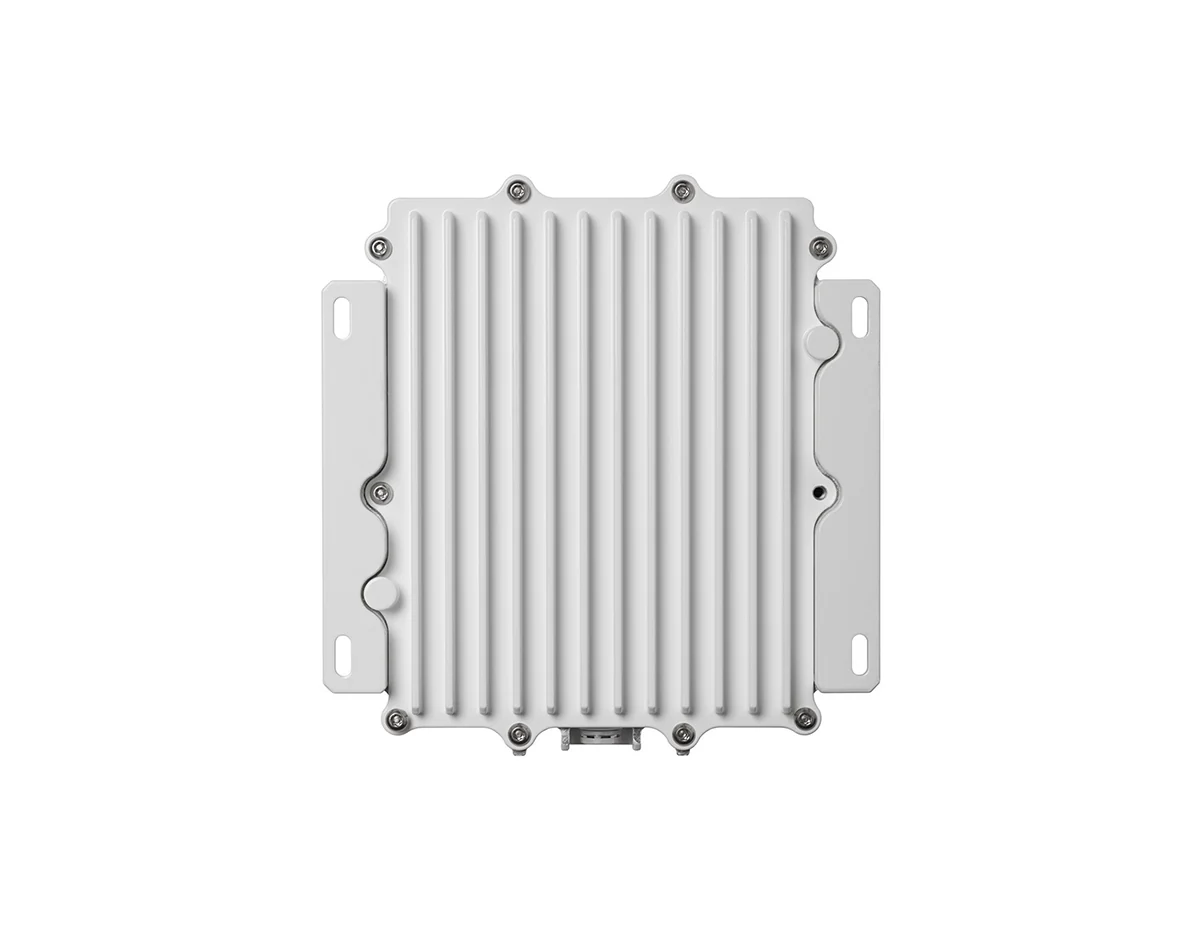

Cooling Method	Convection
MTBF	Over 500,000 hours
Compliance Standards	UL 60950-1, CSA C22.2 No. 60950-1, EN 60950-1, IEC 60950-1
Environmental Standards	IEC 60068-2-2 Environmental Type Tested to +85°C for 16 hours
Safety Certifications	CE Marking, cULus, CB, CCC, EAC
Designed For	Cisco Industrial Ethernet 2000 IP67 Series switches
Additional Features	Supports redundant power configurations for increased reliability
Storage Temperature Range	-40°F to 185°F (-40°C to 85°C)

[/specifications]

The PWR-IE160W-67-DC is a 160W DC Input Power Module for IP67 IE2000 series switches. It is a DIN rail-mountable power supply that is designed to be used in harsh environments. The power module is rated for 160W of continuous output power and has a wide input voltage range of 18-60V DC.

The PWR-IE160W-67-DC power module is a reliable and efficient power supply that is ideal for use in industrial and outdoor applications. It is also a cost-effective solution for providing power to IP67 IE2000 series switches.
