[shortdesc]

• Cisco PWR-CC1-650WDC is a high-efficiency 650W DC power supply designed for Cisco Catalyst 8300 Series Edge Platforms, providing reliable and stable power with 80 Plus Gold certification

[/shortdesc]

[properties]

Properties
Model	PWR-CC1-650WDC
Product Type	Internal DC Power Supply Unit
Compatible Platform	Cisco Catalyst 8300 Series (2RU models)
Redundancy Support	Yes (Dual PSU supported)
Input Voltage Range	-40 to -72V DC
Input Connector	Terminal Block
Power Cord Rating	20A (#14 wire)
Power Supply Efficiency	80 Plus Gold
Hot-Swappable Design	Yes

[/properties]

[specifications]

Specification
Maximum Power Output	650W
Output Ratings	12V / 54A
Output Hold-up Time	4 ms
PoE Support	Yes
PoE Power Budget	650W
Typical Use Case	High-performance SD-WAN and enterprise routing
Operating Temperature	0°C to 40°C (32°F to 104°F)
Field Replaceable	Yes

[/specifications]

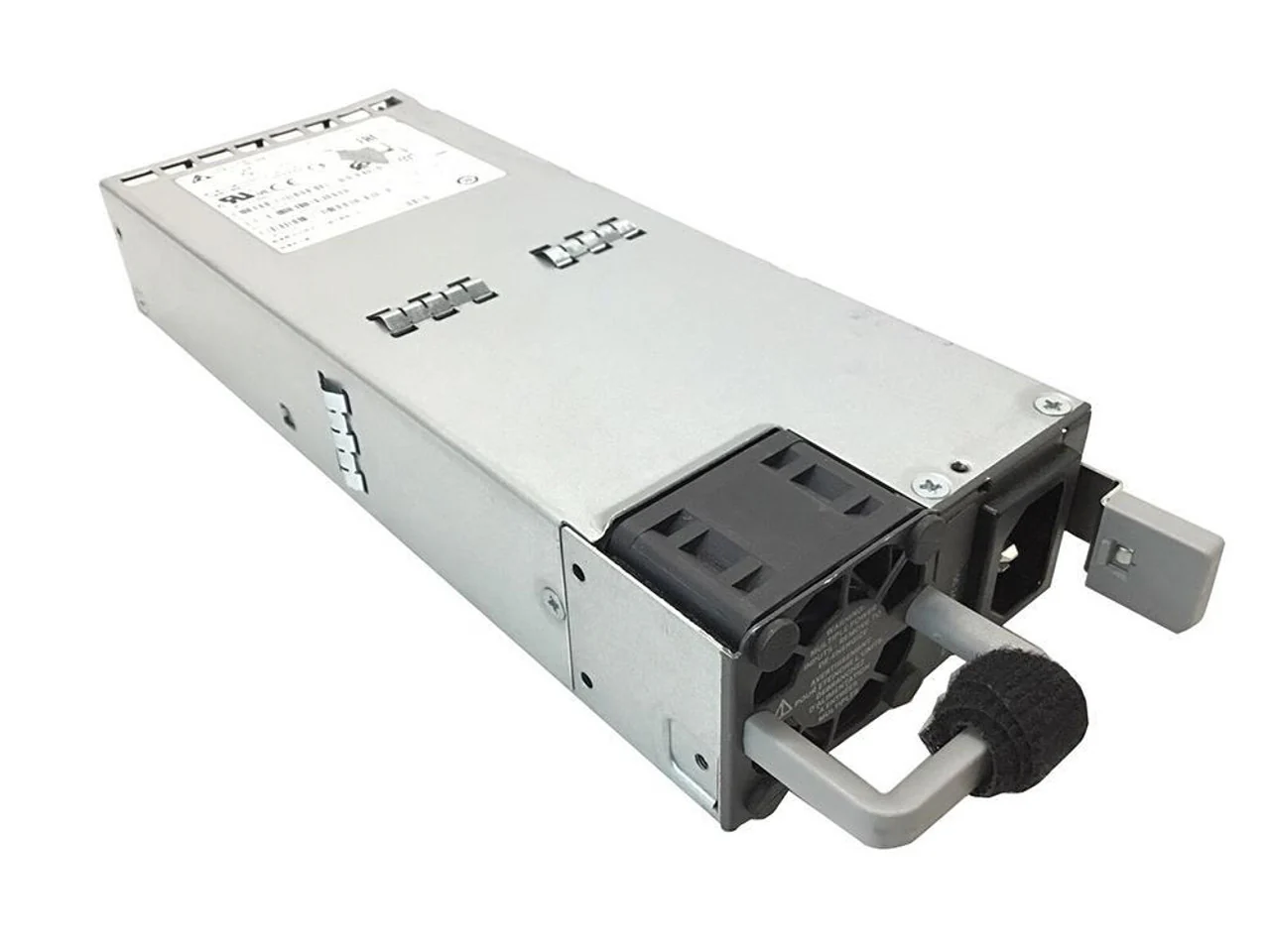

Cisco PWR-CC1-650WDC Power Supply 650W DC

The Cisco PWR-CC1-650WDC is a powerful and energy-efficient DC power supply unit, ensuring continuous and stable power delivery for network hardware. Designed for compatibility with Cisco Catalyst 8300 Series Edge Platforms, this unit features a 650W maximum power rating, 80 Plus Gold efficiency, and a wide input voltage range of -40V to -72V DC. With a terminal block input connector and rugged build quality, it is ideal for enterprise and data center applications.

Key Features:

• High Power Output: Delivers 650W of reliable power.
• Wide Input Voltage Range: Supports DC input from -40V to -72V.
• 80 Plus Gold Efficiency: Optimized for energy efficiency and low heat generation.
• Durable Design: Built for continuous operation in demanding environments.
• Terminal Block Input Connector: Ensures secure and stable power connections.
• Fast Power Recovery: 4 ms output holdup time ensures stability during voltage fluctuations.
• Compact and Modular: Plug-in module design for easy installation and maintenance.
• Compatible with Cisco Catalyst 8300 Series: Designed specifically for Cisco networking hardware.

Technical Specifications:

• Power Maximum Rating: 650W
• Input Voltage Range: DC -40V to -72V
• Power Supply Efficiency: 80 Plus Gold
• Input Current: 18A – 10A
• Output Ratings: 12V 54A
• Output Holdup Time: 4 ms
• Power Supply Input Receptacle: Terminal Block
• Power Cord Rating: 20A #14 Wire
• Form Factor: Plug-in Module
• Compatibility: Cisco Catalyst 8300 Series Edge Platforms
• Environmentally Friendly: Yes
