[properties]

Properties	Cisco PWR-C1-715WDC
Description	715WDC power supply
Product Family	Catalyst 9300
Product Type	Power Supply
Power supply rated maximum	715W
Total output BTU (note: 1000 BTU/hr = 293W)	2440 BTU/hr
Input-voltage range and frequency	-36V to -72 VDC
Input current	24-12A
Output ratings	-56V at 12.8A
Output holdup time	2 ms minimum at -48Vdc
Power-supply input receptacles	Right angle barrier style terminal block
Power cord rating	25A@100VDC
Physical specifications	(H x W x D): 1.58 x 3.25 x 12.20 in Weight: 2.2 lb (1kg)

[/properties]

[specifications]

Specifications	PWR-C1-715WDC
Mean Time Between Failures MTBF (hours)	1,812,103 (-48V input at 40C and vendor Delta)
Power connectors	Customers can provide power to a switch by using the internal power at the back of the switch Internal power supply connector: The internal power supply is an auto-ranging unit. It supports input voltages between 100 (115 for 1100WAC) and 240 VAC. Use the supplied AC power cord to connect the AC power connector to an AC power outlet
LED indicators	AC OK: Input power to the power supply is OK PS OK: Output power from the power supply is OK
Operating temperature	Normal operating temperature* and altitudes: -5°C to +45°C, up to 5000 feet (1500m) -5°C to +40°C, up to 10,000 feet (3000m) *Minimum ambient temperature for cold start is 32°F (0°C) Short-term* exceptional conditions: -5°C to +50°C, up to 5000 feet (1500m) -5°C to +45°C, up to 10,000 feet (3000m) -5°C to +45°C, at sea level with single fan failure *Not more than following in one-year period: 96 consecutive hours, or 360 hours total, or 15 occurrences
Storage temperature	-40° to 158°F (-40° to 70°C)
Altitude	10,000 ft. (3000 meters), up to 45°C
Relative humidity operating and nonoperating noncondensing	5% to 90% noncondensing
EMI and EMC compliance	FCC Part 15 (CFR 47) Class A ICES-003 Class A EN 55032 Class A CISPR 32 Class A AS/NZS 3548 Class A BSMI Class A (AC input models only) VCCI Class A EN 55024, EN300386, EN 61000-3-2, EN 61000-3-3 EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6

[/specifications]

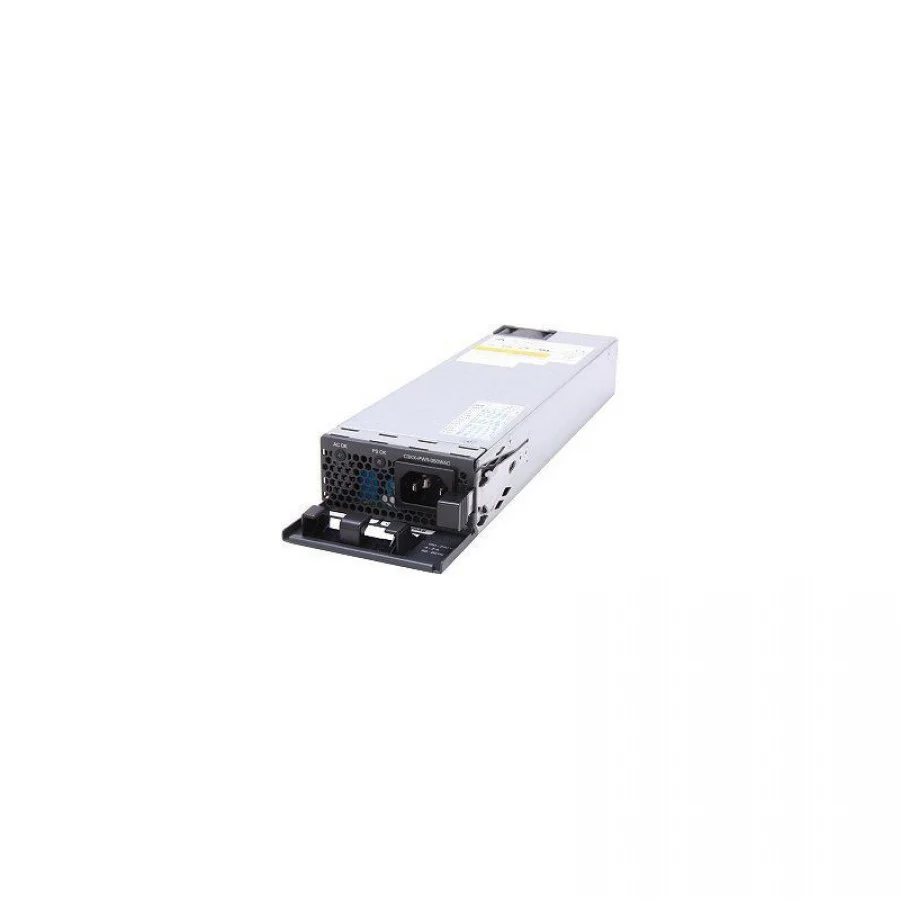

Cisco PWR-C1-715WDC Power Supply

The PWR-C1-715WDC is a hot-plug power supply provides a power of 715 watts. The Cisco DC Config 1 Power Supply is designed to power the Cisco Catalyst 3850 Series switches.

Key Features:

• 715W
• DC Config 1
• For Catalyst 3850 Series

For detailed specifications, refer to the PWR-C1-715WDC datasheet in the tabs.
