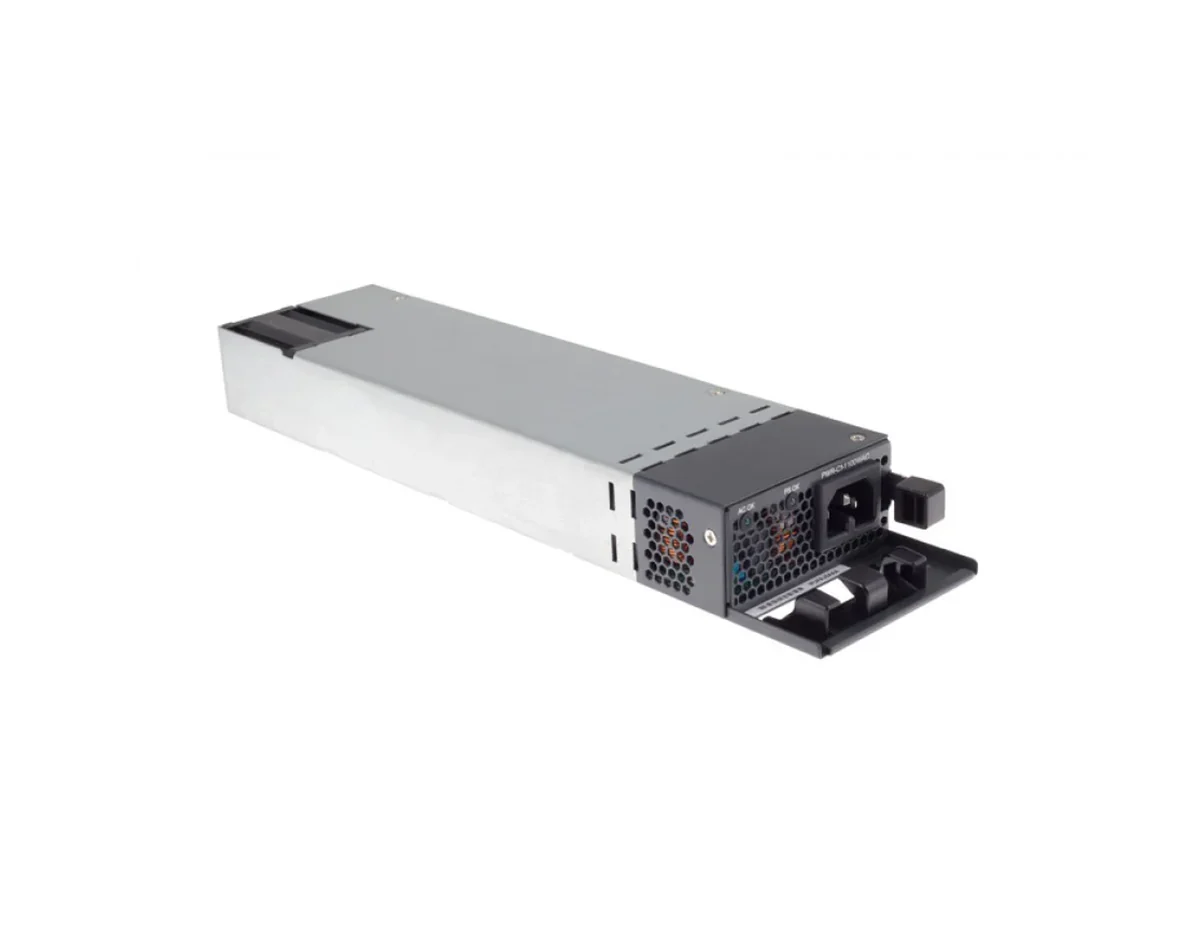

Cisco PWR-C1-1100WAC-P Power Supply
[shortdesc]
- Power supply
- Hot-plug (plug-in module)
- 80 PLUS Platinum
- AC 115-240 V
- 1100 Watt
- for Catalyst 9300
[properties]
| Properties | Cisco PWR-C1-1100WAC-P |
| Description | 1100WAC Platinum-rated power supply |
| Product Family | Catalyst 9300 |
| Product Type | Power Supply |
| Power supply rated maximum | 1100W |
| Total output BTU (note: 1000 BTU/hr = 293W) | 3754 BTU/hr, 1100W |
| Input-voltage range and frequency | 115V to 240 VAC, 50 to 60 Hz |
| Input current | 12-6A |
| Output ratings | -56V at 19.64A |
| Output holdup time | 20 ms minimum at 100VAC |
| Power-supply input receptacles | IEC 320-C16 (IEC60320-C16) |
| Power cord rating | 15A |
| Physical specifications | (H x W x D): 1.58 x 3.25 s 13.7 in Weight: 3.1 lb (1.4 kg) |
[/properties]
[specifications]
| Specifications | PWR-C1-1100WAC-P |
| Mean Time Between Failures MTBF (hours) | 1,217,904 (ranges from 1.2M to 2.8M depending on temperature, input voltage and vendor) (investigating an anomaly in MTBF data received from 1 Power Supply vendor Artesyn) |
| Power connectors | Customers can provide power to a switch by using the internal power at the back of the switch Internal power supply connector: The internal power supply is an auto-ranging unit. It supports input voltages between 100 (115 for 1100WAC) and 240 VAC. Use the supplied AC power cord to connect the AC power connector to an AC power outlet |

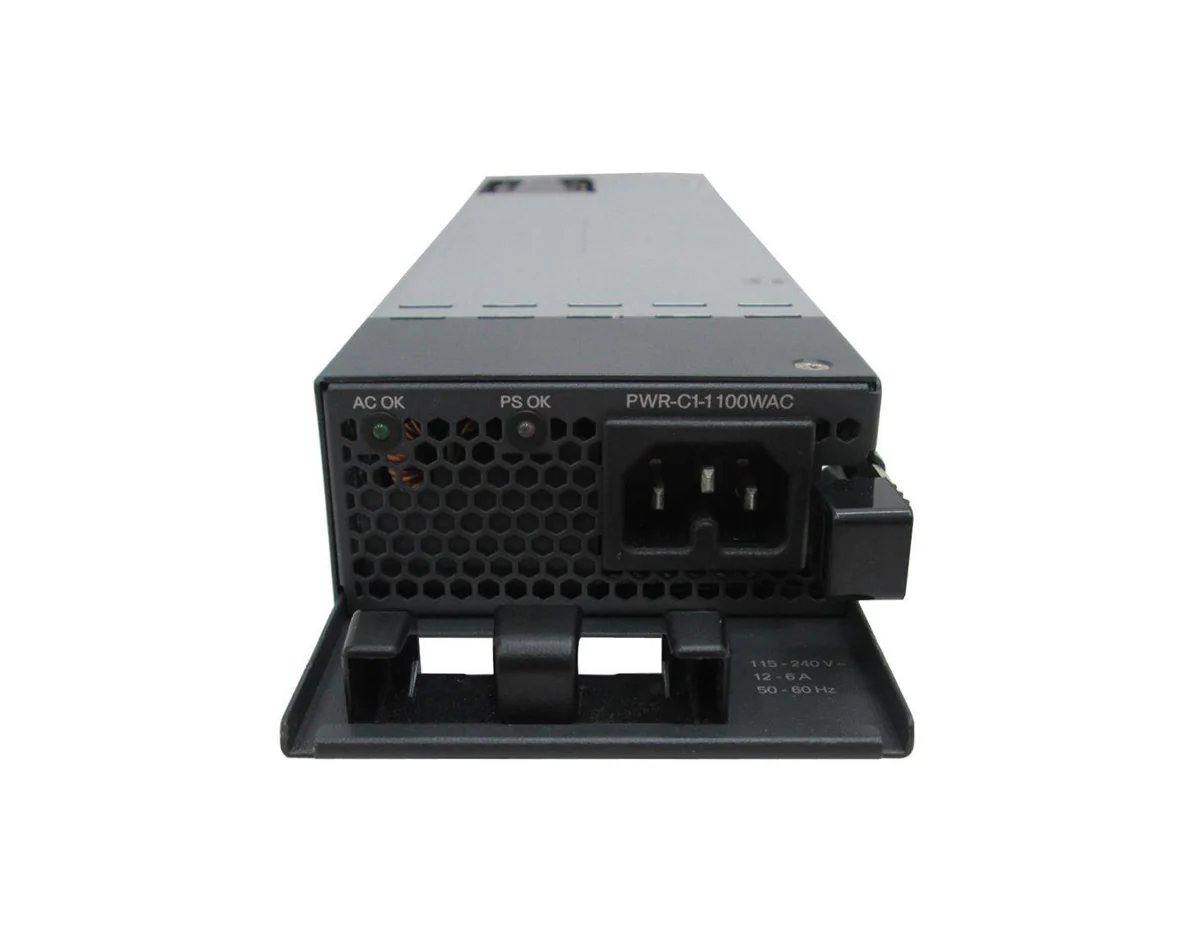

| LED indicators | AC OK: Input power to the power supply is OK PS OK: Output power from the power supply is OK |
| Operating temperature | Normal operating temperature* and altitudes: -5°C to +45°C, up to 5000 feet (1500m) -5°C to +40°C, up to 10,000 feet (3000m) *Minimum ambient temperature for cold start is 32°F (0°C) Short-term* exceptional conditions: -5°C to +50°C, up to 5000 feet (1500m) -5°C to +45°C, up to 10,000 feet (3000m) -5°C to +45°C, at sea level with single fan failure *Not more than following in one-year period: 96 consecutive hours, or 360 hours total, or 15 occurrences |
| Storage temperature | -40° to 158°F (-40° to 70°C) |
| Altitude | 10,000 ft. (3000 meters), up to 45°C |
| Relative humidity operating and nonoperating noncondensing | 5% to 90% noncondensing |
| EMI and EMC compliance | FCC Part 15 (CFR 47) Class A ICES-003 Class A EN 55032 Class A CISPR 32 Class A AS/NZS 3548 Class A BSMI Class A (AC input models only) VCCI Class A EN 55024, EN300386, EN 61000-3-2, EN 61000-3-3 EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6 |
[/specifications]
Cisco PWR-C1-1100WAC-P Power Supply
The Cisco PWR-C1-1100WAC-P power supply is designed for use with the Catalyst 9300 and Catalyst 3850 series switches, delivering reliable and stable power with a capacity of 1100W. It has an 80+ platinum rating for optimal energy efficiency and environmental certification. The advanced cooling mechanisms enhance equipment reliability and longevity, making it a great choice for uninterrupted operations even under demanding workloads.
Key Features:
- 80+ Platinum-rated
- Output power 1100W
- For Catalyst 9300 and 3850 Series
The tabs contain the Cisco PWR-C1-1100WAC-P datasheet with all the specifics you need.
