[shortdesc]

• Intel® Z790 Chipset, 4x DDR5 memory slots, supporting up to 192GB, Intel® Wi-Fi 6E

[/shortdesc]

[properties]

Product Name	PRO-Z790-P-WIFI
Description	MSI PRO Z790-P WiFi ProSeries Motherboard, designed for Intel 12th and 13th generation processors, featuring WiFi 6E support and a robust power design for professional and high-performance computing.
Chipset	Intel Z790
CPU Support	Supports 12th and 13th Gen Intel Core, Pentium Gold, and Celeron processors (LGA 1700)
Memory Support	4 x DDR5 DIMM slots, up to 128 GB, 7200+ MHz (OC)
Expansion Slots	2 x PCIe 4.0 x16 slots, 2 x PCIe 3.0 x1 slots
Storage	4 x M.2 slots (PCIe 4.0 x4), 6 x SATA 6Gb/s ports
WiFi and Bluetooth	Intel WiFi 6E AX210, Bluetooth 5.3
Ethernet	Realtek 2.5Gb LAN
Audio	Realtek ALC897 7.1-channel HD audio
USB Ports	Rear: 1 x USB 3.2 Gen 2x2 Type-C, 5 x USB 3.2 Gen 2, 6 x USB 2.0; Internal: 4 x USB 3.2 Gen 1, 6 x USB 2.0
Form Factor	ATX (30.5 cm x 24.4 cm)
Power Phases	14+1+1 Duet Rail Power System
Operating Temperature	0°C to 60°C (32°F to 140°F)
Storage Temperature	-20°C to 85°C (-4°F to 185°F)
Weight	1.2 kg (2.65 lb)
Usage	Suitable for high-performance gaming, content creation, and professional applications
Durability	Tested for 24/7 operation with military-grade components

[/properties]

[specifications]

Memory Channels	Dual-channel DDR5
BIOS	UEFI AMI BIOS with secure boot
Certifications	CE, FCC, RoHS compliant
Environmental Safety	RoHS compliant, meets EU hazardous substances regulations
EMC Compliance	Complies with FCC Part 15, EN55032/EN55024 standards
Power Management	Supports advanced power-saving features, including C-states and power phases switching
MTBF	>100,000 hours
Overclocking Support	Yes, supports CPU and memory overclocking
Audio Features	Supports high-definition audio with audio boost technology
Cooling Support	Supports liquid cooling and up to 6 PWM fan connectors
Voltage Regulation	Supports dynamic voltage adjustment for CPU and memory
Storage Interface	Supports RAID 0, 1, 5, 10 configurations
WiFi Features	Supports WiFi 6E with up to 2.4 Gbps speed
Firmware Updates	Supports live update for BIOS and firmware via MSI Dragon Center
Shock Resistance	Withstands shock levels up to 50 G
Vibration Resistance	Designed to operate under vibrations of 10-500 Hz
Deployment	Optimized for workstation setups and high-end computing environments
Reliability	Equipped with military-grade capacitors for enhanced stability

Approximately 1.2 kg

[/specifications]

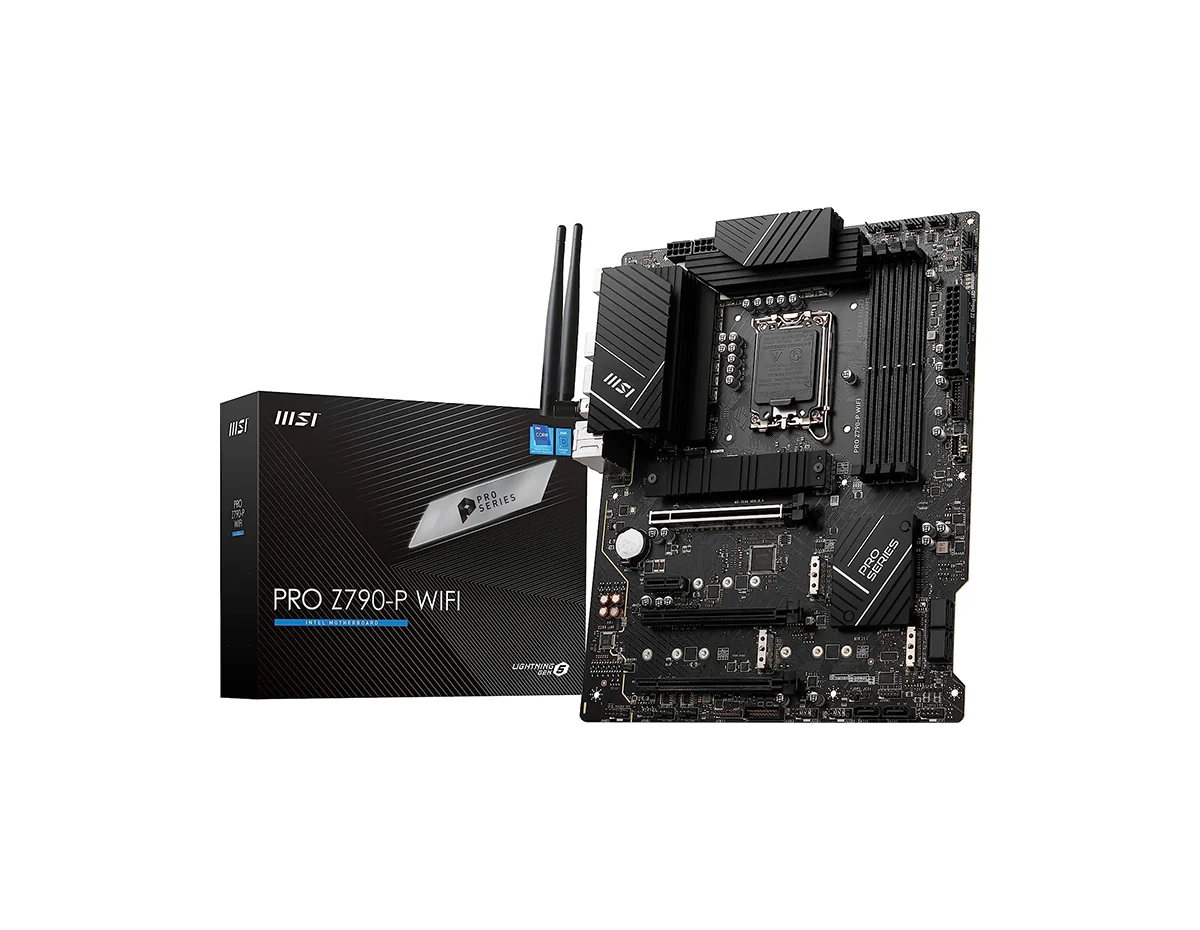

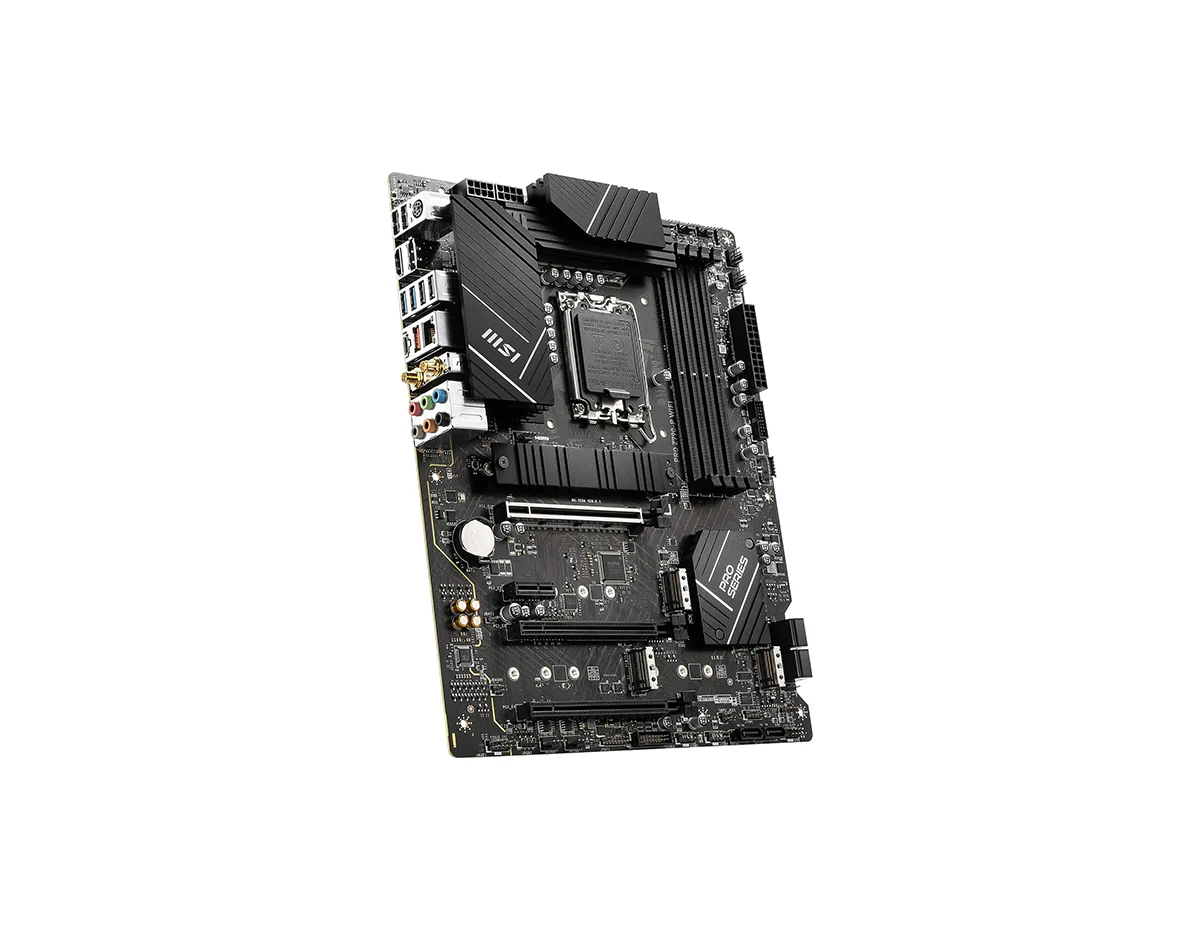

MSI PRO Z790-P WIFI Motherboard

The MSI PRO Z790-P WIFI Motherboard is designed to support the latest Intel® processors and provides advanced features for high-performance computing. With support for DDR5 memory, multiple PCIe slots, and advanced graphics capabilities, this motherboard is ideal for gaming, content creation, and other demanding applications.

CPU:

• Supports Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
• Processor socket LGA1700

Chipset:

• Intel® Z790 Chipset

Memory:

• 4x DDR5 memory slots, supporting up to 192GB*
• Supports 1R 5600 MHz (by JEDEC & POR)
• Max. overclocking frequency:
  • 1DPC 1R Max speed up to 7000+ MHz
  • 1DPC 2R Max speed up to 6400+ MHz
  • 2DPC 1R Max speed up to 6400+ MHz
  • 2DPC 2R Max speed up to 5600+ MHz
• Supports Intel® XMP 3.0 OC
• Supports Dual-Controller Dual-Channel mode
• Supports non-ECC, un-buffered memory
• * Please refer to www.msi.com for more information on compatible memory.

Expansion Slots:

• 3x PCIe x16 slots
• PCI_E1 slot (From CPU): Supports up to PCIe 5.0 x16
• PCI_E3 & PCI_E4 slots (From Z790 chipset):
• PCI_E3 supports up to PCIe 4.0 x4
• PCI_E4 supports up to PCIe 3.0 x1
• 1x PCIe x1 slot (From Z790 chipset)
• PCI_E2 supports up to PCIe 3.0 x1

Onboard Graphics:

• 1x HDMI™ 2.1 port with HDR, supports a maximum resolution of 4K 60 Hz*
• 1x DisplayPort 1.4 with HBR2, supports a maximum resolution of 4K 60Hz*
• * Available only on processors featuring integrated graphics.
• ** Graphics specifications may vary depending on the CPU installed.

SATA Ports:

• 6x SATA 6Gb/s ports (From Z790 chipset)

M.2 SSD Slots:

• 4x M.2 slots (Key M)
• M2_1 slot (From CPU): Supports up to PCIe 4.0 x4, Supports 2242/ 2260/ 2280/ 22110 storage devices
• M2_2 slot (From Z790 chipset): Supports up to PCIe 4.0 x4, Supports 2242/ 2260/ 2280 storage devices
• M2_3 slot (From Z790 chipset): Supports up to PCIe 4.0 x4, Supports SATA 6Gb/s, Supports 2242/ 2260/ 2280 storage devices
• M2_4 slot (From Z790 chipset): Supports up to PCIe 4.0 x4, Supports SATA 6Gb/s, Supports 2242/ 2260/ 2280 storage devices

RAID:

• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

Audio:

• Realtek® ALC897 Codec
• 7.1-Channel High Definition Audio

LAN:

• 1x Intel® 2.5Gbps LAN controller

Wi-Fi & Bluetooth® (For PRO Z790-P WIFI only):

• Intel® Wi-Fi 6E
• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.4Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax
• Supports Bluetooth® 5.3**, FIPS, FISMA
• * The usage of Wi-Fi 6GHz band relies on Windows 11 support and depends on every country’s regulations.

Power Connectors:

• 1x 24-pin ATX main power connector
• 2x 8-pin +12V power connectors

Internal USB Connectors:

• 1x USB 3.2 Gen 2 10Gbps Type-C front panel port (From Z790 chipset)
• 2x USB 3.2 Gen 1 5Gbps connectors (From Z790 chipset)
• Supports additional 4 USB 3.2 Gen 1 5Gbps ports
• 2x USB 2.0 connectors (From Hub-GL850G)
• Supports additional 4 USB 2.0 ports

Fan Connectors:

• 1x 4-pin CPU fan connector
• 1x 4-pin water-pump fan connector
• 6x 4-pin system fan connectors

System Connectors:

• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1x TPM module connector
• 1x Tuning controller connector
• 1x TBT connector (Supports RTD3)

Jumpers:

• 1x Clear CMOS jumper

LED Features:

• 4x EZ Debug LED
• 1x 4-pin RGB LED connector
• 2x 3-pin A-RAINBOW V2 (ARGB Gen2) LED connectors

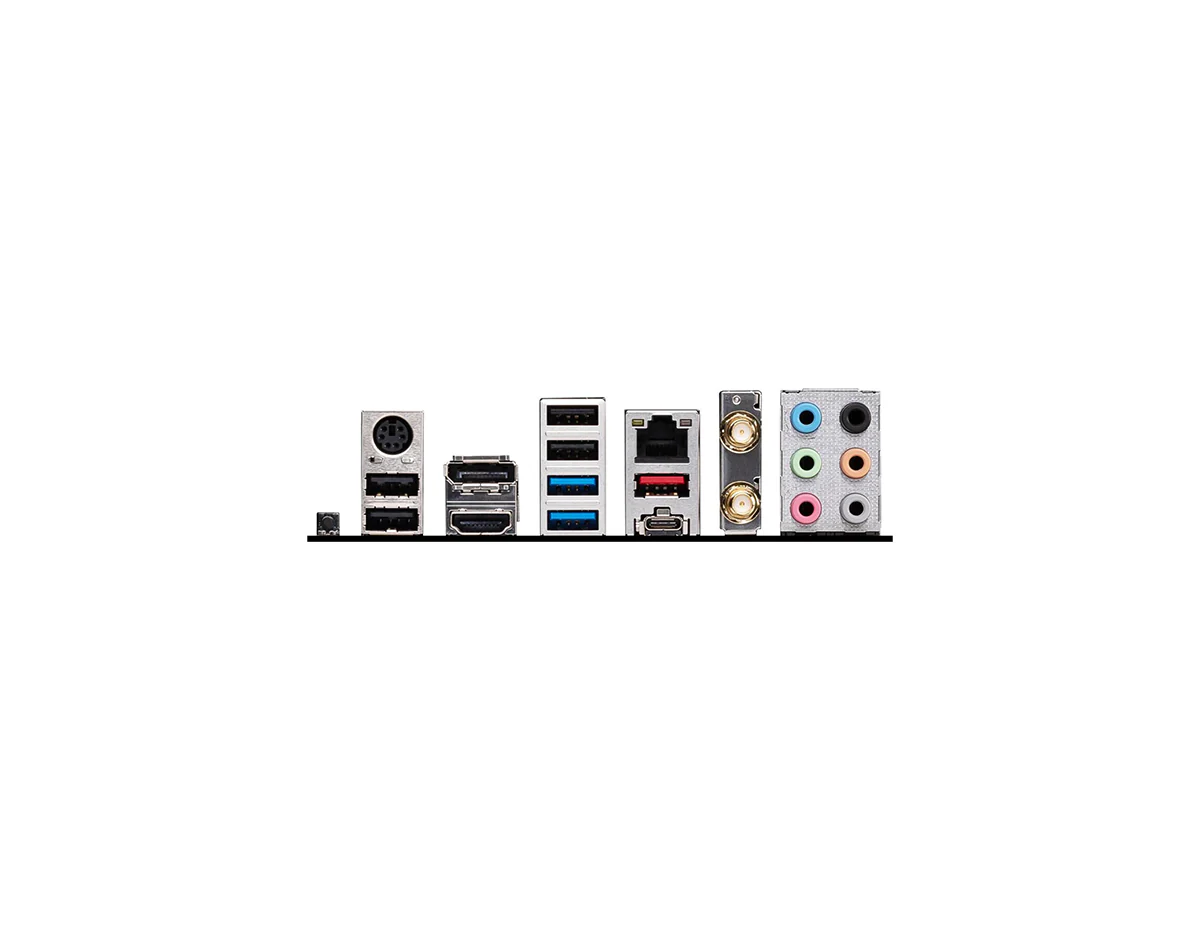

Back Panel Connectors:

• 1x Flash BIOS button
• 1x PS/2 port
• 4x USB 2.0 Type-A ports (From Z790 chipset)
• 1x DisplayPort
• 1x HDMI™ port
• 1x LAN (RJ45) jack
• 2x USB 3.
