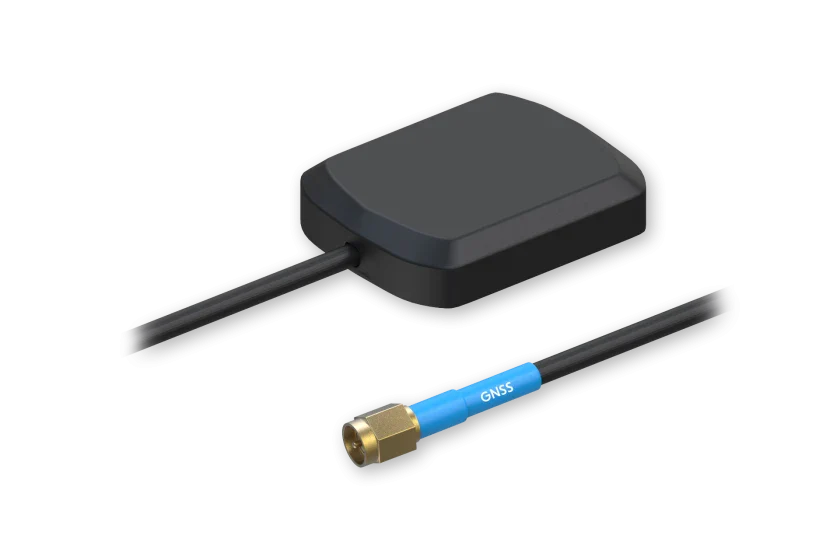

Teltonika Antenna (PR1KSG30)
[shortdesc] GNSS adhesive SMA antenna[/shortdesc]
[properties]
| Product Name | Teltonika GNSS Adhesive SMA Antenna (SKU: PR1KSG30) |
| Description | The PR1KSG30 is a compact GNSS antenna designed for precise and reliable positioning. It features an adhesive mount for easy installation and comes with a 3-meter RG174 cable terminated with an SMA Male connector. |
| Brand | Teltonika Networks |
| Type | GNSS Adhesive Antenna |
| Product Category | Antennas |
| Connector Type | SMA Male |
| Cable Length | 3 meters (RG174) |
| Mounting Method | Adhesive |
| Operating Temperature | -40°C to +85°C |
| Operating Relative Humidity | Up to 95% |
| RoHS Compliant | Yes |
[/properties]
[specifications]
| Frequency Range | 1575 ~ 1602 MHz |
| Polarization | Right-Hand Circular Polarization (RHCP) |
| Antenna Gain | 2.0 dBi |
| Axial Ratio | 3 dB |
| VSWR | ≤ 2.0 |
| Impedance | 50 Ω |
| LNA Gain | 26 ± 2 dB |
| LNA Noise Figure | 1.5 dB |
| Supply Voltage | 2.2 – 5.0 VDC |
| Current Consumption | 5 – 15 mA |
| LNA VSWR | ≤ 2.0 |
[/specifications]
TELTONIKA Antenna (PR1KSG30)
The Teltonika PR1KSG30 is a GNSS adhesive antenna tailored for precise location services. Operating within the 1575.42–1602 MHz frequency range, it delivers 2 dBi antenna gain with excellent signal stability. Equipped with a 3-meter RG174 cable and SMA male connector, it supports versatile installations. Its adhesive mounting ensures secure placement in diverse environments.
Key Features:
- GNSS frequency range: 1575.42–1602 MHz
- 3-meter RG174 cable for extended reach
- Reliable SMA male connector
