[shortdesc]

• Dell PowerEdge R760xs Server, powered by an 8-core Intel® Xeon® Silver 4509Y, 16GB DDR5 memory, 2TB SATA hard drive, ensures reliable performance for essential business applications and data-driven tasks

[/shortdesc]

[properties]

Product Name	Dell PowerEdge R760xs Server
Description	Rack server designed for essential business applications, featuring an Intel® Xeon® Silver 4509Y processor, 16GB DDR5 memory, and a 2TB SATA hard drive
Processor	Intel® Xeon® Silver 4509Y, 2.6GHz, 8 cores, 16 threads, 22.5MB Cache
Memory	16GB RDIMM, 5600MT/s, Single Rank
Storage	2TB 7.2K RPM SATA hard drive, 6Gbps, 3.5-inch, Hot-Plug
RAID Controller	HBA355i Adapter LP for enhanced storage flexibility
Power Supply	600W non-redundant, power-saving optimized
Network Adapter	Broadcom 5720 Dual Port 1Gb On-Board LOM
Management	iDRAC9 Express with factory-generated password
Chassis	2U rack-mountable
Dimensions	8.73 cm (3.44 inches) x 44.45 cm (17.5 inches) x 71.75 cm (28.25 inches)
Operating System	Supports Windows Server, Red Hat Enterprise Linux, VMware ESXi (OS not included)

[/properties]

[specifications]

Processor	Intel® Xeon® Silver 4509Y, 2.6GHz, 8 cores, 16 threads, 22.5MB Cache
Memory	16GB RDIMM, 5600MT/s, Single Rank
Storage	2TB 7.2K RPM SATA hard drive, 6Gbps, 3.5-inch, Hot-Plug
RAID Controller	HBA355i Adapter LP
Power Supply	600W non-redundant, power-saving optimized
Network Adapter	Broadcom 5720 Dual Port 1Gb On-Board LOM
Management	iDRAC9 Express with factory-generated password
Chassis	2U rack-mountable
Dimensions	8.73 cm (3.44 inches) x 44.45 cm (17.5 inches) x 71.75 cm (28.25 inches)
Operating System Support	Windows Server, Red Hat Enterprise Linux, VMware ESXi (OS not included)
Additional Features	Hot-plug drive support, Energy-efficient design, Expandable memory and storage options

[/specifications]

Dell R760xs Server Xeon Silver 4509Y 1x16GB 1x2TB HDD PER760xs-1x4509Y-16G-2TB

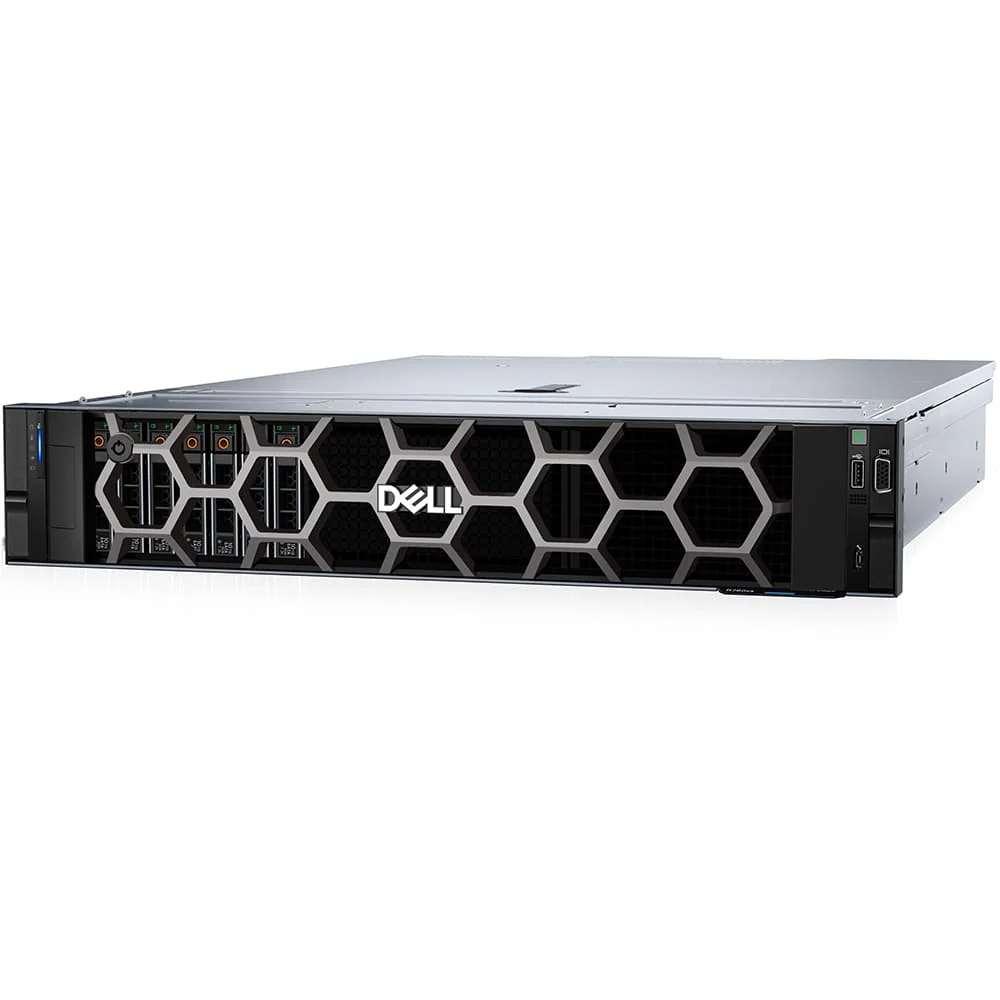

The Dell PowerEdge R760xs Server is built to deliver reliable performance for essential business applications. Featuring an Intel® Xeon® Silver 4509Y processor with 8 cores and 16 threads, this server is optimized for multi-threaded workloads. It comes with 16GB of DDR5 memory and a 2TB SATA hard drive, providing ample storage capacity for data-driven tasks and ensuring efficiency in enterprise environments.

Key Features:

• Processor: Intel® Xeon® Silver 4509Y, 2.6GHz, 8 cores, 16 threads, 22.5M Cache
• Memory: 16GB RDIMM, 5600MT/s, Single Rank
• Storage: 2TB 7.2K RPM SATA hard drive, 6Gbps, 3.5-inch, Hot-Plug
• RAID Controller: HBA355i Adapter LP for enhanced storage flexibility
• Power Supply: 600W non-redundant, power-saving optimized
• Network Adapter: Broadcom 5720 Dual Port 1Gb On-Board LOM
• Management: iDRAC9 Express with factory-generated password

Technical Specifications:

• Chassis: PowerEdge R760xs Server
• Trusted Platform Module: Not included
• CPU Heatsink: Heatsink suitable for 2 CPU configurations exceeding 165W
• Memory Configuration: Performance optimized with 5600MT/s RDIMMs
• BIOS: Power-saving BIOS setting, UEFI Boot Mode with GPT Partition
• Power Cord: NEMA 5-15P to C13 Wall Plug, 125 Volt, 15 AMP, 10 Feet (North America)
• Embedded Management: iDRAC9, Express 16G with iDRAC Service Module disabled
