• Dell PowerEdge R760 Server, with dual 8-core Intel® Xeon® Silver 4509Y processors, 32GB DDR5 memory, 600GB SAS hard drive, delivers robust performance and scalability for complex, data-intensive business applications

[/shortdesc]

[properties]

Product Name	Dell PowerEdge R760 Server
Description	Rack server designed for essential business applications, featuring dual Intel® Xeon® Silver 4509Y processors, 32GB DDR5 memory, and a 600GB SAS hard drive
Processor	Dual Intel® Xeon® Silver 4509Y, 2.6GHz, 8 cores, 16 threads per processor, 22.5MB Cache
Memory	32GB (2 x 16GB) RDIMM, 5600MT/s, Single Rank
Storage	600GB 10K RPM SAS hard drive, 12Gbps, 2.5-inch with 3.5-inch hybrid carrier, Hot-Plug
RAID Controller	PERC H755 Adapter LP for flexible storage configurations
Power Supply	Non-redundant 600W power supply, performance optimized
Network Adapter	No OCP 3.0 mezzanine NIC card, Blank Filler Only
Management	iDRAC9 Express with factory-generated password
Chassis	2U rack-mountable
Dimensions	Height: 8.68 cm (3.42 inches), Width: 48.24 cm (18.99 inches), Depth: 74.4 cm (29.29 inches)
Operating System	Supports Windows Server, Red Hat Enterprise Linux, VMware ESXi (OS not included)

[/properties]

[specifications]

Processor	Dual Intel® Xeon® Silver 4509Y, 2.6GHz, 8 cores, 16 threads per processor, 22.5MB Cache
Memory	32GB (2 x 16GB) RDIMM, 5600MT/s, Single Rank
Storage	600GB 10K RPM SAS hard drive, 12Gbps, 2.5-inch with 3.5-inch hybrid carrier, Hot-Plug
RAID Controller	PERC H755 Adapter LP
Power Supply	Non-redundant 600W power supply, performance optimized
Network Adapter	No OCP 3.0 mezzanine NIC card, Blank Filler Only
Management	iDRAC9 Express with factory-generated password
Chassis	2U rack-mountable
Additional Features	Heatsink for 2 CPU configuration, Performance BIOS setting, Hot-plug drive support, Expandable memory and storage options
Embedded Management	iDRAC9, Express 16G with iDRAC Service Module disabled

[/specifications]

Dell R760 Server 2x Xeon Silver 4509Y 2x16GB 1x600GB HDD PER760-2x4509Y-2x16G-600GB

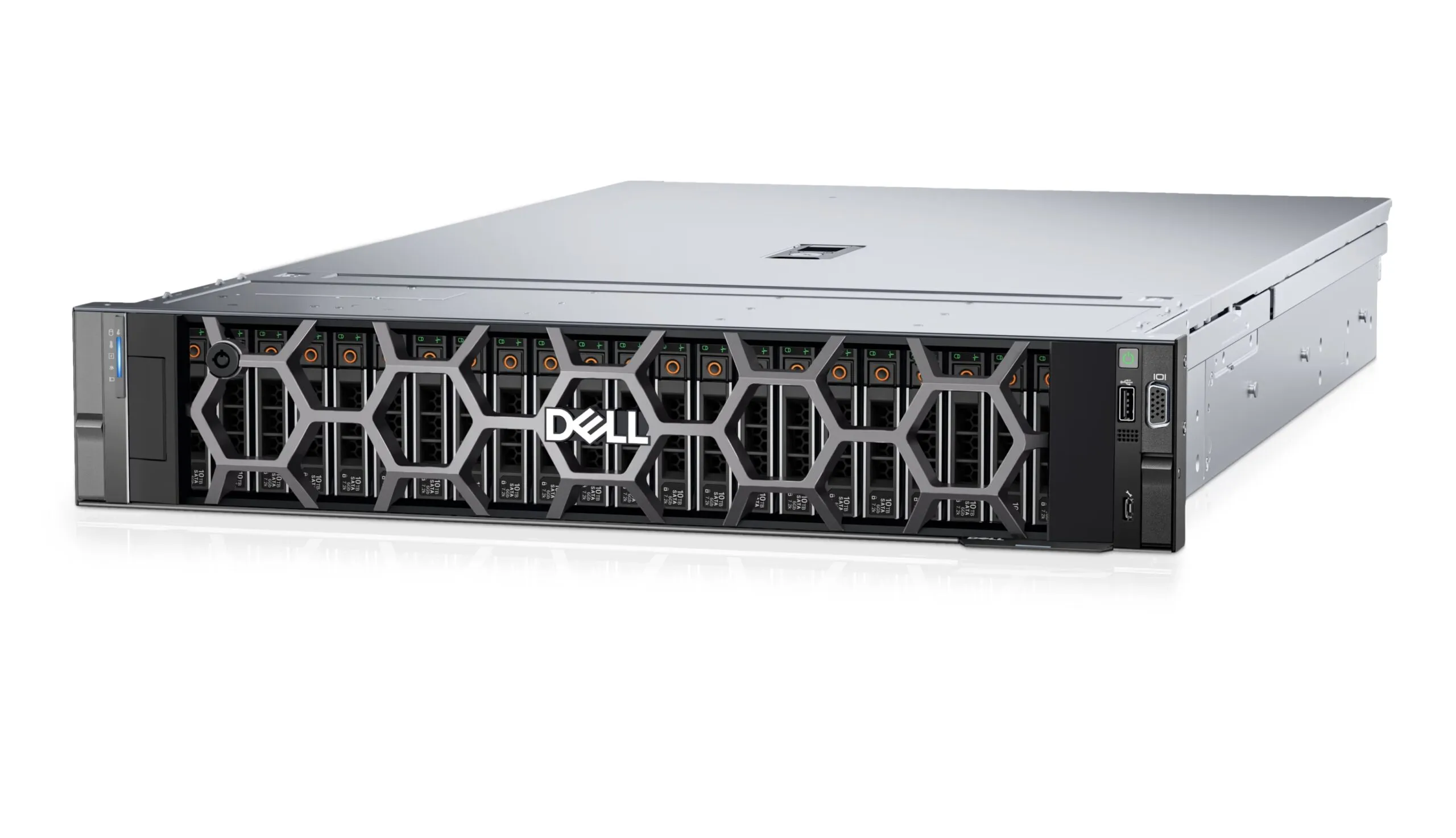

The Dell PowerEdge R760 Server is a high-performance enterprise solution designed to handle complex workloads and data-driven applications. Equipped with dual Intel® Xeon® Silver 4509Y processors, each with 8 cores and 16 threads, this server provides efficient computing power. It comes with 32GB of DDR5 memory and a fast 600GB SAS hard drive, making it an ideal choice for businesses that need reliable performance and scalability.

Key Features:

• Processor: Dual Intel® Xeon® Silver 4509Y, 2.6GHz, 8 cores, 16 threads per processor, 22.5M Cache
• Memory: 32GB (2 x 16GB) RDIMM, 5600MT/s, Single Rank
• Storage: 600GB 10K RPM SAS hard drive, 12Gbps, 2.5-inch with 3.5-inch hybrid carrier, Hot-Plug
• RAID Controller: PERC H755 Adapter LP for flexible storage configurations
• Power Supply: Non-redundant 600W power supply, performance optimized
• Network: No OCP 3.0 mezzanine NIC card, Blank Filler Only
• Management: iDRAC9 Express with factory-generated password

Technical Specifications:

• Chassis: PowerEdge R760 Server
• Trusted Platform Module: Not included
• CPU Heatsink: Heatsink for 2 CPU configuration (greater than 165W)
• Memory Configuration: Performance optimized with 5600MT/s RDIMMs
• BIOS: Performance BIOS setting, UEFI Boot Mode with GPT Partition
• Power Cord: NEMA 5-15P to C13 Wall Plug, 125 Volt, 15 AMP, 10 Feet (North America)
• Embedded Management: iDRAC9, Express 16G with iDRAC Service Module disabled

For Configuration:

• If you have specific requirements for the server components, reach out to us for assistance. We can customize the configuration to meet your needs with your desired parts.
