[shortdesc]

• Dell PowerEdge R660 Server with Intel® Xeon® Silver 4509Y, 64GB DDR5 memory, 600GB SAS hard drive delivers robust, scalable performance for demanding enterprise workloads and critical business environments

[/shortdesc]

[properties]

Product Name	Dell PowerEdge R660 Server (PER660-1x4509Y-4x16G-600GB)
Description	Rack server designed for demanding enterprise workloads, featuring an Intel® Xeon® Silver 4509Y processor, 64GB DDR5 memory, and a 600GB SAS hard drive
Processor	Intel® Xeon® Silver 4509Y, 2.6GHz, 8 cores, 16 threads, 22.5MB Cache
Memory	64GB (4 x 16GB) RDIMM, 5600MT/s, Single Rank
Storage	600GB 10K RPM SAS hard drive, 12Gbps, 2.5-inch Hot-Plug
RAID Controller	PERC H755 with rear load brackets
Network Adapter	Broadcom 5720 Quad Port 1GbE BASE-T, OCP NIC 3.0
Power Supply	Non-redundant 600W power supply, power-saving optimized
Management	iDRAC9 Express with factory-generated password
Chassis	1U rack-mountable
Dimensions	Height: 4.28 cm (1.68 inches), Width: 48.24 cm (18.97 inches), Depth: 82.29 cm (32.39 inches)
Operating System	Supports Windows Server, Red Hat Enterprise Linux, VMware ESXi (OS not included)

[/properties]

[specifications]

Processor	Intel® Xeon® Silver 4509Y, 2.6GHz, 8 cores, 16 threads, 22.5MB Cache
Memory	64GB (4 x 16GB) RDIMM, 5600MT/s, Single Rank
Storage	600GB 10K RPM SAS hard drive, 12Gbps, 2.5-inch Hot-Plug
RAID Controller	PERC H755 with rear load brackets
Network Adapter	Broadcom 5720 Quad Port 1GbE BASE-T, OCP NIC 3.0
Power Supply	Non-redundant 600W power supply, power-saving optimized
Management	iDRAC9 Express with factory-generated password
Chassis	1U rack-mountable
Additional Features	Performance heatsink for 1 CPU configuration under 250W, Power-saving BIOS setting, UEFI Boot Mode with GPT Partition, Hot-plug drive support, Expandable memory and storage options
Embedded Management	iDRAC9, Express 16G with iDRAC Service Module disabled

[/specifications]

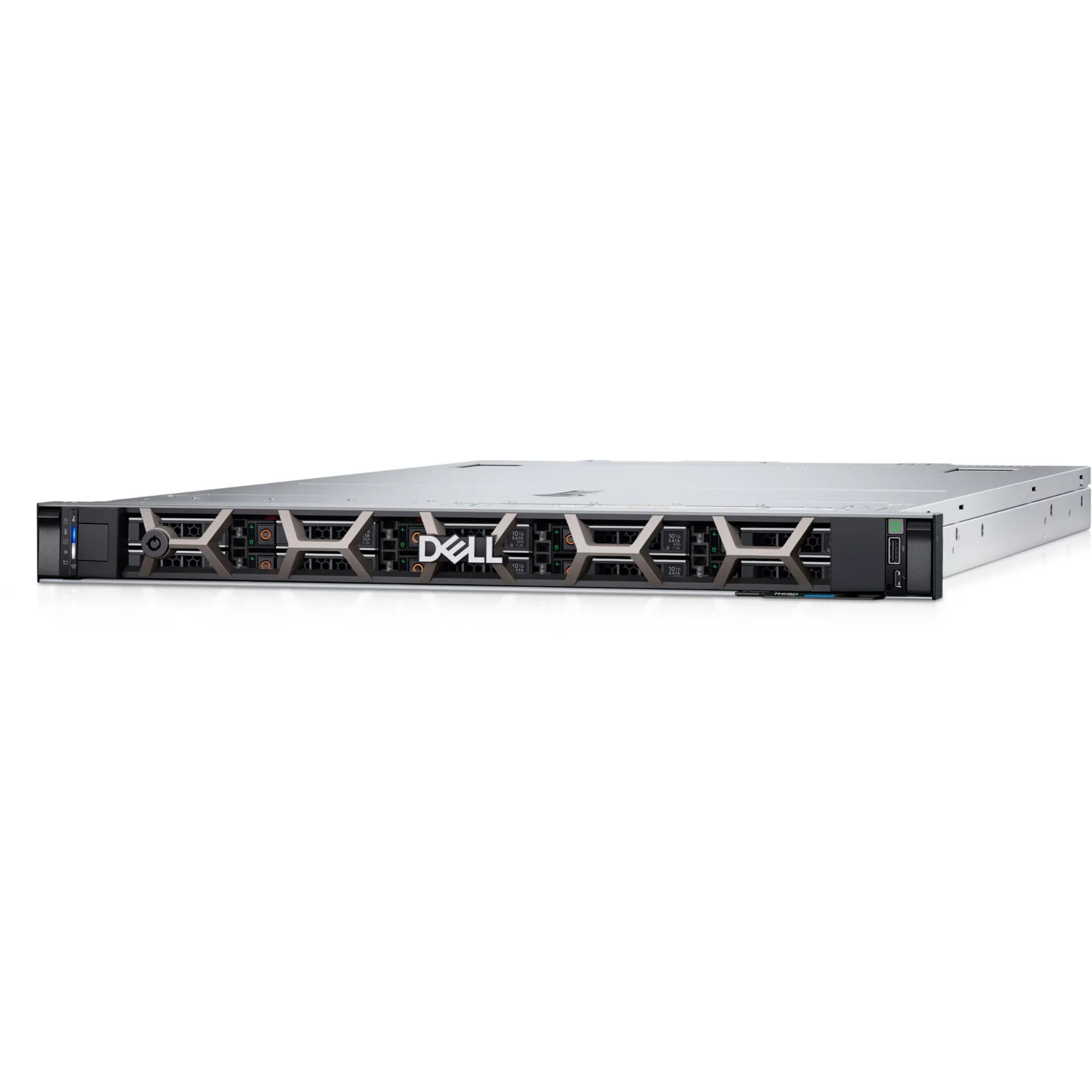

Dell R660 Server Xeon Silver 4509Y 4x16GB 1x600GB HDD PER660-1x4509Y-4x16G-600GB

The Dell PowerEdge R660 Server, powered by Intel® Xeon® Silver 4509Y, is designed for robust performance in business-critical environments. Equipped with an 8-core, 16-thread CPU, 64GB of high-speed DDR5 memory, and a 600GB SAS hard drive, this server ensures reliability, scalability, and efficiency. Ideal for handling intensive workloads, it offers a combination of processing power, storage, and connectivity tailored to meet diverse enterprise needs.

Key Features:

• Processor: Intel® Xeon® Silver 4509Y, 2.6GHz, 8 cores, 16 threads, 22.5M Cache
• Memory: 64GB RDIMM, 5600MT/s, Single Rank (4 x 16GB)
• Storage: 600GB 10K RPM SAS hard drive, 12Gbps, 2.5-inch Hot Plug
• RAID Controller: PERC H755 with rear load brackets
• Network Adapter: Broadcom 5720 Quad Port 1GbE BASE-T, OCP NIC 3.0
• Power Supply: Non-redundant 600W power supply, power-saving optimized
• Management: iDRAC9 Express with factory-generated password

Technical Specifications:

• Chassis: PowerEdge R660 Server
• Trusted Platform Module: Not included
• CPU Heatsink: Performance heatsink for 1 CPU configuration under 250W
• Memory Configuration: Performance optimized with 5600MT/s RDIMMs
• BIOS: Power-saving BIOS setting, UEFI Boot Mode with GPT Partition
• Power Cord: NEMA 5-15P to C13 Wall Plug, 125 Volt, 15 AMP, 10 Feet (North America)
• Embedded Management: iDRAC9, Express 16G with iDRAC Service Module disabled

For Configuration:

• If you have specific requirements for the server components, reach out to us for assistance. We can customize the configuration to meet your needs with your desired parts.
