• PA-5450 Base DC Hardware Bundle. Includes Chassis, 2xDC power supplies, 4xFans, Base Card, Management Processing Card, and Networking Card, includes 4 post rack mount kit

[/shortdesc]

[properties]

Properties	Palo Alto PA-5450-DC-SYS Firewall
Description	PA-5450 Base DC Hardware Bundle. Includes Chassis, 2xDC power supplies, 4xFans, Base Card, Management Processing Card, and Networking Card, includes 4 post rack mount kit
Product Family	Palo Alto PA-5450 Series Firewalls
Product Type	Firewall
Firewall Protection Supported:	Threat Protection Application Firewall SSL Encrypted Traffic Protection User Authentication Data Loss Prevention URL Filtering DNS Security Secure IPsec VPN Connectivity IoT Security SaaS Security Intrusion Prevention Advanced Threat Protection Malware Protection Web Protection Antivirus Anti-spyware Anti-phishing
Interfaces/Ports	Total Number of Ports: 4 USB: Yes Number of Network (RJ-45) Ports: 4
Media & Performance	VPN Throughput: 10.88 GB/s
Ethernet Technology	100 Gigabit Ethernet
Network Standard:	10/100/1000Base-T 10GBase-X 40GBase-X 100GBase-X
Manageable: Yes

 [/properties] [specifications]

Specifications	Palo Alto PA-5450-DC-SYS Firewall
PA-5450 Configured System (All tests performed with 2 Networking Cards + 4 Data Processing Cards populated, unless otherwise noted.)
Firewall throughput (HTTP/appmix) ( Firewall throughput is measured with App-ID and logging enabled, utilizing 64 KB HTTP/appmix transactions.)	200/200 Gbps
Threat Prevention throughput (HTTP/appmix)  (Threat Prevention throughput is measured with App-ID, IPS, antivirus, antispyware, WildFire, DNS Security, file blocking, and logging enabled, utilizing 64 KB HTTP/appmix transactions.)	121.6/152 Gbps
IPsec VPN throughput (IPsec VPN throughput is measured with 64 KB HTTP transactions and logging enabled.)	85 Gbps (This test performed with 1 Networking Card + 5 Data Processing Cards populated.)
Max concurrent sessions (Max concurrent sessions are measured utilizing HTTP transactions.)	100M (This test performed with 1 Networking Card + 5 Data Processing Cards populated.)
New sessions per second (New sessions per second is measured with application override, utilizing 1 byte HTTP transactions.)	3.6M  (This test performed with 1 Networking Card + 5 Data Processing Cards populated.)
Virtual systems (base/max) (Adding virtual systems over base quantity requires a separately purchased license.)	25/225
PA-5450 Networking Features
Interface Modes	L2, L3, tap, virtual wire (transparent mode)
Routing	OSPFv2/v3 with graceful restart, BGP with graceful restart, RIP, static routing Policy-based forwarding Point-to-Point Protocol over Ethernet (PPPoE) and DHCP supported for dynamic address assignment Multicast: PIM-SM, PIM-SSM, IGMP v1, v2, and v3 Bidirectional Forwarding Detection (BFD)
SD-WAN	Path quality measurement (jitter, packet loss, latency) Initial path selection (PBF) Dynamic path change
IPv6	L2, L3, tap, virtual wire (transparent mode) Features: App-ID, User-ID, Content-ID, WildFire, and SSL decryption SLAAC
IPsec and SSL VPN	Key exchange: manual key, IKEv1 and IKEv2 (pre-shared key, certificate-based authentication) Encryption: 3des, AES (128-bit, 192-bit, 256-bit) Authentication: MD5, SHA-1, SHA-256, SHA-384, SHA-512 GlobalProtect Large Scale VPN for simplified configuration and management* Secure access over IPsec and SSL VPN tunnels using GlobalProtect Gateway and Portals (Requires GlobalProtect License.)
VLANs	802.1Q VLAN tags per device/per interface: 4,094/4,094 Aggregate interfaces (802.3ad), LACP
Network Address Translation	NAT modes (IPv4): static IP, Dynamic IP, Dynamic IP and Port (port address translation) NAT64, NPTv6 Additional NAT features: Dynamic IP reservation, tunable Dynamic IP and Port oversubscription
High Availability	Modes: active/active, active/passive, HA clustering Failure detection: path monitoring, interface monitoring
PA-5450 Hardware Specifications
PA-5400-NC-A Networking I/O	100/1000/10G Cu (4), 1G/10G SFP/ SFP+ (12), 40G/100G QSFP28 (2); minimum 1 NC and maximum 2 NCs per system; 2 NCs require 2 or more DPCs installed
PAN-PA-5400-MPC-A Management I/O	SFP/SFP+ MGT (2), SFP/SFP+ HA1 (2), HSCI HA2/HA3 QSFP+/ QSFP28 (2), RJ45 serial console (1), Micro USB serial console (1)
Storage Capacity	480 GB SSD, RAID1, system storage 4 TB SSD, log storage (optional)
Max BTU/hr	8,828
Power Supplies (Base/Max)	(2/4)
AC Input Voltage (Input Frequency)	100–120 VAC & 200–240 VAC (50–60 Hz)
AC Power Supply Output	2,200 watts/power supply
Max Current Consumption	AC: 100–120 VAC, ~14 A max. per input 200–240 VAC, ~12.5 A max. per input DC: 48–60 VDC, 52 A max. per input
Max Inrush Current	AC: 35 A @ 230 VAC, 35 A @ 120 VAC DC: 50 A @ 72 VDC
Rack Mount (Dimensions)	5U, 19” standard rack 8.75” H x 30.25” D x 17.38” W
Maximum Time Between Failure (MTBF)	Configuration dependent; contact your Palo Alto Networks representative for MTBF details
Safety	cTUVus, CB
EMI	FCC Class A, CE Class A, VCCI Class A, KCC Class A, BSMI Class A
Environment	Operating temperature: 32°F to 122°F, 0°C to 50°C Nonoperating temperature: -4°F to 158°F, -20°C to 70°C

 [/specifications] [accesories] [/accesories]

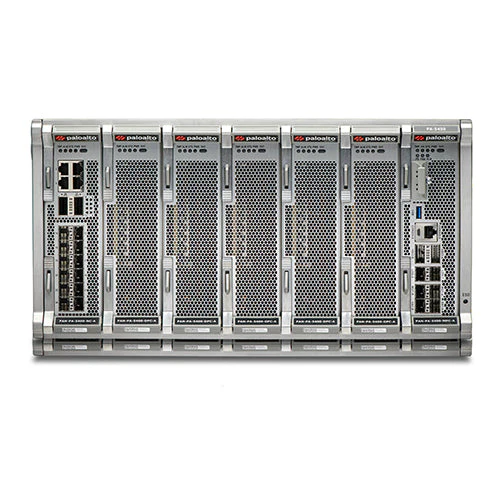

Palo Alto PA-5450-DC-SYS Firewall

The PA-5450-DC-SYS delivers exceptional performance for hyperscale data centers, campus segmentation, and internet edge deployments. The PA-5450-DC-SYS is powered by Machine Learning to provide security against never-before-seen attacks. It uses full Layer 7 inspection. This allows the traffic analysis to be made at the application layer, which improves network security and visibility.

• Includes Chassis, 2xDC power supplies, 4xFans, Base Card, Management Processing Card, and Networking Card, 4 post rack mount kit
