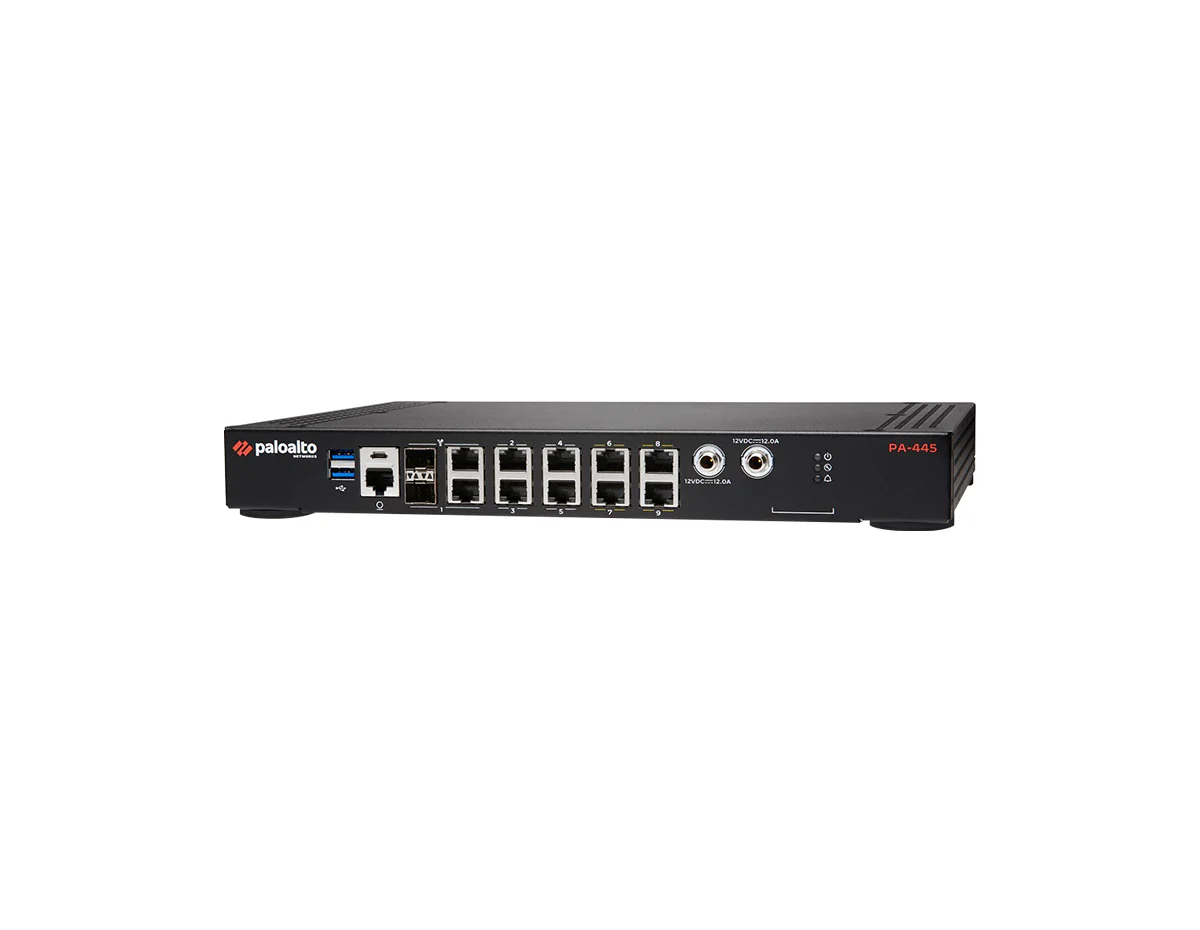

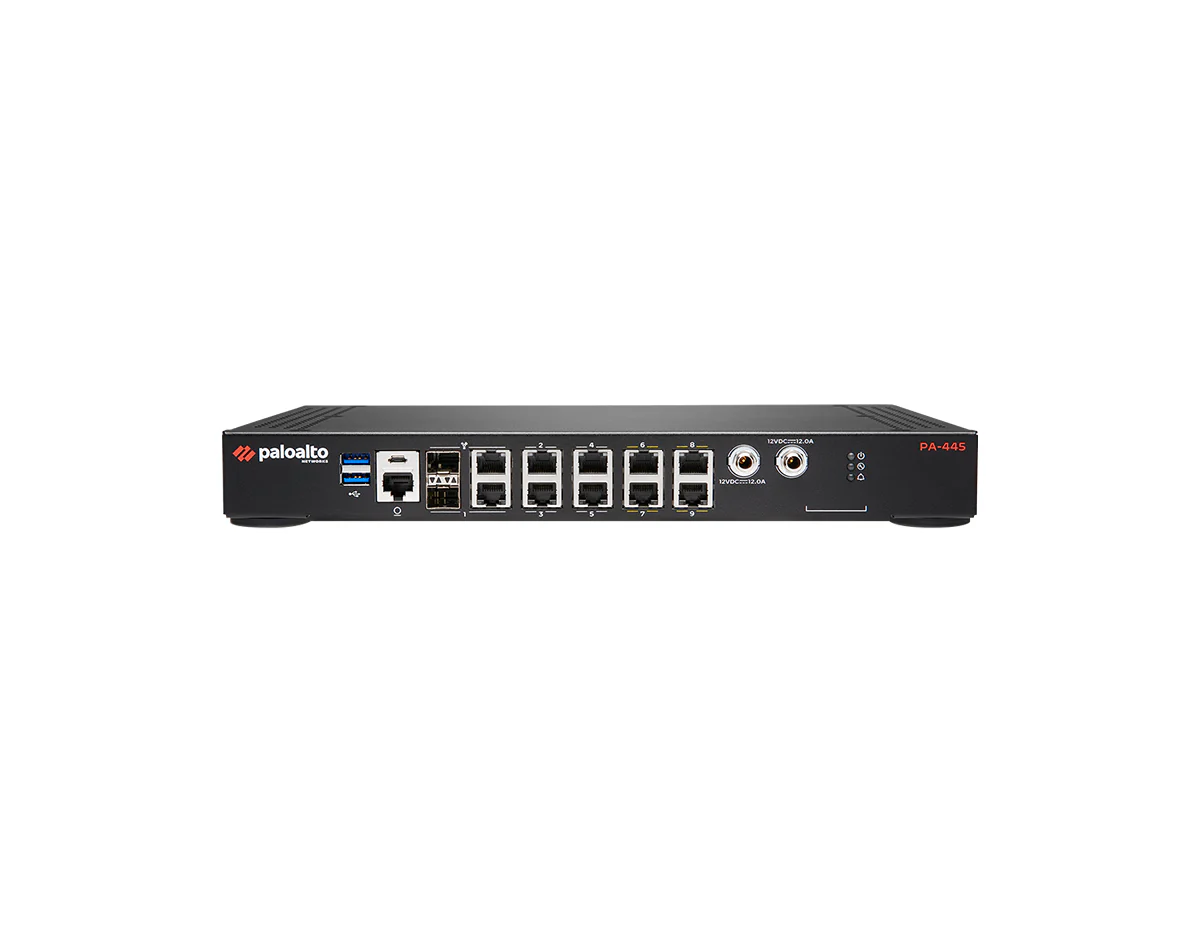

Palo Alto PA-445 Firewall
[shortdesc]
- Palo Alto Networks PA-445 - Security appliance - GigE
[/shortdesc]
[properties]
| Properties | Palo Alto PAN-PA-445 Firewall |
| Description | Palo Alto Networks PA-445 - Security appliance - GigE |
| Product Family | PA-400 Series Firewalls |
| Product Type | Firewall |
| Key Features: | Fanless (passive cooling) Point-to-Point Protocol over Ethernet (PPPoE) Firewall throughput (HTTP/appmix): 2.8/2.2 Gbps |
| Advanced Features | Advanced Threat Prevention Advanced WildFire Advanced URL Filtering DNS Security Enterprise DLP SaaS Security IoT Security |
[/properties] [specifications]
| Specifications | Palo Alto PAN-PA-445 Firewall |
| Performance and Capacities | |
| Firewall throughput (HTTP/appmix) (Throughput is measured with App-ID and logging enabled, with 64 KB HTTP/appmix transactions.) | 2.8/2.2 Gbps |
| Threat Prevention throughput (HTTP/appmix) (Threat Prevention throughput measured with App-ID, IPS, antivirus, antispyware, WildFire, DNS Security, file blocking, and logging enabled, utilizing 64 KB HTTP/appmix transactions) | 1.0/1.0 Gbps 1 |
| IPsec VPN throughput ( IPsec VPN throughput is measured with 64 KB HTTP transactions, and logging enabled.) | 1.6 Gbps |
| Max concurrent sessions (Max concurrent sessions are measured utilizing HTTP transactions.) | 200.000 |
| New sessions per second (New sessions per second is measured with application override, utilizing 1 byte HTTP transactions.) | 37.500 |
| Virtual systems (Adding virtual systems over base quantity requires a separately purchased license and at minimum PAN-OS 11.0) | (1/2) |
| Note: Results were measured on PAN-OS 11.0. | |
| Networking Features | |
| Interface Modes | L2, L3, tap, virtual wire (transparent mode) |
| Routing | OSPFv2/v3 with graceful restart, BGP with graceful restart, RIP, static routing Policy-based forwarding Point-to-Point Protocol over Ethernet (PPPoE) Multicast: PIM-SM, PIM-SSM, IGMP v1, v2, and v3 |
| SD-WAN | Path quality measurement (jitter, packet loss, latency) Initial path selection (PBF) Dynamic path change |
| IPv6 | L2, L3, tap, virtual wire (transparent mode) Features: App-ID, User-ID, Content-ID, WildFire, and SSL decryption SLAAC |
| IPsec and SSL VPN | Key exchange: manual key, IKEv1 and IKEv2 (pre-shared key, certificate-based authentication) Encryption: 3des, AES (128-bit, 192-bit, 256-bit) Authentication: MD5, SHA-1, SHA-256, SHA-384, SHA-512 GlobalProtect Large Scale VPN for simplified configuration and management(Requires GlobalProtect license.) Secure access over IPsec and SSL VPN tunnels using GlobalProtect gateway and portals (Requires GlobalProtect license.) |
| VLANs | 802.1Q VLAN tags per device/per interface: 4,094/4,094 Aggregate interfaces (802.3ad), LACP |
| Hardware Specifications | |
| I/O | 1G SFP/RJ45 combo (1), RJ45 (4), RJ45/PoE (4) |
| Management I/O | SFP/RJ45(1 GB) combo management port (1), RJ45 console port (1), USB port (2), Micro USB console port (1) |
| Power Over Ethernet (PoE) | PoE RJ45 ports (4) Total PoE Power Budget: 91 W Maximum loading on single port: 60 W |
| Storage Capacity | 128 GB eMMC |
| Power Supply (Avg/Max Power Consumption) | 29/34 W |
| Max BTU/hr | 117 |
| Input Voltage Frequency | 100-240 VAC (50–60 Hz) |
| Max Current Consumption | 2.9 A @ 12 VDC |
| Max Inrush Current | 3.3 A |
| Dimensions | 1.66" H x 13" D x 8.87" W |
| Weight (Standalone Device/As Shipped) | 8.7 lbs/12.6 lbs |
| Safety | cTUVus, CB |
| EMI | FCC Class B, CE Class B, VCCI Class B |
| Environment |
Operating temperature: 32°F to 104°F, 0°C to 40°C Nonoperating temperature: -4°F to 158°F, -20°C to 70°C Passive cooling |
[/specifications] [accesories] [/accesories]
Palo Alto PA-445 Firewall
The PA-445 is a dependable member of the PA-400 Series manufactured by Palo Alto, which is an eleven-time leader in the Gartner Magic Quadrant for Network Firewalls. It is a powerful Next-Generation Firewall (NGFW) that is appropriate for small and mid-sized businesses. The PAN-PA-445 comes with Zero Touch Provisioning, which simplifies the deployment process immensely. It allows you to create Dynamic User Groups (DUGs), which enables you to enforce security measures quickly and adjust security policies based on user behavior analysis.
Quick Specs:
- Fanless (passive cooling)
- Firewall throughput (HTTP/appmix): 2.8/2.2 Gbps
- Ipsec VPN throughput: 1.6 Gbps
- New sessions per second: 34,000
Please see the related tabs for the PA-445 datasheet and compatible accessories.
