[shortdesc]

• 13th Gen Intel Core i5
• Barebone Model

[/shortdesc]

[properties]

Properties	Intel NUC 13 Pro - NUC13ANHi5 Mini PC
Description	The Intel NUC 13 NUC13ANHi5 is a compact and powerful Mini PC, featuring a high-performance Intel Core i5 processor and 4×4 form factor. Ideal for space-saving computing needs, it offers impressive processing capabilities and versatility.
Product Family	Intel NUC 13
Product Type	Mini PC
Graphics	Intel Iris® Xe Graphics
Graphics Output	2x HDMI 2.1 TMDS Compatible, 2x DP 1.4a via Type C
Numbers of Displays Supported	4
Numbers of Thunderbolt Ports	2x Thunderbolt 4
Numbers of USB Ports	4
USB Configuration	Front: 2x USB 3.2 Rear: 2x USB 4 (type C), 1x USB 3.2, 1x USB 2.0 Internal: 1x USB 3.2 on m.2 22x42 (pins), 2x USB 2.0 (headers)
Total # of SATA Ports	1
Serial Port via Internal Header	No
Audio (back channel + front channel)	Front panel: 3.5mm headphone/mic jack
Integrated LAN	Intel® Ethernet Controller i226-V
Wireless Included	Intel® Wi-Fi 6E AX211 (Gig+)
Bluetooth Version	5.3
M.2 Card Slot (wireless)	22x30 (E)
Additional Headers	Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector
DC Input Voltage Supported	12-20 VDC
Chassis Dimensions	117 x 112 x 54 mm
Board Form Factor	UCFF (4" x 4")

[/properties][specifications]

Processor	Intel Coreni5-1340P Processor (12M Cache, up to 4.60 GHz)
Total Cores	12
Total Threads	16
Max Turbo Frequency	4.60 GHz
Max Memory Size (dependent on memory type)	64 GB
Number of Memory Slots	2
Memory Types	DDR4-3200 1.2V SODIMMs
Max Numbers of Memory Channels	2
ECC Memory Supported	No
Internal Drive Form Factor	M.2 and 2.5" Drive
Number of Internal Drives Supported	3
M.2 Card Slot (storage)	22x80 NVMe (M); 22x42 SATA (B)
PCI Express Revision	Gen 4 (m.2 22x80 slot); Gen 3 (otherwise)
PCI Express Configurations	PCIe x4 Gen 4: M.2 22x80 (key M) PCIe x1 Gen 3: M.2 22x42 (key B) PCIe x1: M.2 22x30 (key E)
Supported Operating Systems	Windows 11 Home, Windows 11 Pro, Windows 10 IoT Enterprise, Red Hat Linux, Ubuntu
Advanced Technologies	Intel HD Audio Technology Intel Virtualization Technology for Directed I/O (VT-d)  Intel Virtualization Technology (VT-x)
Intel® Platform Trust Technology (Intel® PTT)	Yes
Intel® ME Firmware Version	16.1
Intel® AES New Instructions	Yes

[/specifications][accesories]

Included Accessories

VESA bracket

[/accesories]

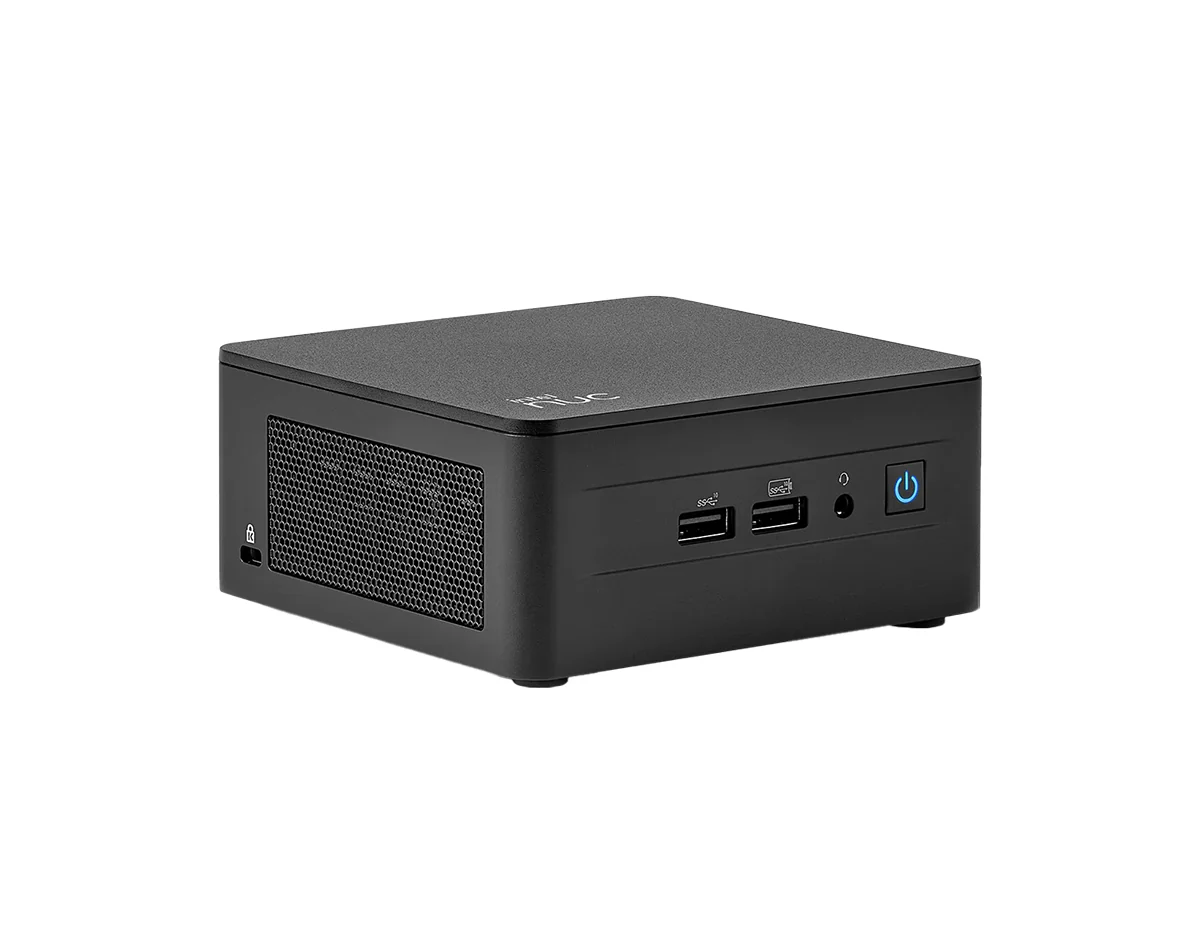

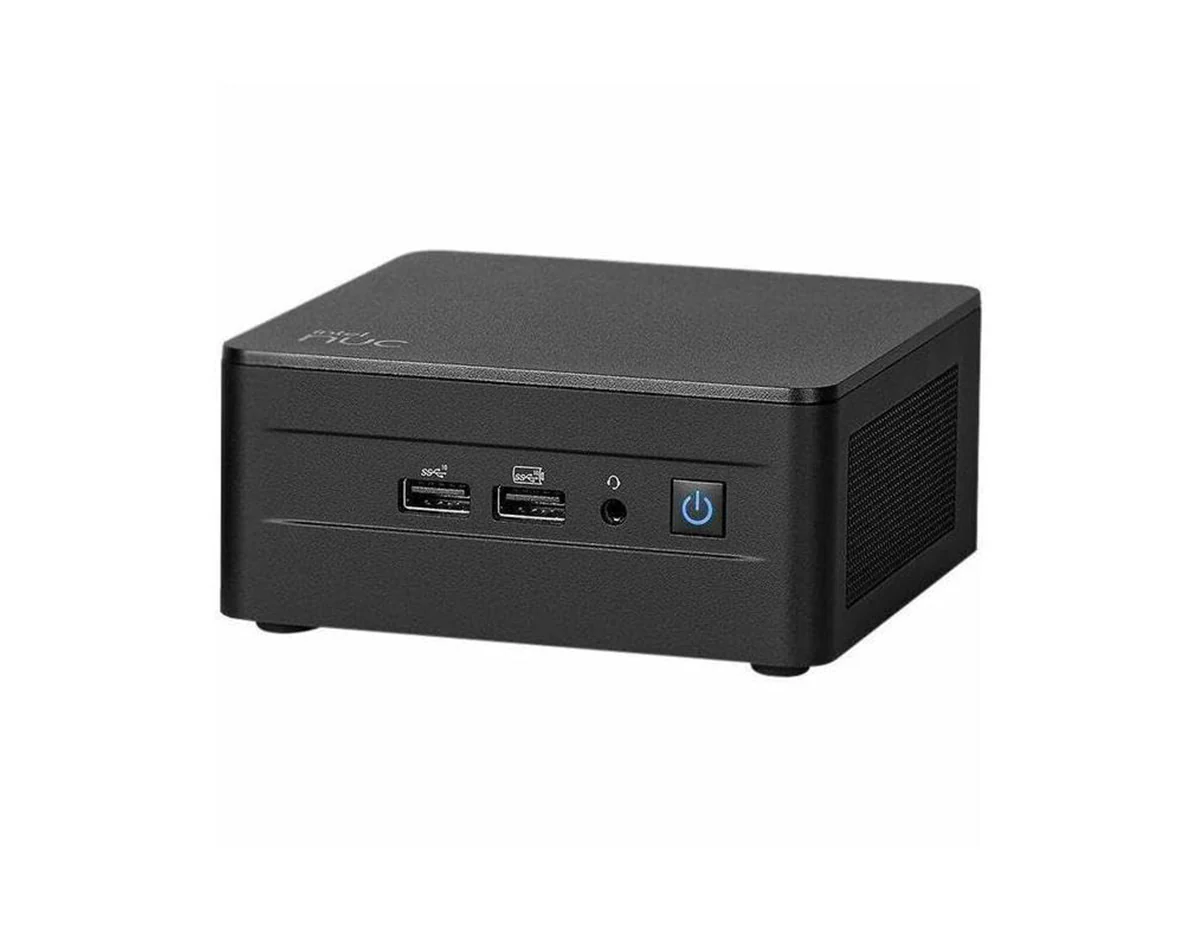

Intel NUC13 MINI PC (NUC13ANHi5)

The Intel NUC13 (NUC13ANHi5) Mini PC is a compact computing device with dimensions of 117mm x 112mm x 38mm, making it suitable for users seeking a powerful yet space-efficient computer. It belongs to Intel's NUC series of mini-PCs, which are specifically engineered to offer compactness and efficiency without compromising on high-performance computing capabilities. This particular model is equipped with an Intel Core i5-1340P processor and features a 10/100/1000/2500 Mbps RJ45 Ethernet port, as well as 2 front and 1 rear USB 3.2 Gen 2 type A ports.

Quick Specs:

• Intel Core i5-1340 CPU (12 core, 4.60GHz)
• 2x ThunderBolt port
• 64 MB DDR4 RAM
• M.2 SSD

Please see the related tabs for the NUC13ANHi5 datasheet and compatible accessories.
