[shortdesc]

• Cisco Nexus 9300-GX Series 36x Ports Managed Switch N9K-C93600CD-GX is a high-performance, next-generation data center switch with 28x 100/40G QSFP28 and 8x 400/100G QSFP-DD ports for scalable networking

[/shortdesc]

[properties]

Property
Model	N9K-C93600CD-GX
Product Type	Spine and Leaf Data Center Switch
Port Configuration	28 x 100/40G QSFP28 and 8 x 400/100G QSFP-DD
Form Factor	1RU
Throughput	Not specified (based on ports, >25 Tbps expected)
Buffer Size	80 MB centralized
Operating System	Cisco NX-OS or Cisco ACI
CPU	Broadwell-DE, 4 cores
System Memory	16 GB (NX-OS) / 24 GB (ACI)
SSD Storage	128 GB
USB Port	1
Serial Console Port	1 x RS-232
Management Ports	1 x 10/100/1000BASE-T and 1 x 1G SFP+
Dimensions (H x W x D)	1.72 x 17.37 x 25.5 in (4.37 x 44.13 x 64.8 cm)

[/properties]



[specifications]

Specification
Power Supply Support	Up to 2 x 1100W (AC/DC/HVDC) – hot-swappable, redundant
Typical Power Consumption	590W
Voltage Input Range	100–240V AC, –40 to –72V DC, 200–277V HVAC, –240 to –380V HVDC
Frequency	50–60 Hz
Operating Temperature	0 to 40°C (32 to 104°F)
Storage Temperature	–40 to 70°C (–40 to 158°F)
Humidity	5% to 85% (non-condensing)
Altitude	0 to 4000 m (0 to 13,123 ft)
Max IPv4 Routes (LPM)	896
Max IPv4 Hosts	896
Max MAC Addresses	256
Max Multicast Routes	32
IGMP Snooping Groups	32
ACL Entries	20,000 ingress / 8,000 egress (max)
VLAN Support	Up to 3967
VRF Instances	Up to 16,000
ECMP Paths	64-way
Port Channels	Up to 512
Links per Port Channel	Up to 32
SPAN Sessions	Up to 4
NAT Entries	1023
MST Instances	64
RPVST Instances	3967
HSRP Groups	490
Flow Table Size	64,000 entries

[/specifications]



[accesories]

Accessory
NXA-FAN-35CFM-PI	35 CFM fan module
NXA-FAN-35CFM-PE	35 CFM fan module
NXA-PAC-1100W-PI2	1100W AC power supply
NXA-PAC-1100W-PE2	1100W AC power supply
NXA-PDC-1100W-PI	1100W DC power supply
NXA-PDC-1100W-PE	1100W DC power supply
NXA-PHV-1100W-PI	1100W HVAC/HVDC power supply
NXA-PHV-1100W-PE	1100W HVAC/HVDC power supply
N9K-C9300-RMK	Rack mount kit
N9K-C9300-ACK	Fixed accessory kit

[/accesories]

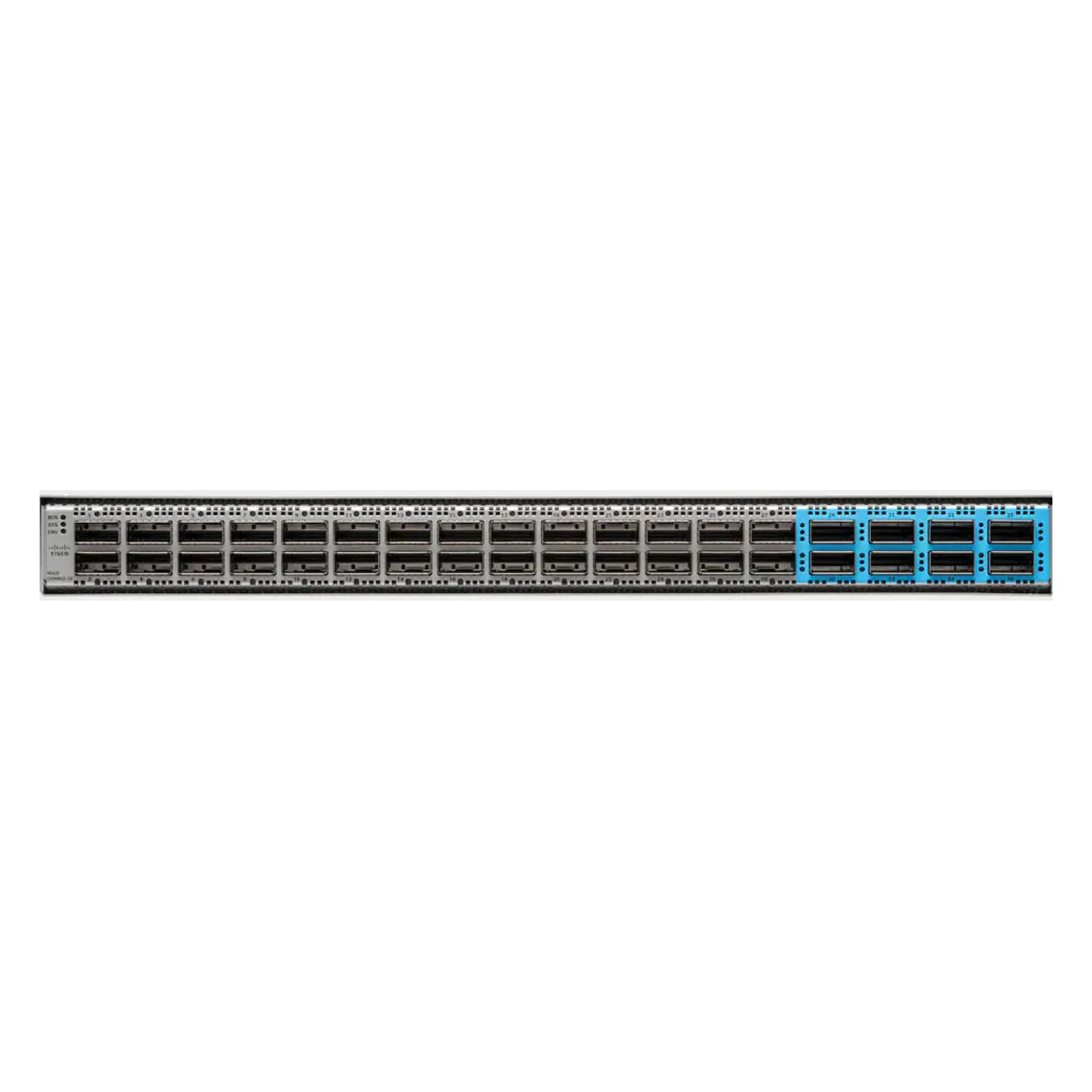

Cisco Nexus 9300-GX Series 36-Ports Managed Switch (N9K-C93600CD-GX)

The Cisco Nexus 9300-GX Series N9K-C93600CD-GX is a high-density, high-speed spine-and-leaf data center switch built for next-generation cloud and enterprise networks. Designed to support scalable and flexible deployments, it features 28x 100/40G QSFP28 ports and 8x 400/100G QSFP-DD ports, enabling seamless migration to 400G networking. Based on Cisco Cloud Scale technology, this switch offers high-performance Layer 2 and Layer 3 scalability, making it ideal for virtualized data centers, automated cloud environments, and large-scale network infrastructures.

Key Features:

• High-Density 100G & 400G Connectivity: 28x 100/40G QSFP28 ports and 8x 400/100G QSFP-DD ports.
• Next-Generation Scalability: Supports Cisco ACI or NX-OS mode for flexible deployment options.
• Advanced Layer 2/3 Features: Optimized for high-performance switching and routing.
• High-Speed Data Processing: Powered by a Broadwell-DE CPU with 4 cores.
• Robust Storage & Memory: 16GB NX-OS, 24GB ACI, and 128GB SSD for efficient data management.
• Flexible Management & Connectivity: Includes 1 USB port, 1 RS-232 serial console port, and 2 management ports (1GBASE-T and 1G SFP+).
• Optimized for Cloud & AI Workloads: Delivers ultra-low latency and high bandwidth for demanding applications.

Technical Specifications:

• Model Number: N9K-C93600CD-GX
• Ports: 28x 100/40G QSFP28 and 8x 400/100G QSFP-DD
• CPU: Broadwell-DE, 4 cores
• Memory: 16GB NX-OS, 24GB ACI
• Storage: 128GB SSD
• Management Ports: 1x USB, 1x RS-232 serial console, 2x (1GBASE-T & 1G SFP+)
• Packet Buffer: 80MB centralized buffer
• Cooling System: 5+1 redundant fans, hot-swappable
• Power Supply: Dual 1100W AC/DC redundant power supplies
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Dimensions (H x W x D): 1.72 x 17.37 x 25.5 inches (4.37 x 44.13 x 64.8 cm)
• Weight: Varies based on configuration
• Software Support: Cisco ACI, NX-OS mode
