[shortdesc]

• Managed, Rack-mountable, 48 x 1/10/25G SFP+ ports, 6 x 40/100G QSFP28 Uplinks, No PoE (Data Only), Layer 3

[/shortdesc]

[properties]

Properties	93180YC-FX
Description	Nexus 9300 with 48p 1/10G/25G SFP and 6p 40G/100G QSFP28, MACsec, and Unified Ports capable
Product Family	Cisco Nexus 9300-FX Series
Product Type	Ethernet Switch
Ports	48 x 1/10/25-Gbps and 6 x 40/100-Gbps QSFP28 ports
Downlink supported speeds	1/10/25-Gbps Ethernet 16/32-Gbps Fibre Channel
Management ports	1 RJ-45 port L1 and L2 ports are unused
USB ports	1
RS-232 serial ports	1
Power supplies (up to 2)	500W AC, 930W DC, or 1200W HVAC/HVDC
Power Max/Avg (AC/DC)	260W - 425 W
Input voltage (AC)	100 to 240V
Input voltage (DC)	–48 to –60V
Frequency (AC)	50 to 60 Hz
Fans	4
Airflow	Port-side intake and exhaust
Physical dimensions	1.72 x 17.3 x 22.5 in. (4.4 x 43.9 x 57.1 cm)

[/properties][specifications]

CPU	6 cores
System memory	Up to 32 GB
SSD drive	128 GB
System buffer	40 MB
Minimum ACI image	ACI-N9KDK9-12.2A
Minimum NX-OS image	NXOS-703I7.1
MTBF	238,470 hours
RoHS compliance	Yes
Regulatory Standards Compliance	●  UL 60950-1 Second Edition
	●  CAN/CSA-C22.2 No. 60950-1 Second Edition
	●  EN 60950-1 Second Edition
	●  IEC 60950-1 Second Edition
	●  AS/NZS 60950-1
	●  GB4943
	●  47CFR Part 15 (CFR 47) Class A
	●  AS/NZS CISPR22 Class A
	●  CISPR22 Class A
	●  EN55022 Class A
	●  ICES003 Class A
	●  VCCI Class A
	●  EN61000-3-2
	●  EN61000-3-3
	●  KN22 Class A
	●  CNS13438 Class A
	●  EN55024
	●  CISPR24
	●  EN300386
	●  KN 61000-4 series
Operating temperature	32 to 104°F (0 to 40°C)

[/specifications][accesories]

NXA-PAC-500W-PI	Nexus 9000 500W AC PS, Port-side Intake
NXA-PAC-500W-PE	Nexus 9000 500W AC PS, Port-side Exhaust
NXA-PDC-930W-PI	Nexus 9000 930W DC PS, Port-side Intake
NXA-PDC-930W-PE	Nexus 9000 930W DC PS, Port-side Exhaust
N9K-PUV-1200W	Nexus 9300 1200W Universal Power Supply, Bi-directional air flow and Supports HVAC/HVDC
NXA-FAN-30CFM-F	Nexus Single Fan, 30CFM, port side exhaust airflow
NXA-FAN-30CFM-B	Nexus Single Fan, 30CFM, port side intake airflow
CAB-9K12A-NA	Power Cord, 125VAC 13A NEMA 5-15 Plug, North America (2.5 meter)
CAB-AC-L620-C13	North America, NEMA L6-20-C13 (2.0 meter)
CAB-C13-C14-2M	Power Cord Jumper, C13-C14 Connectors, 2 Meter Length (2 meter)
CAB-C13-CBN	Cabinet Jumper Power Cord, 250 VAC 10A, C14-C13 Connectors (0.7 meter)
CAB-N5K6A-NA	Power Cord, 200/240V 6A North America (2.5 meter)
CAB-HVAC-RT-0.6M	HVAC Power cable with right angle connector for RF-LS-25
NXK-ACC-KIT-1RU	Nexus Fixed Accessory Kit with 4-post rack mount kit

[/accesories]

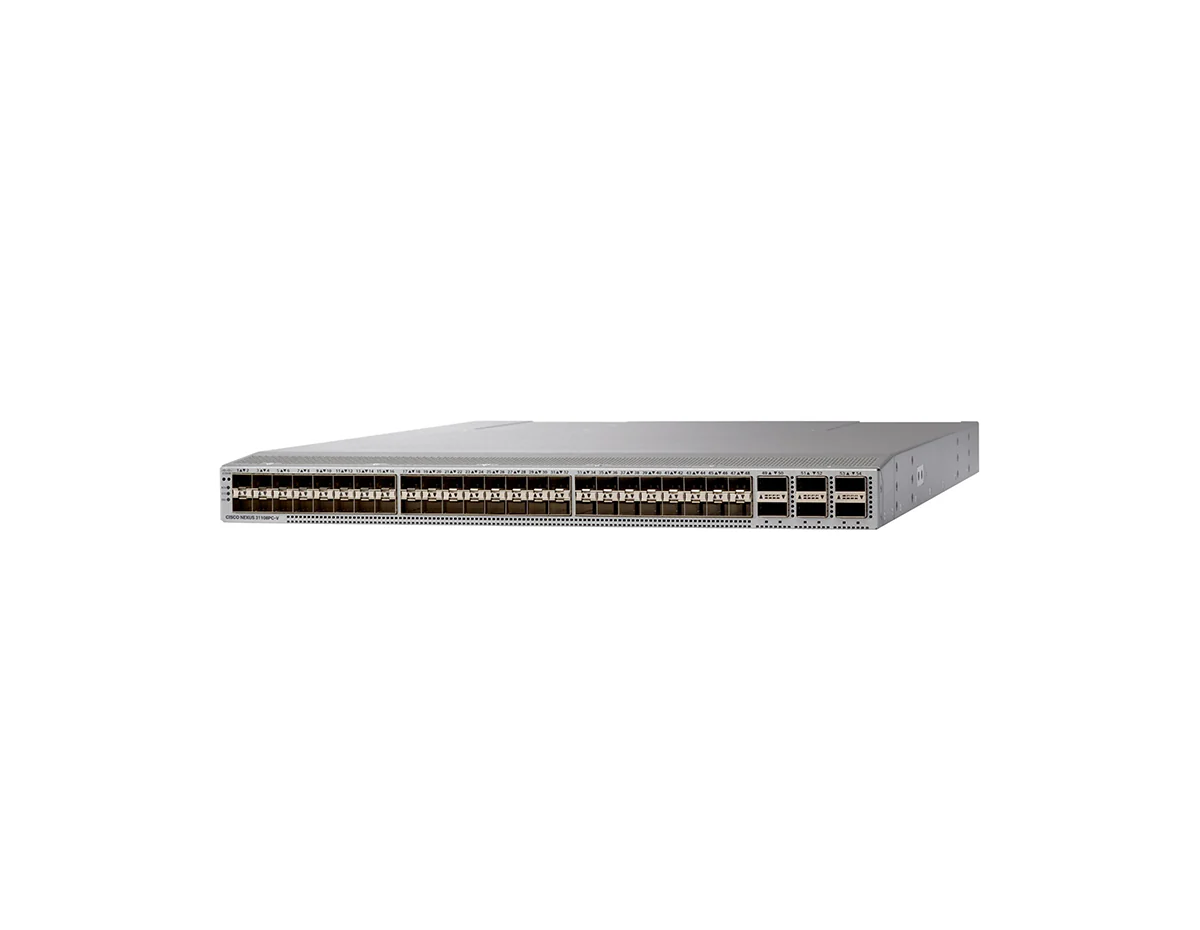

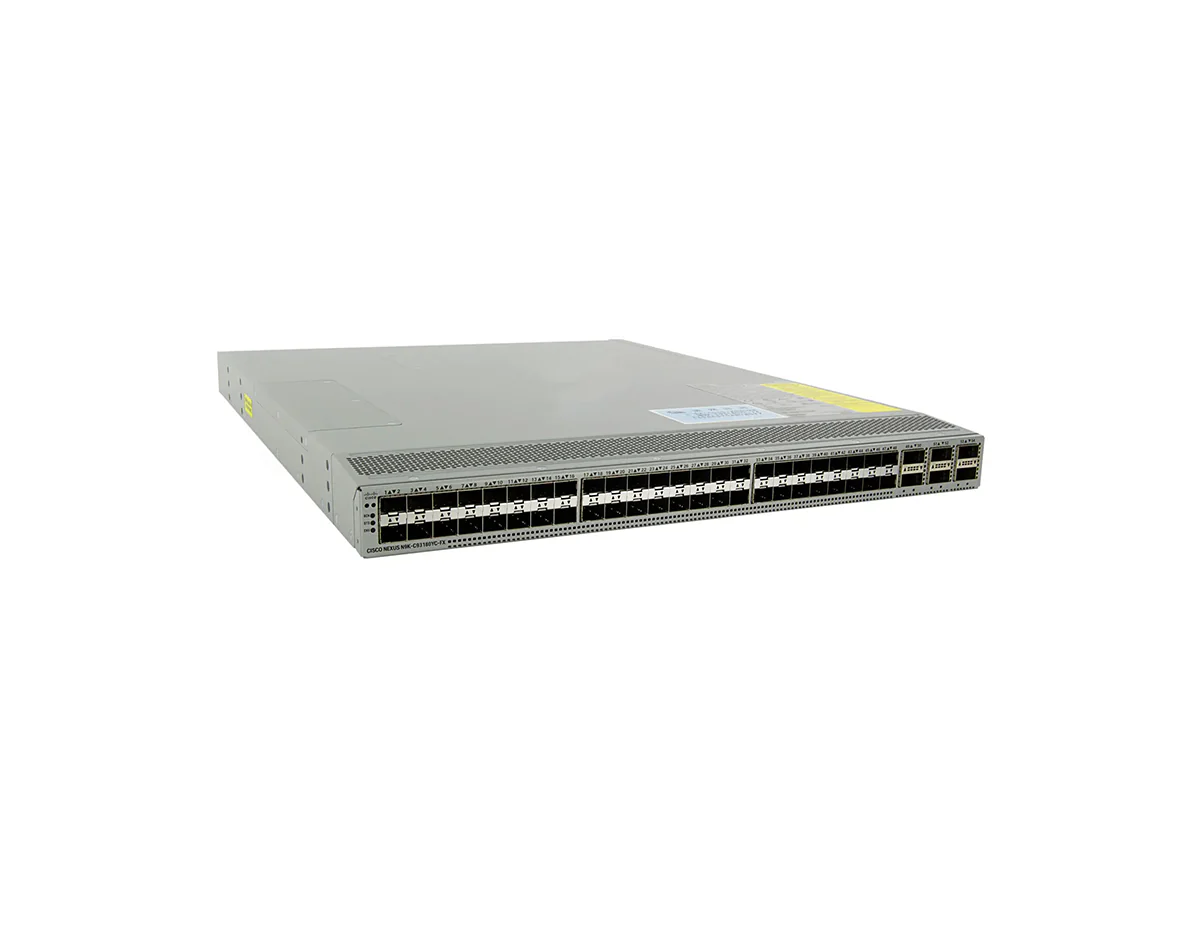

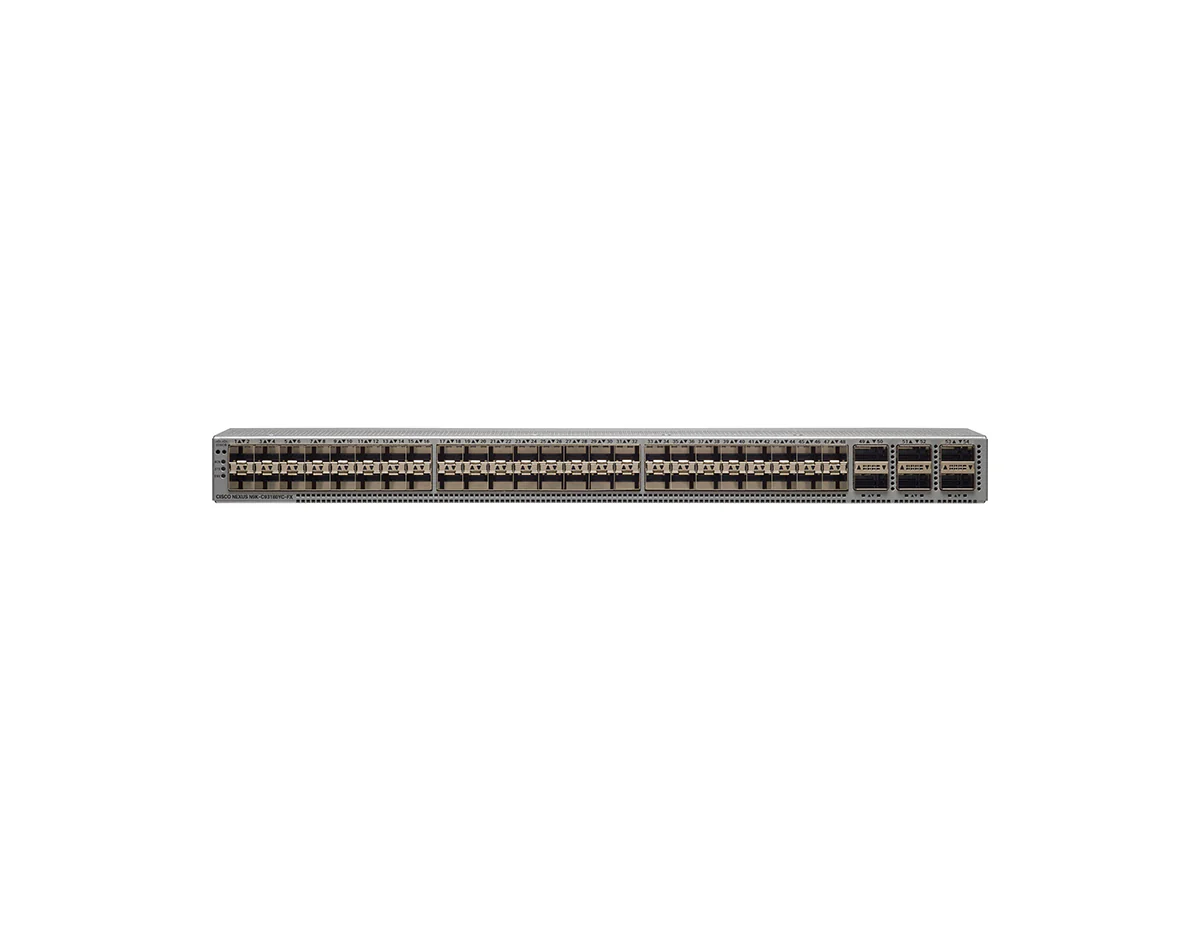

Cisco N9K-C93180YC-FX Switch

The Cisco N9K-C93180YC-FX is a versatile, high-performance data center switch designed for scalability and efficiency. With 48 ports supporting 1/10/25-Gbps and 6 uplink ports supporting 40/100-Gbps, it is ideal for cloud environments and large enterprise networks. Built on Cisco Cloud Scale technology, this switch offers wire-rate Layer 2 and Layer 3 features with advanced telemetry and security options. It delivers a total bandwidth of 3.6 Tbps and a forwarding rate of 1.2 bpps, providing fast, reliable network performance.

Key Features:

• 48 x 1/10/25-Gbps Ports: Provides flexible downlink speeds for a wide range of workloads and applications.
• 6 x 40/100-Gbps QSFP28 Uplinks: Ensures high-speed data transfers and scalable network expansion.
• Cloud-Ready Design: Supports Cisco ACI and VXLAN for simplified management and automated network operations.
• Advanced Security: Features MACsec encryption on all ports for enhanced data protection.
• Low Latency: Delivers less than 1 microsecond latency for high-performance environments.

Technical Overview:

• Recommended for: Data centers, cloud environments, and high-performance enterprise networks.
• Ports: 48 x 1/10/25-Gbps, 6 x 40/100-Gbps QSFP28 uplinks.
• Throughput: 3.6 Tbps.
• Forwarding Rate: 1.2 billion packets per second (bpps).
• Latency: Less than 1 microsecond.

You can check the related tab for the N9K-C93180YC-FX datasheet.
