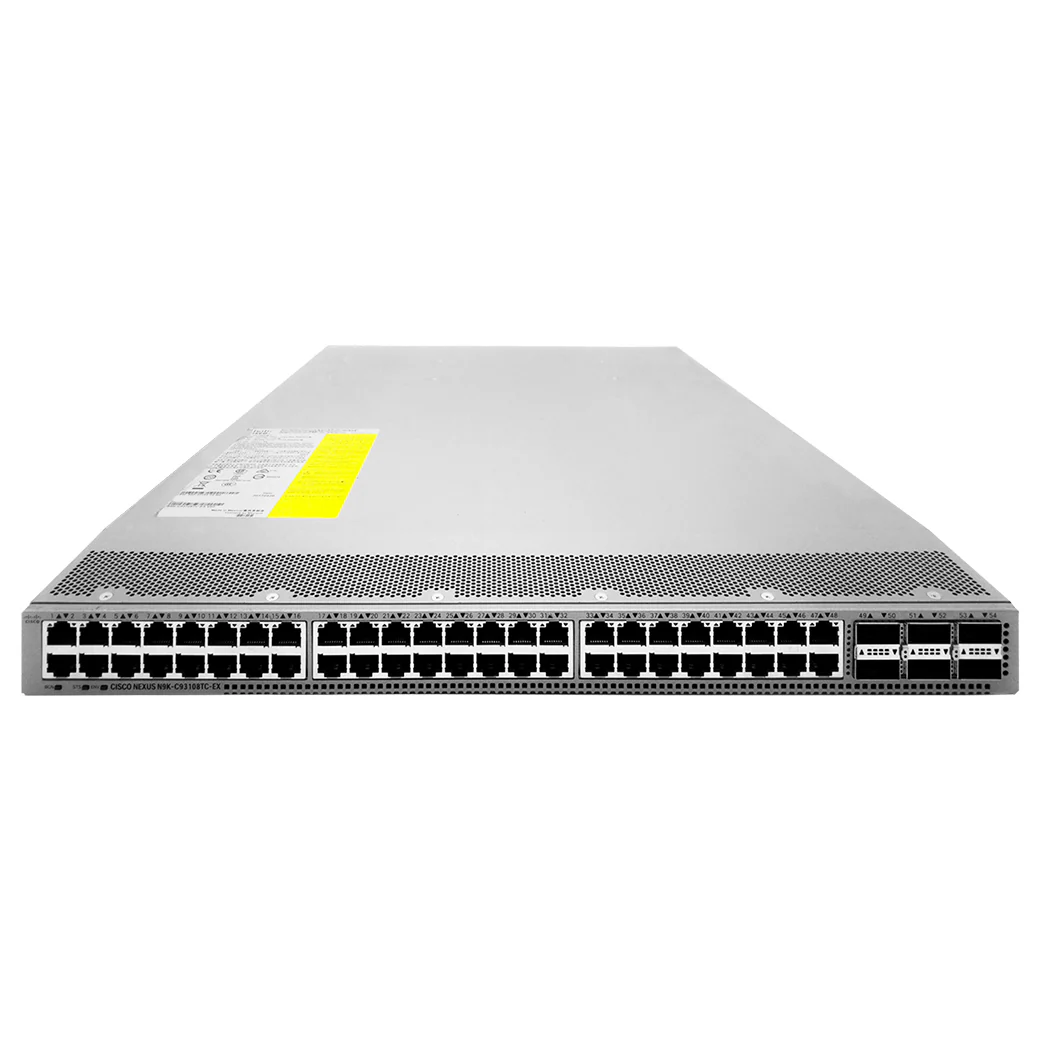

Cisco Nexus 9300 48x MultiGB 6x QSFP28 Switch (N9K-C93108TC-FX3P)
[shortdesc]
- Cisco Nexus 9300 48x MultiGB 6x QSFP28 Switch N9K-C93108TC-FX3P is a high-performance multigigabit switch with PoE++, 40MB buffering, and 6x 40/100G uplinks for demanding data center and enterprise networks
[/shortdesc]
[properties]
| Property | |
| Model | N9K-C93108TC-FX3P |
| Product Type | Layer 3 Fixed Data Center Switch |
| Form Factor | 1RU |
| Port Configuration | 48 x 100M/1G/2.5G/5G/10GBASE-T + 6 x 40/100G QSFP28 |
| Downlink Speeds | 100 Mbps to 10 Gbps |
| Uplink Speeds | 40 Gbps and 100 Gbps |
| Throughput | 2.16 Tbps |
| Packet Forwarding Rate | 1.2 bpps |
| Operating System | Cisco NX-OS or ACI |
| Airflow Direction | Port-side intake or exhaust |
| Fan Modules | 4 |
| MTBF | 302,360 hours |
| Dimensions (H x W x D) | 4.4 x 43.9 x 45.9 cm (1.72 x 17.3 x 18 in) |
| Weight (chassis only) | 7.25 kg (16 lb) |
[/properties]
[specifications]
| Specification | |
| CPU | 4 cores |
| System Memory | 16 GB (expandable to 16 GB) |
| SSD Storage | 128 GB |
| System Buffer | 40 MB |
| Management Ports | 1 x RJ-45 + 1 x SFP |
| USB Ports | 1 |
| Serial Port | RS-232 |
| Typical Power Consumption | 360W |
| Maximum Power Consumption | 530W |
| Power Supply Compatibility | NXA-PAC-1100W-PI / PE, NXA-PAC-1900W-PI, NXA-PAC-930W-PI |
| Input Voltage (AC) | 100–240V AC |
| Input Voltage (DC) | –48 to –60V DC |
| Input Voltage (HVDC) | –240 to –380V |
| HVAC Voltage Range | 200 to 277V |
| Frequency | 50 to 60 Hz |
| Acoustic Noise (Port-side Intake) | 70.7 dBA (50%), 78.3 dBA (70%), 86.9 dBA (100%) |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Storage Temperature | –40 to 70°C (–40 to 158°F) |
| Humidity | 5% to 95% (non-condensing) |
| Altitude | 0 to 4000 m (0 to 13,123 ft) |
[/specifications]
[accesories]
| Accessory | |
| NXA-FAN-35CFM-PI | 35 CFM fan module |
| NXA-FAN-35CFM-PE | 35 CFM fan module |
| NXA-PAC-1100W-PI | 1100W AC power supply |
| NXA-PAC-1100W-PE | 1100W AC power supply |
| NXA-PAC-1900W-PI | 1900W AC power supply |
| NXA-PAC-930W-PI | 930W DC power supply |
| NXK-ACC-KIT-1RU | 1RU fixed accessory kit with 4-post rack mount kit (included in the box) |
[/accesories]
Cisco Nexus 9300 48x MultiGB 6x QSFP28 Switch (N9K-C93108TC-FX3P)
The Cisco Nexus 93108TC-FX3P is a powerful and scalable data center switch designed for high-performance networking. It features 48 multigigabit-capable ports supporting speeds from 100Mbps to 10Gbps and 6 high-speed QSFP28 uplink ports capable of 40/100G connectivity. With its advanced Layer 2 and Layer 3 capabilities, robust security features, and support for Cisco ACI or NX-OS mode, this switch is an ideal choice for enterprises looking to future-proof their network infrastructure. Additionally, the inclusion of PoE++ on all 48 downlink ports allows seamless deployment of power-hungry devices such as high-performance access points and IoT equipment.
Key Features:
- Multigigabit Support: 48 downlink ports with speeds from 100Mbps to 10Gbps.
- High-Speed Uplinks: 6x QSFP28 ports supporting 40G/100G connectivity.
- PoE++ Capabilities: Supports PoE (15W), PoE+ (30W), and UPoE/PoE++ (60W) on all 48 ports.
- Advanced Layer 2 & 3 Switching: Application-Specific Integrated Circuit (ASIC) optimized for high-speed packet processing.
- 40MB Intelligent Buffering: Reduces network congestion for high-performance workloads.
- Flexible Deployment Options: Supports Cisco ACI or NX-OS mode.
- Enterprise-Class Security: Includes MACsec, ACLs, and advanced traffic filtering.
- Energy-Efficient Design: 360W typical power consumption, 530W maximum.
Technical Specifications:
- Model Number: N9K-C93108TC-FX3P
- Downlink Ports: 48x 100M/1G/2.5G/5G/10G BASE-T multigigabit ports
- Uplink Ports: 6x 40/100G QSFP28
- CPU: 4-core processor
- Memory: 16GB (default), expandable to 32GB
- SSD Storage: 128GB
- Buffer Size: 40MB
- Power Supplies: Supports up to two power supplies (1100W AC or 1900W AC options)
- Typical Power Consumption: 360W
- Maximum Power Consumption: 530W
- Input Voltage: 100-240V AC
- PoE Support: PoE (15W), PoE+ (30W), and UPoE/PoE++ (60W) on all 48 ports
- Fan Configuration: 4 hot-swappable fans
- Airflow Options: Port-side intake and port-side exhaust
- Dimensions: 1.72 x 17.3 x 18 inches (4.4 x 43.9 x 45.9 cm)
- Weight: Varies based on configuration
- Compliance: RoHS compliant
- MTBF: 283,100 hours
- Software Support: Cisco ACI and NX-OS mode
- Minimum ACI Release: ACI-15.1.3
- Minimum NX-OS Release: NXOS-9.3.5
