[properties]

Product Name	Samsung MZILT7T6HALA-00007 SSD
Product Description	The Samsung MZILT7T6HALA-00007 is a high-capacity 2.5-inch SAS SSD offering a storage capacity of 7.68 TB. It delivers sequential read speeds up to 2100 MB/s and sequential write speeds up to 2000 MB/s. With random read performance of 400,000 IOPS and random write performance of 90,000 IOPS, it ensures efficient data processing for enterprise applications.
Product Family	Samsung PM1643a Series
Product Type	Solid State Drive
Capacity	7.68 TB
Interface	SAS 12.0 Gbps
Form Factor	2.5 inch
Sequential Read	2100 MB/s
Sequential Write	2000 MB/s
Random Read	400,000 IOPS
Random Write	90,000 IOPS
DWPD	1.0 (5 years)
MTBF	2,000,000 hours
TBW	14,016 TB

[/properties]

[specifications]

Memory Type	3D V-NAND
Controller	Proprietary Samsung Controller
Encryption	TCG Enterprise
Power Loss Protection	Yes
Operating Temperature	0°C to 70°C
Storage Temperature	-40°C to 85°C
Humidity	5% to 95% (non-condensing)
Vibration Operating	2.17 G (5 to 800 Hz)
Vibration Non-Operating	20 G (10 to 2000 Hz)
Shock Operating	1500 G (0.5 ms)
Shock Non-Operating	1500 G (0.5 ms)
Dimensions	100.5 x 69.85 x 7 mm
Weight	100 g

[/specifications]

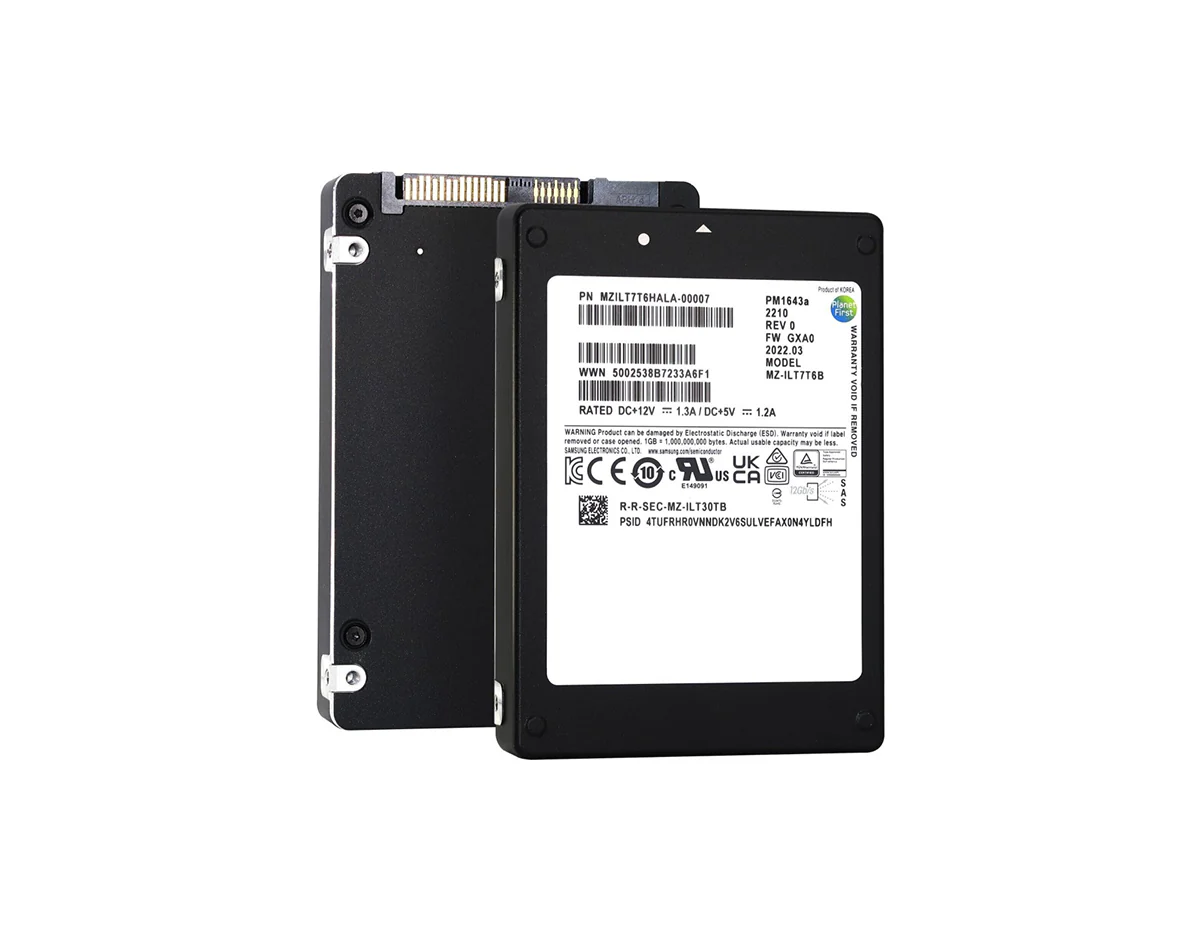

Samsung MZILT7T6HALA-00007 SSD Drive

The MZILT7T6HALA-00007 is a member of the Samsung PM1643a family. This product offers enhanced performance and reliability. It has 7.68TB storage capacity. This SSD can deliver up to 2100MB/s sequential read and 2000MB/s sequential write. In addition, it offers 400K IOPS random read and 90K IOPS random write performance.

Quick Specs:

• 7.68TB Storage Capacity
• SAS 12.0 Gbps interface
• MTBF: 2.0 million hours
• TBW: 14,016

Please see the related tabs for the MZILT7T6HALA-00007 datasheet and compatible accessories.
