Mikrotik MTAS-5G-15D120 mANT 15s Antenna
- Dual-polarization 5Ghz 15dBi 120 degree beamwidth antenna with two RP-SMA connectors
| Product Name | MikroTik MTAS-5G-15D120 mANT 15s Antenna |
| Product Description | Dual-polarization 5 GHz 15 dBi 120-degree beamwidth sector antenna with two RP-SMA connectors. |
| Compatibility | BaseBox, NetBox, NetMetal, and other outdoor wireless devices. |
| Frequency Range | 5.17 – 5.825 GHz |
| Gain | 15 dBi |
| Polarization | Vertical and horizontal |
| Beamwidth (Azimuth) | 120° |
| Beamwidth (Elevation) | 10° |
| Front-to-Back Ratio | >30 dB |
| Cross Polarization | >30 dB |
| Port-to-Port Isolation | >40 dB |
| VSWR | 1.43 (typical), 1.8 (maximum) |
| Connector Type | 2 x RP-SMA |
| Mounting | Compatible with SXT type mount; includes quickMOUNT PRO |
| Dimensions (W x H x D) | 140 x 348 x 82 mm |
| Weight | 734 g |
| Operating Temperature Range | -40°C to 70°C |
[specifications]
| Product Code | MTAS-5G-15D120 |
| Antenna Type | Sector |
| Frequency Range | 5.17 – 5.825 GHz |
| Gain | 15 dBi |
| Polarization | Dual (vertical and horizontal) |
| 3 dB Beamwidth (Azimuth) | 120° |
| 3 dB Beamwidth (Elevation) | 10° |
| Front-to-Back Ratio | >30 dB |
| Cross Polarization | >30 dB |
| Port-to-Port Isolation | >40 dB |
| VSWR | 1.43 (typical), 1.8 (maximum) |
| Connector Type | 2 x RP-SMA |
| Mounting | Compatible with SXT type mount; includes quickMOUNT PRO |
| Dimensions (W x H x D) | 140 x 348 x 82 mm |
| Weight | 734 g |
| Operating Temperature Range | -40°C to 70°C |
[/specifications]
MikroTik MTAS-5G-15D120 Antenna

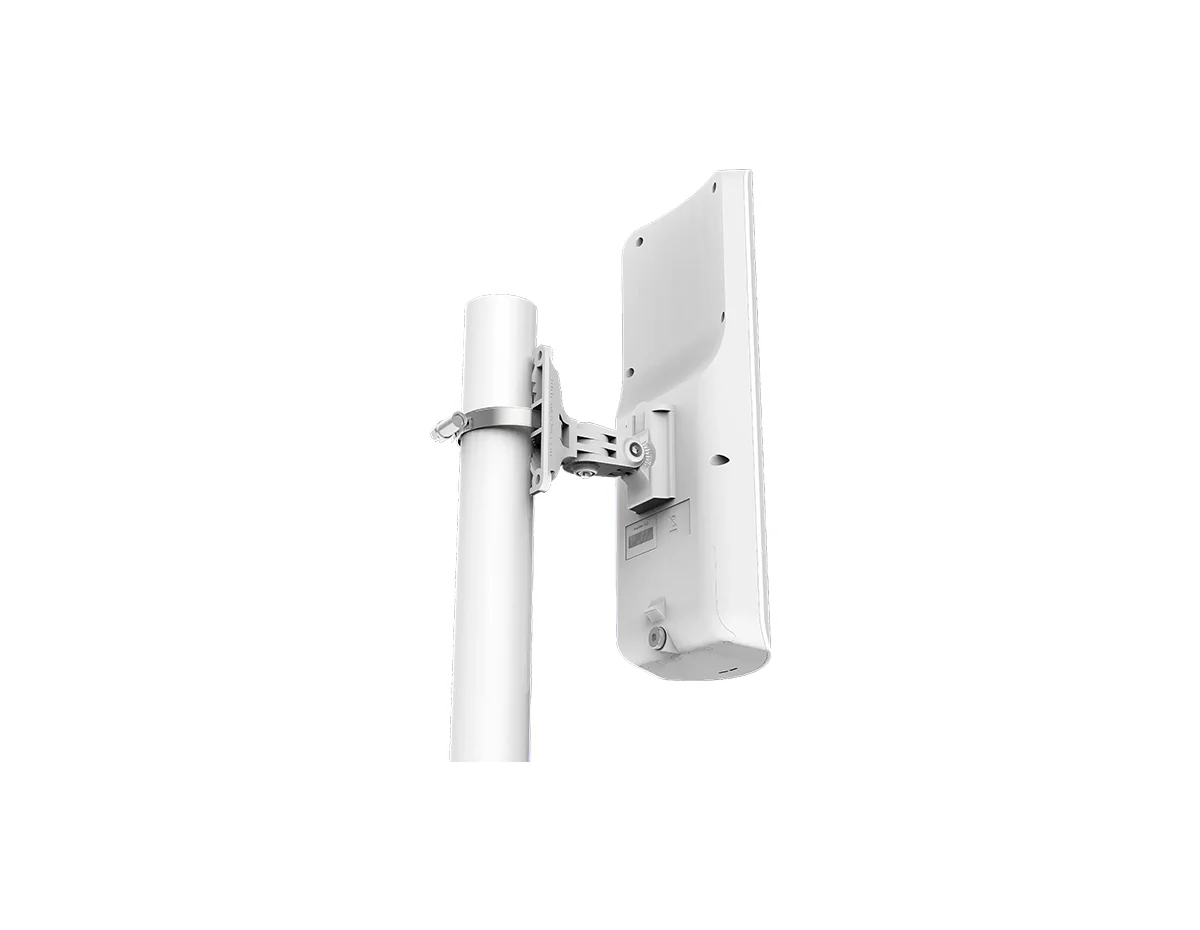

The MTAS-5G-15D120 is a 15dBi 120-degree beamwidth antenna with dual-polarization and two RP-SMA connectors. It is designed to be compatible with the SXT type mount, allowing for use with QuickMount systems. Additionally, it includes the quickMOUNT PRO for added convenience and versatility. The frequency range is between 5.17 - 5.875.
Quick Specs:
- Frequency Range. 5.17-5.825 GHz
- Connector: two RP-SMA
- Polarization: Vertical and horizontal
- Antenna Gain: 15 dbi
Please see the related tabs for the MTAS-5G-15D120 datasheet and compatible accessories.
