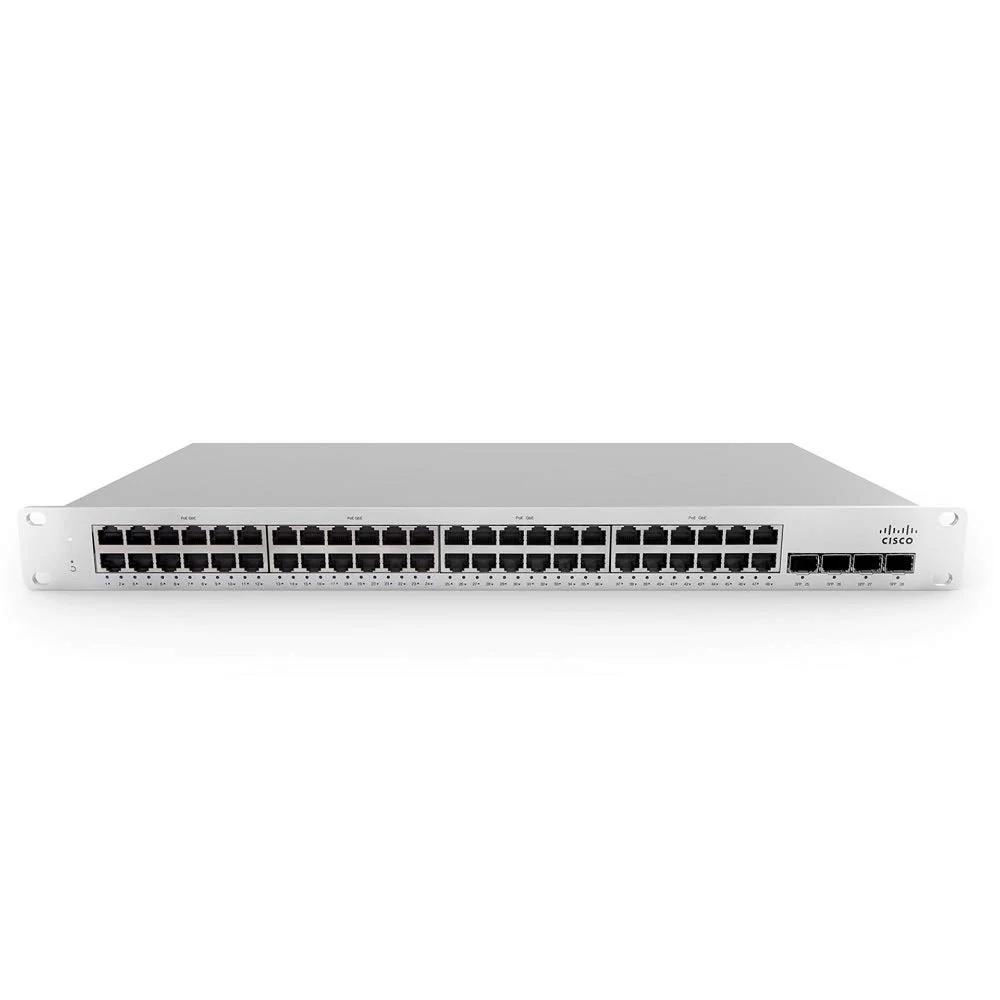

Cisco MS225-48FP-HW Cloud-Managed Access Switch 48xGE PoE+ 4x1G SFP
[shortdesc]
- Cisco MS225-48FP-HW is a cloud-managed 48-port Gigabit Ethernet Layer 2 access switch with 740W PoE+, 4x 10G SFP+ uplinks, and stacking support for branch and campus deployments
[/shortdesc]
[specifications] [/specifications]
Cisco MS225-48FP-HW Cloud-Managed Access Switch 48xGE PoE+ 4x1G SFP
The Cisco Meraki MS225-48FP-HW is a powerful cloud-managed Layer 2 access switch designed for branch and campus networks. With 48x 1GbE RJ45 ports and support for PoE+ up to 740W, it powers a broad range of connected devices such as VoIP phones and wireless access points. The switch also includes 4x 10G SFP+ uplink ports for high-speed fiber connectivity. Built-in stacking capabilities deliver up to 80 Gbps of bandwidth, ensuring high performance and redundancy. Managed entirely via the Meraki Dashboard, it offers centralized visibility, Layer 3 static routing, QoS, DHCP snooping, and 802.1X authentication. This 1U rack-mountable switch is engineered for reliable performance in demanding environments.
Key Features:
- Cloud Managed: Fully controlled through the Meraki Dashboard for centralized configuration and monitoring.
- PoE+ Power Budget: Delivers up to 740W total for PoE-enabled devices across all 48 ports.
- High-Speed Uplinks: 4x 10G SFP+ ports enable high-bandwidth fiber uplinks to aggregation switches.
- Scalable Stacking: Supports physical stacking with 80 Gbps bandwidth for resilience and scalability.
- Enterprise Features: Includes QoS, VLAN tagging, static routing, 802.1X, and DHCP snooping.
- Compact Design: Standard 1U rack-mount form factor with internal power supply.
Technical Specifications:
- Model: MS225-48FP-HW
- Ports: 48 x 10/100/1000BASE-T (PoE+)
- Uplinks: 4 x 10G SFP+
- PoE Power Budget: 740W
- Layer Support: Layer 2 with static Layer 3 routing
- Switching Capacity: 176 Gbps
- Stacking Bandwidth: 80 Gbps (2x dedicated stack ports)
- Mount Type: 1U Rack Mount
- Dimensions: 1.72 x 19 x 13.38 in (4.38 x 48.46 x 34 cm)
- Weight: 9.63 lb (4.37 kg)
- Power Consumption (Idle/Max): 54W / 882W
- Operating Temperature: 23°F to 122°F (-5°C to 50°C)
- Humidity: 5% to 95% non-condensing
- Power Supply: Fixed internal; optional external RPS (RPS-2300)*
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Cisco MS225-48FP-HW Cloud-Managed Access Switch 48xGE PoE+ 4x1G SFP
Cisco MS225-48FP-HW Cloud-Managed Access Switch 48xGE PoE+ 4x1G SFP
[shortdesc]
- Cisco MS225-48FP-HW is a cloud-managed 48-port Gigabit Ethernet Layer 2 access switch with 740W PoE+, 4x 10G SFP+ uplinks, and stacking support for branch and campus deployments
[/shortdesc]
[specifications] [/specifications]
Cisco MS225-48FP-HW Cloud-Managed Access Switch 48xGE PoE+ 4x1G SFP
The Cisco Meraki MS225-48FP-HW is a powerful cloud-managed Layer 2 access switch designed for branch and campus networks. With 48x 1GbE RJ45 ports and support for PoE+ up to 740W, it powers a broad range of connected devices such as VoIP phones and wireless access points. The switch also includes 4x 10G SFP+ uplink ports for high-speed fiber connectivity. Built-in stacking capabilities deliver up to 80 Gbps of bandwidth, ensuring high performance and redundancy. Managed entirely via the Meraki Dashboard, it offers centralized visibility, Layer 3 static routing, QoS, DHCP snooping, and 802.1X authentication. This 1U rack-mountable switch is engineered for reliable performance in demanding environments.
Key Features:
- Cloud Managed: Fully controlled through the Meraki Dashboard for centralized configuration and monitoring.
- PoE+ Power Budget: Delivers up to 740W total for PoE-enabled devices across all 48 ports.
- High-Speed Uplinks: 4x 10G SFP+ ports enable high-bandwidth fiber uplinks to aggregation switches.
- Scalable Stacking: Supports physical stacking with 80 Gbps bandwidth for resilience and scalability.
- Enterprise Features: Includes QoS, VLAN tagging, static routing, 802.1X, and DHCP snooping.
- Compact Design: Standard 1U rack-mount form factor with internal power supply.
Technical Specifications:
- Model: MS225-48FP-HW
- Ports: 48 x 10/100/1000BASE-T (PoE+)
- Uplinks: 4 x 10G SFP+
- PoE Power Budget: 740W
- Layer Support: Layer 2 with static Layer 3 routing
- Switching Capacity: 176 Gbps
- Stacking Bandwidth: 80 Gbps (2x dedicated stack ports)
- Mount Type: 1U Rack Mount
- Dimensions: 1.72 x 19 x 13.38 in (4.38 x 48.46 x 34 cm)
- Weight: 9.63 lb (4.37 kg)
- Power Consumption (Idle/Max): 54W / 882W
- Operating Temperature: 23°F to 122°F (-5°C to 50°C)
- Humidity: 5% to 95% non-condensing
- Power Supply: Fixed internal; optional external RPS (RPS-2300)*
Original: $3,388.00
-65%$3,388.00
$1,185.80Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
[shortdesc]
- Cisco MS225-48FP-HW is a cloud-managed 48-port Gigabit Ethernet Layer 2 access switch with 740W PoE+, 4x 10G SFP+ uplinks, and stacking support for branch and campus deployments
[/shortdesc]
[specifications] [/specifications]
Cisco MS225-48FP-HW Cloud-Managed Access Switch 48xGE PoE+ 4x1G SFP
The Cisco Meraki MS225-48FP-HW is a powerful cloud-managed Layer 2 access switch designed for branch and campus networks. With 48x 1GbE RJ45 ports and support for PoE+ up to 740W, it powers a broad range of connected devices such as VoIP phones and wireless access points. The switch also includes 4x 10G SFP+ uplink ports for high-speed fiber connectivity. Built-in stacking capabilities deliver up to 80 Gbps of bandwidth, ensuring high performance and redundancy. Managed entirely via the Meraki Dashboard, it offers centralized visibility, Layer 3 static routing, QoS, DHCP snooping, and 802.1X authentication. This 1U rack-mountable switch is engineered for reliable performance in demanding environments.
Key Features:
- Cloud Managed: Fully controlled through the Meraki Dashboard for centralized configuration and monitoring.
- PoE+ Power Budget: Delivers up to 740W total for PoE-enabled devices across all 48 ports.
- High-Speed Uplinks: 4x 10G SFP+ ports enable high-bandwidth fiber uplinks to aggregation switches.
- Scalable Stacking: Supports physical stacking with 80 Gbps bandwidth for resilience and scalability.
- Enterprise Features: Includes QoS, VLAN tagging, static routing, 802.1X, and DHCP snooping.
- Compact Design: Standard 1U rack-mount form factor with internal power supply.
Technical Specifications:
- Model: MS225-48FP-HW
- Ports: 48 x 10/100/1000BASE-T (PoE+)
- Uplinks: 4 x 10G SFP+
- PoE Power Budget: 740W
- Layer Support: Layer 2 with static Layer 3 routing
- Switching Capacity: 176 Gbps
- Stacking Bandwidth: 80 Gbps (2x dedicated stack ports)
- Mount Type: 1U Rack Mount
- Dimensions: 1.72 x 19 x 13.38 in (4.38 x 48.46 x 34 cm)
- Weight: 9.63 lb (4.37 kg)
- Power Consumption (Idle/Max): 54W / 882W
- Operating Temperature: 23°F to 122°F (-5°C to 50°C)
- Humidity: 5% to 95% non-condensing
- Power Supply: Fixed internal; optional external RPS (RPS-2300)*
