[shortdesc]

• Managed, Rack-mountable, 48 x 1G PoE+ ports, 4 x 1G SFP Uplinks, PoE+ (370W), Layer 2

[/shortdesc]

[properties]

Product Name	MS210-48LP-HW
Description	Cisco Meraki MS210-48LP, a cloud-managed 48-port Gigabit Ethernet switch with 370W PoE+ power budget, designed for enterprise networks with stacking capabilities.
Switch Type	Cloud-managed Layer 2 switch with stacking
Total Ports	48 x Gigabit Ethernet (PoE+)
PoE Power Budget	370W (802.3af/at PoE+)
Uplink Ports	4 x 1G SFP
Management	Cloud-based via Meraki dashboard
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 70°C (-4°F to 158°F)
Humidity	5% to 95% non-condensing
Dimensions	44.0 cm x 36.9 cm x 4.4 cm (17.3 in x 14.5 in x 1.7 in)
Weight	5.8 kg (12.8 lb)
Mounting Options	Rack-mountable (1U), mounting brackets included
Power Supply	Internal power supply
Cooling	Two internal fans for active cooling
Usage	Ideal for mid-sized to large enterprise networks
Durability	Designed for continuous operation in demanding environments

[/properties]

[specifications]

Switching Capacity	104 Gbps
Forwarding Rate	77.38 Mpps
PoE Standard	IEEE 802.3af/at (PoE+)
Latency	0.9 microseconds for 64-byte packets
Certifications	CE, FCC, RoHS compliant
Environmental Safety	Complies with global environmental standards, low-halogen design
EMC Compliance	Meets international EMC standards for network equipment
Power Consumption	Maximum 450W (with PoE load)
Stacking Support	Supports physical and virtual stacking up to 8 switches
MTBF	1,200,000 hours
Security Features	802.1X authentication, MAC-based port security, DHCP snooping
Management Features	Cloud-based monitoring, configuration, and automated alerts
VLAN Support	Supports up to 4,094 VLANs
QoS	Layer 2 Quality of Service for traffic prioritization
Deployment	Optimized for enterprise, branch, and campus deployments
Monitoring	Real-time network monitoring and troubleshooting via Meraki dashboard
Firmware Compatibility	Automatic firmware updates and security patches via cloud

[/specifications]

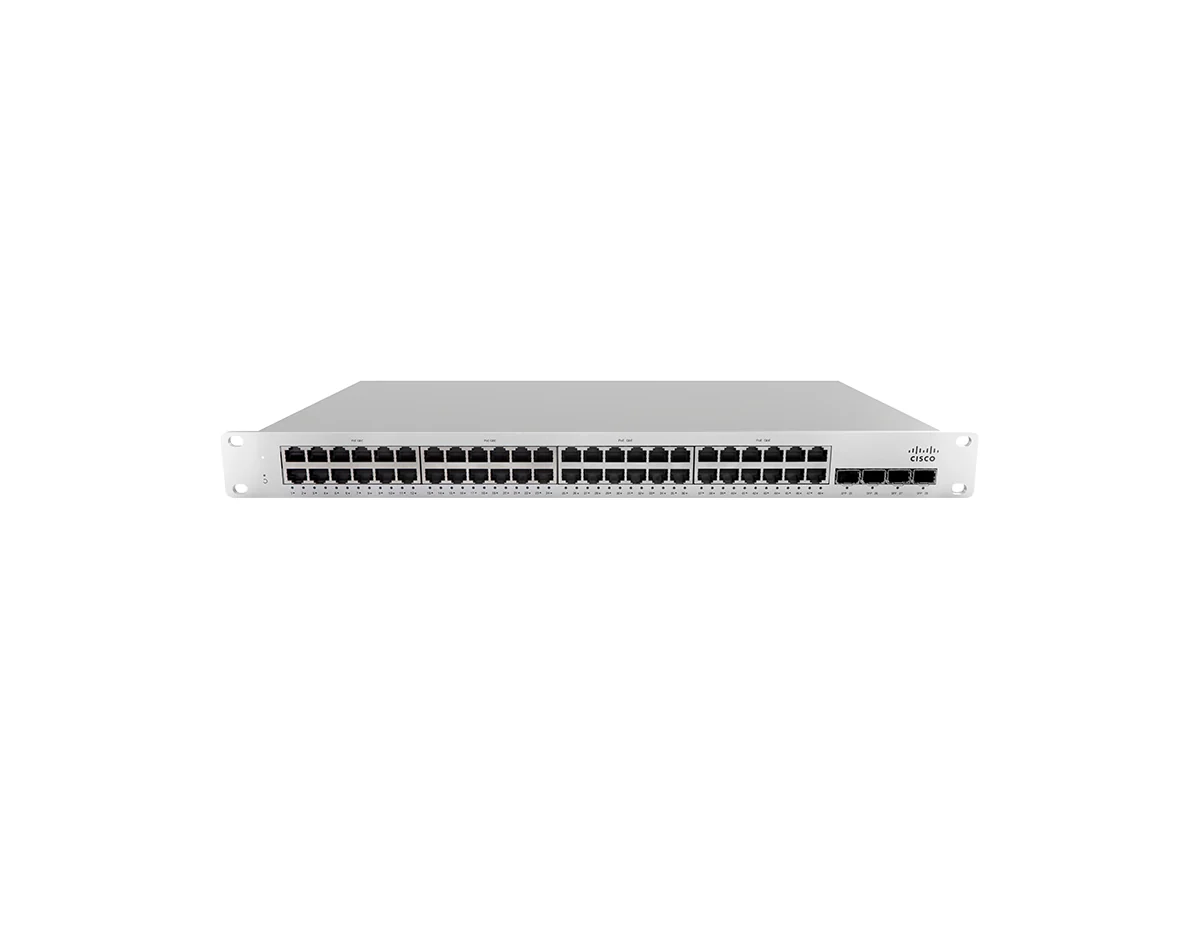

Cisco MS210-48LP-HW Switch

The Cisco MS210-48LP-HW is a cloud-managed, 48-port Gigabit Ethernet switch designed for small to medium-sized businesses seeking reliable and scalable networking. Equipped with 48 Gigabit Ethernet ports, including PoE+ support with a power budget of 370W, and 4 SFP uplink ports, this switch is ideal for powering devices such as IP phones, cameras, and wireless access points. The MS210-48LP-HW integrates seamlessly with Meraki’s cloud-based dashboard, enabling easy provisioning, monitoring, and management from anywhere.

Key Features:

• 48 x Gigabit Ethernet PoE+ Ports: Provides power and connectivity for devices like IP phones and cameras with a total PoE budget of 370W.
• 4 x Gigabit SFP Uplinks: Ensures high-speed uplinks for seamless network expansion.
• Cloud-Based Management: Simplifies network management with Meraki’s centralized dashboard, offering monitoring, configuration, and troubleshooting tools.
• Layer 2+ Capabilities: Supports VLANs, QoS, and Link Aggregation for enhanced traffic management and optimized network performance.
• Energy-Efficient Design: Complies with IEEE 802.3az standards for reduced power consumption during low-traffic periods.

Technical Overview:

• Recommended for: Small to medium-sized businesses, retail environments, and branch offices.
• Ports: 48 x 10/100/1000 Ethernet PoE+ ports, 4 x 1G SFP uplinks.
• PoE Power Budget: 370W.
• Switching Capacity: 104 Gbps.
• Forwarding Rate: 77.38 Mpps.

You can check the related tab for the MS210-48LP-HW datasheet.
