[shortdesc]

• Managed, Rack-mountable, 48 x 1G PoE+ ports, 4 x 1G SFP Uplinks, PoE+ (740W), Layer 2

[/shortdesc]

[properties]

Product Name	Cisco MS120-48FP-HW Switch
Product Description	The Cisco MS120-48FP-HW is a cloud-managed, 48-port Gigabit Ethernet switch designed for medium to large businesses needing high-performance networking with simplified management. It features 48 PoE+ ports with a total power budget of 740W and 4 SFP uplink ports, ideal for powering IP phones, cameras, and access points. Integrated with Meraki’s cloud-based dashboard, this switch supports easy provisioning and centralized management.
Port Configuration	48 x 10/100/1000 PoE+ Ethernet ports
Uplink Ports	4 x 1G SFP uplinks
Power Budget	740W total PoE+ power budget
Switching Capacity	104 Gbps
Forwarding Rate	77.38 Mpps
Management	Cloud-based management through Meraki dashboard
Security Features	802.1X authentication, MAC whitelisting, port security
Energy Efficiency	Compliant with IEEE 802.3az standards for reduced power consumption
Recommended For	Medium to large businesses, campuses, and branch offices

[/properties]
[specifications]

Port Types	48 x Gigabit Ethernet PoE+ ports
Uplink Ports	4 x 1G SFP uplinks
Total Power Budget	740W for PoE+ devices
Switching Capacity	104 Gbps
Forwarding Rate	77.38 Mpps
Energy Efficiency	IEEE 802.3az compliance for low-traffic power savings
Security Features	802.1X authentication, MAC whitelisting, and port security
Management Platform	Meraki cloud-based dashboard for centralized management
Operating Temperature	0°C to 45°C (32°F to 113°F)
Mounting	Rack-mountable
Usage	Ideal for powering and connecting devices in medium to large enterprise networks

[/specifications]

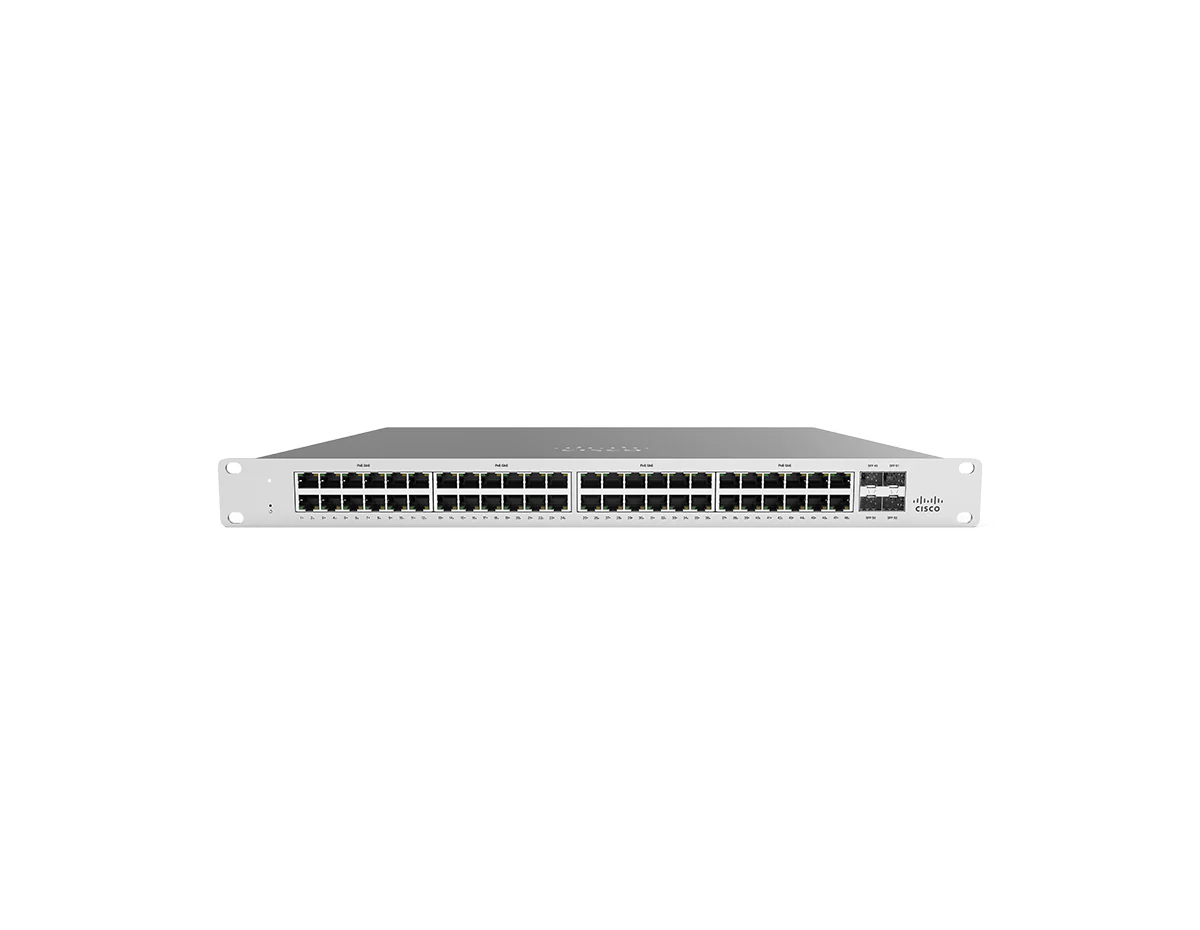

Cisco MS120-48FP-HW Switch

The Cisco MS120-48FP-HW is a cloud-managed, 48-port Gigabit Ethernet switch designed for medium to large businesses needing high-performance networking with simplified management. Featuring 48 PoE+ ports with a total power budget of 740W and 4 SFP uplink ports, the MS120-48FP-HW is ideal for powering devices such as IP phones, security cameras, and wireless access points. Integrated with Meraki’s cloud-based dashboard, this switch ensures easy provisioning and centralized management for growing networks.

Key Features:

• 48 x Gigabit PoE+ Ports: Delivers power and connectivity for devices such as IP phones, cameras, and access points with a total PoE budget of 740W.
• 4 x 1G SFP Uplinks: Provides seamless network expansion with high-speed uplink options.
• Cloud-Based Management: Simplifies configuration, monitoring, and troubleshooting through the Meraki dashboard.
• Energy-Efficient Design: Complies with IEEE 802.3az standards, minimizing power consumption during low-traffic periods.
• Advanced Security: Includes 802.1X authentication, MAC whitelisting, and port security to safeguard your network.

Technical Overview:

• Recommended for: Medium to large businesses, campuses, and branch offices.
• Ports: 48 x 10/100/1000 PoE+ Ethernet ports, 4 x 1G SFP uplinks.
• PoE Power Budget: 740W.
• Switching Capacity: 104 Gbps.
• Forwarding Rate: 77.38 Mpps.

You can check the related tab for the MS120-48FP-HW datasheet.
