[properties]

Properties	Juniper MIST MIST-AP32E-1S-5Y
Description	Superior Performance Multigigabit WiFi 6 802.11ax Access Point (AP32E) with BLE includes one 5yr Cloud Subscription (default service is SUB-MAN) and a universal mounting bracket
Product Family	MIST AP Series
Product Type	Wireless
Deployment	Indoor
Wi-Fi Standard	802.11ax (Wi-Fi 6) 5GHz: 4x4 : 4SS 2.4GHz: 2x2 : 2SS
Wi-Fi Radios	Dedicated third radio
Antenna Options	External
Frequencies Supported	2.4GHz 5GHz
Power Options	802.3at PoE, 802.3bt PoE
Dimensions	202 x 202 x 44 mm (7.95 x 7.95 x 1.73 in)
Weight	0.81 kg (1.78 lbs) excluding mount and accessories
I/O and Indicators
Eth0	100/1000Base-T, 2.5GBase-T (802.3bz); RJ45; PoE PD
Eth1	10/100/1000Base-T; RJ45
External Antennas (AP32E)	Five RP-SMA: four for Wi-Fi data; one for sensor. Male connectors
USB	USB 2.0 support interface
Reset	Reset to the factory default settings
Indicators	One multi-color status LED

[/properties] [specifications]

Specifications	MIST-AP32E-1S-5Y
Wi-Fi Standard	802.11ax (Wi-Fi 6), including support for OFDMA, 1024-QAM, MU-MIMO, Target Wake Time (TWT), Spatial Frequency Reuse (BSS Coloring). Backward compatibility with 802.11a/b/g/n/ac
Combined Highest Supported Data Rates	3.0 Gbps
2.4 GHz	2x2 : 2 802.11b/g/n/ac up to 400 Mbps data rate; 2x2 : 2 802.11ax up to 575 Mbps data rate
5 GHz	4x4 : 4 802.11ax up to 2,400 Mbps data rate
MIMO Operation	Four spatial stream SU-MIMO for up to 2,400 Mbps wireless data rate to individual 4x4 HE80 Four spatial stream MU-MIMO for up to 2,400 Mbps wireless data rate to up to four MU-MIMO-capable client devices simultaneously
Dedicated Third Radio	2.4GHz and 5GHz dual-band WIDS/WIPS, spectrum analysis, synthetic client and location analytics radio
Internal Antennas	Two 2.4GHz omnidirectional antennas with 5 dBi peak gain Four 5GHz omnidirectional antennas with 6 dBi peak gain
Bluetooth 5.0	Omnidirectional Bluetooth antenna Supports super beacon mode with iBeacon and Eddystone
Beam Forming	Transmit Beamforming and Maximal Ratio Combining
Operating Temperature	External antenna: -20° to 50° C
Operating Humidity	10% to 90% maximum relative humidity, non-condensing
Operating Altitude	3,048 m (10,000 ft)
Mean Time Between Failures (MTBF)	Indoor MTBF in hours is 846,297
Trusted Platform Module (TPM)	Includes a TPM for infrastructure security

[/specifications] [accesories]

Accessories
APBR-T58	3/8" threaded rod
APBR-M16	16mm threaded rod (M16-2)
APBR-ADP-CR9	9/16" T-Rail
APBR-ADP-RT15	15/16" T-Rail
APBR-ADP-WS15	1½" T-Rail
APBR-ADP-T12	½" threaded rod

[/accesories]

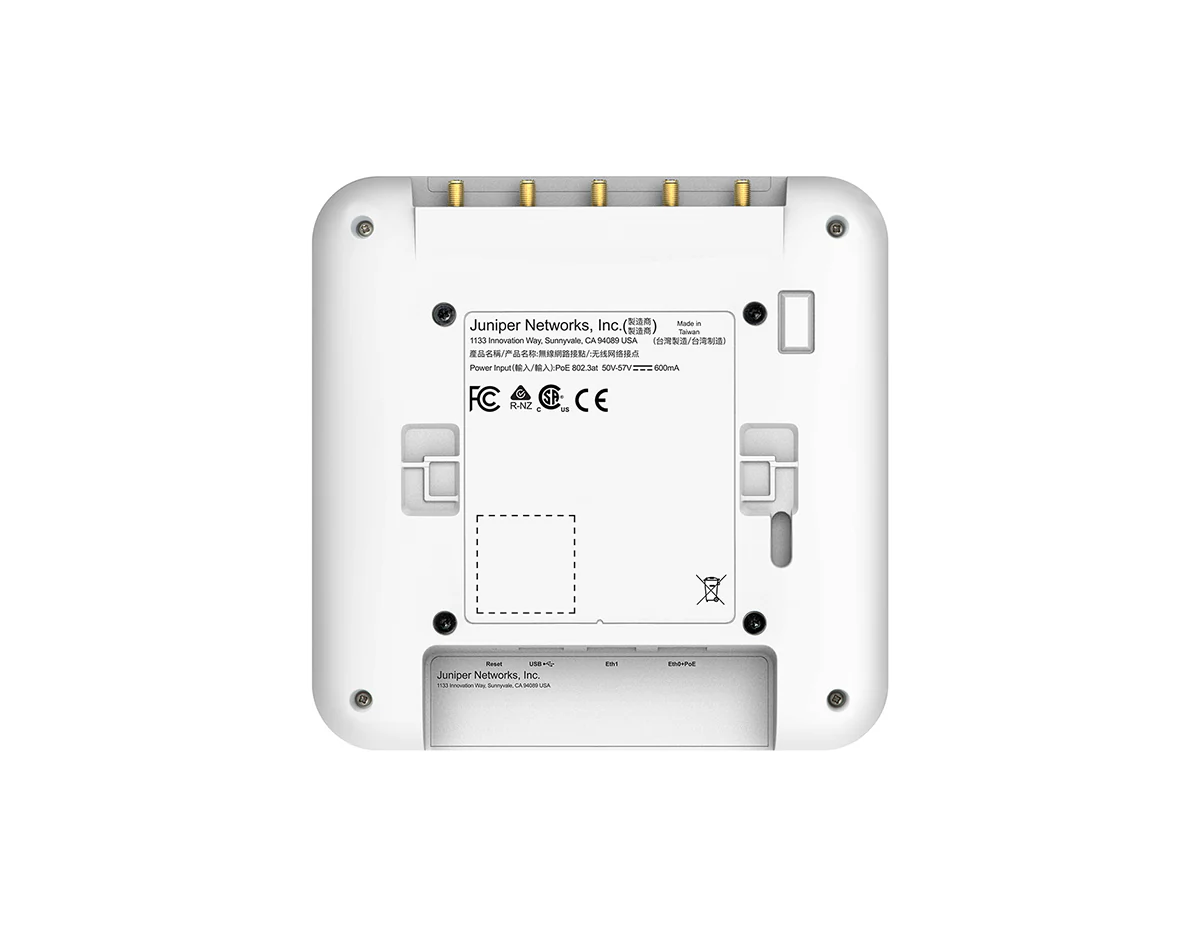

Juniper MIST-AP32E-1S-5Y Access Point

The MIST-AP32E-1S-5Y is an access point from the AP32 family. The AP32E series, powered by Mist AI, streamlines network operations, and enhances Wi-Fi performance by simultaneously providing a combined data rate of up to 3.0 Gbps on both 2.4GHz and 5GHz frequencies. Under the management of Juniper Mist Cloud Architecture, this series offers exceptional user experiences at a reduced cost, catering to various settings such as retail, warehouse, school, clinic, and home office environments.

Quick Specs:

• High Performance Wi-Fi
• Bluetooth 5.0 LE
• Trusted Platform Module
• MTBF

Please see the related tabs for the MIST-AP32E-1S-5Y datasheet and compatible accessories.
