Cisco MGBLH1 Transceiver
- 1000BASE-LH
- Single-mode fiber
- 1310 nm wavelength
- Supports up to 40 km
[specifications]
| Specifications | MGBLH1 |
| Description | 1000BASE-LH SFP transceiver for single-mode fiber, 1310 nm wavelength, supports up to 40 km |
| Product Family | Cisco SFP Modules |
| Product Type | Transceiver Module |
| Connectors | Duplex LC |
| Wavelength (nm) | 1310 |
| Fiber Type | SMF |
| Max Distance | Up to 40 km |
| Transmitting Power | Ā -4 to 0 |
| Receiver sensitivity | -25 dBm |
| Power consumption | 1W |
| DimensionsĀ | 13.4 x 8.5 x 56.5 mm (0.53 x 0.33 x 2.22 in.) |
| Temperature Range | 0 to 70Ā°C (32 to 158Ā°F) |
[/specifications]

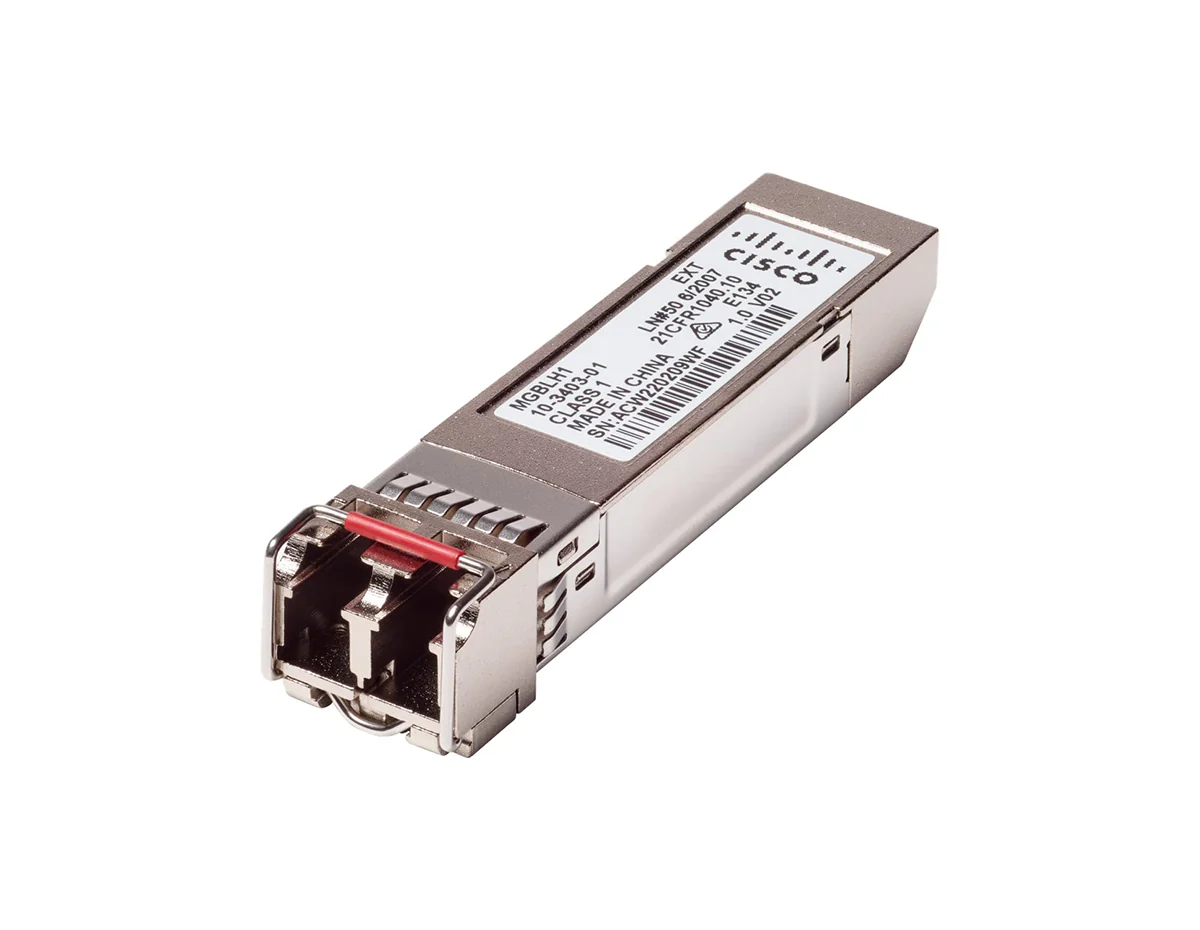

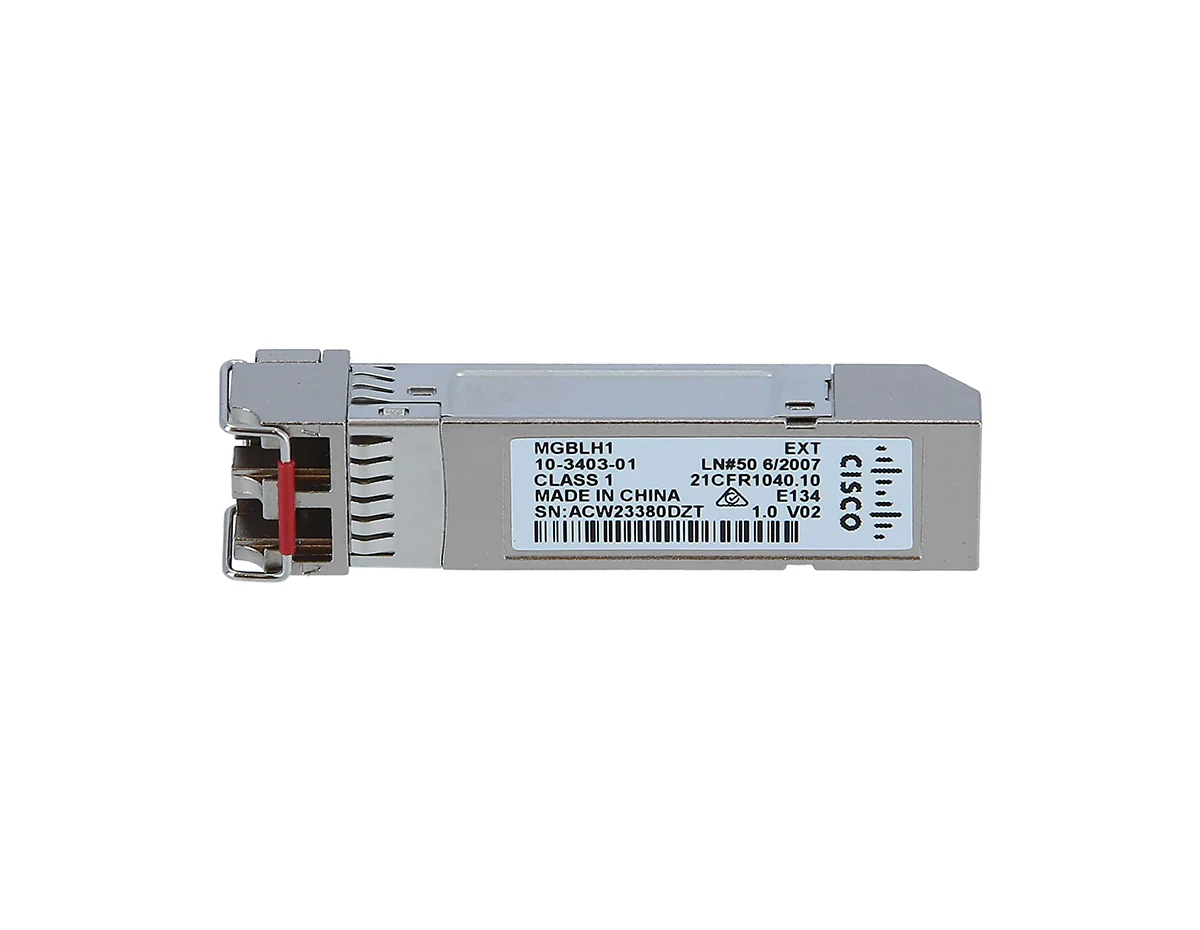

Cisco MGBLH1 Transceiver Module
The Cisco MGE transceivers suitable for establishing fast and reliable links between switches across different floors, buildings, or local campus environments, thus supporting Gigabit Ethernet applications effectively. The MGBLH1 is a 1000BASE-LH SFP transceiver for single-mode fiber, supporting up to 40 km.
Key Features:
- 1000BASE-LH
- 1310 nm
- For Cisco 100 to 500 Series switches
Please check the MGBLH1 datasheet from the tabs for detailed specifications.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Cisco MGBLH1 Transceiver
Cisco MGBLH1 Transceiver
- 1000BASE-LH
- Single-mode fiber
- 1310 nm wavelength
- Supports up to 40 km
[specifications]
| Specifications | MGBLH1 |
| Description | 1000BASE-LH SFP transceiver for single-mode fiber, 1310 nm wavelength, supports up to 40 km |
| Product Family | Cisco SFP Modules |
| Product Type | Transceiver Module |
| Connectors | Duplex LC |
| Wavelength (nm) | 1310 |
| Fiber Type | SMF |
| Max Distance | Up to 40 km |
| Transmitting Power | Ā -4 to 0 |
| Receiver sensitivity | -25 dBm |
| Power consumption | 1W |
| DimensionsĀ | 13.4 x 8.5 x 56.5 mm (0.53 x 0.33 x 2.22 in.) |
| Temperature Range | 0 to 70Ā°C (32 to 158Ā°F) |
[/specifications]
Cisco MGBLH1 Transceiver Module
The Cisco MGE transceivers suitable for establishing fast and reliable links between switches across different floors, buildings, or local campus environments, thus supporting Gigabit Ethernet applications effectively. The MGBLH1 is a 1000BASE-LH SFP transceiver for single-mode fiber, supporting up to 40 km.
Key Features:
- 1000BASE-LH
- 1310 nm
- For Cisco 100 to 500 Series switches
Please check the MGBLH1 datasheet from the tabs for detailed specifications.
