[shortdesc]

• 400 Gigabit Ethernet
• Four QSFP56 ports
• PCIe 4.0 x16 interface
• Crypto support
• Thumbscrew (Pull Tab) Bracket

[/shortdesc]

[properties]

Product Name	Mellanox MCX653106A-HDAL
Description	High-performance network adapter card designed for data centers and high-performance computing environments
Product Family	ConnectX-6 Ethernet Adapter Cards
Product Type	Network Adapter Card
Interface	PCIe Gen 3.0/4.0 x16
Ports	Dual QSFP56
Data Rate	Supports 1/10/25/40/50/100/200 Gb/s Ethernet
Latency	Sub-600ns
Message Rate	Up to 215 million messages per second
Form Factor	Standard full-height card with cold plate for liquid cooling
Dimensions (H x W)	6.6 in. x 2.71 in. (167.65mm x 68.90mm)
Power Consumption	Typical: 18.5W with passive cables
Operating Temperature	0°C to 55°C
Storage Temperature	-40°C to 70°C
Operating Humidity	10% to 85% relative humidity

[/properties]

[specifications]

Storage Humidity	10% to 90% relative humidity
Altitude (Operational)	Up to 3050m
Compliance	RoHS Compliant
Safety Certifications	CB, cTUVus, CE
EMC Certifications	CE, FCC, VCCI, ICES, RCM, KC
Protocol Support	InfiniBand: IBTA v1.4 with auto-negotiation: 1X/2X/4X SDR (2.5Gb/s per lane), DDR (5Gb/s per lane), QDR (10Gb/s per lane), FDR10 (10.3125Gb/s per lane), FDR (14.0625Gb/s per lane), EDR (25Gb/s per lane), HDR100 (2 lanes x 50Gb/s per lane), HDR (50Gb/s per lane); Ethernet: 200GBASE-CR4, 200GBASE-KR4, 200GBASE-SR4, 100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR, 10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR
Features	Supports both InfiniBand and Ethernet protocols, hardware-based I/O virtualization, advanced storage capabilities including block-level encryption and checksum offloads, sub-600ns latency, up to 215 million messages per second, cold plate design for liquid-cooled systems, RoHS compliant
Environmental Specifications	Operating Temperature: 0°C to 55°C, Storage Temperature: -40°C to 70°C, Operating Humidity: 10% to 85% relative humidity, Storage Humidity: 10% to 90% relative humidity, Operational Altitude: Up to 3050m
Regulatory Compliance	Safety: CB, cTUVus, CE; EMC: CE, FCC, VCCI, ICES, RCM, KC; RoHS: Compliant

[/specifications]

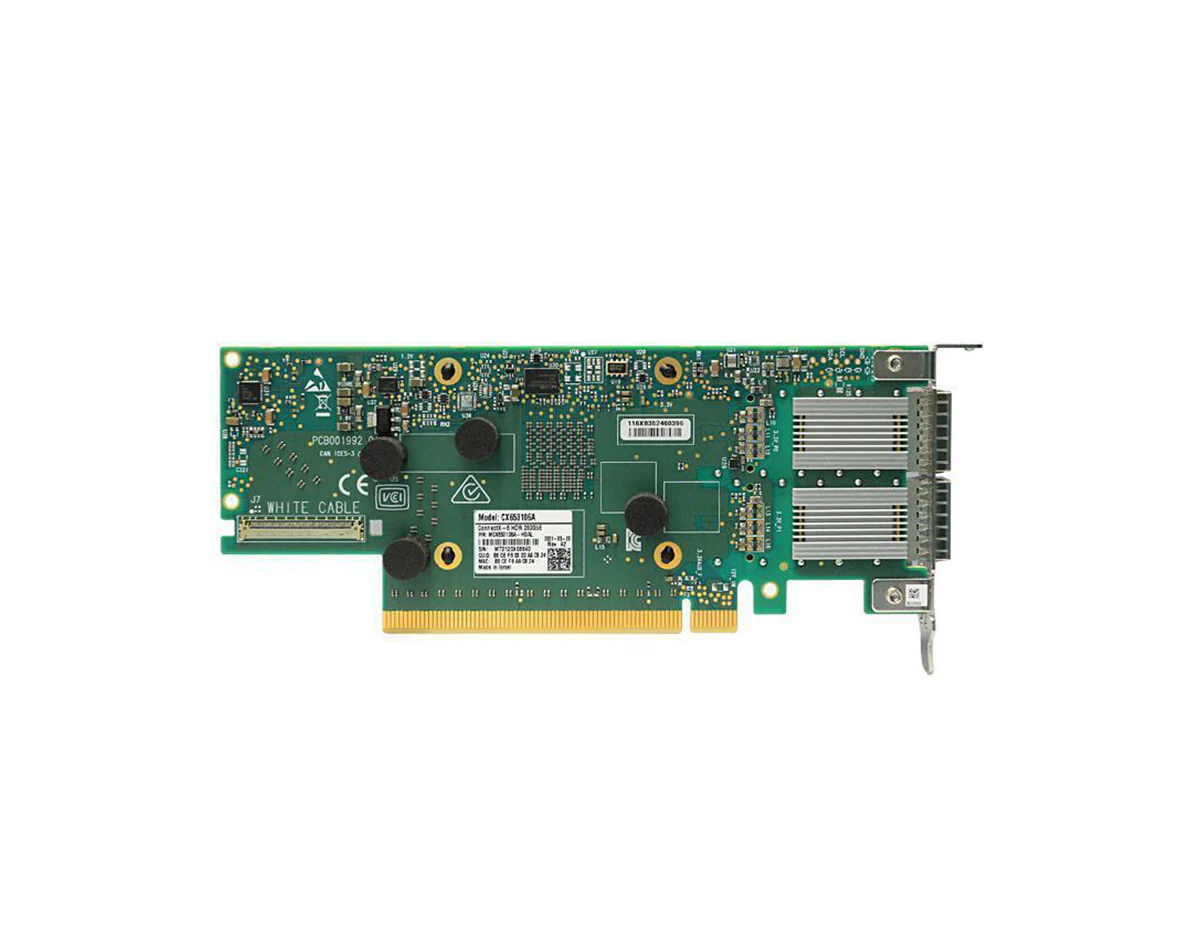

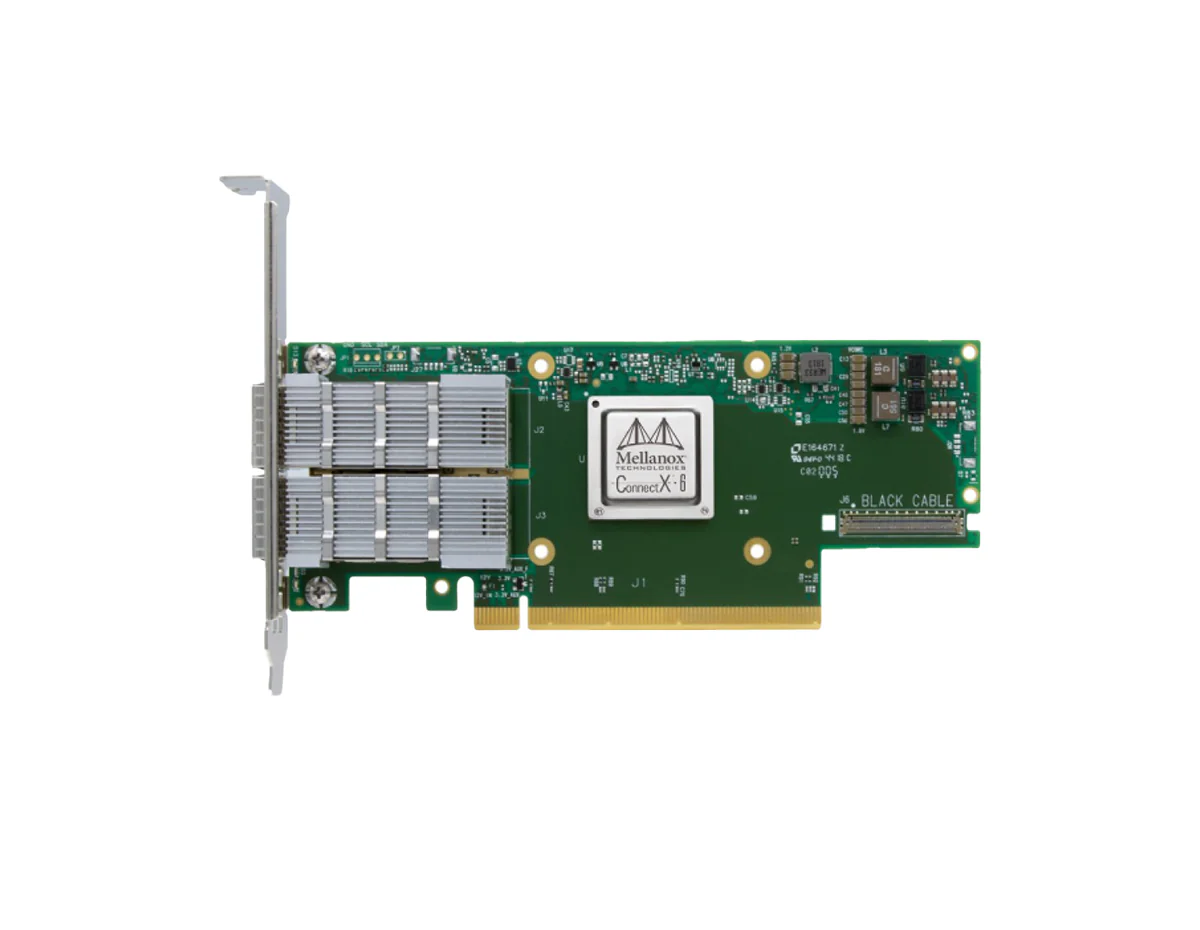

Mellanox MCX653106A-HDAL Network Adapter Card

The Mellanox MCX653106A-HDAL is a member of the ConnectX-6 Ethernet Adapter Cards family. This product offers the highest performance, PCIe Gen 3.0 and Gen 4.0 support, and Mellanox Host Daisy-chaining technology for economical rack design for compute and storage infrastructures. This card is an excellent choice for servers that need high-performance networking, scalability, reliability, and security. It is ideal for use in data centers, high-performance computing, cloud computing, telecom, and enterprise networks.

Quick Specs:

• 16x PCIe 3.0/4.0
• Dual-port QSFP56
• 1/10/25/40/50/100/200 Gb/s Ethernet
• Commit Rate: 215M messages per second

Please see the related tabs for the MCX653106A-HDAL datasheet and compatible accessories.
