[shortdesc]

• Max bandwidth of 200Gb/s, Block-level XTS-AES mode hardware encryption, Dual-port adapter supports both HDR100 EDR IB and 100GbE dual-port QSFP56

[/shortdesc]

[properties]

[/properties]

[specifications]

Specification	Details
Product Code	MCX653106A-ECAT
Port Connectivity	Up to 200Gb/s per port
Max Bandwidth	200Gb/s
Latency	Sub 0.6 micro sec
Encryption	Block-level XTS-AES mode hardware encryption
Supported Ports	50G Serdes (PAM4) and 25G Serdes (NRZ)
PCIe Compatibility	PCIe Gen3.0 and Gen4.0
Compliance	RoHS, ODCC

[/specifications]

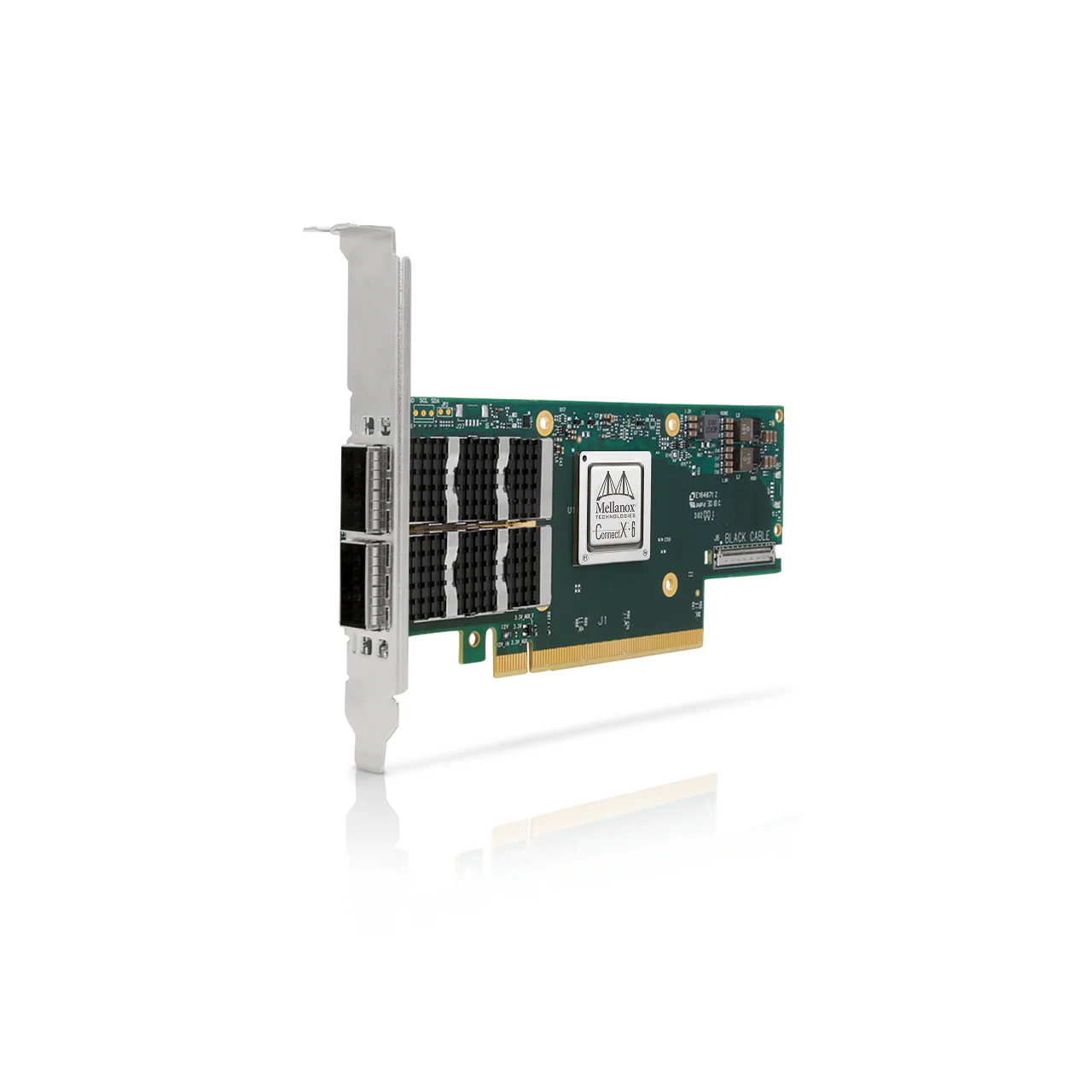

MCX653106A-ECAT Mellanox ConnectX-6 VPI Adapter Card

The Mellanox ConnectX-6 VPI Adapter Card (MCX653106A-ECAT) offers industry-leading 200Gb/s connectivity per port with maximum bandwidth and high message rate throughput. This dual-port adapter supports both HDR100 EDR IB and 100GbE dual-port QSFP56 interfaces with PCIe 3.0 and PCIe 4.0 support. It is ideal for data center deployments, network function virtualization, and high-performance computing (HPC) environments.

Key Features

• Up to 200Gb/s connectivity per port
• Max bandwidth of 200Gb/s
• Up to 215 million messages/sec with sub 0.6 micro sec latency
• Block-level XTS-AES mode hardware encryption
• FIPS capable
• Advanced storage capabilities, including encryption and checksum offloads
• Supports both 50G Serdes (PAM4) and 25G Serdes (NRZ) based ports
• PCIe Gen3.0 and Gen4.0 support
• RoHS compliant and ODCC compatible

Benefits

• Industry-leading throughput, low CPU utilization, and high message rate
• Highest performance and intelligent fabric for compute and storage infrastructures
• Cutting-edge performance in virtualized networks, including NFV
• Economical rack design with Mellanox Host Chaining Technology
• Supports X86, Power, ARM, GPU, and FPGA-based platforms
• Flexible programmable pipeline for new network flows
• Efficient service chaining enablement
• Reduces data center costs and complexity
