[shortdesc]

• Adapter Card Size: 6.6 in. x 2.71 in. (167.65mm x 68.90mm), Connector: Single QSFP56 InfiniBand and Ethernet (copper and optical)

[/shortdesc]

[properties]

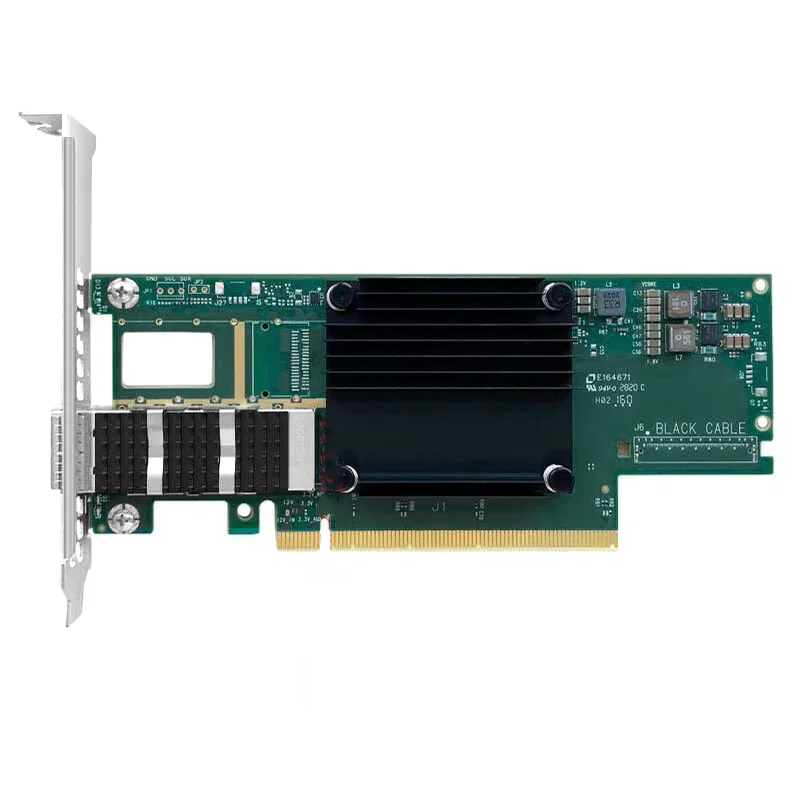

Product Name	Mellanox ConnectX-6 VPI Single Port HDR100 100Gb/s InfiniBand & Ethernet Adapter Card
Description	High-performance network adapter card supporting 200Gb/s InfiniBand and Ethernet connectivity with Virtual Protocol Interconnect (VPI) for demanding applications and markets.
Model	MCX653105A-ECAT
Type	Network Adapter
Interface	Ethernet
Host Interface	PCI Express
Data Transfer Rate (Max)	10 Gbps
Colour of Product	Green, Silver
Connectivity Technology	Wired
Ethernet LAN Ports	1
Networking Standards	IEEE 1588, IEEE 802.1Q, IEEE 802.1Qau, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.1p, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3ba
Supported Network Protocols	SRP, iSER, NFS RDMA, SMB Direct, NVMe-oF
Windows Operating Systems Supported	Yes

[/properties]

[specifications]

Brand	Mellanox
Co2 Savings	May.41
Internal	Yes
Component for	Server
PCI Version	3.0
Ethernet Interface Type	Fast Ethernet, Gigabit Ethernet
Ethernet LAN Data Rates	10, 100, 1000 Mbit/s
Cabling Technology	10/100/1000BaseT(X)
Harmonized System (HS) Code	85176990
Max Data Transfer Rate	10000 Mbit/s
Max Throughput	200Gb/s (HDR100 InfiniBand & Ethernet)
Latency	Sub-600 nanoseconds
Messages per Second	215 million messages
Encryption	Offload block-level encryption
Form Factor	PCIe 3.0/4.0 x16

[/specifications]

ConnectX-6 VPI Adapter

The ConnectX-6 VPI Adapter is designed to provide high-performance connectivity for both InfiniBand and Ethernet protocols, supporting a range of data rates and features to ensure optimal performance in demanding environments.

Physical Specifications:

• Adapter Card Size: 6.6 in. x 2.71 in. (167.65mm x 68.90mm)
• Connector: Single QSFP56 InfiniBand and Ethernet (copper and optical)

Protocol Support:

• InfiniBand: IBTA v1.4 a
  • Auto-Negotiation: 1X/2X/4X SDR (2.5Gb/s per lane), DDR (5Gb/s per lane), QDR (10Gb/s per lane), FDR10 (10.3125Gb/s per lane), FDR (14.0625Gb/s per lane), EDR (25Gb/s per lane) port, HDR100 (2 lane x 50Gb/s per lane)
• Ethernet:
  • 100GBASE-CR4, 100GBASE-CR2, 100GBASE-KR4, 100GBASE-SR4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR, 10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR

Data Rate:

• InfiniBand: SDR/DDR/QDR/FDR/EDR/HDR100
• Ethernet: 1/10/25/40/50/100 Gb/s
• PCIe Gen3/4: SERDES @ 8.0GT/s/16GT/s, x16 lanes (2.0 and 1.1 compatible)

Power and Airflow:

• Voltage: 3.3Aux
• Maximum Current: 100mA
• Typical Power (Passive Cables): 15.6W
• Maximum Power: Please refer to ConnectX-6 VPI Power Specifications (requires NVONline login credentials)
• Maximum Power Available through QSFP56 Port: 5W
• Airflow (LFM) / Ambient Temperature:
  • Passive Cables: 300 LFM / 55°C, 200 LFM / 35°C
  • NVIDIA Active 2.7W Cables: 300 LFM / 55°C, 200 LFM / 35°C

Environmental:

• Temperature:
  • Operational: 0°C to 55°C
  • Non-operational: -40°C to 70°C c
• Humidity:
  • Operational: 10% to 85% relative humidity
  • Non-operational: 10% to 90% relative humidity
• Altitude (Operational): 3050m

Regulatory:

• Safety: CB / cTUVus / CE
• EMC: CE / FCC / VCCI / ICES / RCM / KC
• RoHS: RoHS Compliant

Notes:

1. The ConnectX-6 adapters supplement the IBTA auto-negotiation specification to get better bit error rates and longer cable reaches. This supplemental feature only initiates when connected to another NVIDIA InfiniBand product.
2. Typical power for ATIS traffic load.
3. The non-operational storage temperature specifications apply to the product without its package.
