MIKROTIK Outdoor AP/CPE/Point-to-Point Radio NetBox 5 ax Wi-Fi 6 (L11UG-5HaxD-NB-US)
[shortdesc]
- Dual-Core IPQ-5010 800 MHz ARM architecture, 5 GHz Wi-Fi 6 dual-chain radio, 256 MB RAM, 128 MB NAND storage, Gigabit Ethernet with PoE-in
[/shortdesc]
[properties]
| Product code | L11UG-5HaxD |
| Architecture | ARM |
| CPU | IPQ-5010 |
| CPU core count | 2 |
| CPU nominal frequency | 800 MHz |
| RouterOS license | 4 |
| Operating System | RouterOS v7 |
| Size of RAM | 256 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
[/properties]
[specifications]
| Details | |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 12-28 V |
| Max power consumption | 15 W |
| Max power consumption without attachments | 6 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 18-28 V |
| Wireless specifications | |
| Wireless 5 GHz Max data rate | 2400 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac/ax |
| Wireless 5 GHz chip model | QCN-6102 |
| Wireless 5 GHz generation | Wi-Fi 6 |
| 10/100/1000 Ethernet ports | 1 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1.5 |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Beeper | Yes |
| Certification & Approvals |
[/specifications]

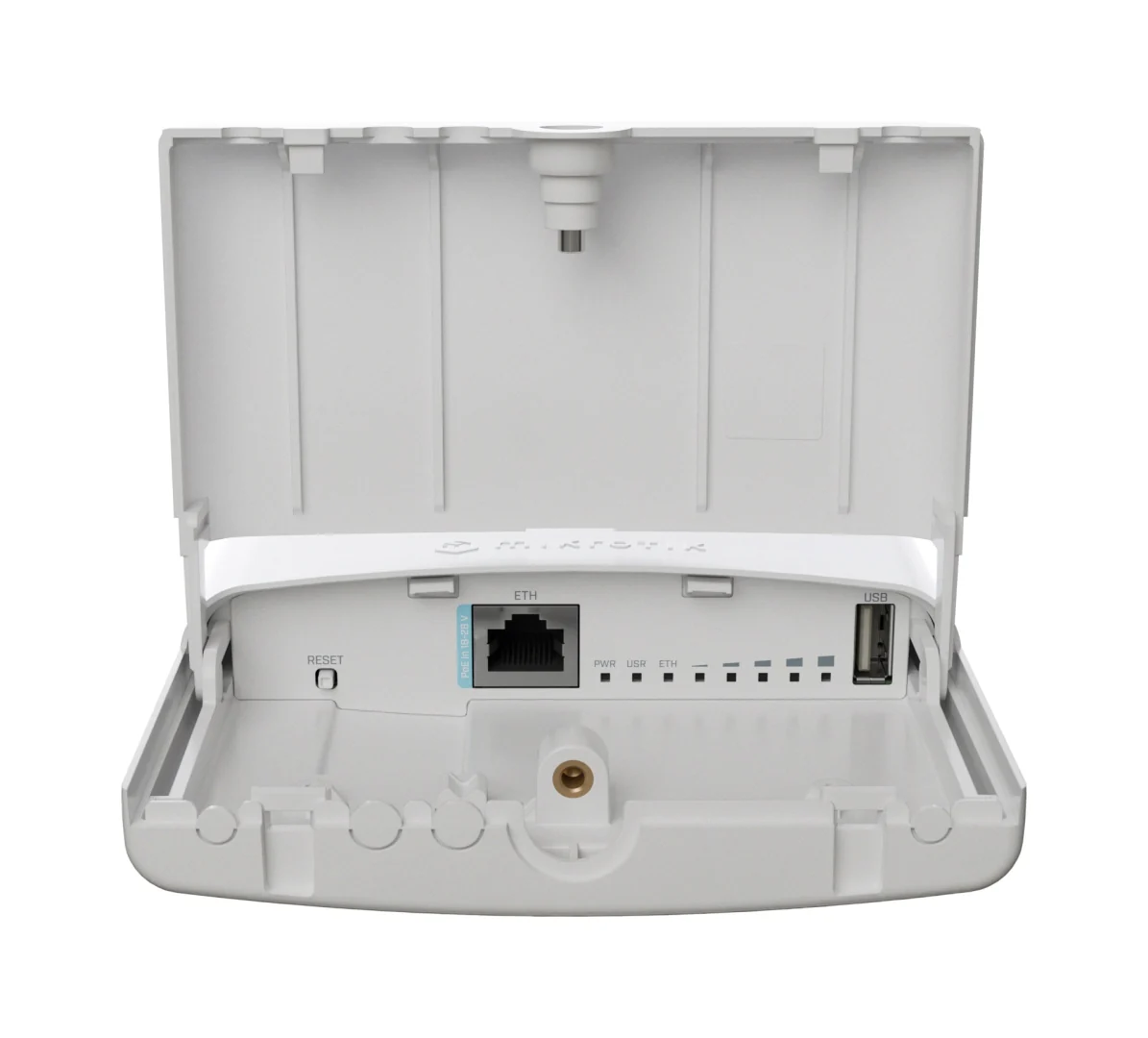

NetBox 5 ax L11UG-5HaxD-NB-US
The NetBox 5 ax is a powerful dual-chain outdoor device designed to fill multiple roles in your network setups, including AP, CPE, and point-to-point connections. It features a strong 5 GHz Wi-Fi 6 radio with SMA connectors for versatile omnidirectional access points or long-range point-to-point links. The durable outdoor enclosure, modern Qualcomm Maple ARM CPU, and Gigabit Ethernet with PoE-in make it a reliable and flexible solution for various networking needs.
Product Highlights
- 5 GHz Wi-Fi 6 dual-chain radio
- ARM-based Qualcomm Maple CPU
- 256 MB RAM, 128 MB NAND storage
- Gigabit Ethernet with PoE-in
- Durable weatherproof outdoor enclosure
- SMA connectors for versatile antenna options
- Operating temperature: -40°C to +70°C
Specifications
| Category | Specifications |
|---|---|
| Product Code | L11UG-5HaxD-NB-US |
| CPU | Dual-Core IPQ-5010 800 MHz, ARM architecture |
| RAM | 256 MB |
| Storage | 128 MB NAND |
| Ethernet Ports | 1 x 1G Ethernet port |
| USB Port | 1 x USB 2.0 Type A |
| Wireless Band | 5 GHz, 802.11a/n/ac/ax dual chain |
| Connector Type | RP-SMA female (outside thread) |
| Extras | Beeper, signal and status LEDs, voltage and temperature sensors |
| Dimensions | 245 x 121 x 50 mm |
| Operating System | RouterOS v7, License level 4 |
| Operating Temperature | -40°C to +70°C |
Powering
- PoE-In: Passive PoE, 18-28 V input voltage
- Max Power Consumption: 15 W
- Included Parts: 24V 1.2A power adapter, Gigabit PoE injector, hose clamp, DIN rail mount kit
