[shortdesc]

• Smart-managed, Rack-mountable, 24 x 1G PoE+ ports, 2 x 1G SFP uplinks, PoE+ (195W), Layer 2

[/shortdesc]

[properties]

Properties	Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch(JL813A)
Description	Smart-managed Instant On 1830 Switch supports up to 195W PoE and has dedicated 1G SFP fiber ports for network traffic management. It comes with a mobile app and web-based GUI for easy setup and network management.
Product Family	HPE Networking Instant On 1830 Switch Series
Product Type	Ethernet Switch
I/O ports and slots	I/O ports and slots 24 RJ-45 10/100/1000 Class 4 PoE ports (all 24 ports), 2 SFP 1GbE ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 2 SFP 1GbE ports
Frequency	50/60 Hz
Input voltage	100 – 240 VAC
Current	2.7A/1.4A
Maximum power rating	100-127V: 244.6W 200- 220V: 237.2W
PoE power	195 W Class 4 PoE
Idle power	100-127V: 14.5W 200- 220V: 13.4W
Dimension	253.0(d) x 443.0(w) x 43.9(h) mm
Weight	7.65 lb (3.47 kg)

[/properties][specifications]

Specifications	Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch(JL813A)
CPU	ARM Cortex-A9 @ 800 MHz
Memory and Flash	512 MB SDRAM, 256 MB flash
Packet Buffer	1.5 MB
100 Mb Latency	< 5.2µs
1000 Mb Latency	< 2.8 µs
Throughput	38.68 Mpps
Routing/Switching capacity	52 Gbps
MAC address table size	16000 entries
Management	HPE Networking Instant On Cloud; Web browser; SNMP Manager
Operating temperature	0–40°C, 0–10,000 ft
Altitude	up to 10,000 ft (3 km)
MTBF (years)	96.6
Safety	EN/IEC 60950-1:2006 + A11:2009 +A1:2010 + A12:2011 +A2:2013 EN/IEC 62368-1, 2nd. & 3rd.Ed.UL 62368-1,2nd. & 3rd. Ed.CAN/CSAC22.2 No.62368-1, 2nd.& 3rd. Ed.EN/IEC 60825-1:2014 Class 1
Emissions	EN 55032:2015/CISPR 32, Class A FCC CFR 47 Part 15: 2018 Class A ICES-003 Class A VCCI Class A CNS 13438 Class A KN 32 Class A AS/NZS CISPR 32 Class A

[/specifications][accesories]

Aruba 1G SFP LC LX 10km SMF Transceiver	J4859D
Aruba Instant On SFP LC SX 500M MMF Transceiver	R9D16A

[/accesories]

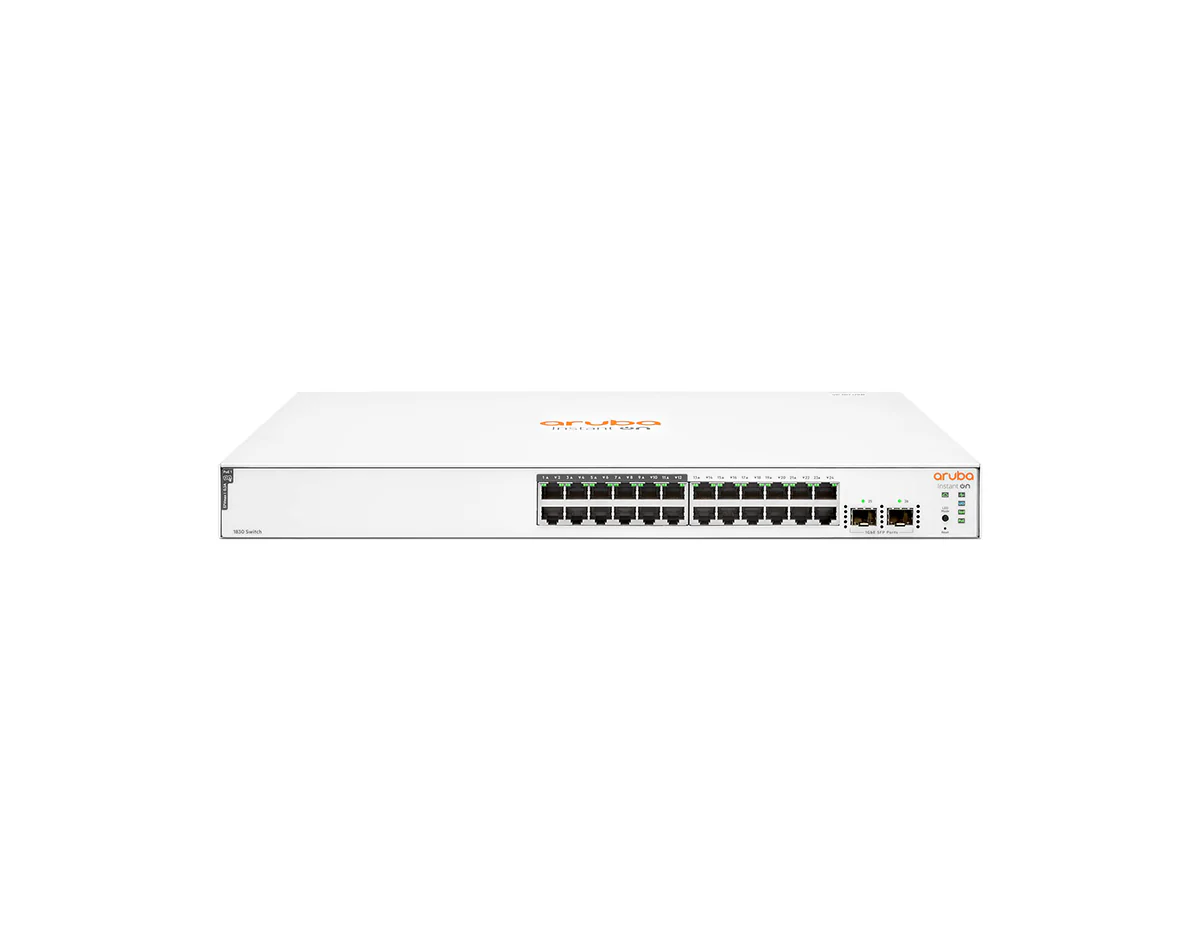

HPE Aruba Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch (JL813A)

The HPE Aruba Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch (JL813A) is designed for small businesses looking to optimize their network infrastructure. This smart-managed switch offers 24 Gigabit Ethernet ports and 12 PoE-enabled ports, delivering up to 30W per port. The 2 SFP uplink ports provide high-speed connectivity, ensuring reliable performance for data-intensive applications. With a PoE budget of 195W, this switch is ideal for powering devices like IP cameras, wireless access points, and VoIP phones.

Key Features:

• 12 x PoE-Enabled Ports: Provides up to 30W per port, perfect for powering devices such as access points and IP phones.
• 24 x 1GbE Ports Total: Ensures fast and reliable network connections for various devices.
• 2 x SFP Uplink Ports: Supports fiber uplinks for enhanced network scalability and performance.
• 195W PoE Budget: Powers multiple PoE-enabled devices simultaneously, eliminating the need for external power supplies.
• Cloud-Based Management: Easily monitor and manage the switch using the Aruba Instant On mobile app or cloud-based web interface.

Technical Overview:

• Recommended for: Small businesses, retail environments, and branch offices.
• Ports: 24 x 1GbE (12 PoE), 2 x 1GbE SFP uplinks.
• Switching Capacity: 52 Gbps.
• Forwarding Rate: 38.68 Mpps.
• PoE Power Budget: 195W for powering connected PoE devices.
• Management: Managed via Aruba Instant On cloud portal or web-based GUI.
• Energy Efficiency: Compliant with IEEE 802.3az standards for energy-efficient operation.

You can check the related tab for the JL813A datasheet.
