[shortdesc]

• Managed, Rack-mountable, 48 x 1G ports, Fixed Uplinks (2 x SFP+, 2 x 10GBASE-T), PoE+ (600W), Layer 2+

[/shortdesc]

[properties]

Properties	Aruba Instant On 1960 48G 40p Class4 8p Class6 PoE 2XGT 2SFP+ 600W Switch (JL809A)
Description	Smart-managed 48-port Gigabit PoE switch with 40x Class 4 PoE+ and 8x Class 6 PoE++, plus 2x 10G SFP+ and 2x 10GBASE-T uplinks (600W PoE budget). • 48 RJ-45 autosensing 10/100/1000BASE-T ports with 40x Class 4 (PoE+) and 8x Class 6 (PoE++) • 2 SFP+ fixed 1000/10000 SFP+ ports • min=0 \ max=2 SFP\SFP+ Transceivers • 2 RJ-45 1/10GBASE-T ports • 1U - Height
Product Family	Aruba Instant On 1960 Switch Series
Product Type	Switch

[/properties] [specifications]

Specifications	Aruba Instant On 1960 48G 40p Class4 8p Class6 PoE 2XGT 2SFP+ 600W Switch (JL809A)
I/O ports and slots	48 RJ-45 autosensing 10/100/1000 Mbps ports including 40 CL4 and 8 CL6 PoE ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at Class 4, IEEE 802.3bt Class 6); Duplex: 100BASE-TX: half or full; 1000BASE-T: full only; 10GBASE-T: full only 2 SFP+ 10GbE ports 2 10GBASE-T ports
Dimensions	402.75(d) x 442.5(w) x 43.95(h) mm
Weight	10.8 lb (4.9 kg)
CPU	Single-Core ARM v7 Cortex-A9 @800MHz
100 Mb Latency	< 4.4 uSec
1000 Mb Latency	< 2.2 uSec
10000 Mb Latency	< 1.1 uSec
Throughput (Mpps)	131 Mpps
Capacity	176 Gbps
Routing Table size (# of static entries)	32 IPv4/IPv6
MAC Address table size (# of entries)	16,000 entries
Reliability MTBF (years)	68.0
Operating temperature	0-40°C, 0-10,000 ft
Operating relative humidity	15% to 95% @ 104°F (40°C) non-condensing
Nonoperating/Storage temperature	-40°F to 158°F (-40°C to 70°C) up to 15000 ft
Nonoperating/Storage relative humidity	15% to 90% @ 149°F (65°C) non-condensing
Altitude	up to 10,000 ft (3 km)
Acoustics	LWAd = 3.6 Bel   Notes: Acoustics measured in 23°C semi-anechoic chamber with a loading of 100% traffic and (for JL807A and JL809A) 50% PoE on all ports. Measured in accordance with ISO 7779. Declared in accordance with ECMA-109:2010. Values presented are the Declared A- Weighted Sound Power Level (LWAd) and the mean Bystander A-Weighted Sound Pressure Level (LpAm)
Electrical Characteristics
Frequency	50Hz/60Hz
AC voltage	100-127VAC / 200-240VAC
Current	7.9A/0.5A
Maximum power rating	100-127V: 790W 200-220V: 760W
Idle power	100-127V: 60W 200-220V: 100W
PoEpower	Total 600W PoE Power (Upto 480 W of Class 6 or 600 W of Class 4 PoE)
Power Supply	Internal power supply
Safety	EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN/IEC 62368-1, 2nd. & 3rd. Ed. UL 62368-1, 2nd. & 3rd. Ed. CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed. EN/IEC 60825-1:2014 Class 1
Emissions	EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN/IEC 62368-1, 2nd. & 3rd. Ed. UL 62368-1, 2nd. & 3rd. Ed. CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed. EN/IEC 60825-1:2014 Class 5 Emissions EN 55032:2015/CISPR 32, Class A FCC CFR 47 Part 15: 2018 Class A ICES-003 Class A VCCI Class A CNS 13438 Class A KN 32 Class A AS/NZS CISPR 32 Class A
Generic	EN 55035, CISPR 35, KN35
EN	EN 55035, CISPR 35
ESD	EN/IEC 61000-4-2
Radiated	EN/IEC 61000-4-3
EFT/Burst	EN/IEC 61000-4-4
Surge	EN/IEC 61000-4-5
Conducted	EN/IEC 61000-4-6
Power frequency magnetic field	EN/IEC 61000-4-8
Voltage dips and interruptions	EN/IEC 61000-4-11
Harmonics	EN/IEC 61000-3-2
Flicker	EN /IEC 61000-3-3
Device Management	HPE Networking Instant On Cloud; web browser; SNMP manager
Mounting Positions and Supported Racking	• Mounts in an EIA-standard 19 in. telco rack or equipment cabinet. 2-post rack kit included • Supports table-top mounting • Supports rack-mounting • Supports wall-mounting with ports facing either up or down • Supports under-table mounting using the brackets provided
Transceivers	• Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A) • Aruba 1G SFP LC LX 10km SMF Transceiver (J4859D) • Aruba Instant On 1G SFP RJ45 T 100m Cat5e Transceiver (R9D17A) • Aruba Instant On 10G SFP+ LC SR 300m OM3 MMF Transceiver (R9D18A) • Aruba 10G SFP+ LC LR 10km SMF Transceiver (J9151E) • Aruba 10G SFP+ to SFP+ 1m DAC (J9281D) • Aruba 10G SFP+ to SFP+ 3m DAC (J9283D)
Standards and Protocols (applies to all products in series)	• IEEE 802.3 10BASE-T • IEEE 802.3u 100BASE-TX • IEEE 802.3ab 1000BASE-T • IEEE 802.3z 1000BASE-X • IEEE 802.2af PoE 1 (PoE models only) • IEEE 802.3at PoE 1 (PoE models only) • IEEE 802.3x Flow control • IEEE 802.1Q VLANS • IEEE 802.1p Priority • IEEE 802.3ad Link Aggregation Control Protocol (LACP) • IEEE 802.1X Port Access Authentication • IEEE 802.3az Energy Efficient Ethernet • IEEE 802.1D: Spanning Tree Protocol • IEEE 802.1W: Rapid Spanning Tree Protocol • IEEE 802.1S: Multiple Spanning Tree Protocol • IEEE 802.1AB Link Layer Discovery Protocol • Denial of service protection • CPU DoS protection
IETF Standards Support	• RFC 768 • RFC 783 • RFC 791 • RFC 792 • RFC 793 • RFC 813 • RFC 879 • RFC 896 • RFC 826 • RFC 894 • RFC 919 • RFC 922 • RFC 950 • RFC 1042 • RFC 1071 • RFC 1123 • RFC 1141 • RFC 1155 • RFC 1157 • RFC 1350 • RFC 1533 • RFC 1541 • RFC 1624 • RFC 1700 • RFC1867 • RFC 2030 • RFC2616 • RFC 2131 • RFC 2132 • RFC 3164 • RFC 5424 • RFC3411 • RFC3412 • RFC3413 • RFC3414 • RFC3415 • RFC2576 • RFC 4330 • RFC 3268 • RFC 4251 • RFC 4252 • RFC 4253 • RFC 4254 • RFC 4716 • RFC 4419 • RFC 2869 • RFC 3580 • RFC 2474 • RFC 4541
IETF Standards Management Support	• RFC 1213 • RFC 1215 • RFC 1286 • RFC 1442 • RFC 1451 • RFC 1493 • RFC 1573 • RFC 1643 • RFC 1757 • RFC 1907 • RFC 2011 • RFC 2012 • RFC 2013 • RFC 2233 • RFC 2578 • RFC 2618 • RFC 2865 • RFC 2866 • RFC 2869 • RFC 2665 • RFC 2666 • RFC 2674 • RFC 2737 • RFC 2819 • RFC 2863 • RFC 4022 • RFC 4113 • RFC 1212 • RFC 1901 • RFC 1908 • RFC 2271 • RFC 2295 • RFC 2576 • RFC 2579 • RFC 2580 • RFC 3410 • RFC 3417 • RFC 2620
IETF Standard SNMP Traps Supported	• RFC 1157 • RFC 1493 • RFC 1215 • RFC 3416 • RFC 3418
IETF IPv6 Support	• RFC 1981 • RFC 2460 • RFC 2464 • RFC 2465 • RFC 2466 • RFC 2526 • RFC 2710 • RFC 2711 • RFC 2732 • RFC 3484 • RFC 3587 • RFC 3879 • RFC 4001 • RFC 4007 • RFC 4113 • RFC 4147 • RFC 4193 • RFC 4213 • RFC 4291 • RFC 4292 • RFC 4293 • RFC 4294 • RFC 4443 • RFC 4773 • RFC 4786 • RFC 4861 • RFC 4862 • RFC 4943 • RFC 5095 • RFC 5220 • RFC 5221 • RFC 5350 • RFC 5722 • RFC 5942 • RFC 5952 • RFC 6177 • RFC 3736 • RFC 2365

[/specifications] [accesories] [/accesories]

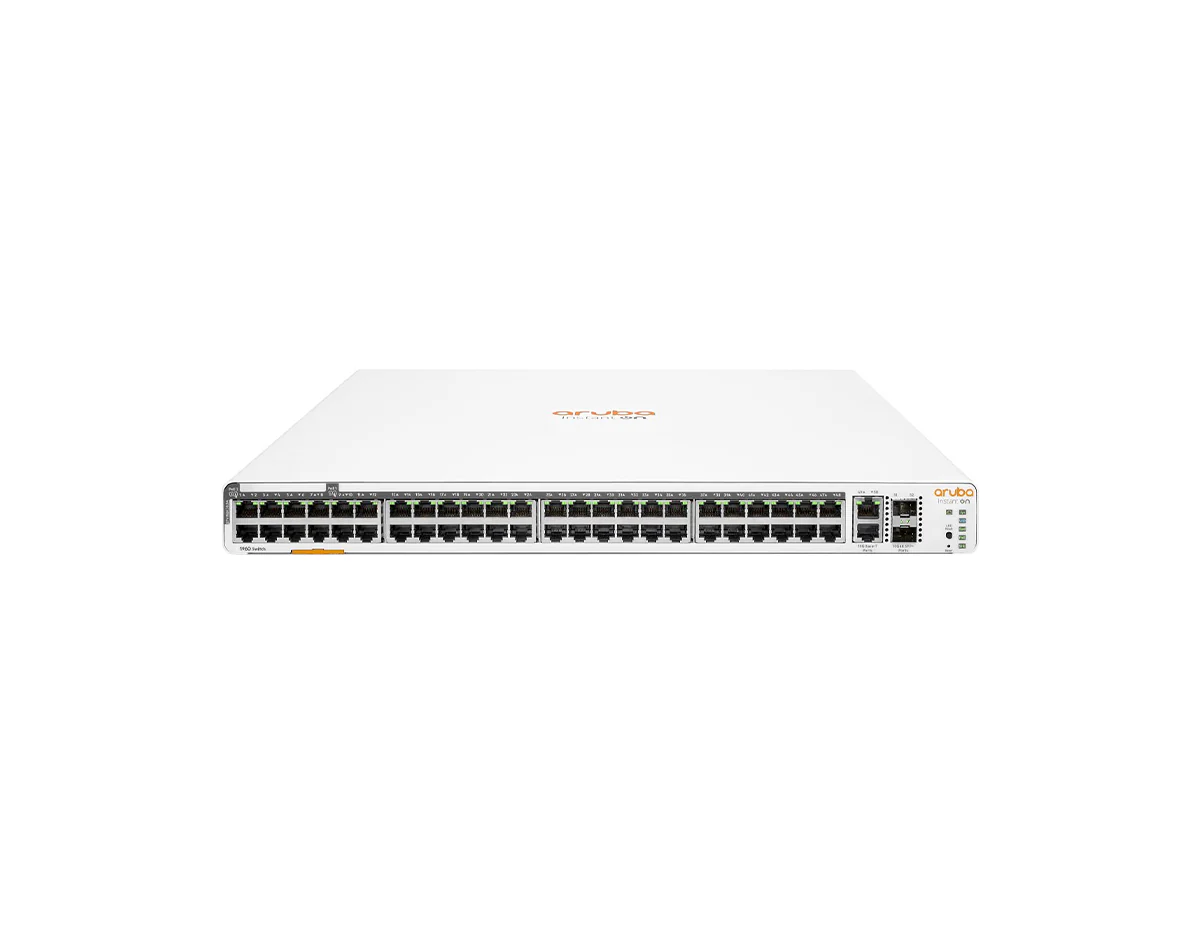

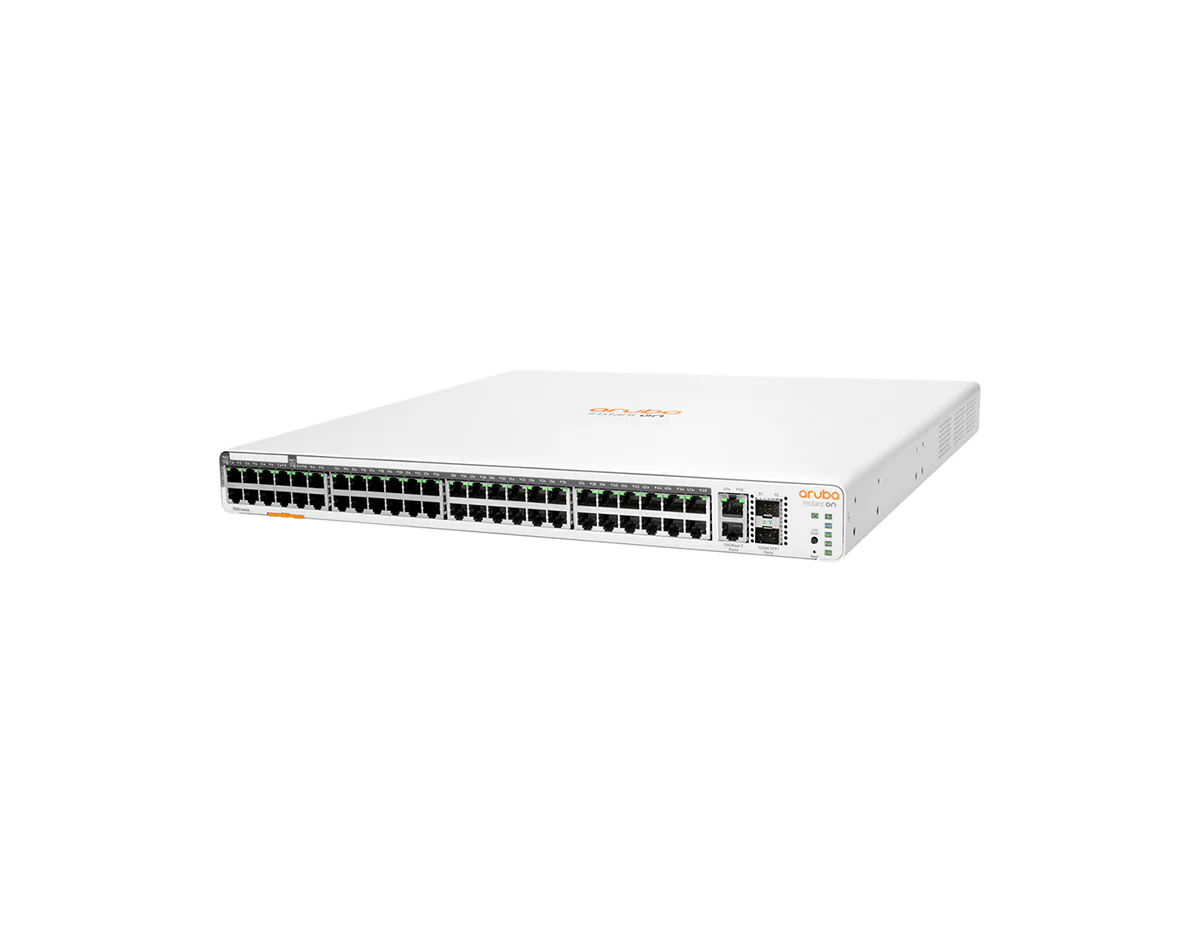

HPE Aruba Instant On 1960 48G PoE Switch (JL809A)

The HPE Aruba Instant On 1960 48G PoE Switch (JL809A) delivers reliable, high-speed networking for small and growing businesses. With 48 Gigabit Ethernet ports, including 40 PoE+ and 8 PoE++ ports, and a robust 600W PoE budget, this switch powers a wide range of devices, including access points, security cameras, and VoIP phones. The switch includes 2 dedicated 10GbE SFP+ ports and 2 10GBase-T ports for high-speed uplinks, reducing network bottlenecks and improving performance. Easy-to-use cloud-based management makes setup and monitoring simple, providing flexibility for remote network administration.

Key Features:

• 48 x 1GbE PoE Ports: Provides up to 30W (Class 4) and 60W (Class 6) of power per port, enabling smooth connectivity for PoE-enabled devices.
• 2 x 10G SFP+ Uplink Ports & 2 x 10GBase-T Ports: Delivers high-speed uplinks to ensure efficient data flow across the network.
• 600W PoE Power Budget: Powers various PoE-enabled devices, supporting business growth with scalability.
• Cloud-Based Management: Manage the switch from anywhere using the Aruba Instant On mobile app or cloud-based portal.
• Stacking Capability: Supports stacking for up to four switches, simplifying management and improving network scalability.

Technical Overview:

• Recommended for: Small businesses, retail, and education sectors.
• Ports: 48 x 1GbE ports (40 PoE+ and 8 PoE++), 2 x SFP+ uplink ports, 2 x 10GBase-T ports.
• Switching Capacity: 176 Gbps.
• Forwarding Rate: 131 Mpps.
• PoE Power Budget: 600W for powering PoE devices.
• Management: Managed via Aruba Instant On mobile app or cloud-based GUI.
• Security: Includes ACLs, 802.1X authentication, and DoS protection.

You can check the related tab for the JL809A datasheet.
