[shortdesc] Managed, Rack-mountable, 24 x 1G RJ-45 (20 x PoE+ CL4, 4 x PoE++ CL6), 2 x 10GBASE-T, 2 x SFP+, 370W PoE budget [/shortdesc] [properties]

Product Name	HPE Aruba Instant On 1960 24-port PoE Switch (JL807A)
Model	JL807A
Product Type	Smart-managed Layer 2+ Gigabit Ethernet switch
Form Factor	Rack-mountable 1U
Ports	24 x 10/100/1000BASE-T RJ-45 (20 x PoE+ Class 4, 4 x PoE++ Class 6)
Uplinks	2 x 10GBASE-T, 2 x SFP+ (10GbE)
PoE Power Budget	370W total (up to 240W Class 6, or 370W Class 4)
Switching Capacity	128 Gbps
Throughput	95 Mpps
Processor & Memory	ARM v7 Cortex-A9 @ 800 MHz; 1 GB DDR3; 512 MB NAND flash; 1.5 MB packet buffer
Stacking	Up to 4 units
Power Consumption	Max: 500W (100-127V) / 480W (200-220V); Idle: 40W / 80W
Input Voltage	100-127 VAC / 200-240 VAC
Operating Temperature	0-40°C (32-104°F), up to 10,000 ft
Dimensions (W x D x H)	44.25 x 35.05 x 4.4 cm (17.42 x 13.80 x 1.73 in)
Weight	4.7 kg (10.4 lb)
Management	Aruba Instant On Cloud Portal, Web GUI, SNMP Manager

[/properties] [specifications]

Switching Capacity	128 Gbps
Throughput	95 Mpps
Packet Buffer	1.5 MB
Layer/Features	Layer 2+ switching, VLANs, QoS, ACLs, 802.1X, DoS protection
Access Ports	24 x 10/100/1000BASE-T (RJ-45)
PoE	20 x PoE+ (Class 4), 4 x PoE++ (Class 6); 370W total budget
Uplinks	2 x 10GBASE-T + 2 x SFP+ (10GbE)
Stacking	Up to 4 units
Input Voltage	100-127 VAC / 200-240 VAC
Max Power Consumption	500W (100-127V) / 480W (200-220V)
Idle Power	40W (100-127V) / 80W (200-220V)
PoE Budget	370W total (up to 240W Class 6 or 370W Class 4)
CPU & Memory	ARM v7 Cortex-A9 @ 800 MHz; 1 GB DDR3; 512 MB NAND flash
Form Factor	1U rack-mount
Dimensions (W x D x H)	44.25 x 35.05 x 4.4 cm (17.42 x 13.80 x 1.73 in)
Weight	4.7 kg (10.4 lb)
Operating Temperature	0-40°C (32-104°F), up to 10,000 ft
Management	Aruba Instant On Cloud Portal (mobile & web), Local Web GUI, SNMP Manager

[/specifications]

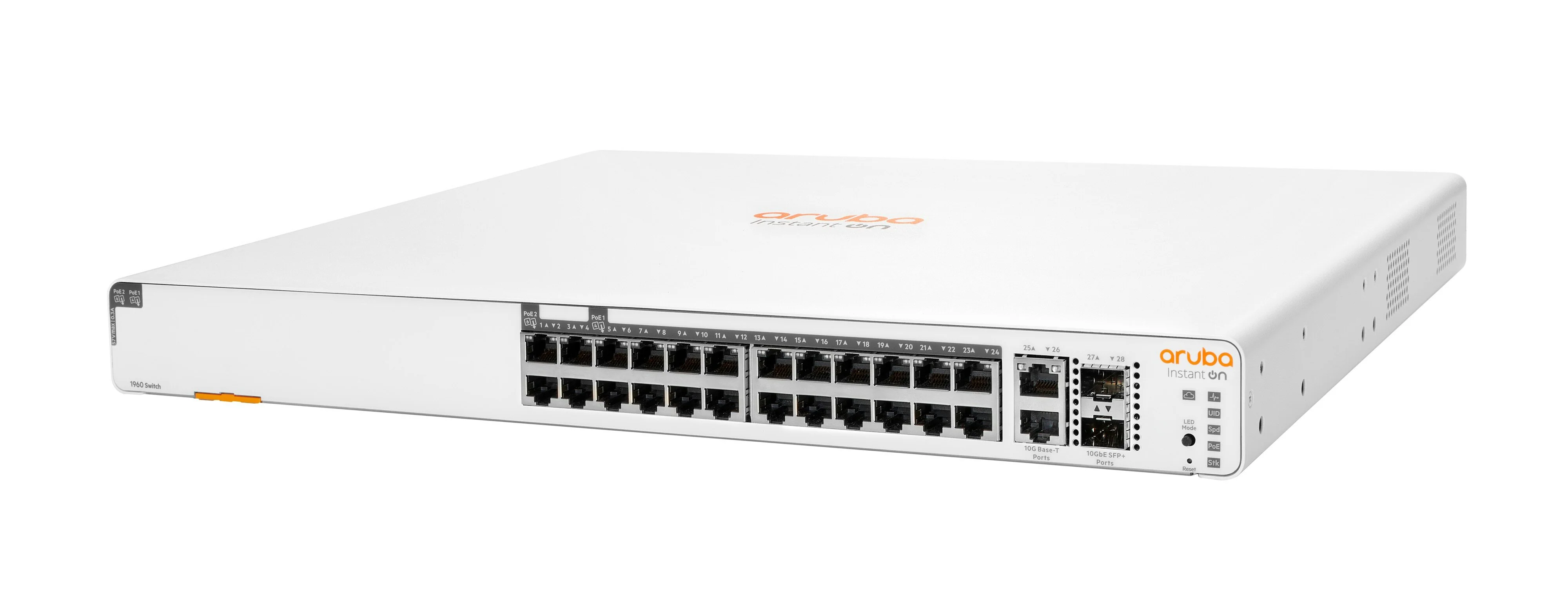

HPE Aruba Instant On 1960 24-Port PoE Smart Managed Switch (JL807A)

The HPE Aruba Instant On 1960 (JL807A) is a smart-managed, stackable Layer 2+ switch built for small and medium businesses that need enterprise-class performance without complexity. With 20 PoE+ (Class 4) and 4 PoE++ (Class 6) ports plus four 10GbE uplinks (2 x 10GBASE-T and 2 x SFP+), it delivers high-speed connectivity, flexible power delivery for APs/cameras/VoIP, and simple cloud management — all in a compact 1U rack-mount design.

Key Features & Benefits

• Flexible PoE Power: 370W total budget supports 30W per PoE+ port and up to 60W per PoE++ port for cameras, APs, and VoIP phones.
• 10GbE Uplinks: Dual copper and dual SFP+ fiber uplinks eliminate bottlenecks and future-proof your network core.
• Simple Management: Configure and monitor via Aruba Instant On Cloud Portal, mobile app, or local web GUI.
• Secure & Reliable: 802.1X, VLANs, ACLs, and DoS protection strengthen network security; stack up to 4 switches for scalable resiliency.

Ideal Use Cases

• SMBs, retail, hospitality, and distributed offices
• IP surveillance and PoE++ devices
• High-density Wi-Fi and VoIP deployments
