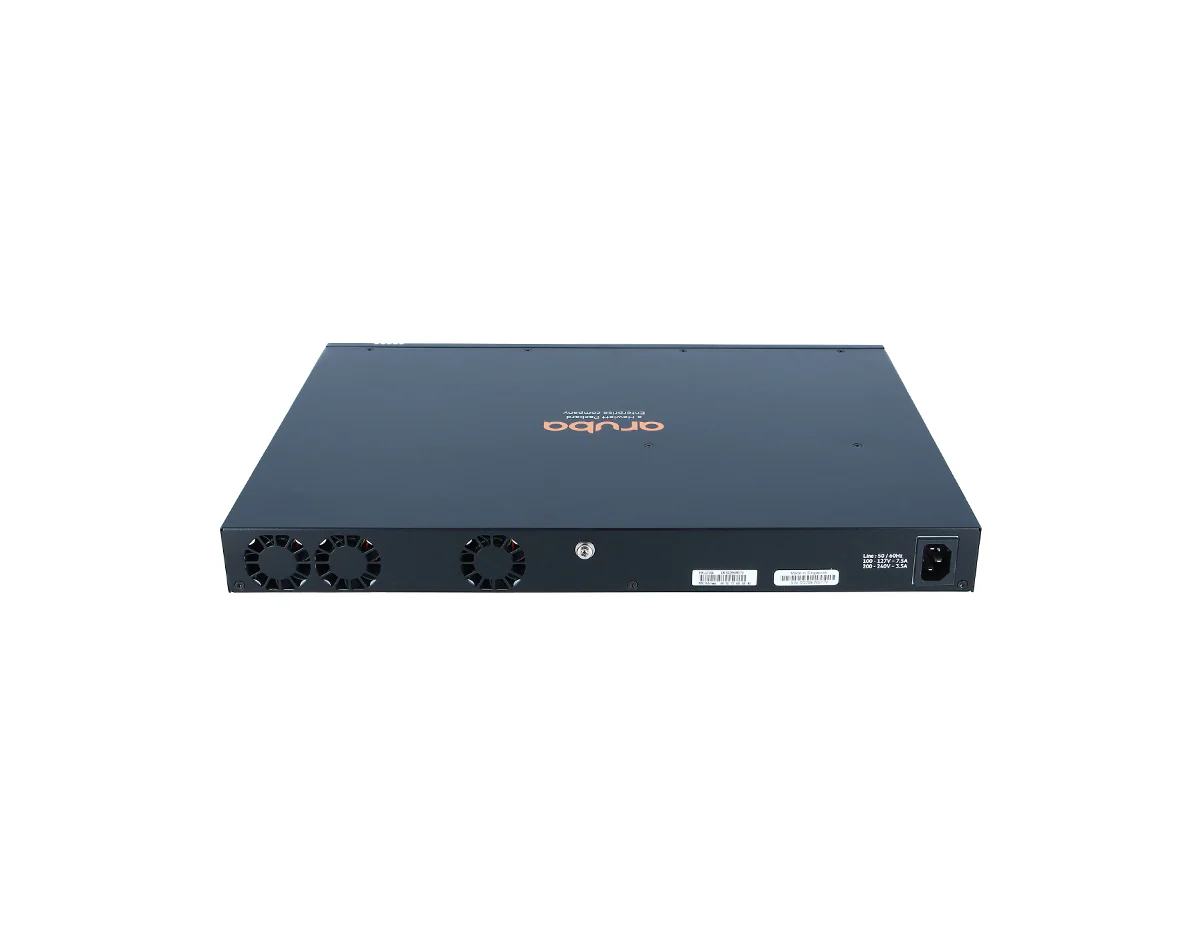

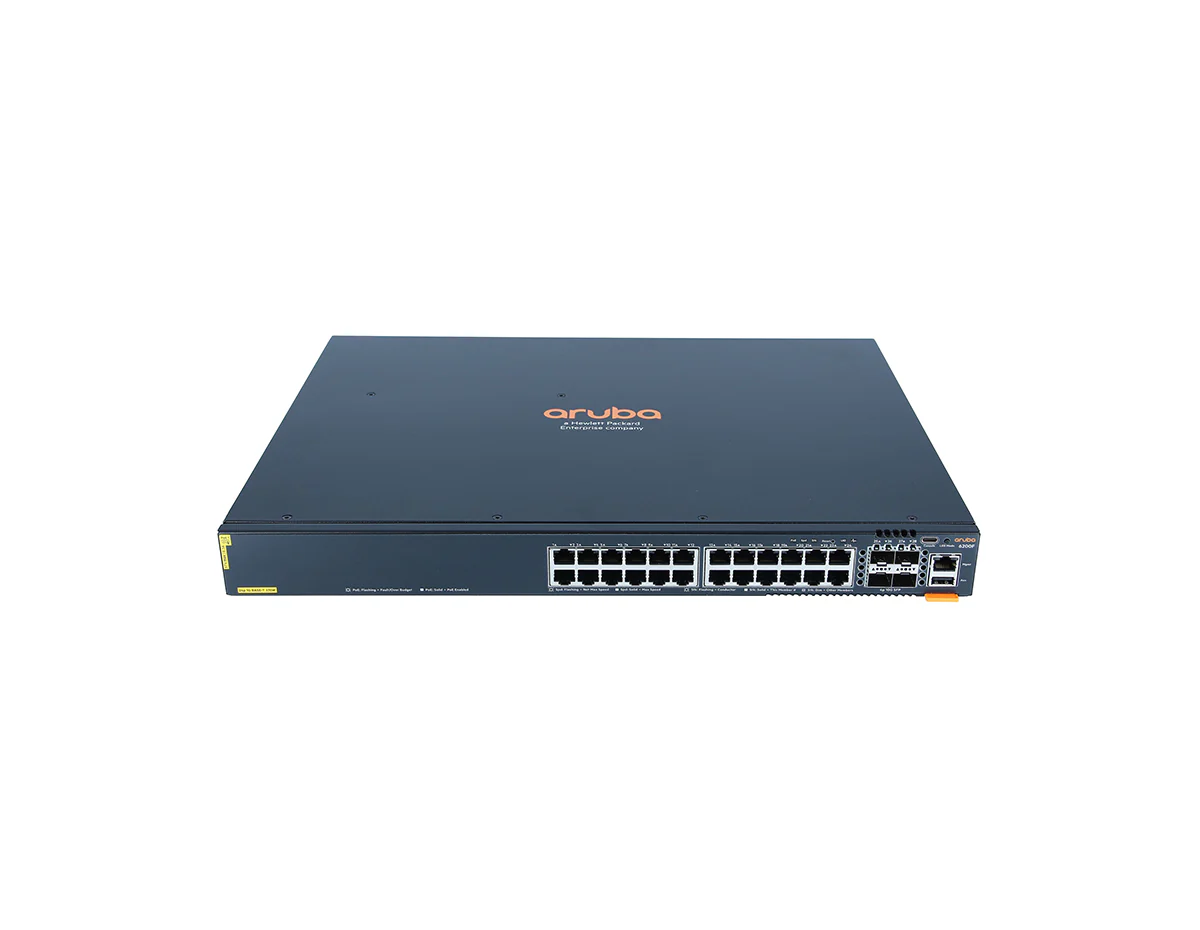

HPE Aruba Networking JL725A 6200F 24G Class4 PoE Switch 4SFP+ 370W
[shortdesc]
- Managed, Rack-mountable, 24 x 1G ports, Fixed Uplinks (4 x SFP+), PoE+ (370W), Layer 2+
[/shortdesc]
[properties]
| Properties | 6200F 24G CLASS4 POE 4SFP+ 370W SWITCH (JL725A) |
| Description | 24x ports 10/100/1000BASE-T Class 4 PoE Ports, supporting up to 30W per port 4x 1/10G SFP ports Supports PoE Standards IEEE 802.3af, 802.3at 1x USB-C Console Port 1x OOBM 1x USB Type-A Host port 1x Bluetooth adapter to be used with Aruba CX Mobile App |
| Product Family | CX6200 Series |
| Product Type | Ethernet Switch |
| Ports and Slots | 24x 10/100/1000BASE-T Class 4 PoE ports 4x 1/10G SFP ports Supports PoE Standards IEEE 802.3af, 802.3at 1x USB-C Console Port 1x OOBM 1x USB Type-A Host port 1x Bluetooth Adapter to be used with Aruba CX Mobile App |
| Power supplies |
Fixed power supply (500W) Up to 370W of Class 4 PoE Power
|
| Frequency | 50/60 Hz |
| Voltage | 100-127 VAC / 200-240 VAC |
| Current | 7.5A/3.5A |
| Power Consumption (230 VAC) | Hibernation (0 rpm fan): 9W Idle: 54W 100% Traffic Rate: 65W |
| Fans | Fixed fans |
| Dimensions | 1.73” x 17.4” x 12.9” |
| Weight | 4.90 kg (10.80 lbs) |
| Mounting and enclosure |
Mounts in an EIA-standard 19 in. Telco rack or equipment cabinet. Horizontal surface mounting only. 2-post rack kit included.
|
[/properties][specifications]
| Specifications | 6200F 24G CLASS4 POE 4SFP+ 370W SWITCH (JL725A) |
| CPU | Quad Core ARM Cortex™ A72 @ 1.8 GHz |
| Memory and Flash | 8 GB DDR4 16 GB eMMC |
| Packet Buffer | 8 MB Packet Buffer Memory |
| Model Switching Capacity | 128 Gbps |
| Model Throughput Capacity | Up to 95.2 Mpps |
| Average Latency (LIFO-64-bytes packets) | 1 Gbps: 2.28 μSec 10 Gbps: 1.46 μSec |
| Switched Virtual Interfaces (dual stack) | 128 |
| IPv4 Host Table (ARP) | 8,192 |
| IPv6 Host Table (ND) | 8,192 |
| IPv4 Unicast Routes | 2,048 |
| IPv6 Unicast Routes | 1,024 |
| MAC Table Capacity | 16000 |
| IGMP Groups | 1,024 |
| MLD Groups | 1,024 |
| IPv4/IPv6/MAC ACL Entries (ingress) | 5,120/1,280/5,120 |
| Stack Size | 8 members |
| Max. Stacking Distance | Up to 10 kms with long range transceivers |
| Operating Temperature |
32°F to 113°F (0°C to 45°C) up to 5,000 ft derate -1°C for every 1,000 ft from 5,000 ft to 10,000 ft.
|
| Acoustic |
Sound Power, LWAd= 5.0 Bel Sound Pressure, LpAm(Bystander) = 32.8 dB
|
| Primary Airflow | Fixed fans |
| Safety | US: UL 62368-1 2nd Ed. |
| Emissions | US: FCC 47 CFR part 15B, Class A |
| Lasers |
EN 60825-1:2007 / IEC 60825- 1:2007 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only)
|
| Immunity |
EN 55035:2017 IEC 61000-4-2 IEC 61000-4-3 IEC 61000-4-4 IEC 61000-4-5 IEC 61000-4-6 IEC 61000-4-8 IEC 61000-4-11 EN 61000-3-2, IEC 61000-3-2 EN 61000-3-3, IEC 61000-3-3 |
[/specifications][accesories]
| Accessories | |
| JL669B | • Aruba X751 Port to Power Fan Tray |
| J9583A | • HPE X410 1U Universal 4-post Rack Mount Kit |
| J9583B | • Aruba X414 1U Universal 4-post Rack Mounting Kit |
| R9G48A | • Aruba USB-A to RJ45 PC-to-Switch Cable |
| R8Q73A | • Aruba 6200F 12-port Cable Guard |
| R8Z87A | • Aruba USB-A to RJ45 PIN3TX-6RX Cable |
| R9J32A | • Aruba USB-A to USB-C PC-to-Switch Cable |
| R9J33A | • Aruba USB-C to USB-C PC-to-Switch Cable |
| JL448A | • Aruba X2C2 RJ45 to DB9 Console Cable |
| S1H23A | • HPE Aruba Networking CX Switch Bluetooth Adapter |
| Cables | |
| J9281D | • Aruba 10G SFP+ to SFP+ 1m Direct Attach Copper Cable |
| J9283D | • Aruba 10G SFP+ to SFP+ 3m Direct Attach Copper Cable |
| Transceivers | |
| J4858D | • Aruba 1G SFP LC SX 500m MMF Transceiver |
| J4859D | • Aruba 1G SFP LC LX 10km SMF Transceiver |
| J4860D | • Aruba 1G SFP LC LH 70km SMF Transceiver |
| J8177D | • Aruba 1G SFP RJ45 T 100m Cat5e Transceiver |
| J9150D | • Aruba 10G SFP+ LC SR 300m MMF Transceiver |
| J9151E | • Aruba 10G SFP+ LC LR 10km SMF Transceiver |
| J9153D | • Aruba 10G SFP+ LC ER 40km SMF Transceiver |
| JL563B | • Aruba 10GBASE-T SFP+ RJ-45 30m Cat6A Transceiver |
| J9152D | • Aruba 10G SFP+ LC LRM 220m MMF Transceiver |
| R9X54A | • Aruba 10G LC BiDi 40km-D 1330/1270 XCVR |
| R9X55A | • Aruba 10G LC BiDi 40km-U 1270/1330 XCVR |
[/accesories]
HPE Aruba 6200F 24G Class4 PoE 4SFP+ 370W Switch (JL725A)
The HPE Aruba 6200F 24G Class4 PoE 4SFP+ 370W Switch (JL725A) is designed to deliver reliable, high-performance networking for small to medium-sized businesses. Equipped with 24 Gigabit Ethernet ports and 4 SFP+ uplink ports, this switch supports Power over Ethernet (PoE) with a total budget of 370W, making it ideal for connecting and powering devices such as IP phones, access points, and security cameras. Its advanced Layer 2+ capabilities ensure efficient network management and scalability.
Key Features:
- 24 x 1GbE Class 4 PoE Ports: Provides up to 30W per port, perfect for powering PoE-enabled devices like IP phones and wireless access points.
- 4 x SFP+ Uplink Ports: Supports uplinks up to 10Gbps, ensuring fast, high-speed connections to the network core or other switches.
- 370W PoE Power Budget: Delivers ample power for connected devices, reducing the need for additional power supplies.
- Layer 2+ Features: Includes VLAN, QoS, and link aggregation for advanced traffic management and segmentation.
- Cloud-Based Management: Managed via Aruba Central or local CLI, enabling easy configuration and monitoring of the network.
Technical Overview:
- Recommended for: Small to medium-sized businesses, branch offices, and retail environments.
- Ports: 24 x 1GbE PoE ports, 4 x 1G/10GbE SFP+ uplink ports.
- Switching Capacity: 128 Gbps.
- Forwarding Rate: 95.2 Mpps.
- PoE Power Budget: 370W for powering connected devices.
- Layer 2+ Features: Supports VLAN, link aggregation, and QoS for efficient traffic control.
- Management: Managed via Aruba Central, CLI, or web-based GUI.
- Energy Efficiency: Compliant with IEEE 802.3az for reduced power consumption.
You can check the related tab for the JL725A datasheet.
Product Information
Product Information
