[shortdesc] 24× 10/100/1000BASE-T, 4× 1G/10G SFP+ uplinks, 128 Gbps switching, 95.2 Mpps, AOS-CX OS, fixed power [/shortdesc]

[properties]

Brand	HPE Aruba Networking
Series	CX 6100
Model	JL678A
Product Name	HPE Aruba Networking CX 6100 24G 4SFP+ Switch
Product Type	Layer 2 Access Switch
Ports (RJ-45)	24 × 10/100/1000BASE-T
Uplinks	4 × 1G/10G SFP+
Switching Capacity	128 Gbps
Throughput	95.2 Mpps
Latency	1.5 μs (1G), 1.8 μs (10G)
Operating System	AOS-CX
Form Factor	1U; fixed power supply; fixed fans
Input Voltage	100–127 VAC / 200–240 VAC
Max Power (w/o PoE)	33 W
Dimensions (H × W × D)	4.4 × 44.2 × 20.1 cm
Weight	2.6 kg

[/properties]

[specifications]

Management & Automation	Aruba Central, Switch Multi-Edit, Web GUI, industry-standard CLI, REST APIs
Layer 2 / Networking Features	Static routing, ACLs, robust QoS, traffic prioritization, sFlow, IPv6
Console / USB	1 × USB-C console; 1 × USB Type-A host
Memory & Processor	Dual-core ARM Cortex-A9 @ 1016 MHz; 4 GB DDR3; 16 GB eMMC
Switching Capacity	128 Gbps
Throughput	95.2 Mpps
Latency	~1.5 μs (1G); ~1.8 μs (10G)
Power Supply / Cooling	Fixed power supply; fixed fans
Input Voltage	100–127 VAC / 200–240 VAC
Max Power (w/o PoE)	33 W
Dimensions / Weight	4.4 × 44.2 × 20.1 cm; 2.6 kg

[/specifications]

[accesories]

Optional	Transceivers
Optional	Mounting / Cables

[/accesories]

Efficient Layer 2 Access with 10G Uplinks for Modern Edge

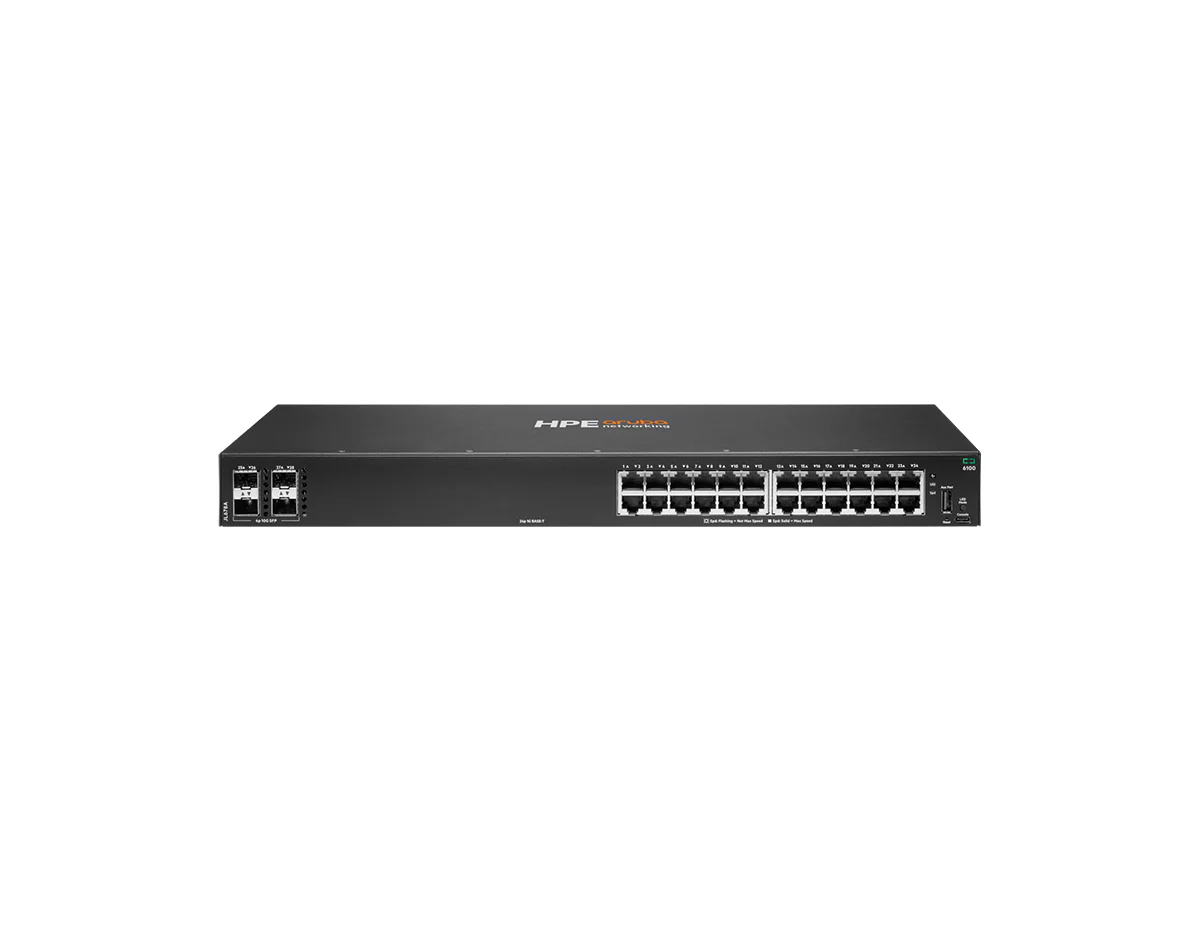

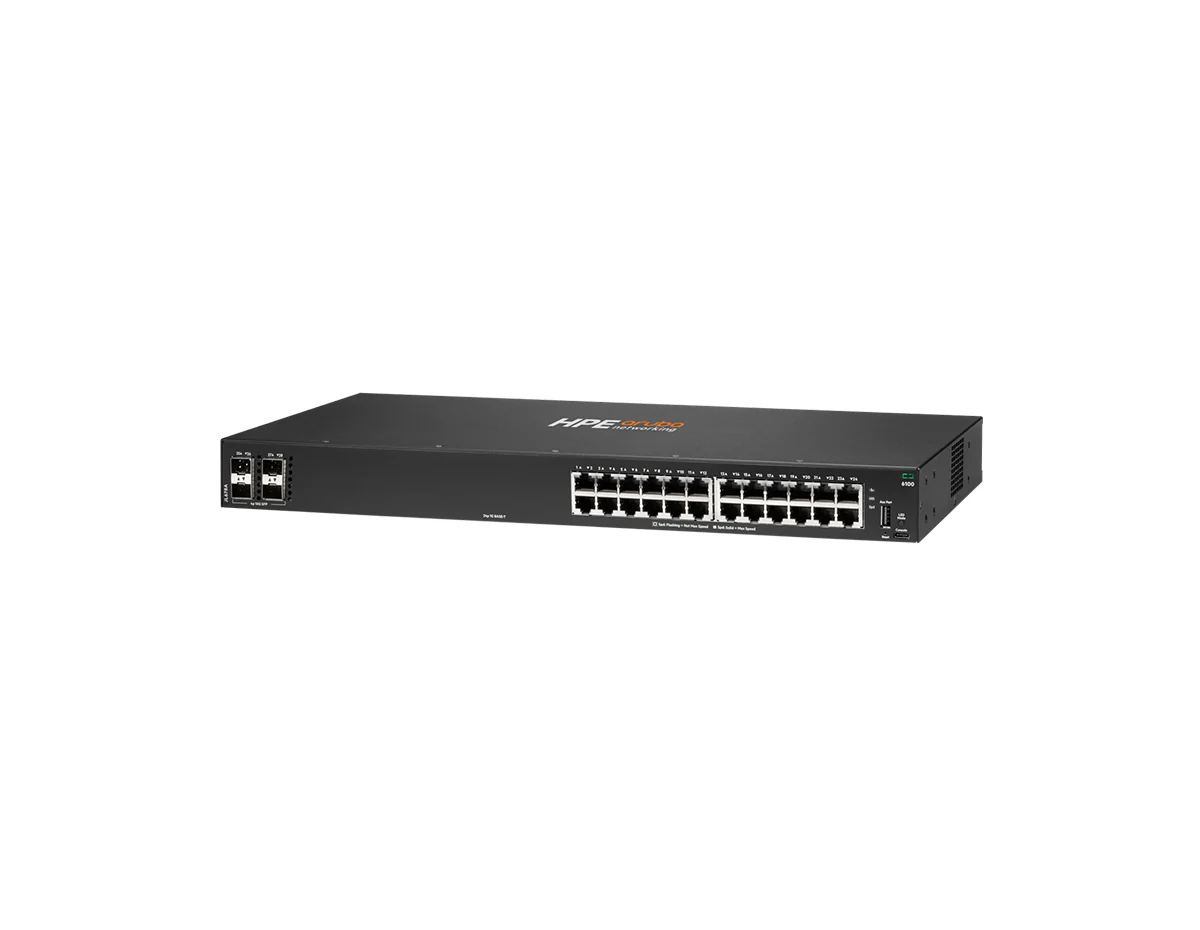

The HPE Aruba Networking CX 6100 24G 4SFP+ Switch (JL678A) delivers reliable Gigabit access with built-in 1/10GbE uplinks and the programmable AOS-CX operating system. Designed for branch, mid-market, and SMB deployments, it provides low latency, robust QoS, and simplified operations to keep users and devices connected securely and consistently.

Key Benefits & Features

• Built-in high-speed uplinks: Four 1/10GbE SFP+ ports remove access-layer bottlenecks for APs, servers, and uplink aggregation.
• AOS-CX consistency: Shared OS across Aruba CX switches streamlines configuration, troubleshooting, and lifecycle operations.
• Enterprise L2 capabilities: Static routing, ACLs, sFlow, IPv6, and robust QoS enable secure and predictable performance.
• Low-latency hardware: Dedicated ASIC with very low forwarding latency and ample buffering for busy edge networks.
• Flexible management: Aruba Central, Multi-Edit, intuitive Web GUI, standard CLI, and REST APIs fit your ops model.

Ideal Use Cases

• Branch and retail access layers needing reliable Gigabit with simple operations
• SMB wiring closets consolidating user, AP, and IoT device connectivity
• Departmental or edge switch for campus networks with 10G uplinks
• Cost-effective refresh from unmanaged/legacy gear to managed L2

Technical Specifications

• Ports: 24× 10/100/1000BASE-T, 4× 1G/10G SFP+ uplinks
• Switching Capacity: 128 Gbps
• Throughput: 95.2 Mpps
• Latency: ~1.5 µs (1G), ~1.8 µs (10G)
• OS: HPE Aruba Networking AOS-CX
• Management: Aruba Central, Multi-Edit, Web GUI, CLI, REST APIs
• Power Consumption (max, w/o PoE): 33 W
• Form Factor: 1U fixed-power, fixed-fan chassis
• Dimensions (H×W×D): 4.4 × 44.2 × 20.1 cm
• Weight: 2.6 kg

Upgrade your edge with CX 6100 performance today

Deliver dependable Gigabit access and 10G uplinks with streamlined operations—order now.
