[shortdesc] Enterprise-grade 48-port 1GbE access switch with 4x SFP56 uplinks. Features Layer 3 managed, stackable Aruba CX architecture, 496 Gbps switching capacity, and 400 Gbps stacking bandwidth. [/shortdesc]

[properties]

Model	JL667A
Product Type	Managed Stackable Switch
Switch Type	Layer 3
Form Factor	Rack-mountable (1U)
Ports	48 x 10/100/1000 Base-T RJ-45
Uplink Ports	4 x SFP56 (Supports 1G, 10G, 25G, 50G)
Switching Capacity	496 Gbps
Throughput	369 Mpps
Latency	1Gbps: 2.28 microseconds; 10Gbps: 1.46 microseconds
Stacking Bandwidth	400 Gbps
MAC Address Table Size	32,000 entries
Jumbo Frame Support	9198 bytes
Processor	Dual-core ARM Cortex A9 (1.016 GHz)
Memory	8 GB DDR4
Flash Memory	32 GB eMMC
Power Supply	Internal (fixed) 200W
Interfaces	1 x USB-C Console; 1 x RJ-45 Management Port; 1 x USB Type-A Host Port

[/properties]

[specifications]

Routing Protocols	BGP, OSPFv2/v3, VRRP, IGMP, MSDP, Static IPv4/IPv6, ECMP, PIM
Management	Aruba Central, Aruba NetEdit, CLI, SNMP v2c/v3, SSHv2, Web UI, REST API
Authentication	802.1X, MAC-auth, RADIUS, TACACS+
Layer 2 Features	VLANs (4094), MSTP, RSTP, RPVST+, LLDP-MED, VXLAN, QinQ
Layer 3 Features	IPv4/IPv6 Dual Stack, OSPF, BGP, PBR, BFD
QoS Features	Strict Priority (SP), Deficit Weighted Round Robin (DWRR), 8 Egress Queues
Security Features	ACLs (IPv4/IPv6/MAC), Port Security, DHCP Snooping, Dynamic ARP Protection
High Availability	Virtual Switching Framework (VSF) up to 10 members
Advanced Analytics	Aruba Network Analytics Engine (NAE)
Standards Compliance	IEEE 802.1ak, 802.1t, 802.1v, 802.1ab, 802.3ae, 802.3ad
IPv4 Host Table	32,000
IPv4 Routes (Unicast)	32,000
IPv6 Routes (Unicast)	16,000

[/specifications]

[accessories]

Included	2-Post Rack Mount Kit, Power Cord
Optional	SFP+ Transceivers, SFP28 Transceivers, SFP56 DAC Cables, 4-Post Rack Kit

[/accessories]

High-Performance Enterprise Switching with Flexible 50G Uplinks

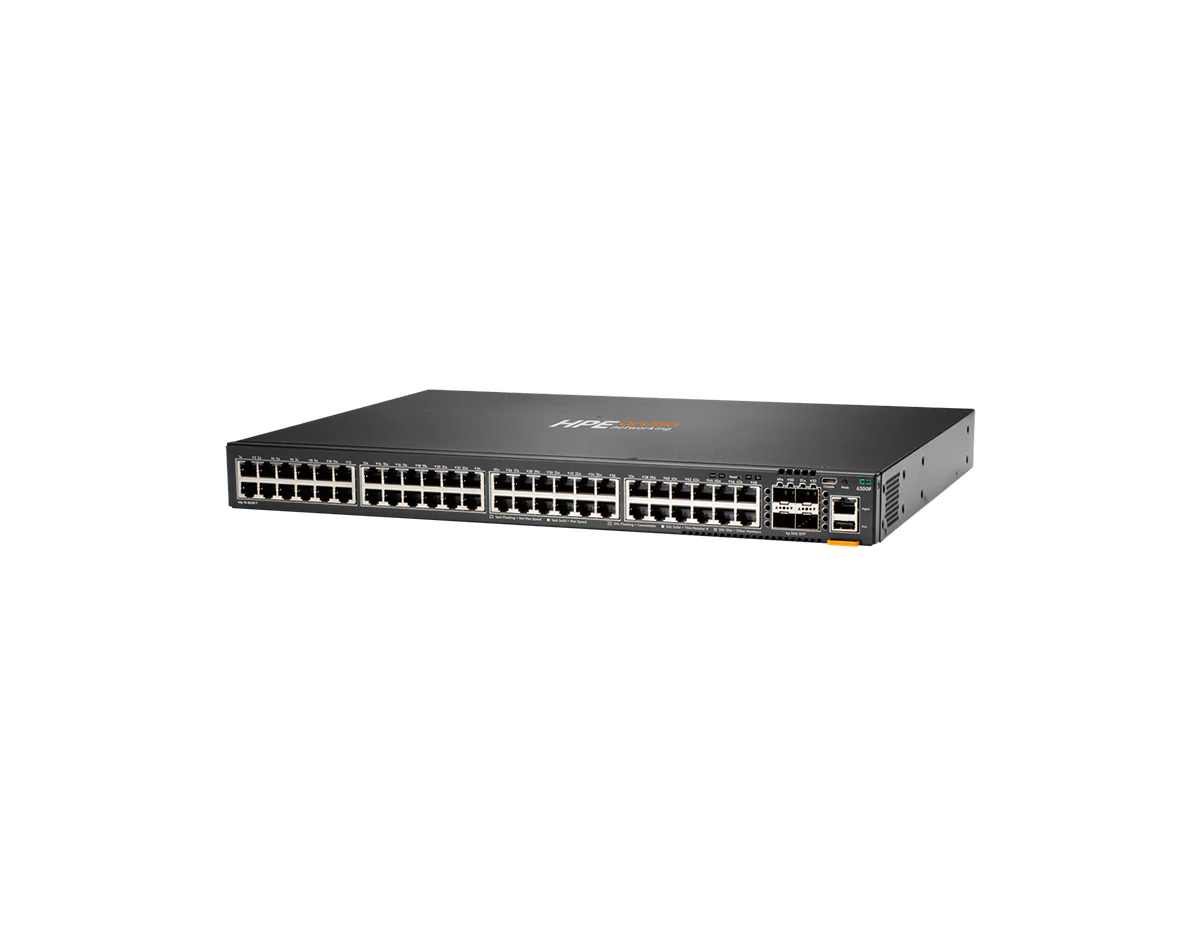

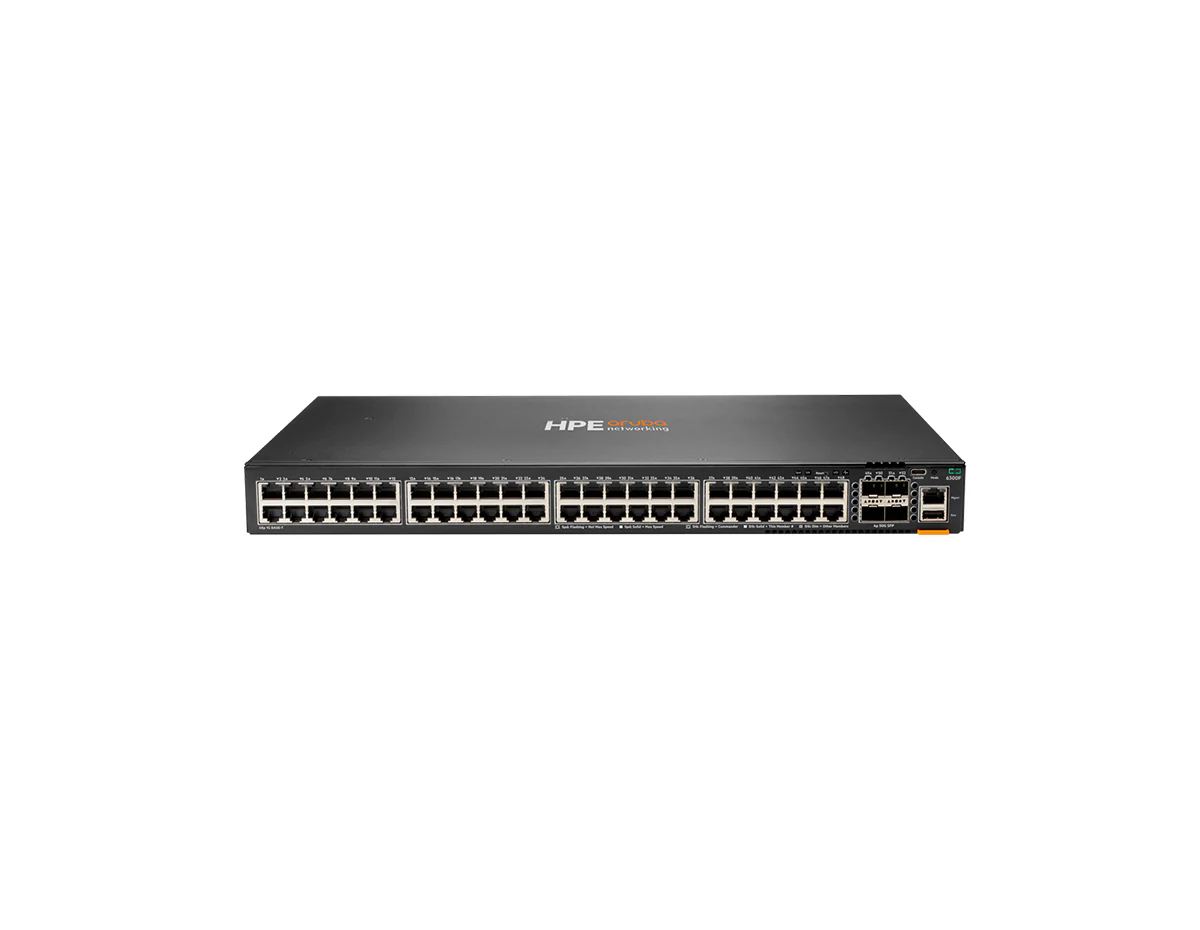

The HPE JL667A Aruba 6300F Switch delivers enterprise-grade Layer 3 performance, scalability, and intelligent automation for modern campus and data center networks. Built on the programmable Aruba CX architecture, this switch combines high-density Gigabit access with ultra-fast SFP56 uplinks, enabling seamless support for cloud, IoT, and bandwidth-intensive applications.

Key Benefits & Features

• 48-Port Gigabit Access: Provides 48 x 10/100/1000 RJ-45 ports for reliable high-density connectivity across enterprise edge and access layers.
• High-Speed SFP56 Uplinks: Includes 4 x 1G/10G/25G/50G SFP56 ports, enabling flexible uplink and high-performance stacking options.
• Advanced Layer 3 Capabilities: Full routing stack including BGP, OSPF, VRRP, and VXLAN for scalable and resilient network fabrics.
• Stackable Architecture: Aruba Virtual Switching Framework (VSF) supports stacking up to 10 switches, providing 400 Gbps of stacking bandwidth.
• Enterprise-Class Performance: Robust 496 Gbps switching capacity and 369 Mpps throughput ensure non-blocking, wire-speed performance for all ports.

Ideal Use Cases

• Enterprise campus access layer deployments
• Branch office network modernizations
• Data center Top-of-Rack (ToR) and Out-of-Band (OOBM) management
• High-density IoT and wireless aggregation networks
• Environments requiring deep analytics via Aruba Network Analytics Engine (NAE)

Technical Specifications

• Ports: 48 x 10/100/1000 Base-T and 4 x SFP56 uplinks
• Switching Capacity: 496 Gbps
• Throughput: 369 Mpps
• Latency: 1.46 microseconds (10GbE)
• Stacking Bandwidth: 400 Gbps
• MAC Table Size: 32,000 entries
• Processor: Dual-core ARM Cortex A9 1.016 GHz
• Memory: 8 GB DDR4
• Form Factor: 1U rack-mountable
• Management: Aruba Central, CLI, SNMP, REST API, NetEdit

Upgrade Your Network with Aruba CX Performance

Deploy scalable, high-speed switching with enterprise-grade reliability and built-in analytics. Order today to modernize your infrastructure with the Aruba 6300F series.
