[shortdesc]

• Managed, Rack-mountable, 48 x 1G ports, Fixed Uplinks (4 x SFP56), PoE+ (740W), Layer 3

[/shortdesc]

[properties]

Product Name	JL665A
Description	HPE Aruba Networking CX 6300F, a modular 48-port Gigabit Ethernet switch with Class 4 PoE and 4 SFP56 uplink ports, designed for scalable enterprise networking and advanced Layer 3 capabilities.
Switch Type	Managed Layer 3 modular switch
Ports	48 x 10/100/1000BASE-T PoE+ (Class 4, up to 30W each), 4 x 1G/10G/25G/50G SFP ports
PoE Budget	Up to 740W total (IEEE 802.3af/at supported)
Uplink Ports	4 x SFP56 slots for high-speed uplinks (up to 50 Gbps per port)
Management	Aruba Central cloud-based management, CLI, and Web GUI
Operating Temperature	0°C to 45°C (32°F to 113°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5% to 95% non-condensing
Dimensions	4.4 x 44.2 x 32.7 cm (1.73 x 17.4 x 12.9 in)
Weight	5.10 kg (11.24 lbs)
Power Supply	Fixed, non-pluggable internal PSU (redundancy not supported)
Cooling	Fixed, non-pluggable internal fans
Usage	Ideal for enterprise networks, high-density deployments, and critical applications
Durability	Rated for continuous use with redundancy and failover support

[/properties]

[specifications]

Switching Capacity	496 Gbps
Forwarding Rate	369 Mpps
Latency	1Gbps: 2.28μSec, 10Gbps: 1.46μSec, 25Gbps: 1.90μSec, 50Gbps: 3.49μSec
Certifications	CE, FCC, UL, RoHS compliant
Environmental Safety	RoHS 3 compliant (Directive 2015/863/EU), low-halogen design
EMC Compliance	Complies with EN 55032, EN 55024, CISPR 32, and FCC Part 15 Class A standards
MTBF	>1,000,000 hours at 25°C
Power Efficiency	80 PLUS Platinum certification for power supply efficiency
Vibration Resistance	Tested for 1.0 Grms (5-500 Hz) as per IEC 60068-2-6
Shock Resistance	Tested up to 30 G for 11 ms according to IEC 60068-2-27
Redundancy	Supports dual redundant power supplies and fans for high availability
Power Consumption	Maximum 700W with full PoE load
Firmware Updates	Supports secure, automated updates via Aruba Central
Network Security	802.1X, MAC-based authentication, Dynamic Segmentation, ACLs
Deployment	Suitable for high-density, performance-critical enterprise installations
Reliability	Tested for high availability in mission-critical environments
Advanced Features	Supports VRF, VXLAN, EVPN, and QoS for advanced traffic management
Monitoring and Diagnostics	Real-time network analytics and telemetry via Aruba NetEdit and Central

[/specifications]

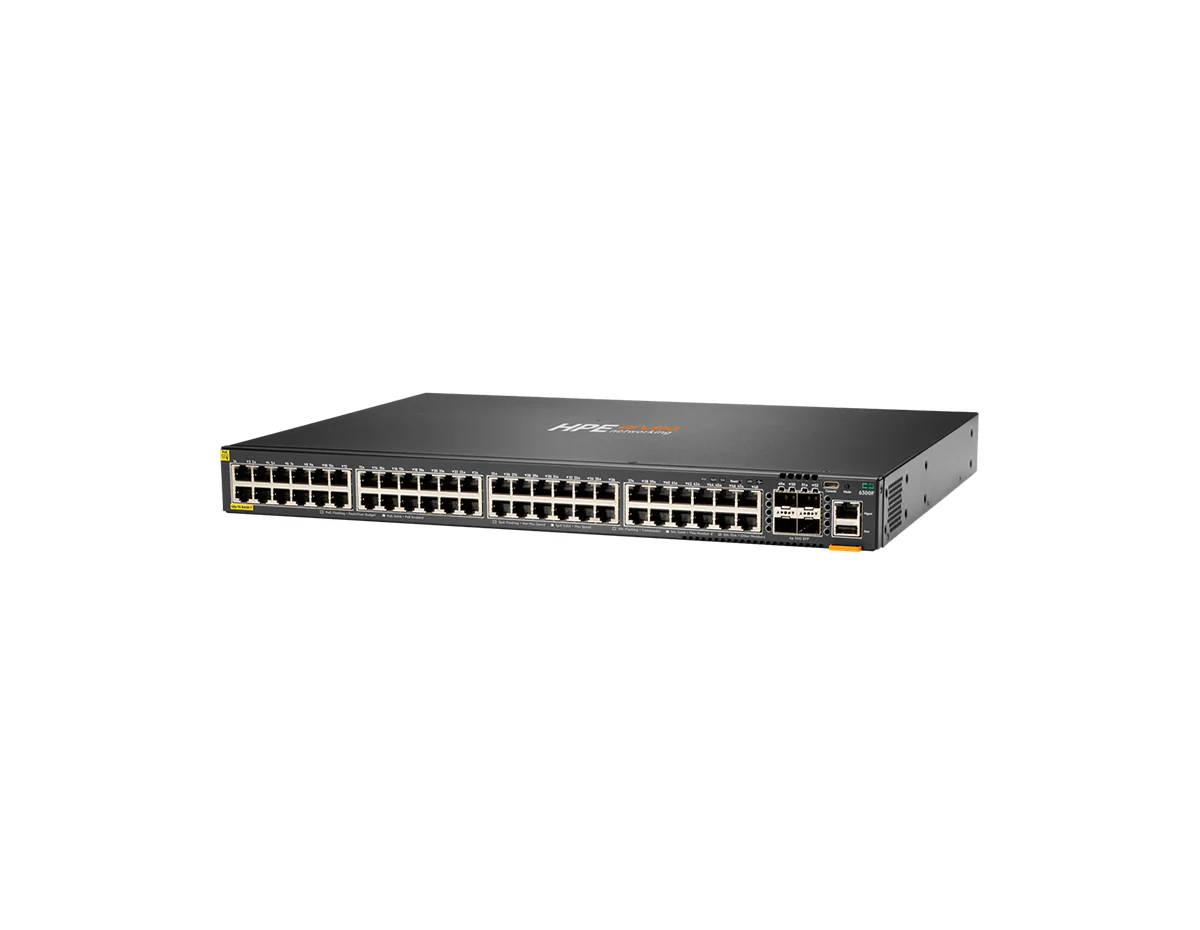

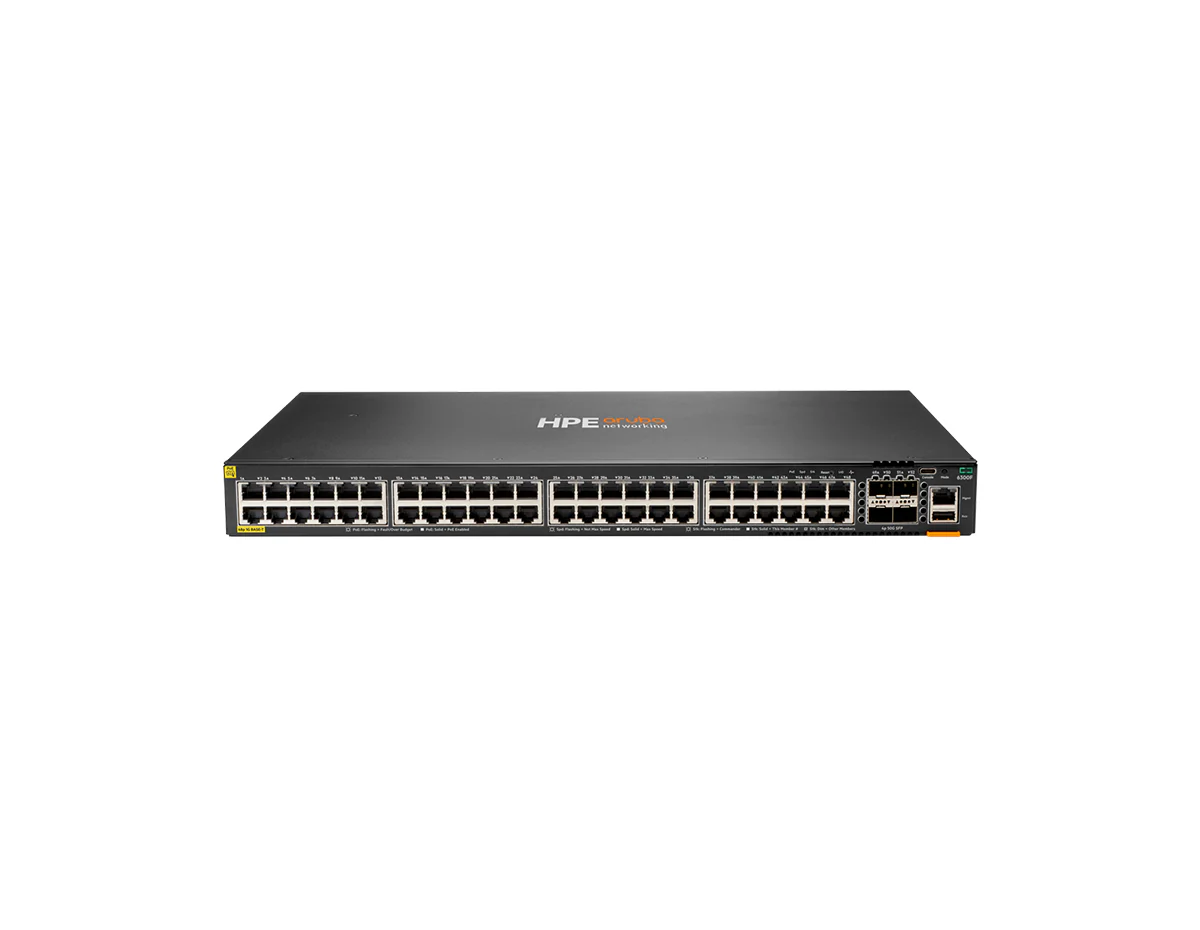

HPE Aruba Networking CX 6300F 48-port 1GbE Class 4 PoE and 4-port SFP56 Switch (JL665A)

The HPE Aruba Networking CX 6300F 48-port 1GbE Class 4 PoE Switch (JL665A) delivers advanced networking capabilities with power-over-Ethernet (PoE) for efficient device management and seamless data transfer. With 48 Gigabit Ethernet ports and four high-speed SFP56 uplinks, this switch is designed for enterprises that require flexible and scalable network solutions.

Key Features:

• 48 x 1GbE PoE Ports: Supports Class 4 PoE, delivering up to 30W per port for powering connected devices such as IP phones, cameras, and wireless access points.
• 4 x SFP56 Uplinks: Provides high-speed 50Gbps uplink options, ensuring high performance for data-intensive workloads.
• Advanced Layer 3 Features: Supports routing protocols such as OSPF, BGP, and VRF for traffic segmentation and efficient management.
• Energy-Efficient Design: Complies with IEEE 802.3az standards, minimizing power consumption while maintaining high performance.
• High Availability and Stacking: Supports HPE Virtual Switching Framework (VSF), enabling stacking of up to 10 switches for simplified management and scalability.

Technical Overview:

• Recommended for: Enterprise and campus environments with high device density.
• Ports: 48 x 1GbE PoE+ ports, 4 x 50Gbps SFP56 uplink ports.
• Switching Capacity: 496 Gbps.
• Forwarding Rate: 369 Mpps.
• Layer 3 Features: OSPF, BGP, VRF, VLAN, and ACLs for advanced traffic control.
• PoE Power: Class 4 PoE with up to 30W per port.
• Management: Managed via Web GUI, CLI, SNMP, and Aruba Central.
• Stacking: Supports up to 10 switches with VSF technology.
• Energy Efficiency: Complies with IEEE 802.3az for reduced power consumption.

You can check the related tab for the JL665A datasheet.
