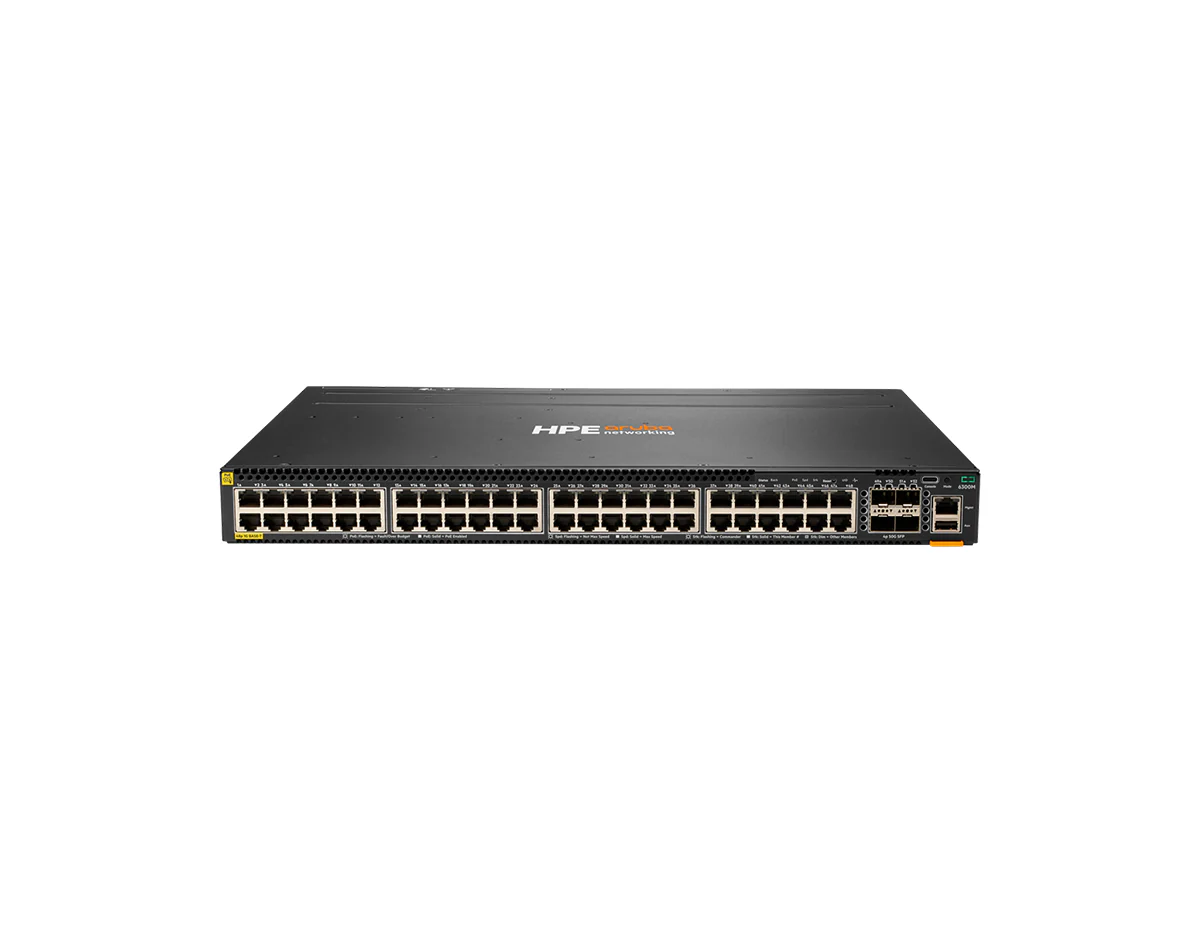

HPE Aruba Networking CX 6300 JL661A High-Performance 48-Port PoE+ Switch
[shortdesc]
- Managed, Rack-mountable, 48 x 1G PoE+ ports, 4 x SFP/SFP+/SFP28/SFP56 uplinks (1/10/25/50G), PoE+ (up to 1440W), Layer 3
[/shortdesc]
[properties]
| Properties | HPE Aruba Networking CX 6300M 48-port 1GbE Class 4 PoE and 4-port SFP56 Switch (JL661A) |
| Description | The JL661A provides 48 x 1GbE Class 4 PoE access ports and 4 SFP/SFP+/SFP28/SFP56 uplink slots (1/10/25/50G; 50G via DAC for VSF/stacking), delivering scalable Layer 3 access for enterprise edge. |
| Product Family | CX6300 Series |
| Product Type | Ethernet Switch |
| Ports and Slots | 48x ports 10/100/1000 BaseT PoE+ ports supporting up to 30W per port 4x 1/10/25/50G SFP/SFP+/SFP28/SFP56 uplink slots (50G via DAC for interconnect/VSF) Supports PoE Standards IEEE 802.3af, 802.3at 1x USB-C Console Port 1x OOBM port 1x USB Type A Host port 1x Bluetooth dongle to be used with CX Mobile App |
| Power supplies | Two hot-swappable PSU bays (Min 1 / Max 2; mix OK) Supported PSUs: JL086A (680W), JL087A (1050W), JL670A (1600W), JL758A (1050W DC) Max PoE Power: up to 1440W (depending on PSU configuration) |
| Frequency | 50/60 Hz |
| Voltage | JL670A PSU: 110V-120V/208V-240V JL086A PSU: 100V-240V JL087A PSU: 110V-240V |
| Current |
JL670A PSU: 11A/8A JL086A PSU: 8A/3.5A JL087A PSU: 12A/5A
|
| Power Consumption (230 VAC) |
With JL086A PSU: Idle: 70W 100% Traffic Rate: 90W With JL087A PSU: Idle: 71W 100% Traffic Rate: 88W With JL670A PSU: Idle: 73W 100% Traffic Rate: 96W
|
| Fans | Two fan-tray slots; includes 1 x JL669B fan tray (1 slot populated, 1 blank); hot-swappable |
| Dimensions | 1.73ā x 17.4ā x 15.2ā |
| Weight | 5.16 kg (11.37 lbs) |
| Mounting and enclosure |
Mounts in an EIA-standard 19 in. Telco rack or equipment cabinet. Horizontal surface mounting only. 2-post rack kit included.
|
[/properties][specifications]
| Specifications | JL661A 48-Port PoE+ Switch |
| CPU | Quad Core ARM Cortexā¢ A72 @ 1.8 GHz |
| Memory and Flash | 8 GB DDR4 32 GB eMMC |
| Packet Buffer | Shared Packet Buffer 8/16/32 MB (model/config dependent) |
| System Switching Capacity | 496 Gbps |
| System Throughput Capacity | 369 Gbps |
| Average Latency (LIFO-64-bytes packets) | 1Gbps: 2.28Ī¼Sec 10Gbps: 1.46Ī¼Sec 25Gbps: 1.90Ī¼Sec 50Gbps1: 3.49Ī¼Sec |
| Switched Virtual Interfaces (dual stack) | 1,024 |
| IPv4 Host Table (ARP) | 49,152 |
| IPv6 Host Table (ND) | 49,152 |
| IPv4 Unicast Routes | 61,000 |
| IPv6 Unicast Routes | 61,000 |
| IPv4 Multicast Routes | 8,192 |
| IPv6 Multicast Routes | 8,192 |
| MAC Table Capacity | 32,768 |
| IGMP Groups | 8,192 |
| MLD Groups | 8,192 |
| IPv4/IPv6/MAC ACL Entries (ingress) | 20,480/5,120/20,480 |
| Stack Size | 10 members |
| Max. Stacking Distance | Up to 10 kms with long range transceivers |
| Stacking Bandwidth | 200 Gbps |
| Operating Temperature |
32Ā°F to 113Ā°F (0Ā°C to 45Ā°C) up to 5,000 ft derate -1Ā°C for every 1,000 ft from 5,000 ft to 10,000 ft.
|
| Primary Airflow | Front and side to back |
| Safety | US: UL 60950-1 2nd Ed. |
| Emissions | US: FCC part 15, Class A |
| Lasers |
EN 60825-1:2007 / IEC 60825- 1:2007 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only)
|
| Immunity | CISPR 24 / CISPR 35 EN 55024:2010 / EN 55035:2017 IEC 61000-4-2 IEC 61000-4-3 IEC 61000-4-4 IEC 61000-4-5 IEC 61000-4-6 IEC 61000-4-8 IEC 61000-4-11 EN 61000-3-2, IEC 61000-3-2 EN 61000-3-3 EN 61000-3-3 |
[/specifications][accesories]
| Accessories | |
| JL669B | ā¢ Aruba X751 Port to Power Fan Tray |
| JL761A | Aruba 6300M Power-to-Port Fan Tray |
| J9583A | ā¢ HPE X410 1U Universal 4-post Rack Mount Kit |
| J9583B | ā¢ Aruba X414 1U Universal 4-post Rack Mounting Kit |
| R9G48A | ā¢ Aruba USB-A to RJ45 PC-to-Switch Cable |
| R8Z87A | ā¢ Aruba USB-A to RJ45 PIN3TX-6RX Cable |
| R9J32A | ā¢ Aruba USB-A to USB-C PC-to-Switch Cable |
| R9J33A | ā¢ Aruba USB-C to USB-C PC-to-Switch Cable |
| S1H23A | ā¢ HPE Aruba Networking CX Switch Bluetooth Adapter |
| JL487A | Aruba 25G SFP28 to SFP28 0.65m Direct Attach Copper Cable |
| JL488A | Aruba 25G SFP28 to SFP28 3m Direct Attach Copper Cable |
| JL489A | Aruba 25G SFP28 to SFP28 5m Direct Attach Copper Cable |
| R0M46A | āAruba 50G SFP56 to SFP56 0.65m DAC Cable |
| R0M47A | āAruba 50G SFP56 to SFP56 3m DAC Cable |
| Cables | |
| J9281D | ā¢ Aruba 10G SFP+ to SFP+ 1m Direct Attach Copper Cable |
| J9283D | ā¢ Aruba 10G SFP+ to SFP+ 3m Direct Attach Copper Cable |
| Power Supplies | |
| JL085A | ā¢ Aruba X371 12VDC 250W 100-240VAC Power Supply |
| JL086A | ā¢ Aruba X372 54VDC 680W 100-240VAC Power Supply |
| JL087A | ā¢ Aruba X372 54VDC 1050W 100-240VAC Power Supply |
| JL670A | ā¢ Aruba X372 54VDC 1600W 100-240VAC Power Supply |
| JL760A | ā¢āAruba X371 12VDC 250W 100-240VAC Power-to-Port Power Supply |
| JL757A | ā¢āAruba 6300M 250W 36-72VDC PSU |
| JL758A | ā¢āAruba 6300M 1050W 36-72VDC |
| Transceivers | |
| J9054D | āAruba 100M SFP LC FX 2km MMF XCVR (J9054D) |
| J4858D | ā¢ Aruba 1G SFP LC SX 500m MMF Transceiver |
| J4859D | ā¢ Aruba 1G SFP LC LX 10km SMF Transceiver |
| J4860D | ā¢ Aruba 1G SFP LC LH 70km SMF Transceiver |
| J8177D | ā¢ Aruba 1G SFP RJ45 T 100m Cat5e Transceiver |
| JL745A | ā¢āAruba 1G SFP LC SX 500m MMF TAA Transceiver |
| JL746A | ā¢āAruba 1G SFP LC SX 500m SMF TAA Transceiver |
| JL747A | ā¢āAruba 1G SFP LC SX 500m Cat5 TAA Transceiver |
| J9150D | ā¢ Aruba 10G SFP+ LC SR 300m MMF Transceiver |
| J9151E | ā¢ Aruba 10G SFP+ LC LR 10km SMF Transceiver |
| J9153D | ā¢ Aruba 10G SFP+ LC ER 40km SMF Transceiver |
| JL563B | ā¢ Aruba 10GBASE-T SFP+ RJ-45 30m Cat6A Transceiver |
| J9152D | ā¢ Aruba 10G SFP+ LC LRM 220m MMF Transceiver |
| JL748A | ā¢āAruba 10G SFP+ LC SR 300m MMF TAA Transceiver |
| JL749A | ā¢āAruba 10G SFP+ LC SR 10km SMF TAA Transceiver |
| JL484A | Aruba 25G SFP28 LC SR 100m MMF Transceiver |
| JL485A | Aruba 25G SFP28 LC SR 400m MMF Transceiver |
| JL486A | Aruba 25G SFP28 LC SR 10km SMF Transceiver |
| R0M48A | Aruba 50G SFP56 LC SR 100m MMF XCVR |
[/accesories]
HPE Aruba JL661A ā CX 6300M 48-port 1GbE PoE+ & 4-port SFP56 Switch
The Aruba CX 6300M JL661A is an enterprise-class Layer 3 access switch with 48 x 1GbE PoE+ and 4 flexible SFP/SFP+/SFP28/SFP56 uplinks supporting 1/10/25/50G (50G via DAC for VSF stacking). Delivering 496 Gbps switching capacity and 369 Mpps forwarding, it powers dense edge deployments with a PoE budget up to 1440W (PSU-dependent) for APs, cameras, and IP phones. Operated via Aruba Central, CLI, or SNMP, the JL661A combines performance, security (802.1X, ACLs), and scalability (VSF up to 10) in a compact 1U design.
Key Features:
- 48 x 1GbE PoE+ Ports: Provides up to 30W per port, ideal for powering connected PoE devices.
- 4 x SFP/SFP+/SFP28/SFP56 uplink slots (1/10/25/50G; 50G via DAC): Supports 1G, 10G, 25G, and 50G uplinks for scalable network expansion.
- Advanced Layer 3 Routing: Offers routing protocols like OSPF and BGP for enhanced traffic management.
- Energy-Efficient Design: Compliant with energy-saving standards, reducing power consumption during low activity periods.
- Secure Access Control: Features ACLs and 802.1X authentication for secure network access.
Technical Overview:
- Recommended for: Enterprise networks, branch offices, and educational institutions.
- Ports: 48 x 10/100/1000 Mbps Gigabit Ethernet PoE+ ports, 4 x 1G/10/25/50G SFP56 uplink ports.
- PoE Power Budget: up to 1440W (with appropriate PSU configuration).
- Switching Capacity: 496 Gbps.
- Forwarding Rate: 369 Mpps.
- Management: Managed via Aruba Central, Web GUI, CLI, SNMP.
- Energy Efficiency: Compliant with IEEE 802.3az standards.
